Old 05-02-2016, 04:36 PM   #41
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

Quote:
Originally Posted by SoLoOne View Post
Can you elaborate on this? Interested.

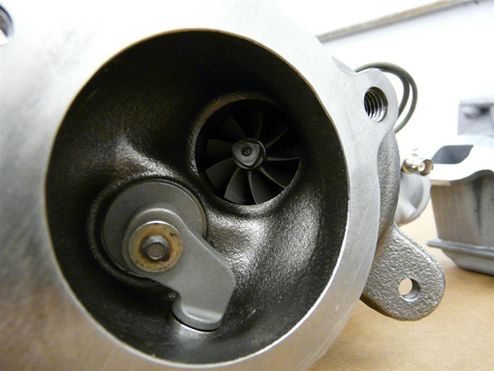

look at the ford ecoboost line of turbos. Tiny turbo, quick spool no boost creep. if you look at the wastegate port it is in some cases just as large as the turbine diameter. The path of exhaust flow through the waste gate is also much more ideal than the garret gt25 turbos most people run. These aren't exactly "low boost" turbos but it all comes down to the design of the turbo.

Every turbo is different. Some will handle creep better than others.

Attached Thumbnails
Turbo too small?-80-18axpnrur3jpfjpg_28547a968aba68b4e1e704e43a2c089515493f15.jpg
cyotani is offline   Reply With Quote
Old 05-02-2016, 05:00 PM   #42
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,926
Default

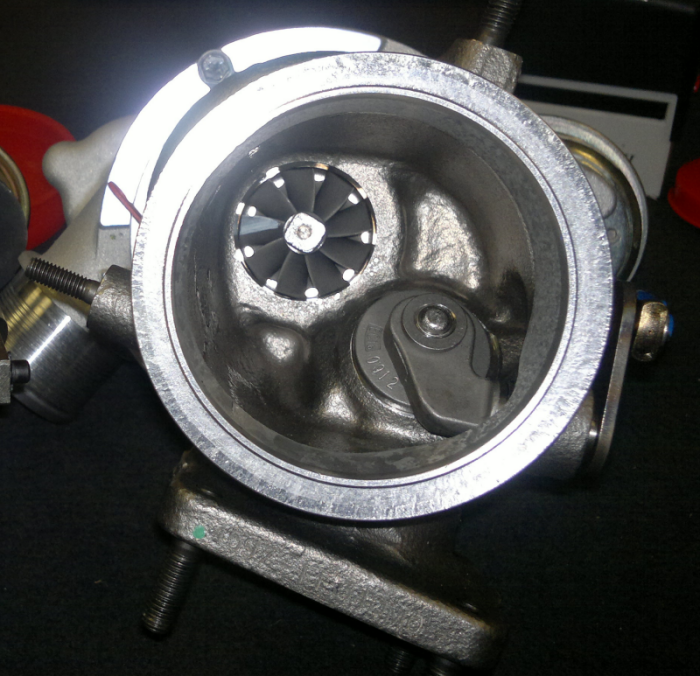

If a German forum about French cars can be trusted, this is a 1446, specifically from an Abarth 500:




Now, I've no idea whether the Fiat-Chrysler partnership means that the Darté is running the same turbo, but it seems reasonable.

These Brits believe that said turbo peaks out around 225 HP.




I'm usually quite critical of the "I found this random turbo that isn't well-suited to the application, and I'm going to base my whole build around it because it was slightly cheaper than the correct turbo, so screw you guys and your logical arguments. Oh, and by the way, this is going on a 1.6 failblock to boot" builds. But in this case, I kind of want to see what will happen.




Attached Thumbnails
Turbo too small?-80-blob_6ac076677e60ddfcd120928638098987c7b1cb62.png
Joe Perez is offline   Reply With Quote
Old 05-02-2016, 05:17 PM   #43
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 878
Total Cats: 93
Default

Quote:
Originally Posted by Joe Perez View Post
If a German forum about French cars can be trusted, this is a 1446, specifically from an Abarth 500:


Now, I've no idea whether the Fiat-Chrysler partnership means that the Darté is running the same turbo, but it seems reasonable.

These Brits believe that said turbo peaks out around 225 HP.




I'm usually quite critical of the "I found this random turbo that isn't well-suited to the application, and I'm going to base my whole build around it because it was slightly cheaper than the correct turbo, so screw you guys and your logical arguments. Oh, and by the way, this is going on a 1.6 failblock to boot" builds. But in this case, I kind of want to see what will happen.
I still think that's too small. Much smaller than a GT2554r. I don't see how 225 hp is possible as that would be like right at the edge of the compressor map for the MGT1446 (not right side of efficient part, like almost off the map). This turbo was matched decent to our 1 cylinder 450cc dirtbike motor. We ended up using the compressor off of an MGT1238 and the hotside form the MGT1446, but either way, it's ideal for a small motor. I can't see it having much room to grow on the Fiat 1.4L.
acedeuce802 is offline   Reply With Quote
Old 05-02-2016, 05:39 PM   #44
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,926
Default

Quote:
Originally Posted by acedeuce802 View Post
I still think that's too small. Much smaller than a GT2554r. I don't see how 225 hp is possible as that would be like right at the edge of the compressor map for the MGT1446 (not right side of efficient part, like almost off the map). This turbo was matched decent to our 1 cylinder 450cc dirtbike motor. We ended up using the compressor off of an MGT1238 and the hotside form the MGT1446, but either way, it's ideal for a small motor. I can't see it having much room to grow on the Fiat 1.4L.
I'm really torn here...

On the one hand, it does intuitively seem too small for a Miata.

On the other hand, it's obviously not entirely too small for a 1.4L Fiat engine making 160 hp / 184 tq in what one supposes is likely a conservative factory tune.

On the gripping hand, it's quite probable that even the French have, by now, figured out how to design a head which is considerably less horrible than the 80s vintage copy of a 70s vintage tractor engine that Mazda stuck into the early Miatas, and that would shift things around on the compressor map quite a bit.

Still a teensey little turbine section...

Attached Thumbnails
Turbo too small?-80-blob_1fe94b74ad6c53dd2844869fc5d3accd7bc96560.png
Joe Perez is offline   Reply With Quote
Old 05-02-2016, 07:09 PM   #45
Senior Member

Join Date: Oct 2013
Location: NorthWest NJ
Posts: 1,062
Total Cats: 48
Default

If you want a sliiiiightly larger starting point, my friend needs to off load a brand new turbo from a 1.6L turbo Nisan Juke. That could be a fun build for 160-170 at the rear wheels on a 1.6 Miata. He was going to run it for shiggles but a nicer setup fell into his lap for cheap. I am rather sad, as it would have been fun to see what would happen with it.

Figuring the juke is 188hp, but likely a conservative tune/pressure, but the B6 head is a POS, so maybe about the same max.
x_25 is offline   Reply With Quote
Old 05-02-2016, 11:55 PM   #46
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by 18psi View Post
this isn't about *****. this is about spending at least 2 grand to make 30hp

it sounds like you just need a 1.8 vvt swap and nothing else
Or gasp one of those silly supercharger kits that also make about 150 hp and bolt on. They seem to pop up on craigslist more or less complete with or without their bandaids for like $350 from time to time.
Leafy is offline   Reply With Quote
Old 05-12-2016, 03:40 AM   #47
Newb

Join Date: Dec 2015
Location: Fort Payne, Alabama
Posts: 23
Total Cats: 7
Default

You could make close to that with a 1.8 with bolt ons. If you don't want a ton more power right now just swap a 1.8 and have the upgradeability to do a turbo later on and get moarofit
elijah_mckay is offline   Reply With Quote
Old 05-12-2016, 07:30 AM   #48
Junior Member

Join Date: Jan 2016
Posts: 441
Total Cats: 21
Default

Quote:
Originally Posted by deezums View Post
If you can make a manifold I'd get a K03 from a VW or Mini. Still something I want to do, will be crazy peaky for awesome spool but will choke flow to around 160-180 on top. They are crazy cheap, those guys like upgrading to k04s. Or there's the BMW twin turbo M car, get one of those turbos.

There's a few guys done it around the internet, not many here I've seen...
Probably one of the most "successful" attempts at a k03 This happens when you put a tiny turbo on a Miata : Miatapower List Archive : MX-5 Miata World Forum : MX-5 Miata World
Forrest95M is offline   Reply With Quote
Old 05-12-2016, 08:04 AM   #49
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

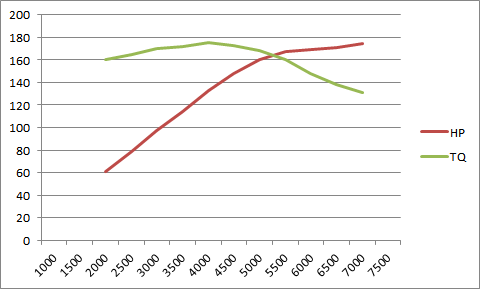

I helped tune a TD04L-13T setup utilizing a turbo from a WRX. Running just a 2.5" exhaust, could hold 7psi or 12psi no problem. Thing made 175tq/175rwhp on a Dynapak dyno, which always read 12% lower than all my dynojet runs.

TQ was flat at 175 from like 1.5K till about 5.5K. It looked a lot like this:



https://www.miataturbo.net/miata-par...-%24500-53553/
Attached Thumbnails
Turbo too small?-80-undefined_f68ac1315fbe46a9307e431bd06c498e6d055fc2.png
Braineack is offline   Reply With Quote
Old 05-12-2016, 11:20 AM   #50
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

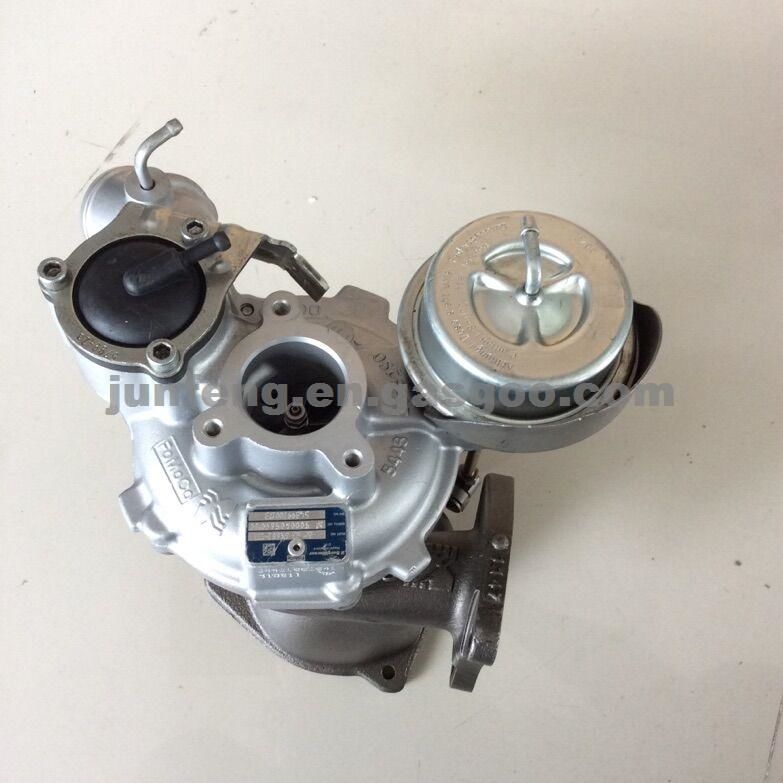

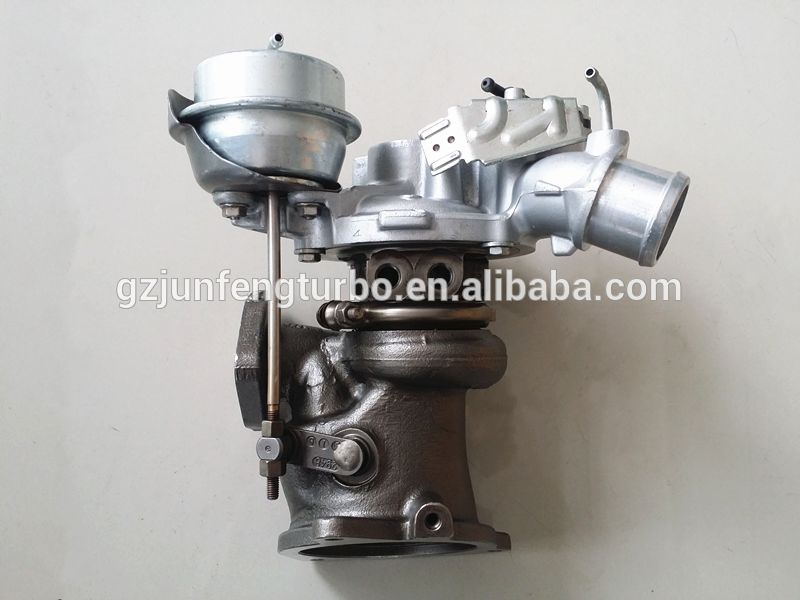

I've been considering trying out a ford fiesta 1.6 eco boost turbo on a bp engine. It's a tiny borg warner turbo. Lots of torque down low but it would most likely choke up at higher airflow. It would probably make for a great DD fun but now what I'd be looking for at the track.

What do you guys think?






Attached Thumbnails
Turbo too small?-80-htb16voripxxxxbsxvxxq6xxfxxxb_9f155518f1e8e3b6f290161b872193e0720843dc.jpg   Turbo too small?-80-003166813_50ec8f5bdbe57470245ac08792dca61b5064bfb9.jpg   Turbo too small?-80-rallyways_fiesta_st_stock_dynojet_chart_8a9459f5c84c41d93f985da211c8b0bce9ef70af.jpg
cyotani is offline   Reply With Quote
Old 05-12-2016, 11:30 AM   #51
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,584
Default

Quote:
Originally Posted by cyotani View Post
I've been considering trying out a ford fiesta 1.6 eco boost turbo on a bp engine. It's a tiny borg warner turbo. Lots of torque down low but it would most likely choke up at higher airflow. It would probably make for a great DD fun but now what I'd be looking for at the track.

What do you guys think?
same as what you already think / know
18psi is offline   Reply With Quote
Old 05-12-2016, 12:04 PM   #52
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

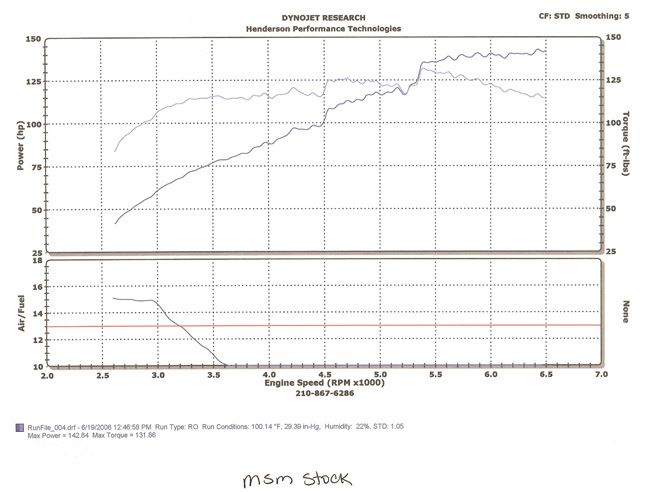

Power wise I'd be happy with 180 or so whp at the track. But what would concern me is operating at a low efficiency part of the compressor map for an extended period of time and what that would do to intake temperatures.


It looks like it would kick the *** of a stock msm setup. I think I need a DD turbo miata and a track turbo miata.

Attached Thumbnails
Turbo too small?-80-begi_05_msm_stock_png_6a5be4752d6342afa1ad9e34ecedda60bff1fb96.jpg
cyotani is offline   Reply With Quote
Old 05-12-2016, 12:10 PM   #53
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,584
Default

if you have proper fmic and ducting I don't see how it would be any worse than a bolt on msm or any of the MANY other small turbo cars that get tracked.

the biggest drawback is having to custom fab everything and likely having a non-interchangeable turbo/setup, not much else.

people track focus/fiesta st's all the time
18psi is offline   Reply With Quote
Old 05-12-2016, 12:12 PM   #54
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

Quote:
Originally Posted by 18psi View Post
if you have proper fmic and ducting I don't see how it would be any worse than a bolt on msm or any of the MANY other small turbo cars that get tracked.

the biggest drawback is having to custom fab everything and likely having a non-interchangeable turbo/setup, not much else.

people track focus/fiesta st's all the time
touche.

I picked one up off ebay for $200. maybe I'll get around to testing this some day.
cyotani is offline   Reply With Quote
Old 05-12-2016, 12:14 PM   #55
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,584
Default

I always wanted to do that (create a diesel powerband setup)
just sounds like fun and amusing for a daily driver
never got around to it. hopefully you'll actually do it
18psi is offline   Reply With Quote
Old 05-12-2016, 12:17 PM   #56
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by cyotani View Post
touche.

I picked one up off ebay for $200. maybe I'll get around to testing this some day.
Buying a random cheap turbo and building a setup around it is stupid, you should pick up a standard t25 off an SR20 and just run that.

/s
shuiend is online now   Reply With Quote
Old 05-12-2016, 12:18 PM   #57
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,584
Default

I don't think even a t25 would outspool this thing

but is it worth it? I dunno. I never found out
18psi is offline   Reply With Quote
Old 05-12-2016, 12:41 PM   #58
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

Quote:
Originally Posted by shuiend View Post
Buying a random cheap turbo and building a setup around it is stupid, you should pick up a standard t25 off an SR20 and just run that.

/s
It's not a random cheap turbo. It's a carefully selected modern technology borg warner turbo that spools like nothing else out there. I pulled the trigger since you can buy them for cheap since Ford is using them everywhere. I still think it would be a really fun turbo setup. I'm just torn between should my dual duty weekend/track toy be more track or street oriented and if it will be worth the fab work. Plus I like wrenching on this car and no one has tried this combo yet so it's something I'd eventually like to test.
cyotani is offline   Reply With Quote
Old 05-12-2016, 12:58 PM   #59
Senior Member

Join Date: Oct 2013
Location: NorthWest NJ
Posts: 1,062
Total Cats: 48
Default

In for spool at 2000rpm.

We were going to do this on my friend's 1.6 (though with a brand new turbo from a 1.6L Nisan Juke he got for $100). But he ended up with a stupid good deal on an upgraded greddy kit (only thing original to the kit is the turbo and the oil lines...) For stupid cheap.

Maybe run a pair of the tiny turbos?
x_25 is offline   Reply With Quote
Old 05-12-2016, 01:19 PM   #60
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by cyotani View Post
It's not a random cheap turbo. It's a carefully selected modern technology borg warner turbo that spools like nothing else out there. I pulled the trigger since you can buy them for cheap since Ford is using them everywhere. I still think it would be a really fun turbo setup. I'm just torn between should my dual duty weekend/track toy be more track or street oriented and if it will be worth the fab work. Plus I like wrenching on this car and no one has tried this combo yet so it's something I'd eventually like to test.
The /s was to show the end of my sarcasm. I think it is a very interesting idea and you are not a noob who does not know what they are doing. So I look forward to seeing the results. Sometime in the future I might even grab one just to play with if I ever get some free time.
shuiend is online now   Reply With Quote
