Default V band turbo question

I have a t3 turbo on my mostly series 5 from BEGI.

I have the standard ford type 5 bolt down pipe flange.

I am looking at a turbo that has a vband type down pipe flange. From the pictures it looks like the vband is bolted onto the turbo with the ford 5 bolft flange pattern I have.

Can I just unbolt this vband thing and be on my way??

Thanks everyone.
TURNS101 is offline   Reply With Quote
Old 09-02-2008, 05:01 PM   #2
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

You should be able to. Just be sure it's a Ford 5-bolt. Does the v-band piece look like this piece? If so, I'm interested for the right price.

m2cupcar is offline   Reply With Quote
Old 09-02-2008, 06:37 PM   #3
Senior Member
iTrader: (4)

Join Date: Oct 2006
Location: Tampa
Posts: 780
Total Cats: 0
Default

That is sex right there. I would love to convert my current set up to a Vband.
96rdstr is offline   Reply With Quote
Old 09-02-2008, 07:39 PM   #4
Senior Member
Thread Starter
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default

M2, yes sir. That is what it looks like. Not that pretty though man

It would be new and it is the ford type 5 bolt on there.

If I do this I will PM you and see if you are interested at all.

Thanks for the info..
TURNS101 is offline   Reply With Quote
Old 09-02-2008, 10:24 PM   #5
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

m2cupcar is offline   Reply With Quote
Old 09-03-2008, 04:16 AM   #6
I'm Miserable!
iTrader: (5)

Join Date: Sep 2005
Location: SLC, Utah
Posts: 1,591
Total Cats: 0
Default

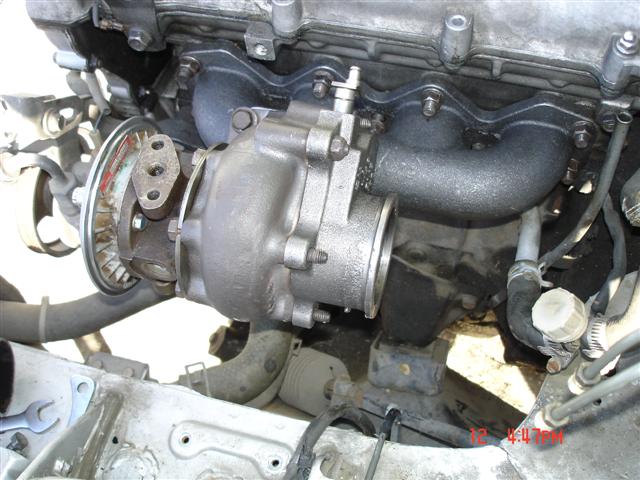

here is my setup.
Attached Thumbnails
V band turbo question-dsc04131-small-.jpg
zoom2zoom is offline   Reply With Quote
Old 09-03-2008, 09:13 PM   #7
Senior Member
Thread Starter
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default

Thanks, that is what I was talking about.

Problem is, the number were the opposite way I want them LOL..

Compressor was too small and turbine was too big :(
TURNS101 is offline   Reply With Quote
Old 09-04-2008, 04:51 AM   #8
I'm Miserable!
iTrader: (5)

Join Date: Sep 2005
Location: SLC, Utah
Posts: 1,591
Total Cats: 0
Default

Quote:
Originally Posted by TURNS101 View Post
Thanks, that is what I was talking about.

Problem is, the number were the opposite way I want them LOL..

Compressor was too small and turbine was too big :(
What? pretty much all 5-bolt t3 housings are the same and the v-band flapper housing bolts right up!! .48 or .63 are the same.
zoom2zoom is offline   Reply With Quote
Old 09-04-2008, 10:05 AM   #9
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

He was talking about the turbo specs, not the vband flange/wg housing. And there's more than one t3 five bolt pattern.
m2cupcar is offline   Reply With Quote
Old 09-04-2008, 10:45 AM   #10
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Splitime was selling a T25 or something with a V-band flange welded to it a while back.
y8s is offline   Reply With Quote
Old 09-04-2008, 11:57 PM   #11
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default ching chong

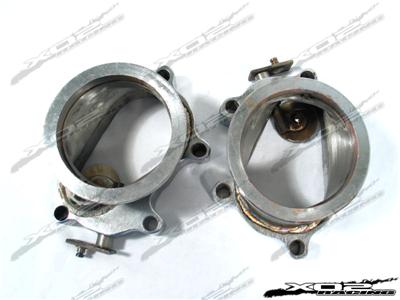

The chinese have officially knocked off ATP's t3 internal vband gate, which IMO is the way to go. It's only $10 more than the cast t3 piece above and looks to be big improvement on flow over the OE housings.
Attached Thumbnails
V band turbo question-136444314_tp.jpg
m2cupcar is offline   Reply With Quote
Old 09-05-2008, 12:09 AM   #12
Junior Member
iTrader: (4)

Join Date: Dec 2007
Location: k-w on Canada
Posts: 48
Total Cats: 0
Default

i've tried the apt cast 3" wastegate and it's to big to fit with the fm2 manifold. unless you cut the rear shelf to make room for the downpipe
Marlond is offline   Reply With Quote
Old 09-05-2008, 04:04 AM   #13
I'm Miserable!
iTrader: (5)

Join Date: Sep 2005
Location: SLC, Utah
Posts: 1,591
Total Cats: 0
Default

Quote:
Originally Posted by m2cupcar View Post
The chinese have officially knocked off ATP's t3 internal vband gate, which IMO is the way to go. It's only $10 more than the cast t3 piece above and looks to be big improvement on flow over the OE housings.
How much are they? I got my Garrett v-band piece for less than $40, but the guy selling it didn't know it was a Garrett part and didn't market it as such.
zoom2zoom is offline   Reply With Quote
Old 09-05-2008, 11:31 AM   #14
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

$60 delivered- the chinese version of yours is 50, so you got a stellar deal for a "true" part.
