Vashthestampede's Miata 2.1 - Page 8 - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 10-24-2011, 04:33 PM   #141
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,896
Total Cats: 1,792
Default

Braineack is online now   Reply With Quote
Old 10-24-2011, 04:50 PM   #142
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

I can't stop thinking of teenage mutant ninja turtles when I see that car in green. I like it's current color
FRT_Fun is offline   Reply With Quote
Old 10-25-2011, 09:03 AM   #143
Antisaint
Thread Starter
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Ok wow. So no green hunh? lol

I'm not necessarily a fan or green myself either, but I'm surprised that so far everyone has said no go.

99mx5 - Thanks man!
Vashthestampede is offline   Reply With Quote
Old 02-08-2012, 02:05 PM   #144
Antisaint
Thread Starter
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Bringing this back in hopes of slight motivation to get the car back to DD status again.

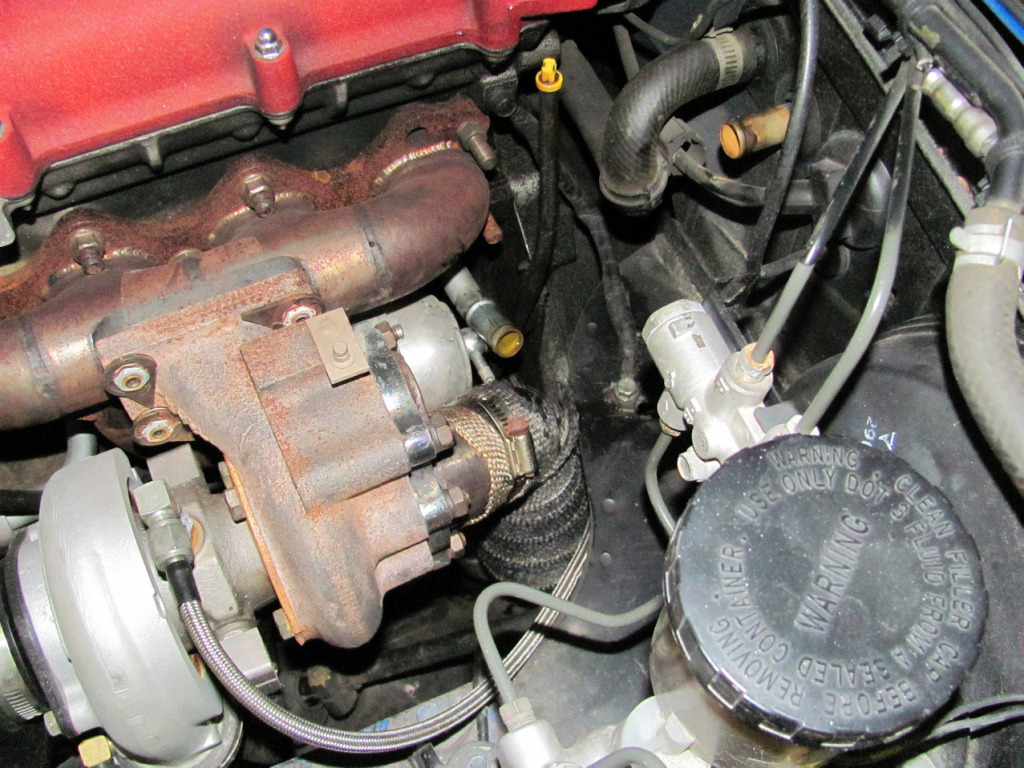

I actually decided to take the time to work on the miata today and the first order of business was the burnt up leaking coolant hose.

Anyone know which part number this particular hose is?

I'm wondering what the best way is to put it back together and prevent this from happening again. Maybe get another OEM hose and heat wrap it? Make my own hose with generic heater hose and couplers?

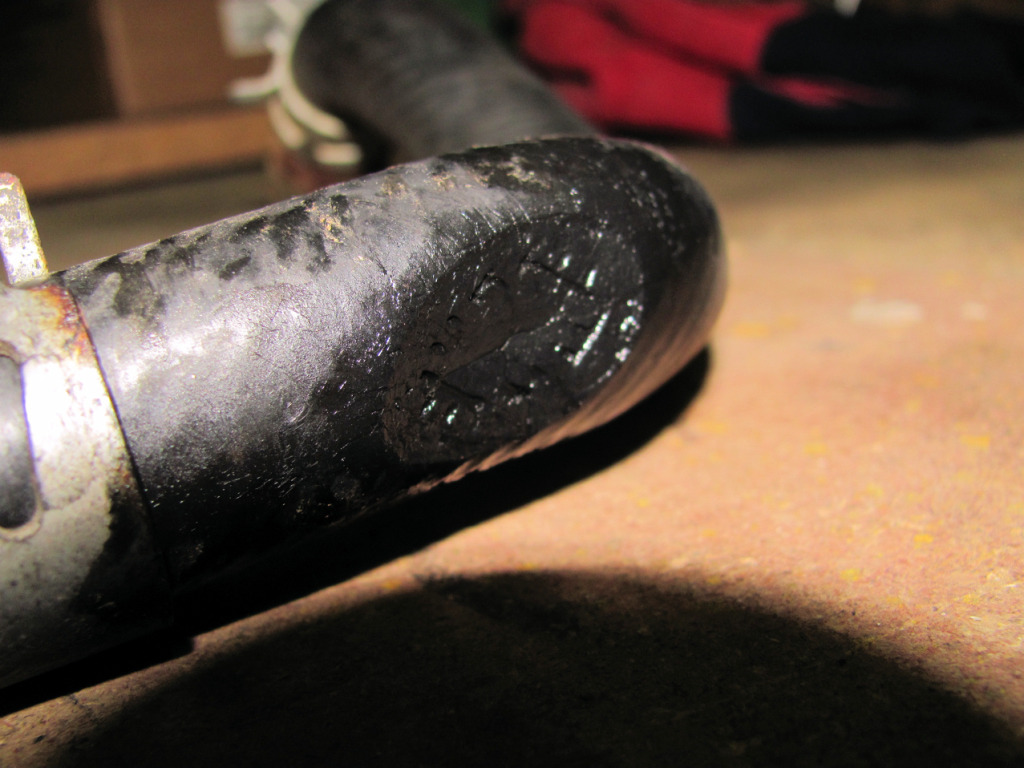

The 2nd picture is where the dp was touching and finally ate through the hose. I had no idea it was even happening, so those of you with a similar setup may want to take a peak at that heater hose.



Attached Thumbnails
Vashthestampede's Miata 2.1-hh01.jpg   Vashthestampede's Miata 2.1-hh02.jpg
Vashthestampede is offline   Reply With Quote
Old 02-08-2012, 02:20 PM   #145
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

I'll take a Picture of my setup, they're wrapped and it might work for you too. In the end you'll want a heat shield too.
curly is offline   Reply With Quote
Old 02-08-2012, 02:42 PM   #146
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Hey vash, I had the same issue with my greddy kit. After frying the hose i took it off, went to the local vato-zone or equivalent and asked to look at their heater hoses. I went in the back and found one that had a similar bend, but that didn't stick out as far, then i wrapped it in exhaust heat wrap secured with wire. When installed it had over an inch of open air space, and was wrapped in heat wrap - so i doubt its going to fail anytime soon at least.

Hope that helps or gives you some ideas.
Fireindc is offline   Reply With Quote
Old 02-08-2012, 02:53 PM   #147
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

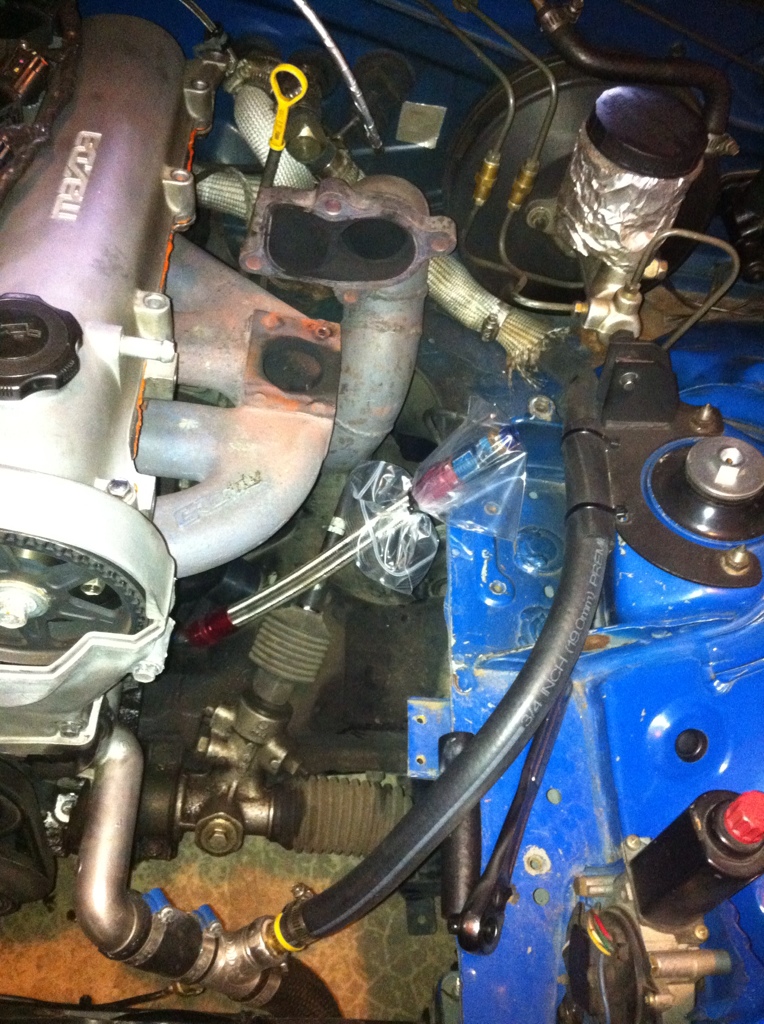

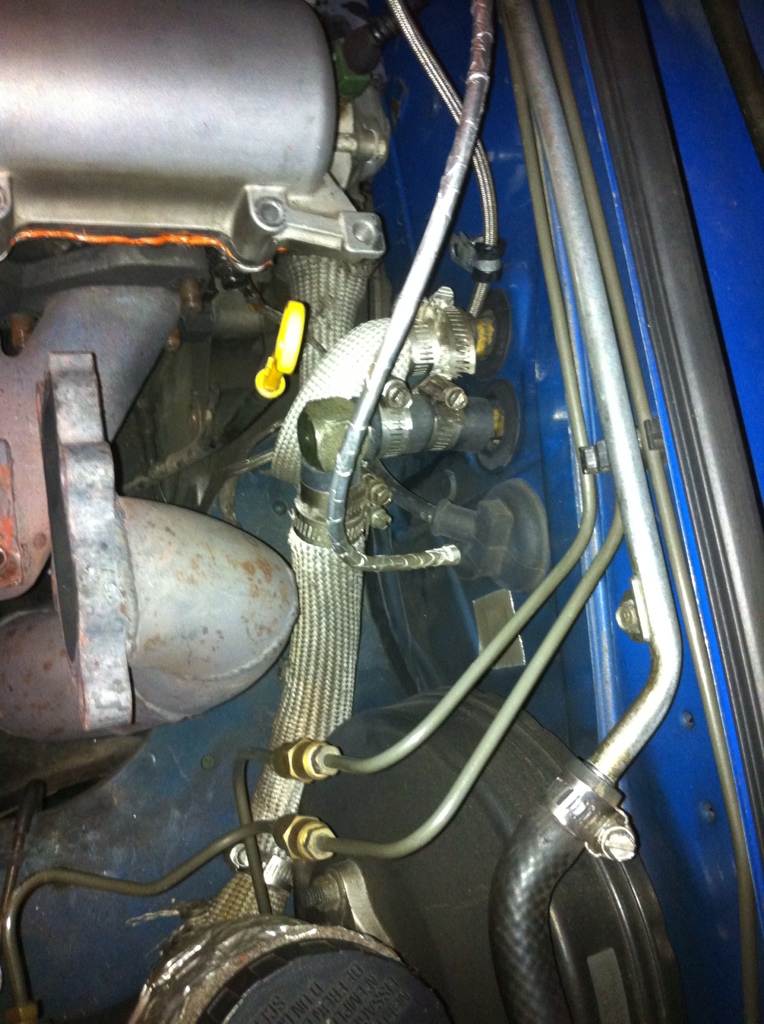

The dp fell back a bit when I unbolted it, it usually doesn't touch.
Attached Thumbnails
Vashthestampede's Miata 2.1-ce770dea.jpg   Vashthestampede's Miata 2.1-bda13d63.jpg
curly is offline   Reply With Quote
Old 02-08-2012, 03:04 PM   #148
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,896
Total Cats: 1,792
Default

I simply wrapped my heater hoses, then zip-tied them together. Doing this pulls the right one up towards the left and thus away from the DP.
Braineack is online now   Reply With Quote
Old 02-08-2012, 03:13 PM   #149
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Wrap it and put a metal heat shield in between them and never worry about it again. Still thinking about going green?
astroboy is offline   Reply With Quote
Old 02-08-2012, 07:00 PM   #150
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default





Attached Thumbnails
Vashthestampede's Miata 2.1-image004.jpg   Vashthestampede's Miata 2.1-image013.jpg   Vashthestampede's Miata 2.1-image016.jpg
triple88a is offline   Reply With Quote
Old 02-08-2012, 07:12 PM   #151
Antisaint
Thread Starter
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Curly thanks for the pics. I'm thinking that's what I'll do. When I go to the parts place next (probably tmr) I'll grab some length of hose and hopefully wrap if they have it. If not, I'll order it and wrap it later on.

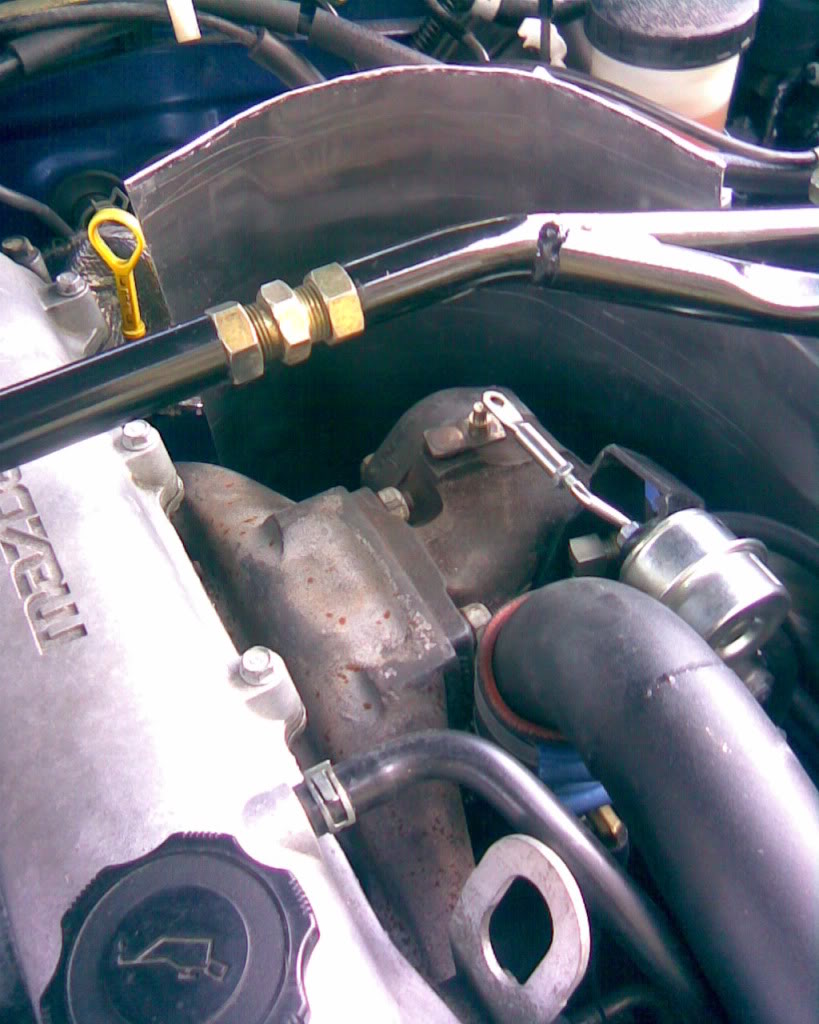

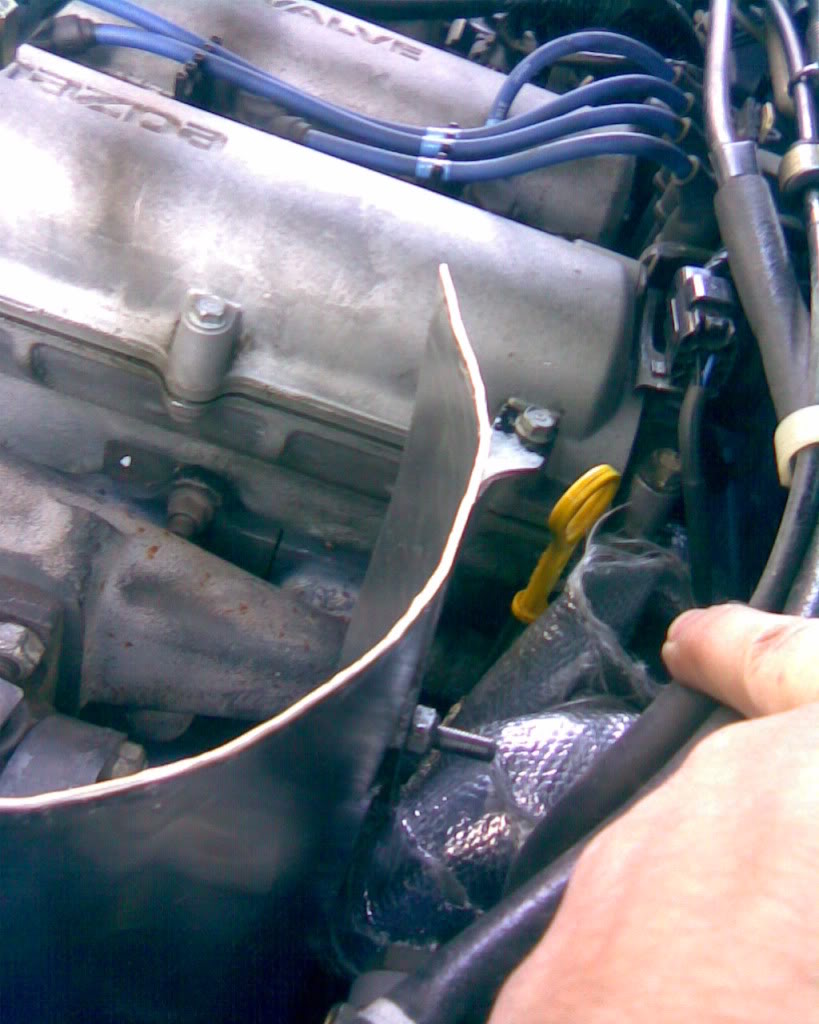

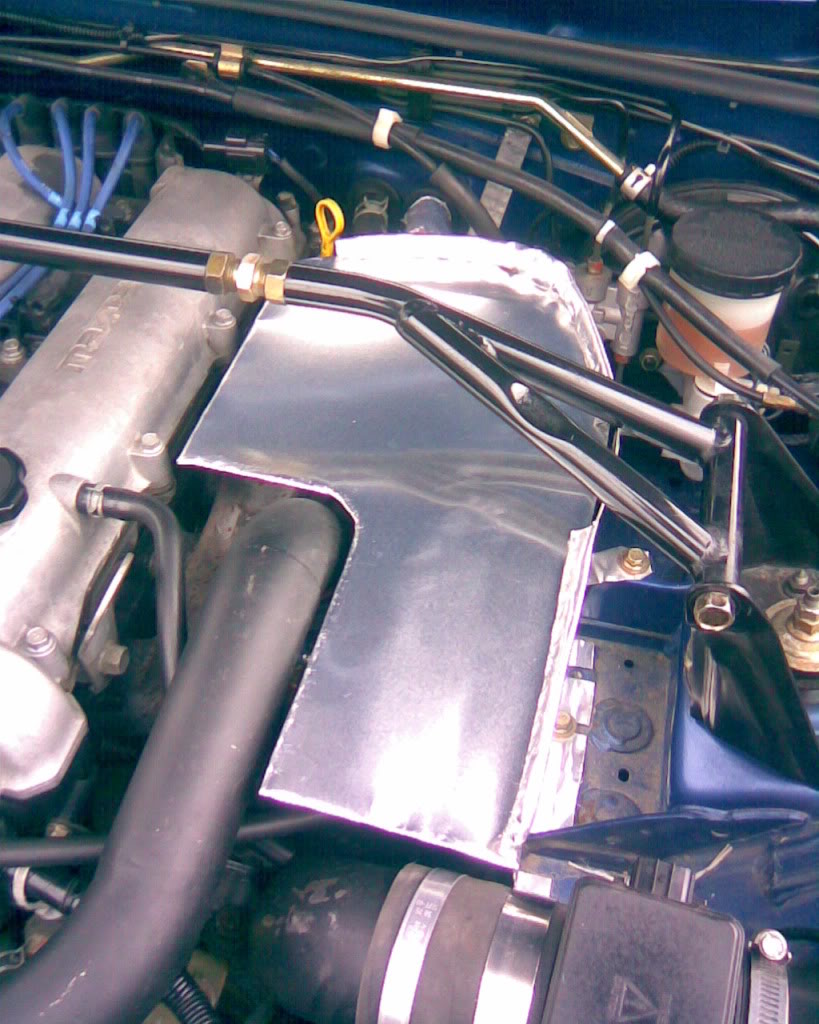

I have a heat shield but it doesn't separate the hose like the one pictured above. It was meant for a FM kit and I hacked it up to make it fit. Most of the back where the dp is doesn't have anything left to it. Maybe time to make one.....hmmmmm

Not going to go green lol. I've decided to keep it black/blue for now. If I change anything this year its going to be the rear bumper. I'd like to get some nice seats, but I'm so ------- dirty after work it'd be pointless. They wouldn't make it a week.

I hope to get the car back as my DD, as well as fix the overheating issue I've been having for the past year. Maybe back to the dyno to go over my tune and get numbers again. Other than that I just want to drive it again.
Vashthestampede is offline   Reply With Quote
Old 02-08-2012, 07:20 PM   #152
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

Yeah, if it's only a side and/or top shield, it's fairly useless. The main things you wanna protect are in the back, with the heater lines and MC.
curly is offline   Reply With Quote
Old 04-13-2012, 05:55 PM   #153
Newb

Join Date: Jan 2012
Posts: 11
Total Cats: -1
Default

It looks happy..haha.
jus390 is offline   Reply With Quote
Old 04-13-2012, 06:29 PM   #154
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by curly View Post
Yeah, if it's only a side and/or top shield, it's fairly useless. The main things you wanna protect are in the back, with the heater lines and MC.
The big shield is quite nice. My hood above the turbo is cooler than my intake side and so is my filter.
triple88a is offline   Reply With Quote
Old 04-13-2012, 09:01 PM   #155
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

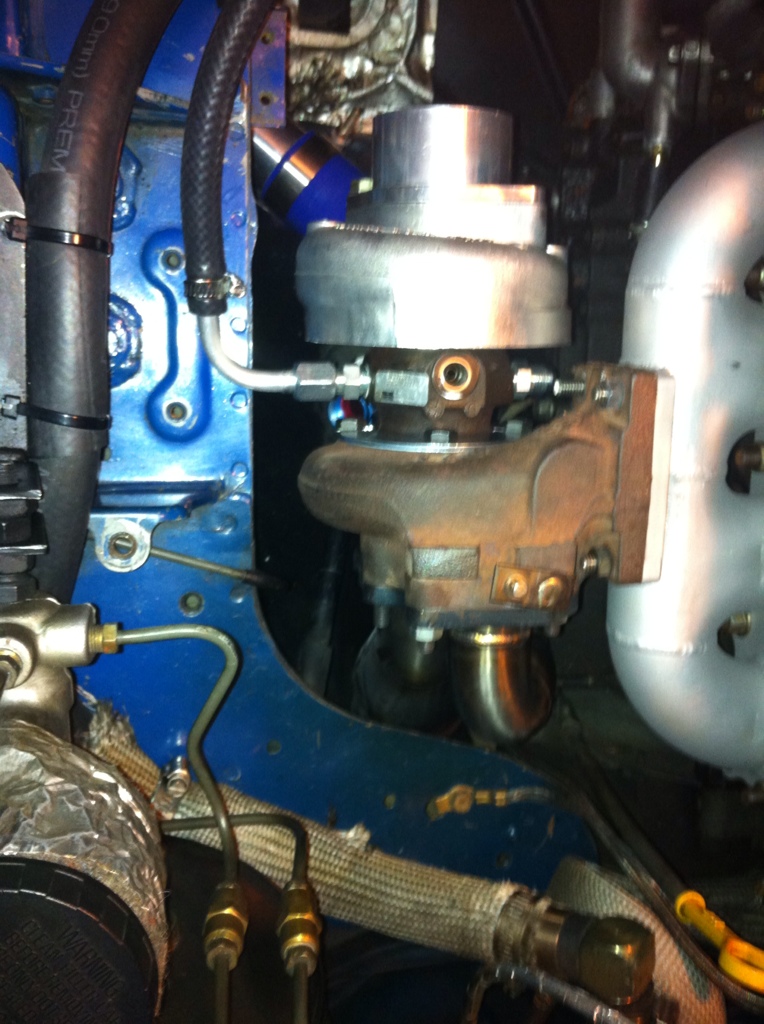

Vash, dunno what you've done in the last two months, but now that I have your exact setup, here's the clearance now:



There's a good 2.5" from the DP to the 90* fitting in the water line, and a little over 3" from the turbine housing to the water line by the shock mount.
Attached Thumbnails
Vashthestampede's Miata 2.1-454cc671.jpg
curly is offline   Reply With Quote
Old 04-23-2012, 06:41 PM   #156
Junior Member

Join Date: Apr 2012
Location: Sioux Falls, SD
Posts: 55
Total Cats: 1
Default

Car looks amazing man, and needless to say I have always had blue cars so im somewhat bias haha. Either way looks great and good luck with getting back on the road
Dolsiac is offline   Reply With Quote
Old 04-23-2012, 07:29 PM   #157
Antisaint
Thread Starter
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by curly View Post
Vash, dunno what you've done in the last two months, but now that I have your exact setup, here's the clearance now:



There's a good 2.5" from the DP to the 90* fitting in the water line, and a little over 3" from the turbine housing to the water line by the shock mount.
Yeah, unfortunately, I've been slacking on the miata.

I just haven't had the time to work on it, but yet I've had the heater hose for over a month now and still didn't order the fire sleeve. I cant make up my mind on what to wrap the hose with. Once I order that I'm pretty much set.

Quote:
Originally Posted by Dolsiac View Post
Car looks amazing man, and needless to say I have always had blue cars so im somewhat bias haha. Either way looks great and good luck with getting back on the road
Thanks man! I miss driving this thing everyday.

Hopefully soon I've have it buttoned up and back on the road. I will then make a trip back to the dyno to get my new (old) numbers with my ARTech hotside parts.
Vashthestampede is offline   Reply With Quote
Old 07-09-2012, 09:42 AM   #158
Antisaint
Thread Starter
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

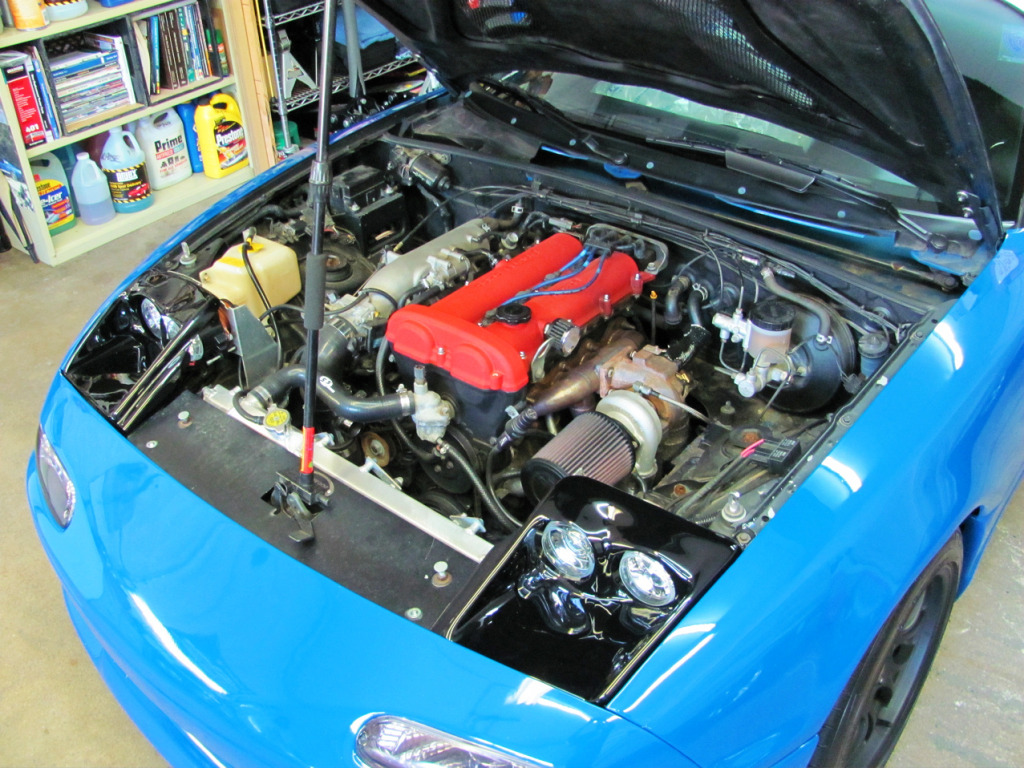

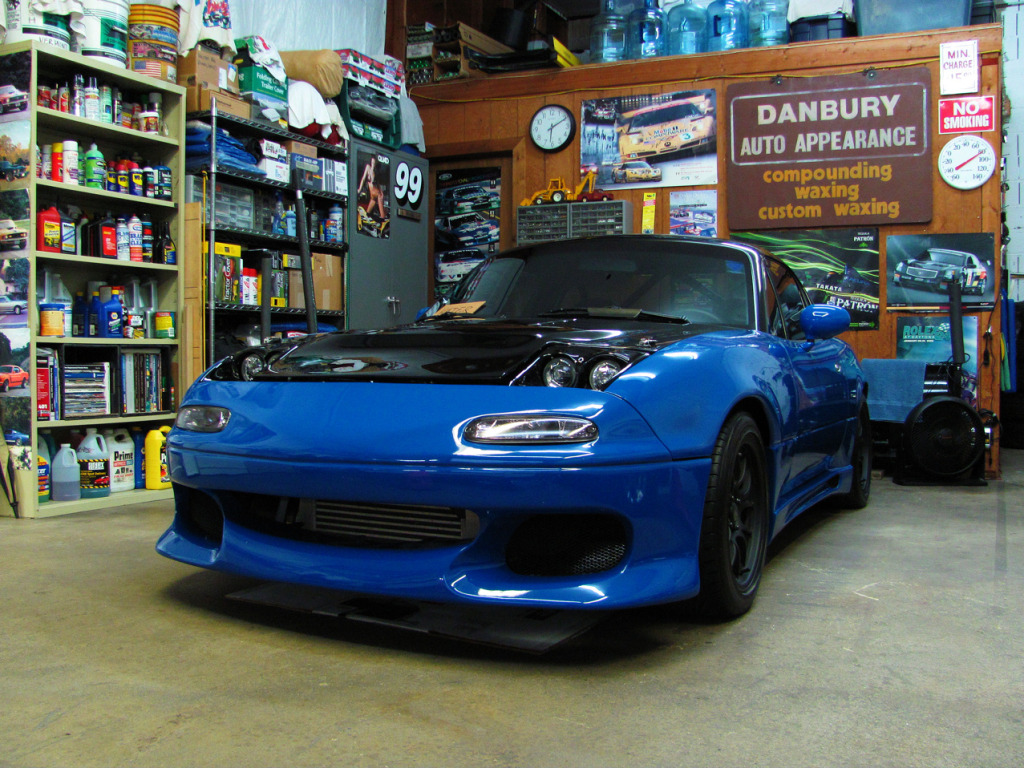

Well today is the day I try and fire the miata back up.

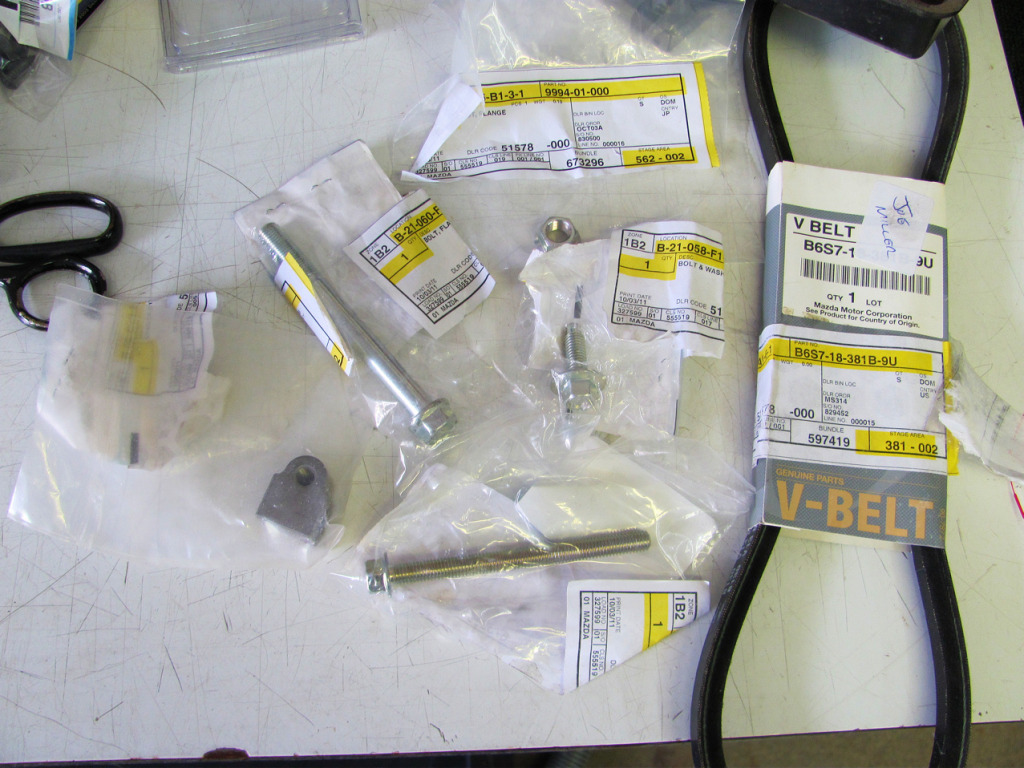

Battery is charged, alternator parts replaced, heater hose replaced and wrapped with fire sleeve and everything is cleaned up (minus the engine bay).

Today I just need to add coolant and gas. If all goes well I'll be taking it over to the welding shop to have the exhaust flanges cut and fixed shortly thereafter.

My biggest issue is going to be getting the car re-registered, pass emissions, then change to early american plates.





Attached Thumbnails
Vashthestampede's Miata 2.1-mh02.jpg   Vashthestampede's Miata 2.1-mh01.jpg   Vashthestampede's Miata 2.1-mm04-1.jpg
Vashthestampede is offline   Reply With Quote
Old 07-09-2012, 09:51 AM   #159
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,197
Total Cats: 2,584
Default

Lookin good lookin good. Good luck gettn her running.

And I too would kill you if you painted it green
18psi is offline   Reply With Quote
Old 07-09-2012, 11:28 AM   #160
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

---- green, blue ftw. You better have this thing running again, so much money thrown into it and no enjoyment. I just got mine back to DD status after about 1 year of sitting, and goddamn is it worth it.
Fireindc is offline   Reply With Quote
