Default What do you guys think of my turbo setup?

My turbo kit that my girlfriend bought me for out 5 year anniversary! (Is'nt she awesome?) Just put it on this weekend. The turbo is a .50 trim with a .36 back boosting at 6psi. Turbo spool starts at around 2800 rpm's, The kit that I put together consists of:

AiResearch Turbo - $550
Cast Mani - $120
Tial Wastegate w/ 6 psi spring - $230
HKS SSQV BOV - $160
SS Oil lines - $35
OBX 10:1 FMU - $35
Intercooler - $40
Piping kit and couplers - $100
Misc. Bolts and fitting - $100
----------------------------------------
Shipping and Handling Charges - $100
----------------------------------------
Grand Total - $1435

TRY AND GET ALL THAT FROM BEGI OR FM AND YOU WOULD PAY $3000+

All the flanges I made myself in the shop that I work in and I had my own welder to make my downpipe and the weld everything up!

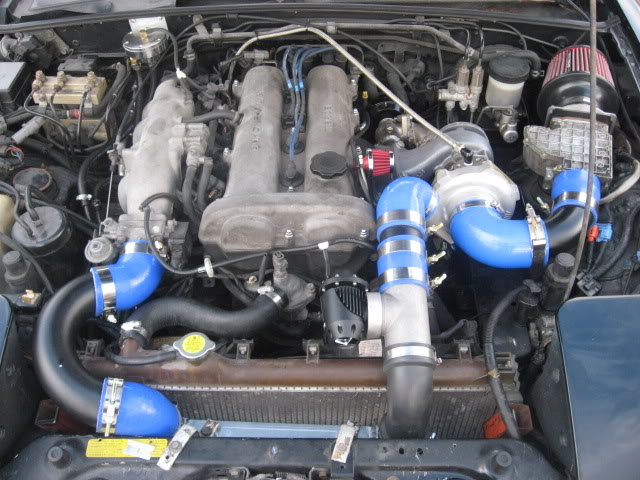

Name:  026.jpg
Views: 2
Size:  82.1 KB

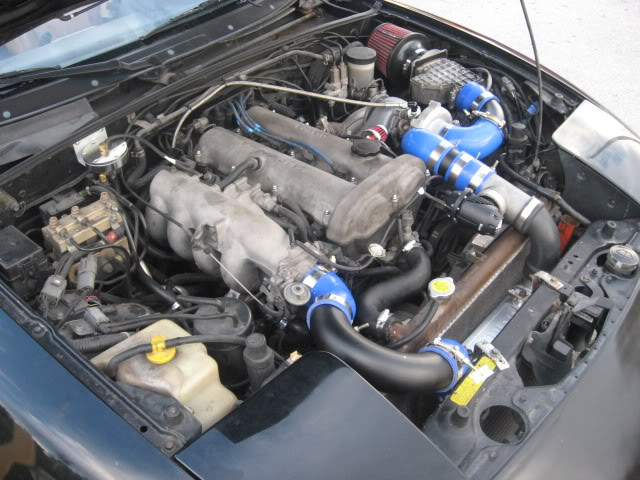

Name:  028.jpg
Views: 2
Size:  78.7 KB

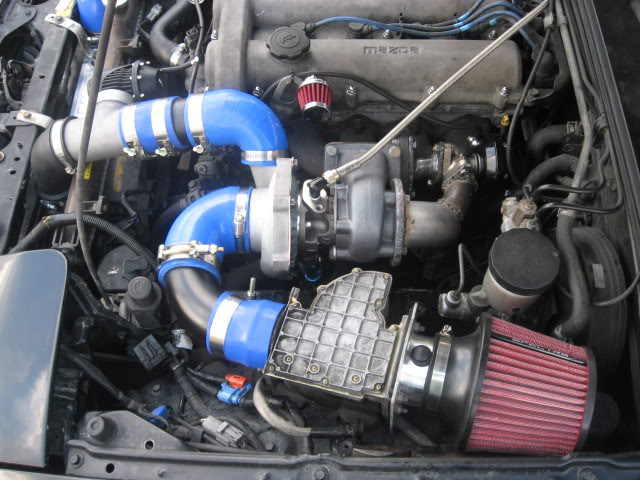

Name:  027.jpg
Views: 3
Size:  80.1 KB

Alum Radiator, Plate for above the radiator to fill the gap, brake fluid change, megasquirt and wideband 02 get added when I get my income tax check!

What do you guys think for my first build?
Diablovt750 is offline   Reply With Quote
Old 02-09-2010, 10:11 PM   #2
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

How much does all the tools in the machine and the welder cost?
m2cupcar is offline   Reply With Quote
Old 02-09-2010, 10:12 PM   #3
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

Looks like it'll get the job done....not the prettiest though...
Cspence is offline   Reply With Quote
Old 02-09-2010, 10:14 PM   #4
Newb
Thread Starter

Join Date: Feb 2010
Posts: 17
Total Cats: 0
Default

The welder I have at my job and I had all the tools already because I am a mechanic
Diablovt750 is offline   Reply With Quote
Old 02-09-2010, 10:17 PM   #5
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

My old turbo kit that im selling right now is 1400$ and comes with full 3" exhaust and the intercooler pipes are welded together( aluminum). Not my cup of tea but kudos on the DIY aspect.
SKMetalworks is offline   Reply With Quote
Old 02-09-2010, 10:49 PM   #6
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

I sold my greddy with 3" dp and exhaust for $700 and helped my friend install it. But anyways welcome to the forum.
Gotpsi? is offline   Reply With Quote
Old 02-09-2010, 10:51 PM   #7
Junior Member
iTrader: (1)

Join Date: Apr 2009
Posts: 124
Total Cats: -2
Default

Just one question comes to mind, how are you going to tell if your running rich or lean in boost?
bluemonkey is offline   Reply With Quote
Old 02-09-2010, 11:37 PM   #8
Junior Member

Join Date: Dec 2009
Location: Shelbina, MO (North East)
Posts: 335
Total Cats: 0
Default

Looks like a good start!
rweatherford is offline   Reply With Quote
Old 02-09-2010, 11:38 PM   #9
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

Good start. Needs moar boost
18psi is offline   Reply With Quote
Old 02-09-2010, 11:55 PM   #10
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Good **** man!!!!!!! you need to get rid of that AFM and more boost and pictures of the GF.. nah jk

That's a great start, better then most of us.
buffon01 is offline   Reply With Quote
Old 02-09-2010, 11:58 PM   #11
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

Quote:
Originally Posted by Diablovt750 View Post
My turbo kit that my girlfriend bought me for out 5 year anniversary! (Is'nt she awesome?) Just put it on this weekend. The turbo is a .50 trim with a .36 back boosting at 6psi. Turbo spool starts at around 2800 rpm's, The kit that I put together consists of:

AiResearch Turbo - $550
Cast Mani - $120
Tial Wastegate w/ 6 psi spring - $230
HKS SSQV BOV - $160
SS Oil lines - $35
OBX 10:1 FMU - $35
Intercooler - $40
Piping kit and couplers - $100
Misc. Bolts and fitting - $100
----------------------------------------
Shipping and Handling Charges - $100
----------------------------------------
Grand Total - $1435

TRY AND GET ALL THAT FROM BEGI OR FM AND YOU WOULD PAY $3000+

All the flanges I made myself in the shop that I work in and I had my own welder to make my downpipe and the weld everything up!

[IG]http://i574.photobucket.com/albums/ss186/Cheapazzgaming/026.jpg[/IMG]

[IG]http://i574.photobucket.com/albums/ss186/Cheapazzgaming/028.jpg[/IMG]

[IG]http://i574.photobucket.com/albums/ss186/Cheapazzgaming/027.jpg[/IMG]

Alum Radiator, Plate for above the radiator to fill the gap, brake fluid change, megasquirt and wideband 02 get added when I get my income tax check!

What do you guys think for my first build?
There is no replacement for DIY.
18psi is offline   Reply With Quote
Old 02-10-2010, 01:50 AM   #12
Junior Member

Golferluke's Avatar

Join Date: Oct 2009
Location: Springfield, MO
Posts: 497
Total Cats: 3
Default

Hi, I'm currently piecing together a similar low boost diy setup to start out with and was also going to go the fmu but had a question. How did you pick 10:1? I've seen 1,8,10 and 12:1. Which one is best?
Golferluke is offline   Reply With Quote
Old 02-10-2010, 02:31 AM   #13
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

is that a water coupler from home depot on your intake to the intercooler? That has to be changed, it will dry rot and you will have debris and boost leak everywhere on that. It cannot take engine bay temperatures amd is solid rubber, so it is very vulnerable to oil and other engine fluids.
Pen2_the_penguin is offline   Reply With Quote
Old 02-10-2010, 03:32 AM   #14
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

nevermind
18psi is offline   Reply With Quote
Old 02-10-2010, 03:35 AM   #15
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

Where's your wideband?
Savington is offline   Reply With Quote
Old 02-10-2010, 07:09 AM   #16
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

I think your girl just wants to drive your car.
turotufas is offline   Reply With Quote
Old 02-10-2010, 10:12 AM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Detail shots of wastegate. more details on turbo.
Braineack is offline   Reply With Quote
Old 02-10-2010, 10:14 AM   #18
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by Savington View Post
Where's your wideband?

Quote:
Originally Posted by Diablovt750 View Post
Alum Radiator, Plate for above the radiator to fill the gap, brake fluid change, megasquirt and wideband 02 get added when I get my income tax check!

Good to hear that you're going to spring for real engine management with all that money you saved.
gospeed81 is offline   Reply With Quote
Old 02-10-2010, 11:24 AM   #19
Newb
Thread Starter

Join Date: Feb 2010
Posts: 17
Total Cats: 0
Default

The fmu is a temp until I get the MS, so I bought which ever that I could find the cheapest! That one I bought from someone on clubroadster.net for $30 (reg. price $99) and yes that is a rubber water hose from home depot. I needed to find something to get me driving b/c this is my DD. The silicon hose is already in the mail. But as far as the fmu I think an 8:1 would be best b/c after 5000 rpm the exhaust starts to smell like gas so Im assuming it is making me to rich, but id rather be to rich for now instead of being to lean! Probably going to buy my LC-1 WideBand this weekend.
Diablovt750 is offline   Reply With Quote
Old 02-12-2010, 12:18 AM   #20
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

I like it. Beyond the HD coupler, ghetto brackets, and lack of MS of course. But you're planning on replacing all of those. Mad props from one over-the-rad'er to another.
