Default Your opinion please: anything wrong with this downpipe design?

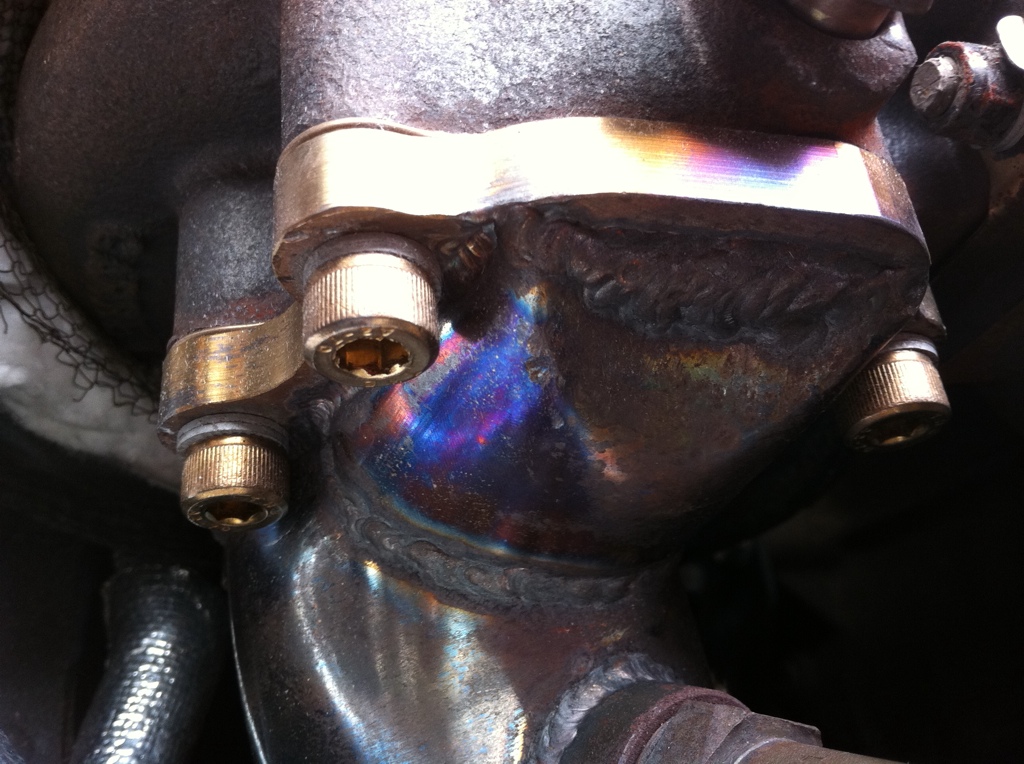

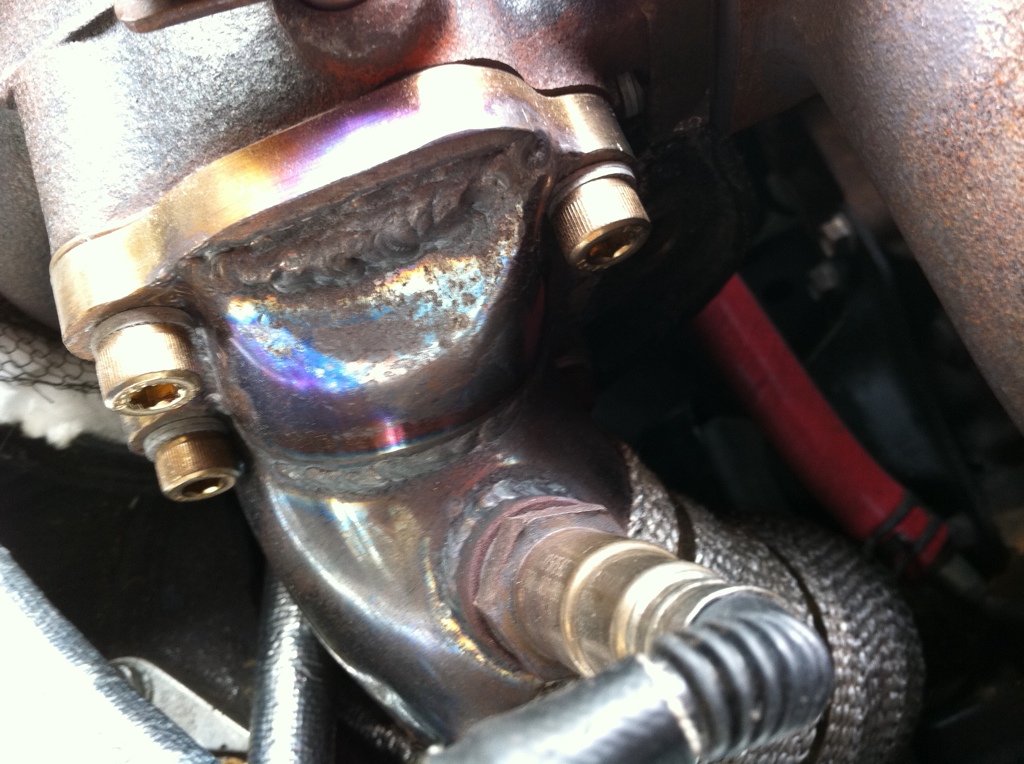

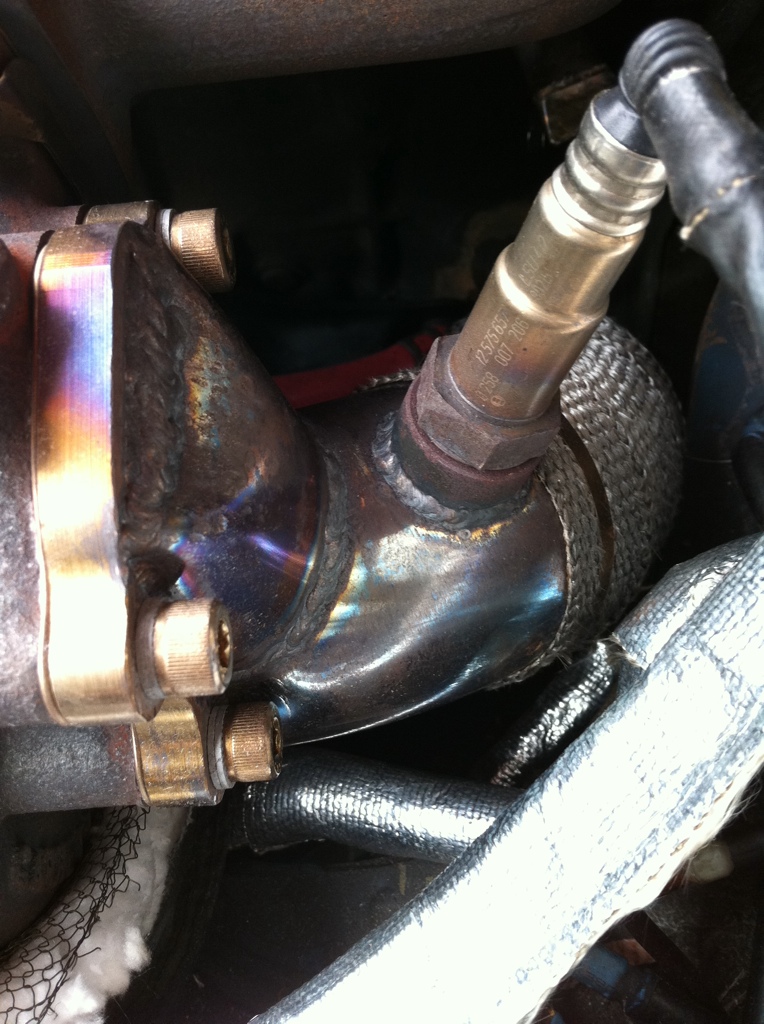

Do you see anything wrong with this downpipe? Is it too restrictive? The wastegate outlet seems too small and angled to me? Is it going to affect anything?



Attached Thumbnails
Your opinion please: anything wrong with this downpipe design?-0bcca61c.jpg   Your opinion please: anything wrong with this downpipe design?-77fba0ba.jpg   Your opinion please: anything wrong with this downpipe design?-fdbe84bd.jpg
nismo502 is offline   Reply With Quote
Old 09-13-2011, 12:19 AM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

not great, but should work
18psi is offline   Reply With Quote
Old 09-13-2011, 12:23 AM   #3
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

If that is a wideband, isn't it way the fuuuuck too close?
blaen99 is offline   Reply With Quote
Old 09-13-2011, 12:46 AM   #4
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Quote:
Originally Posted by blaen99 View Post
If that is a wideband, isn't it way the fuuuuck too close?
Yeah I would be worried about heat and the sensor, especially without a heatsink.
cardriverx is offline   Reply With Quote
Old 09-13-2011, 12:49 AM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

didn't even pay attention to the sensor. yes it will fry within a couple weeks that close
18psi is offline   Reply With Quote
Old 09-13-2011, 01:13 AM   #6
Elite Member
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Mountain View, CA
Posts: 1,702
Total Cats: 28
Default

Depending on the rest of the setup...boost creep anyone?

And yes that sensor is toast.
MartinezA92 is offline   Reply With Quote
Old 09-13-2011, 01:48 AM   #7
Junior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: singapore
Posts: 228
Total Cats: 2
Default

Thanks guys. It's 2.5" from here onwards. I will get it redone.
I posted a separate thread on missing 60bhp.
https://www.miataturbo.net/engine-performance-56/where-my-top-end-power-60335/
Other than what was suggested in the thread, could this be the reason? Does it make that much of a difference between a shitty outlet and a well designed one?
nismo502 is offline   Reply With Quote
Old 09-13-2011, 01:59 AM   #8
Senior Member
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

yes i think this could definitely be your culprit. Was this the same downpipe that was on your old setup that made more power?
wittyworks is offline   Reply With Quote
Old 09-13-2011, 02:51 AM   #9
Junior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: singapore
Posts: 228
Total Cats: 2
Default

No it was a different downpipe that flows a lot better. But there we other variables such as changing headgasket and running cops.
I will check my cams, check my exhaust for collapse and they are both fine, then I will redo this. Thanks.
nismo502 is offline   Reply With Quote
Old 09-13-2011, 03:00 AM   #10
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,329
Default

You are losing power from 5000rpm up - the worst downpipe in the world won't cause that. You have something mechanically wrong with your setup - either a big boost leak, incorrect cam timing, or something of that sort. It has nothing to do with design of parts or anything like that.
Savington is online now   Reply With Quote
Old 09-15-2011, 01:45 AM   #11
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Also get real studs instead of those 39 cent ace hardware ones.
triple88a is offline   Reply With Quote
Old 09-15-2011, 07:25 AM   #12
Junior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: singapore
Posts: 228
Total Cats: 2
Default

Quote:
Originally Posted by triple88a View Post
Also get real studs instead of those 39 cent ace hardware ones.
Those are class 12.9 steel.
nismo502 is offline   Reply With Quote
Old 09-15-2011, 08:38 AM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

My problem is that it doesn't appear the wastegate will open fully. otherwise it's not that big of a deal...
Braineack is offline   Reply With Quote
Old 09-15-2011, 09:40 AM   #14
Junior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: singapore
Posts: 228
Total Cats: 2
Default

Quote:
Originally Posted by Braineack View Post
My problem is that it doesn't appear the wastegate will open fully. otherwise it's not that big of a deal...
That's a good point. In my other thread, my problem with the missing 60bhp is on full boost. That's when the waste gate should be fully open.

In my current setup, the waste gate can fully open. But whether if it is flowing fast/smooth enough is another question.
nismo502 is offline   Reply With Quote
Old 09-15-2011, 11:01 AM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

well, you'd make MORE power if the wastegate wasn't opening

You sould look how my T3 wastegate opening merges with the DP and then complain.

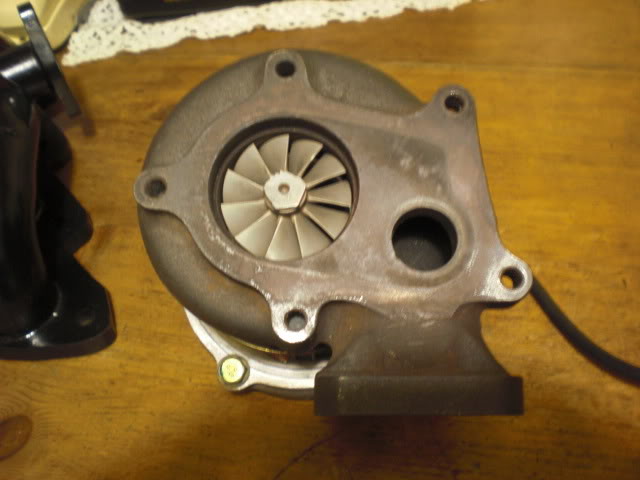

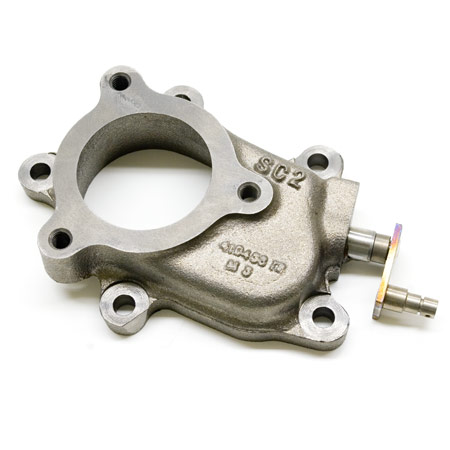

This is what the openings look like:

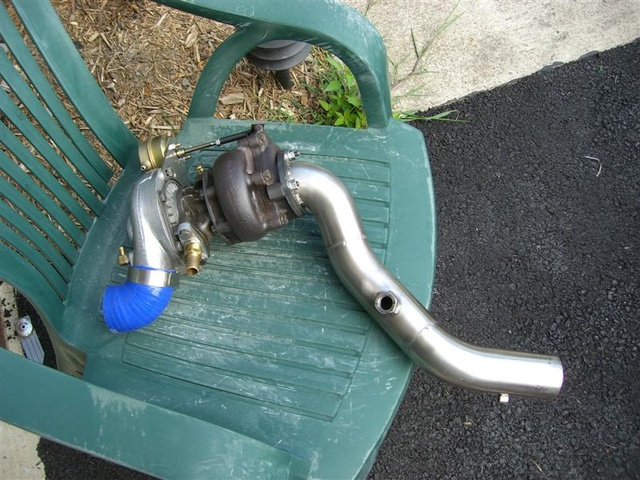

and the merge within a VERY tight area out a signle dump tube:



Attached Thumbnails
Your opinion please: anything wrong with this downpipe design?-012-3.jpg   Your opinion please: anything wrong with this downpipe design?-grt-wgt-010_450.jpg   Your opinion please: anything wrong with this downpipe design?-begidone001.jpg
Braineack is offline   Reply With Quote
Old 09-15-2011, 11:19 AM   #16
Senior Member
iTrader: (2)

Join Date: Mar 2006
Location: MA
Posts: 885
Total Cats: 2
Default

yeah, if anything, that dp will either prevent the wastegate flapper from opening all the way, or just severely limit flow out of the flapper opening. in either case, you would be seeing boost creep (tons, in the case of it not opening all the way).

also, as has been pointed out, that wideband bung is approximately 12 parsecs too close to the turbine outlet... plug that up and relocate the wideband further downstream. a decent amount further.
devin mac is offline   Reply With Quote
Old 09-21-2011, 10:00 PM   #17
Newb

Join Date: May 2011
Posts: 14
Total Cats: 0
Default

Wow that setup is restrictive! What brand is that? It almost looks like the SS autochrome parts from a while back.
nerd racing is offline   Reply With Quote
Old 09-23-2011, 10:04 PM   #18
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by Braineack View Post
well, you'd make MORE power if the wastegate wasn't opening

You sould look how my T3 wastegate opening merges with the DP and then complain.

This is what the openings look like:



and the merge within a VERY tight area out a signle dump tube:


Dang that merge is beyond pathetic yo. I guess if it works though **** it
