Default 1990 W/'96 engine & RACELAND Header

Just wanted to say hello, as I am new to the forum.

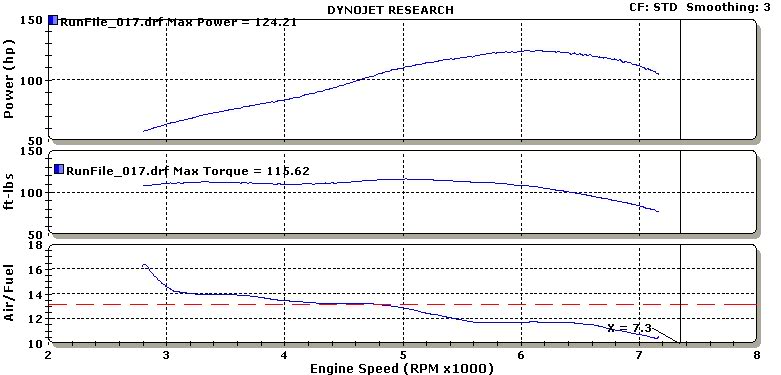

I thought it would be good for my first post to be a dyno plot; sort of a baseline to start from.

I know most of you will be unimpressed by these numbers as they are N/A, but they aren't bad considering it is still running on the stock 1.6 ECU and a $80 ebay header, including the shipping (Brand new even)!

Tell me what you think. I plan on doing some minor work to the car and throwing it back on the dyno before the temp. get way too hot here is S. FL.

HP 124
TQ 115

Name:  djdyno121008.jpg
Views: 6
Size:  58.6 KB

1990 CSP Track Rat

Last edited by MX5RACER; 12-18-2008 at 03:59 PM.
MX5RACER is offline   Reply With Quote
Old 12-18-2008, 03:49 PM   #2
I'm Miserable!
iTrader: (1)

Join Date: Oct 2005
Location: Columbia, SC
Posts: 858
Total Cats: 0
Default

Sorry, but I'm gonna have to go with "optimistic dyno" on this one.

No way a header made up for drivetrain losses.
SloS13 is offline   Reply With Quote
Old 12-18-2008, 03:51 PM   #3
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Where in south Fla? Add it to your profile.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 12-18-2008, 03:55 PM   #4
Junior Member
Thread Starter

Join Date: Dec 2008
Location: Ft. Lauderdale, FL
Posts: 273
Total Cats: 7
Default

I won't debate the fact that the dyno is optimistic, but its all that have as a data point. The same day I had my car on this dyno a friend of mine had his '93 with a '00 engine dyno at 130hp and 120ft-lbs. This just gives me a target to aim for.

Planned mods down the line are:
COP's
RX-7 AFM (Already have this)
Megasquirt & remove said AFM
A lot of dyno tuning time!

More details for the car are as follows:
Stock 1.6 AFM
New Plugs
New wires
Spec Miata ACT 4 puck non-sprung clutch
1.6 flywheel (Machined a few times)
RB 90 degree elbow intake
Raceland header
Timing bumped to 12* (This setting made the most power)

Here is a picture of said engine and header before I installed them into the car.
http://s284.photobucket.com/albums/l...NEWENGINE2.jpg

Last edited by MX5RACER; 12-18-2008 at 04:07 PM.
MX5RACER is offline   Reply With Quote
Old 12-18-2008, 04:17 PM   #5
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

this is "miataturbo.net"
btw, my 1.6 made 94whp with no cat...remarkable to see that a header made a 24% increase in power.
hustler is offline   Reply With Quote
Old 12-18-2008, 04:23 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by SloS13 View Post
Sorry, but I'm gonna have to go with "optimistic dyno" on this one.

nothing you can change to make a dynojet optimistic.
Braineack is offline   Reply With Quote
Old 12-18-2008, 04:26 PM   #7
Junior Member
Thread Starter

Join Date: Dec 2008
Location: Ft. Lauderdale, FL
Posts: 273
Total Cats: 7
Default

Actually you may have missed it, but the car has a 1.8l from a '96.
MX5RACER is offline   Reply With Quote
Old 12-18-2008, 06:03 PM   #8
Elite Member
iTrader: (5)

Join Date: Jan 2007
Location: Freehold, NJ
Posts: 1,577
Total Cats: -2
Default

my 90 with 170k miles made 91.5whp

mike riv's 90 w/94 1.8 with a megasquirt only made 104whp

the guy on the dyno fudged your numbers, sorry buddy.
disturbedfan121 is offline   Reply With Quote
Old 12-18-2008, 06:15 PM   #9
Junior Member
Thread Starter

Join Date: Dec 2008
Location: Ft. Lauderdale, FL
Posts: 273
Total Cats: 7
Default

You guys are probably all correct and the dyno in question is abnormally high, but as long as its stays consistent, I should still be able to tell if any changes I make have an impact on power. You really can't compare dyno numbers from different dynos anyway, there are way too many variables built into each dyno. Also the numbers can change depending on when the dyno was last calibrated.

Before I "tuned" the AFM, I had my car, my dad's car and another friends car on the dyno within minutes of each other.

That day my car made 120hp.
My dad's BONE STOCK '94 made 110hp.
My friend's '95 made 123hp with an exhaust, intake and header.

All I am saying is that the numbers are relative to that dyno on that day. As long as I keep using this dyno, I should be able to use my baseline as reference point, no?
MX5RACER is offline   Reply With Quote
Old 12-18-2008, 06:45 PM   #10
Junior Member
iTrader: (4)

Join Date: Sep 2006
Location: Bakersfield, Ca
Posts: 154
Total Cats: 0
Default

Quote:
Originally Posted by MX5RACER View Post
As long as I keep using this dyno, I should be able to use my baseline as reference point, no?
Yes. This is what dyno's are good for.
leshok is offline   Reply With Quote
