Default 2002 NBB BEGi S4 GT2860RS Adaptronic 310hp 290tq DYNO

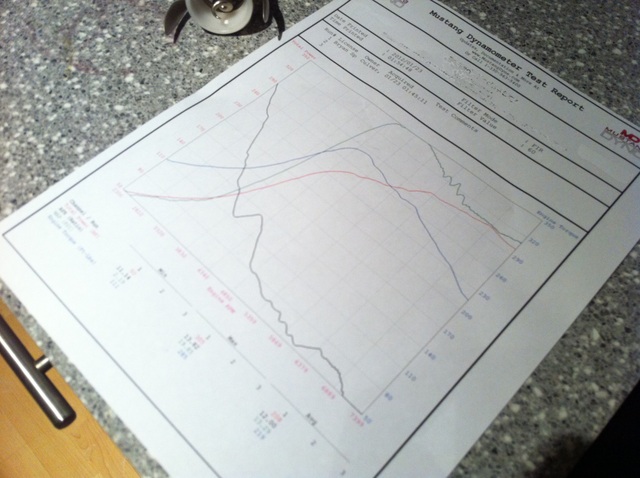

Just finished up with some Dyno tuning. On a Mustang Dyno @18-19 PSI the car produced 310hp and 290tq without methanol. I'm happy with those numbers but I believe the turbo had run out of flow. The dyno used is notoriously 15-20% low so I'm happy with the numbers. Especially off meth!

I'll tune for meth next week and hopefully pick up another 20-25whp.






Mustang Dyno @18-19 PSI the car produced 310hp and 290tq without methanol
ADAPTRONIC (Map Attached)
AFR 11.5-11.8
EGT peaked at 1500F
Boost Peak 19 tapering down to 17 PSI
Flat foot shifting setup properly
Launch control setup and enabled


Car's drivability is completely different. Power hits hard but is smooth power and holds it for much longer. I'm extremely happy with the tune off of meth and cant wait to tune with it. Given the fact that this dyno is notoriously low and my drive train percentage loss estimated on the minimal end, we're looking at 360 at the crank. Limited at this time by the turbo.

For you ADAPTRONIC guys - My map is attached. Tuner said he LOVED working with the WARI software.
Attached Files
File Type: ecu TurboMiata-Final-310hp285tq - Copy.ecu (8.0 KB, 123 views)
miatauser123 is offline   Reply With Quote
Old 01-25-2012, 11:48 AM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

.64AR turbine housing?

That's a very, very, very fast car. 12psi on that turbo with the big turbine housing is fast, I've only driven it at 16psi a few times and it was faster than I ever needed a car to be.
hustler is offline   Reply With Quote
Old 01-25-2012, 12:19 PM   #3
lub
Newb

Join Date: Dec 2011
Posts: 14
Total Cats: -1
Default

do you have more pictures of your engine bay?
lub is offline   Reply With Quote
Old 01-25-2012, 12:20 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

I sitll cant believe there's not a viable solution for an IM for our cars...rediculous.
Braineack is offline   Reply With Quote
Old 01-25-2012, 12:38 PM   #5
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by lub View Post
do you have more pictures of your engine bay?
Check build thread link in my sig.
miatauser123 is offline   Reply With Quote
Old 01-25-2012, 12:50 PM   #6
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Nice to see you back. You have a very clean car. I'm mermalade.
buffon01 is offline   Reply With Quote
Old 01-25-2012, 12:51 PM   #7
lub
Newb

Join Date: Dec 2011
Posts: 14
Total Cats: -1
Default

derp, my bad. Still, sweet numbers...that car would scare me.
lub is offline   Reply With Quote
Old 01-25-2012, 12:58 PM   #8
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Quote:
Originally Posted by lub View Post
derp, my bad. Still, sweet numbers...that car would scare me.
It wouldn't scare me. I would be way too fulfilled with extreme happiness and satisfaction to have any room for fear.
Very nice numbers. What trans and rear/gears are you running?
thirdgen is offline   Reply With Quote
Old 01-25-2012, 01:01 PM   #9
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,065
Total Cats: 253
Default

Damn that looks like fun. Such a clean car, too. What are you expecting with the methanol power wise?



Quote:
Originally Posted by Braineack View Post
I sitll cant believe there's not a viable solution for an IM for our cars...rediculous.
Off topic, but I thought you would be glad to know I'm going to have my car dyno'd relatively soon.
viperormiata is offline   Reply With Quote
Old 01-25-2012, 01:21 PM   #10
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

I WANT

Would you mind posting a screenshot of your spark table?
240_to_miata is offline   Reply With Quote
Old 01-25-2012, 01:32 PM   #11
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

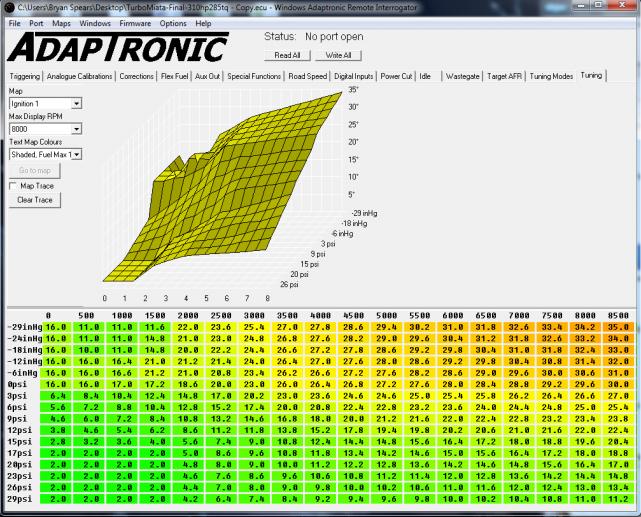

Here you are.

Attached Thumbnails
2002 NBB BEGi S4 GT2860RS Adaptronic 310hp 290tq DYNO-ignition-map-tuned.jpg
miatauser123 is offline   Reply With Quote
Old 01-25-2012, 01:42 PM   #12
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

Very nice looking spark table, and as said previously: great results.
Did the tuner hit MBT running 18* @ 19psi? That's definitely up there from the norm pump gas maps. I know some on here run insane timing but not most.
18psi is offline   Reply With Quote
Old 01-25-2012, 02:55 PM   #13
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Assuming 19 psi at peak torque of 290 ft-lbs, is 70 ft-lbs per atmo per L.
That's only about 3% below my numbers on a Dynapack. So I'll guess that this Mustang dyno doesn't read as famously low as other Mustangs - probably closer to a Dynapack / Dyno Dynamics.

Hustler,

Looking at his spoolup, I'll guess it's a 0.86 a/r. Look at the RPM he hits 150 and 175 ft-lbs compared to yours. If he has a 0.64 my guess is he's losing spoolup due to untuned VVT.
JasonC SBB is offline   Reply With Quote
Old 01-25-2012, 03:08 PM   #14
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by JasonC SBB View Post
Assuming 19 psi at peak torque of 290 ft-lbs, is 70 ft-lbs per atmo per L.
That's only about 3% below my numbers on a Dynapack. So I'll guess that this Mustang dyno doesn't read as famously low as other Mustangs - probably closer to a Dynapack / Dyno Dynamics.

Hustler,

Looking at his spoolup, I'll guess it's a 0.86 a/r. Look at the RPM he hits 150 and 175 ft-lbs compared to yours. If he has a 0.64 my guess is he's losing spoolup due to untuned VVT.
I've always seen 12% differences from DynoDynamics or Mustang compared to Dynojet, and I've been on more than a few dynos.
hustler is offline   Reply With Quote
Old 01-25-2012, 07:04 PM   #15
lub
Newb

Join Date: Dec 2011
Posts: 14
Total Cats: -1
Default

Quote:
Originally Posted by thirdgen View Post
It wouldn't scare me. I would be way too fulfilled with extreme happiness and satisfaction to have any room for fear.
basically what I meant by scare...
lub is offline   Reply With Quote
Old 02-13-2012, 04:52 PM   #16
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by lub View Post
do you have more pictures of your engine bay?
Check my BUILD THREAD link in my sig. Just did some wire tucking this last weekend.
miatauser123 is offline   Reply With Quote
Old 02-13-2012, 05:06 PM   #17
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

I couldn't find in your build thread if you're running a 0.64 or 0.86.
JasonC SBB is offline   Reply With Quote
Old 02-15-2012, 12:52 PM   #18
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

If I remember correctly it's the .64 housing.
