Default 330rwhp/258rwtq -- 1.8 motor w/1.6 Lysholm SC (upped boost)

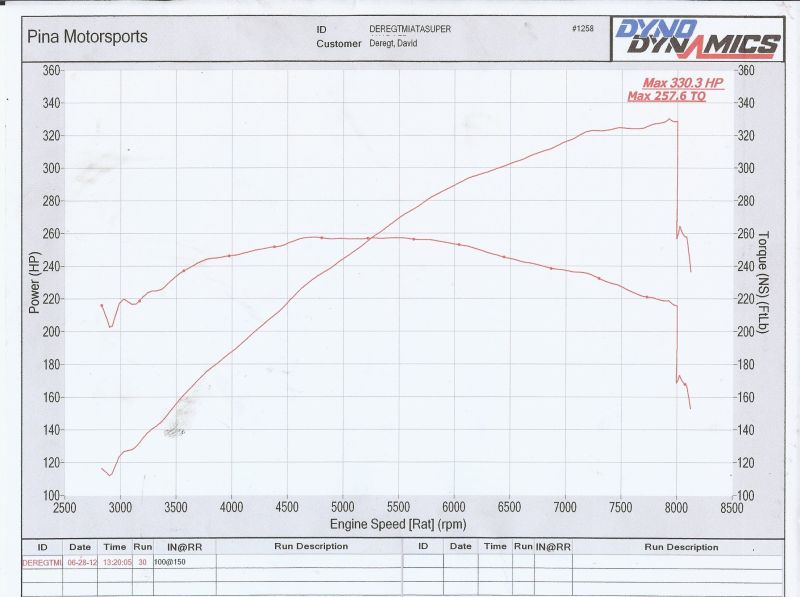

Went up from a 120mm to 125mm pulley on the crankshaft to up the boost a bit. Was rewarded with 30 more rwhp.

Attached Thumbnails
330rwhp/258rwtq -- 1.8 motor w/1.6 Lysholm SC (upped boost)-miatapower330_sm.jpg
codingparadox is offline   Reply With Quote
Old 07-02-2012, 05:02 PM   #2
Junior Member

Join Date: Mar 2010
Posts: 55
Total Cats: 0
Default

Interesting, were these custom made pieces or from a different year/model engine?
Crazy Drummer69 is offline   Reply With Quote
Old 07-02-2012, 05:04 PM   #3
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,332
Default

What's the blower RPM?
Savington is offline   Reply With Quote
Old 07-02-2012, 05:05 PM   #4
Junior Member
Thread Starter
iTrader: (2)

Join Date: Apr 2011
Posts: 360
Total Cats: 10
Default

Quote:
Originally Posted by Crazy Drummer69 View Post
Interesting, were these custom made pieces or from a different year/model engine?
Tom @ FFS makes bolt on 6-rib pulleys in a variety of diameters off the shelf. These are just his parts.
codingparadox is offline   Reply With Quote
Old 07-02-2012, 05:11 PM   #5
Junior Member
Thread Starter
iTrader: (2)

Join Date: Apr 2011
Posts: 360
Total Cats: 10
Default

Quote:
Originally Posted by Savington View Post
What's the blower RPM?
Crank pulley is now 125mm diameter, the SC pulley is 3.125" (79.375mm). Doing the math, that looks like circumferences of 392.7mm for the crank and 249.4mm for the SC. So, 1.575 ratio. 8000 RPM redline for the crank = ~12600 RPMs on the SC.
codingparadox is offline   Reply With Quote
Old 07-02-2012, 05:14 PM   #6
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Ban for supercharging.
hustler is offline   Reply With Quote
Old 07-02-2012, 05:18 PM   #7
Junior Member
Thread Starter
iTrader: (2)

Join Date: Apr 2011
Posts: 360
Total Cats: 10
Default

Quote:
Originally Posted by hustler View Post
Ban for supercharging.
Q: How do I make my car look good on a dyno but unresponsive on the street?
A: Turbocharging.

Q: How do I make my car fast everywhere?
A: Supercharging.

(Ban for universal counterstatements)
codingparadox is offline   Reply With Quote
Old 07-02-2012, 06:19 PM   #8
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Nice curve.
How much boost?
JasonC SBB is offline   Reply With Quote
Old 07-02-2012, 06:25 PM   #9
Junior Member
Thread Starter
iTrader: (2)

Join Date: Apr 2011
Posts: 360
Total Cats: 10
Default

It seems to peak out around 18.5ish. It's hard to tell exactly. I don't know if it's something to do with having two many things off one small vacuum line, or if it's because a twin screw gives boost in such discrete packeted chunks, but the boost level on datalogs (and the analog boost gauge in the car) fluctuates by like 1.5ish psi in either direction.
codingparadox is offline   Reply With Quote
Old 07-02-2012, 07:02 PM   #10
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,038
Total Cats: 157
Default



WOW.
TNTUBA is offline   Reply With Quote
Old 07-02-2012, 07:05 PM   #11
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,584
Default

Quote:
Originally Posted by codingparadox View Post
Q: How do I make my car look good on a dyno but unresponsive on the street?
A: Turbocharging.

Q: How do I make my car fast everywhere?
A: Supercharging.

(Ban for universal counterstatements)
trollololol

How about posting your setup instead of a dyno plot without a single clue on what it takes to get there.

Gotta say though, your plot is very impressive.

Last edited by 18psi; 07-02-2012 at 07:52 PM.
18psi is offline   Reply With Quote
Old 07-02-2012, 10:32 PM   #12
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by codingparadox View Post
Q: How do I make my car look good on a dyno but unresponsive on the street?
A: Turbocharging.

Q: How do I make my car fast everywhere?
A: Supercharging.

(Ban for universal counterstatements)
I just forwardededed this to the internet police. Consequences will never be the same.
hustler is offline   Reply With Quote
Old 07-02-2012, 10:35 PM   #13
Junior Member
Thread Starter
iTrader: (2)

Join Date: Apr 2011
Posts: 360
Total Cats: 10
Default

In before ban.
codingparadox is offline   Reply With Quote
Old 07-03-2012, 12:24 AM   #14
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Im also curious about how you accomplished this. As well as the associated cost.
miatauser884 is offline   Reply With Quote
Old 07-03-2012, 12:25 AM   #15
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by codingparadox View Post
It seems to peak out around 18.5ish. It's hard to tell exactly. I don't know if it's something to do with having two many things off one small vacuum line, or if it's because a twin screw gives boost in such discrete packeted chunks, but the boost level on datalogs (and the analog boost gauge in the car) fluctuates by like 1.5ish psi in either direction.
Can you show your datalogs?
JasonC SBB is offline   Reply With Quote
Old 07-03-2012, 12:35 AM   #16
Junior Member
Thread Starter
iTrader: (2)

Join Date: Apr 2011
Posts: 360
Total Cats: 10
Default

Quote:
Originally Posted by djp0623 View Post
Im also curious about how you accomplished this. As well as the associated cost.
Post #56 on here (https://www.miataturbo.net/random-su...e3/#post898469) has more general details, but the full details are on my wiki (Main Page - DestinationSSM).
codingparadox is offline   Reply With Quote
Old 07-03-2012, 12:42 AM   #17
Junior Member
Thread Starter
iTrader: (2)

Join Date: Apr 2011
Posts: 360
Total Cats: 10
Default

Quote:
Originally Posted by JasonC SBB View Post
Can you show your datalogs?

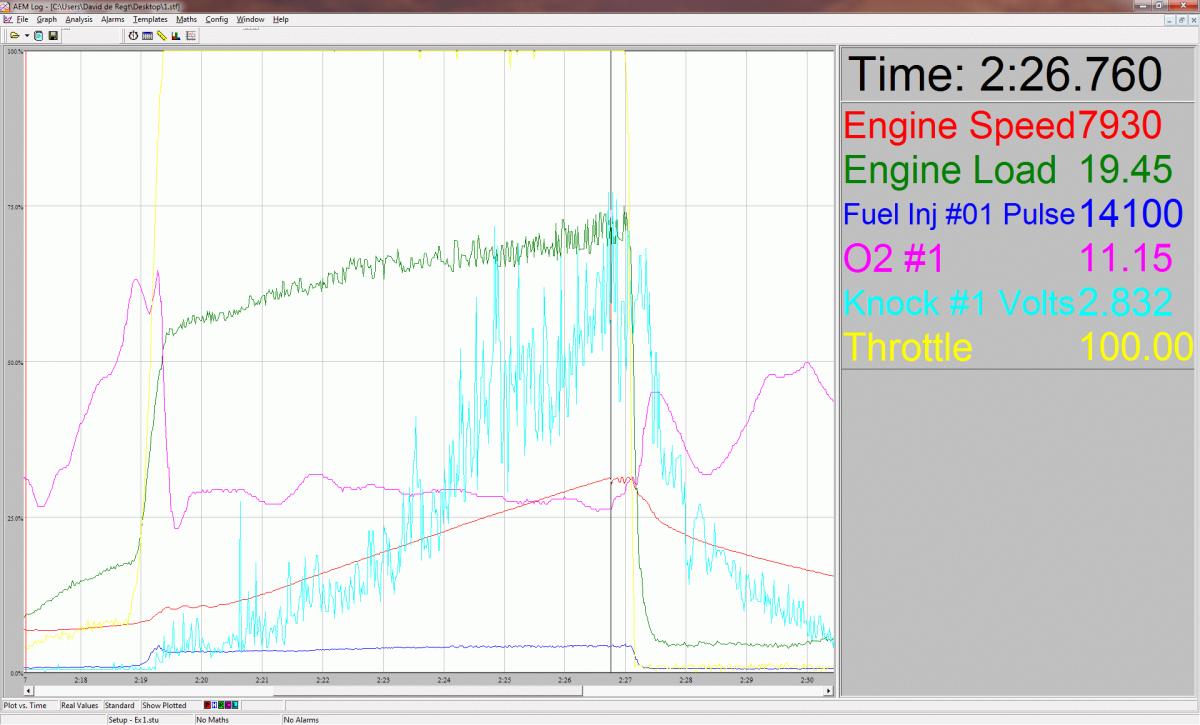

I've attached a pic of the datalog zoomed in on one of the later pulls and also a zip file of the full datalog if you want to look at it in AEMLog.
Attached Thumbnails
330rwhp/258rwtq -- 1.8 motor w/1.6 Lysholm SC (upped boost)-datalogstuff.jpg
Attached Files
File Type: zip datalogstuff.zip (54.4 KB, 66 views)
codingparadox is offline   Reply With Quote
Old 07-03-2012, 01:41 AM   #18
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Oh my you need a MAP filter, badly.
JasonC SBB is offline   Reply With Quote
Old 07-03-2012, 01:48 AM   #19
Junior Member
Thread Starter
iTrader: (2)

Join Date: Apr 2011
Posts: 360
Total Cats: 10
Default

Quote:
Originally Posted by JasonC SBB View Post
Oh my you need a MAP filter, badly.
I didn't even know that was a real thing. It just seemed like something that would be useful.

Any suggestions? Some quick googling isn't yielding much. Is it a homebrew type thing, or do you just use like one of the little inline tiny fuel filter thingies?
codingparadox is offline   Reply With Quote
Old 07-03-2012, 02:05 AM   #20
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

JasonC SBB is offline   Reply With Quote
