Default Begi S kit fully warmed up.

This is a begi S kit. Keep in mind the dyno was done at the end of a very hard and very long day. 300 mile drive to get all hooked up + all day of driving crazy to tune it.

Barely ran 18 degrees at 5k, anything over that would ping and the ecu would retard anyways.

This was with a 99 10th edition
I was running adaptronic ecu, 800cc injectors, 2554 turbo, stock exhaust from the cat back. Regular downpipe, not the seperated gasses one, and no intercooler as the s kit does not come with one. Air fuel ratios were 11.5-12, 6 psi wastegate, 93 octane gas.

I suspect the VICs was not working at that time either.

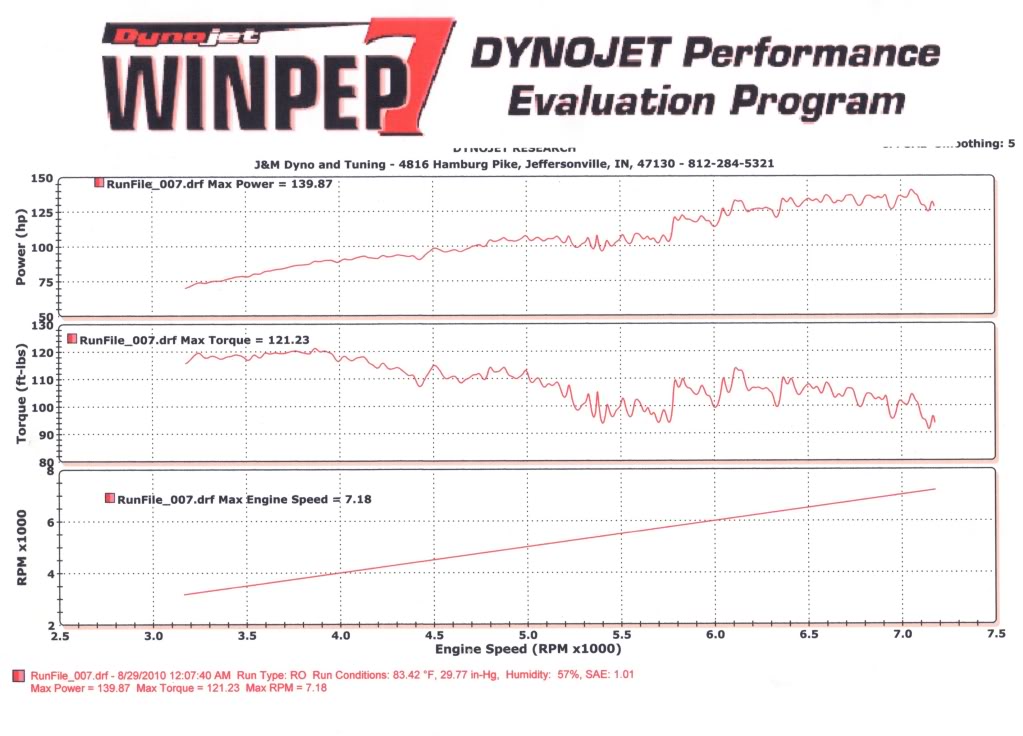

Name:  140dyno.jpg
Views: 4
Size:  125.4 KB

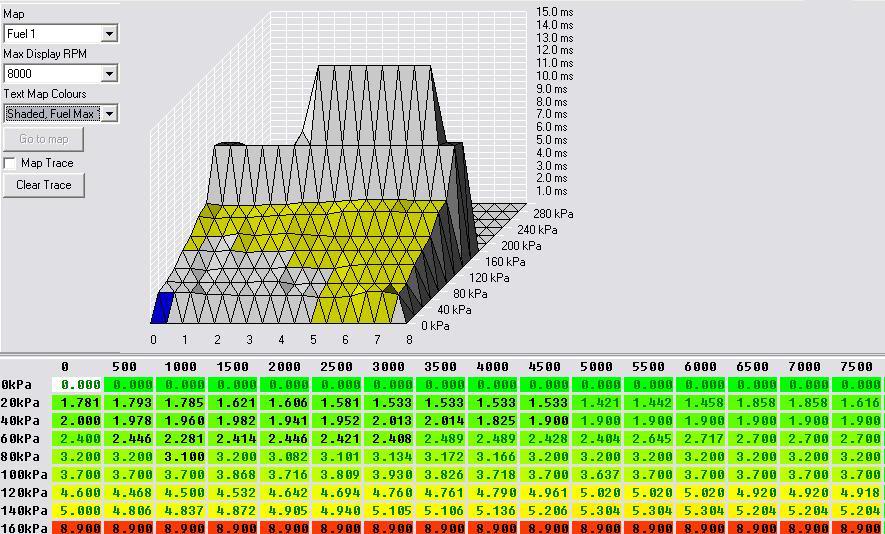

Name:  FuelMap.jpg
Views: 3
Size:  120.6 KB

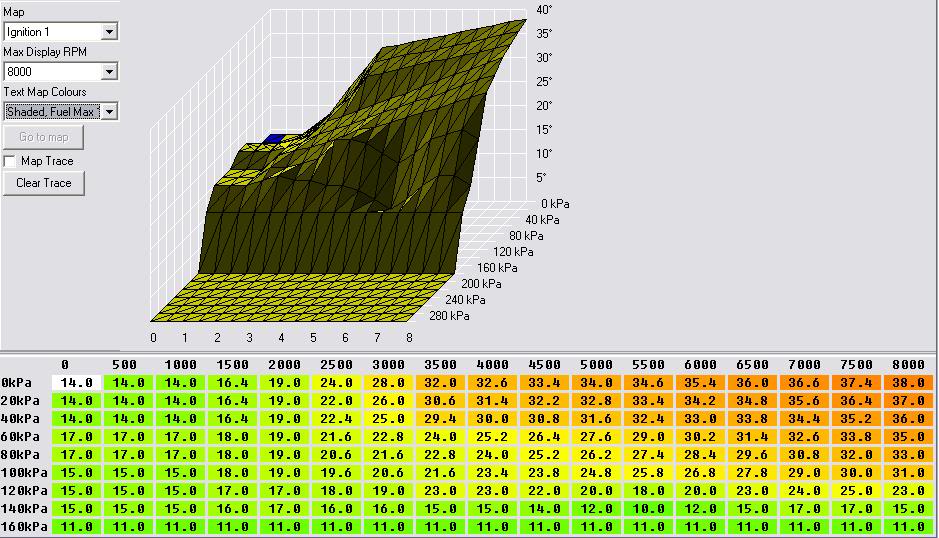

Name:  IgnitionMap-1.jpg
Views: 4
Size:  118.8 KB

Last edited by triple88a; 09-13-2010 at 06:39 PM.
triple88a is offline   Reply With Quote
Old 09-13-2010, 03:13 AM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

How much boost? 5?

You need to open up the breathing on that bad boy
18psi is offline   Reply With Quote
Old 09-13-2010, 03:30 AM   #3
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

SAE smoothing at 5 and very jagged, looks like its detonating above 5k rpm. It also looks very poorly tuned, that little turbo should make for a very smoothly shaped torque curve, and that you do not have.

Are you running cold plugs? what octane?

You should get on a FMIC asap too. Check out my threads to see how I set mine up. Its kinda a pain compared to an NA.
Full_Tilt_Boogie is offline   Reply With Quote
Old 09-13-2010, 03:34 AM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

Did you log the pull?

It doesn't look healthy.
18psi is offline   Reply With Quote
Old 09-13-2010, 08:31 AM   #5
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

800cc and 140whp? Are you planning to dump this turbo soon?
dgmorr is offline   Reply With Quote
Old 09-13-2010, 09:33 AM   #6
Senior Member
iTrader: (3)

Join Date: Jul 2005
Location: Connect-I-Cut
Posts: 1,431
Total Cats: 0
Default

Horrible, re tune that car now.
miataspeed2005 is offline   Reply With Quote
Old 09-13-2010, 11:47 AM   #7
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

Quote:
Originally Posted by dgmorr View Post
800cc and 140whp? Are you planning to dump this turbo soon?
I don't think its his turbo holding him back yet. he should easily be able to hit 200whp with an exhaust and fmic on that setup.

Most likely 240 if he goes over 10psi.
18psi is offline   Reply With Quote
Old 09-13-2010, 12:21 PM   #8
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Quote:
Originally Posted by 18psi View Post
I don't think its his turbo holding him back yet. he should easily be able to hit 200whp with an exhaust and fmic on that setup.

Most likely 240 if he goes over 10psi.
I suppose. I was just thinking 800cc is overkill. Could have gone with less for less ...unless he had bigger plans.
dgmorr is offline   Reply With Quote
Old 09-13-2010, 12:34 PM   #9
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Couldn't you hit 140hp on a NA 1.8 with exhaust, intake, and an aftermarket ECU? Something ain't right.
curly is offline   Reply With Quote
Old 09-13-2010, 12:38 PM   #10
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Time to download and post up some pictures of the tune for us to look at.

It is intercoolerless... but still... ick.
Splitime is offline   Reply With Quote
Old 09-13-2010, 01:03 PM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Next time you dyno, make sure to unlock your fixed timing to 10* after setting the initial timing...

in fact, next time you drive do this.
Braineack is offline   Reply With Quote
Old 09-13-2010, 01:10 PM   #12
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

I love the RPM vs RPM plot, lol
aaronc7 is offline   Reply With Quote
Old 09-13-2010, 01:18 PM   #13
Junior Member

Join Date: Jan 2007
Location: EXTREME Southern Illinois
Posts: 281
Total Cats: 0
Default

Past 4K you are making LESS torque than a stock 10AE. That hurts to look at. Post the tune, there is something horribly horribly wrong.
DammitBeavis is offline   Reply With Quote
Old 09-13-2010, 01:19 PM   #14
Junior Member

Join Date: Jan 2007
Location: EXTREME Southern Illinois
Posts: 281
Total Cats: 0
Default

Quote:
Originally Posted by aaronc7 View Post
I love the RPM vs RPM plot, lol
I like to check my vertical revs against my horizontal revs, just to make sure the engine is balanced properly.
DammitBeavis is offline   Reply With Quote
Old 09-13-2010, 01:20 PM   #15
Senior Member
iTrader: (1)

Join Date: Apr 2007
Location: North Jersey
Posts: 721
Total Cats: 0
Default

yikes.....I had 160 whp at 7.5 psi on a 1.6L & GT2554. And I did this with msd box and FMU.

You = needs more tune
budget racer is offline   Reply With Quote
Old 09-13-2010, 05:51 PM   #16
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

6 psi, 5th gear (6 speed tranny). The tunning was done by Travis from Boundary Engineering.

The big dip at 5k is because of detonation, he first ran it at 20 degrees and it was detonating out the **** so it was lowered at 18 degrees.

Name:  FuelMap.jpg
Views: 4
Size:  120.6 KB
Name:  IgnitionMap-1.jpg
Views: 4
Size:  118.8 KB

Last edited by triple88a; 09-13-2010 at 06:17 PM.
triple88a is offline   Reply With Quote
Old 09-13-2010, 06:00 PM   #17
Junior Member

Join Date: Jan 2007
Location: EXTREME Southern Illinois
Posts: 281
Total Cats: 0
Default

Ignition map looks usable (hard to read). Have you verified your timing with a timing light?

Your torque curve should be shaped something like this:
http://www.flyinmiata.com/tech/dyno_...0I%20turbo.pdf
DammitBeavis is offline   Reply With Quote
Old 09-13-2010, 06:16 PM   #18
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Just uploaded a new pic of the timing map. Something like the graph above is what i was expecting too. No we could not verify the timing with a timing light.

Also heres a vid of the run.
triple88a is offline   Reply With Quote
Old 09-13-2010, 06:23 PM   #19
Junior Member

Join Date: Jan 2007
Location: EXTREME Southern Illinois
Posts: 281
Total Cats: 0
Default

Make a test map with 10* timing everywhere (don't drive it that way!), fire it up, and put a timing light on that thing. Make sure the marks line up. For a '99, you should see two marks with the light, one will be on 10 BTDC, the other on 0 or "T".
DammitBeavis is offline   Reply With Quote
Old 09-13-2010, 06:28 PM   #20
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

I'll lock the timing at 10 degrees and run that instead After all its only 1 button
