Begi S kit fully warmed up. - Page 3 - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Reply



LinkBack Thread Tools Search this Thread
Old 09-14-2010, 04:53 PM   #41
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by 18psi View Post
Does your tuner know what he's doing?
I'd hope so, after all you're running his ecu too

After i get the IC installed, i'll tune it up again. What should i be running it as? MS or VE? Is there a issue with simply clicking the use of VE on the analogue cals/ tuning modes or will i need to add and subtract stuff around?
triple88a is offline   Reply With Quote
Old 09-14-2010, 05:42 PM   #42
Junior Member

Join Date: Jan 2008
Location: Central, NJ
Posts: 201
Total Cats: 0
Default

you can't just click ve. You'll have to put everything at 80-90% and retune it all.
PhantomRoadster is offline   Reply With Quote
Old 09-14-2010, 06:12 PM   #43
Senior Member

Join Date: Nov 2007
Location: somewhere in NoVA
Posts: 550
Total Cats: -1
Default

Quote:
Originally Posted by PhantomRoadster View Post
you can't just click ve. You'll have to put everything at 80-90% and retune it all.
Not to menition you will need to update your firmware to something recent, have the right version of Wari to go with the FW and then just use the map I posted.
Prospero is offline   Reply With Quote
Old 09-14-2010, 08:11 PM   #44
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Quote:
Originally Posted by PhantomRoadster View Post
you can't just click ve. You'll have to put everything at 80-90% and retune it all.
what about this?

dgmorr is offline   Reply With Quote
Old 09-14-2010, 10:38 PM   #45
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Well i shut off the map prediction and what do you know my idle is now stable and i can rev up my engine bit by bit without it jumping around. Yes my <40 kPa are rich enough to keep me <12 a/f. Thats probably 1 of the reasons why my map looks weird.

Last edited by triple88a; 09-14-2010 at 10:59 PM.
triple88a is offline   Reply With Quote
Old 09-15-2010, 05:11 AM   #46
Senior Member
iTrader: (3)

Join Date: Aug 2005
Location: Gig Harbor, WA
Posts: 504
Total Cats: 3
Default

Your background knock sensor level isn't set at all. So even if you car isn't knocking its going to pull timing especially from 4-5k rpm.
TurboRoach is offline   Reply With Quote
Old 09-15-2010, 09:28 AM   #47
Junior Member

Join Date: Jan 2008
Location: Central, NJ
Posts: 201
Total Cats: 0
Red face

Quote:
Originally Posted by dgmorr View Post
what about this?

Are you asking or showing me something I didn't notice?
PhantomRoadster is offline   Reply With Quote
Old 09-15-2010, 10:34 AM   #48
Junior Member
iTrader: (1)

Join Date: Jul 2010
Location: Louisville, KY
Posts: 196
Total Cats: 0
Default

Quote:
Originally Posted by DammitBeavis View Post
I like to check my vertical revs against my horizontal revs, just to make sure the engine is balanced properly.
PatrickB is offline   Reply With Quote
Old 09-15-2010, 10:44 AM   #49
Junior Member

Join Date: Jan 2007
Location: EXTREME Southern Illinois
Posts: 281
Total Cats: 0
Default

Quote:
Originally Posted by TurboRoach View Post
Your background knock sensor level isn't set at all. So even if you car isn't knocking its going to pull timing especially from 4-5k rpm.
So was this the problem?
DammitBeavis is offline   Reply With Quote
Old 09-15-2010, 05:58 PM   #50
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

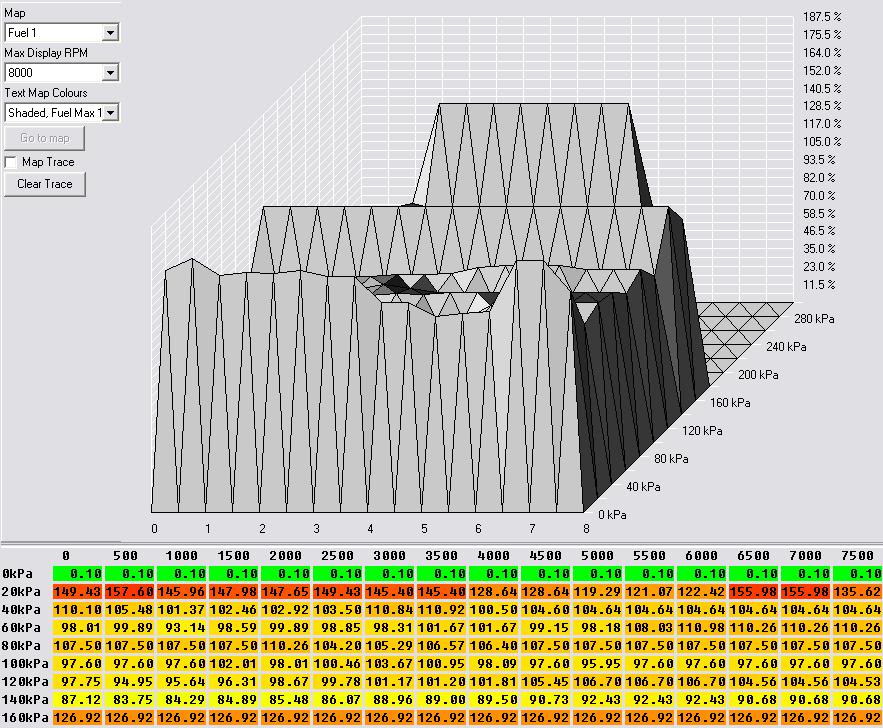

It was pulling it automatically so we lowered the timing a bit and a bit and finally stopped "pinging" at 18` I tried to convert ms to ve... its showing me crazy stuff

Name:  VAconvert.jpg
Views: 1
Size:  156.0 KB

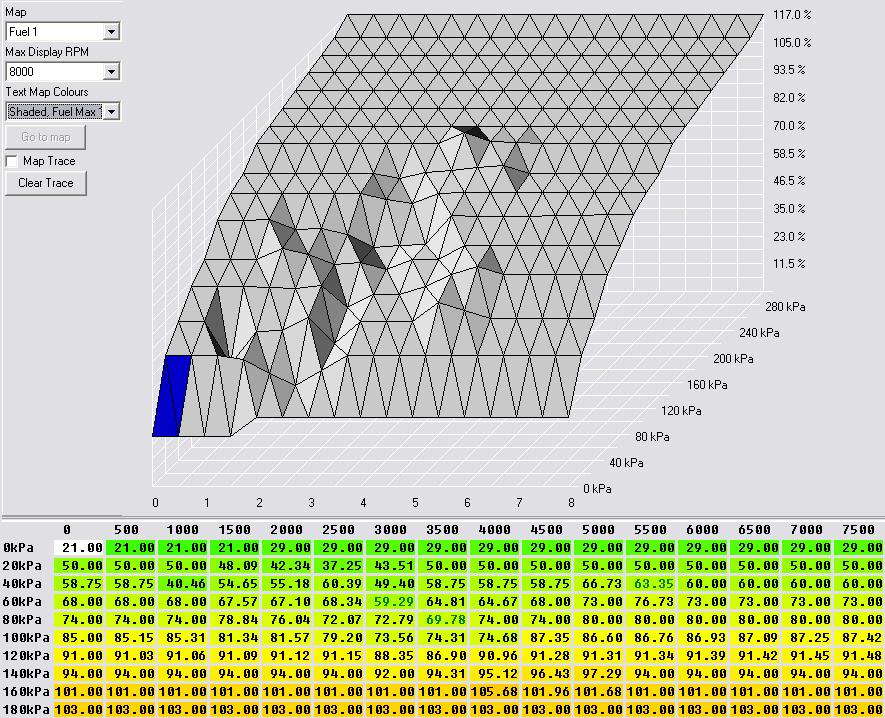

vs prosperos map that is tuned in ve

Name:  Prosperosve.jpg
Views: 2
Size:  178.2 KB
triple88a is offline   Reply With Quote
Old 09-15-2010, 07:22 PM   #51
Senior Member
iTrader: (3)

Join Date: Aug 2005
Location: Gig Harbor, WA
Posts: 504
Total Cats: 3
Default

Quote:
Originally Posted by triple88a View Post
It was pulling it automatically so we lowered the timing a bit and a bit and finally stopped "pinging" at 18`
Did you hear it 'ping' or knock? Or are just relying on the knock sensor to tell you when its knocking? My point was that if you are relying on the sensor its lying to you because the sensor will always pick up some engine noise like 18psi said. The background level needs to be set using det cans.
TurboRoach is offline   Reply With Quote
Old 09-15-2010, 07:33 PM   #52
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Travis was saying that he heard and felt the car shake from the detonation.
triple88a is offline   Reply With Quote
Old 09-16-2010, 05:45 PM   #53
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

where do you guys get your BKRE7 plugs? I've checked vato zone, napa, pepboys, no luck.
triple88a is offline   Reply With Quote
Old 09-16-2010, 05:50 PM   #54
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Quote:
Originally Posted by PhantomRoadster View Post
Are you asking or showing me something I didn't notice?
Mostly just pointing it out. When VE came out, I just ditched my map and started fresh.
dgmorr is offline   Reply With Quote
Old 09-18-2010, 06:33 AM   #55
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

so what is the advantage to VE vs MS?
triple88a is offline   Reply With Quote
Old 02-19-2011, 05:12 PM   #56
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Well guys after learning adaptronic a bit better i decided to update this thread after working some kinks out cells by cells. That tune was... very bad. No **** it barely made 140whp. By bad i'm talking it would stay at 11.5 a/f, then it would jump to 13 500 rpm later, then back down to 12.5, then back up to 14. Basically as soon as i see it go above 12 a/f i let go and add some fuel then step on it again. I'm now officially afraid to let others tune my car.
triple88a is offline   Reply With Quote
Old 03-30-2011, 04:22 PM   #57
Newb

Join Date: Sep 2010
Location: Fresno
Posts: 1
Total Cats: 0
Default

Let me know how your basic tune goes at 10 degrees and how it runs because I had just recently purchased the same kit for my 96 miata. It should be shipped sometime this week from what Stephanie had told me. I'll be running the FMU non intercooled kit soon and need an idea on what would be best to set timing for street tune daily driven. I'm looking forward for new posts. Thanks!!!
ChiMi_ChunGa is offline   Reply With Quote
Old 03-30-2011, 05:09 PM   #58
I'm Miserable!
iTrader: (11)

Join Date: Apr 2008
Location: Texas, 'Murica
Posts: 2,505
Total Cats: 7
Default

You special order the 7's from napa, I think they are factory for a newer saab turbo.
chicksdigmiatas is offline   Reply With Quote
Old 03-31-2011, 12:43 AM   #59
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by ChiMi_ChunGa View Post
Let me know how your basic tune goes at 10 degrees and how it runs because I had just recently purchased the same kit for my 96 miata. It should be shipped sometime this week from what Stephanie had told me. I'll be running the FMU non intercooled kit soon and need an idea on what would be best to set timing for street tune daily driven. I'm looking forward for new posts. Thanks!!!
Well i'm using standalone so i'm not running a pulled stock timing.
triple88a is offline   Reply With Quote
