Default Miotta dyno results

I wanted to get a baseline of the Miotta with the hurt turbine wheel before I replaced it with a new one.

Quick setup:
100% stock 1.6L w/ 93k
gt28rs with .84 turbine housing
Toyota COP conversion
Standalone Megasquirt
Custom intake manifold
Lovefab exhaust manifold w/ Tial 38mm wg
3" exhaust
10.3 psi slow creep to just about 11psi



Here is the the turbo btw....


Of note... I was running the highest Intake Temps i've seen... apparently dyno fans can't emulate driving (Drive home was 85deg, I was almost 100 on dyno)
Mikey (dyno/shop owner) mentioned dyno is probably ~2% high due to the format we had to use for a clean pull (rpm dialed in by gear)

I did not expect 230+ though

Last edited by Splitime; 08-05-2008 at 11:48 PM.
Splitime is offline   Reply With Quote
Old 08-05-2008, 11:49 PM   #2
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

wtf did you do to that turbine? too much launch control?
Arkmage is offline   Reply With Quote
Old 08-05-2008, 11:54 PM   #3
Miotta FTW!
Thread Starter
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,293
Total Cats: 26
Default

Quote:
Originally Posted by Arkmage View Post
wtf did you do to that turbine? too much launch control?
For those that didn't follow my build thread.
Basically I bought it like that, unknown damage. Came off an Audi working fine... none of us had a clue it was like that. Either run too hot... or something ran through it. Doesn't smoke or whine or anything.. but it works.

I'm looking forward to getting lost spool back though when I put a new CHRA in.
Splitime is offline   Reply With Quote
Old 08-05-2008, 11:57 PM   #4
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

they call that a 'clipped wheel'

for flowwww.
y8s is offline   Reply With Quote
Old 08-06-2008, 12:04 AM   #5
Junior Member
iTrader: (1)

Join Date: Oct 2005
Location: Charlotte, NC
Posts: 467
Total Cats: 0
Default

When do you plan on upgrading components?
JDMAflac is offline   Reply With Quote
Old 08-06-2008, 12:06 AM   #6
Miotta FTW!
Thread Starter
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,293
Total Cats: 26
Default

Not so much as an upgrade, but a repair. I'll be sending the turbo in for an exchange soon. Few weeks? Then its time for retune and more boost.
Splitime is offline   Reply With Quote
Old 08-06-2008, 12:35 AM   #7
Junior Member
iTrader: (2)

Join Date: Oct 2007
Location: Lisle, IL
Posts: 296
Total Cats: 0
Default

Dave,

Nice numbers on a "hurt" turbo! Are you still running stock exhaust cam timing too?? Where did you get the dyno testing done?

Mitch
sn95 is offline   Reply With Quote
Old 08-06-2008, 12:54 AM   #8
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Impressive..
Fireindc is offline   Reply With Quote
Old 08-06-2008, 12:56 AM   #9
Miotta FTW!
Thread Starter
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,293
Total Cats: 26
Default

Quote:
Originally Posted by sn95 View Post
Dave,

Nice numbers on a "hurt" turbo! Are you still running stock exhaust cam timing too?? Where did you get the dyno testing done?

Mitch
Heyo! Completely stock cam timing. Fairly sure its the original timing belt too

Dyno'd over at Pro Function in Burr Ridge. Used to be called Factory Five when they were in Arlington Heights.
Splitime is offline   Reply With Quote
Old 08-06-2008, 01:06 AM   #10
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

So when is the new CHRA coming in?
cjernigan is offline   Reply With Quote
Old 08-06-2008, 01:15 AM   #11
Miotta FTW!
Thread Starter
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,293
Total Cats: 26
Default

Quote:
Originally Posted by cjernigan View Post
So when is the new CHRA coming in?
When I sell a few more things to fund it... and get unlazy and remove the current chra
Splitime is offline   Reply With Quote
Old 08-06-2008, 01:54 AM   #12
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

What's up with the stupid dyno dynamics default x axis numbers?
3800, 4400, ...
JasonC SBB is offline   Reply With Quote
Old 08-06-2008, 02:02 AM   #13
Miotta FTW!
Thread Starter
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,293
Total Cats: 26
Default

Quote:
Originally Posted by JasonC SBB View Post
What's up with the stupid dyno dynamics default x axis numbers?
3800, 4400, ...
No clue. The let off moment is also 7200rpm not the actual indicated. Having done the dyno in a setup based off of rpm vs gearing... it wasn't 100% dead on. Had issues getting a clean rpm signal. Typically this specific dyno sees about a 2% higher reading done this way.

I kind of suspect it was my rear wheels... no hubcentric rings... and they are off a bit right now.. was too lazy to realign them ahead of time.. didn't even think about it Its movement on the dyno, was translated into the rollers and into the dynos brain.... brain bumps...
Splitime is offline   Reply With Quote
Old 08-06-2008, 09:18 AM   #14
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Nice turbine. :(

Good numbers though.
Ben is offline   Reply With Quote
Old 08-06-2008, 09:48 AM   #15
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Nice job Dave - I think a new turbine wheel will show a good improvement in the HP curve right after your torque peak. That's where I saw the most improvement from a similar change.
m2cupcar is offline   Reply With Quote
Old 08-06-2008, 09:48 AM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

aw, your hurt turbo numbers are WAY better than mine, looks like you're just missing spool...once it starts spinning it looks like it's doing its job just fine.
Braineack is offline   Reply With Quote
Old 08-06-2008, 10:26 AM   #17
Miotta FTW!
Thread Starter
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,293
Total Cats: 26
Default

Heh, that reminds me... gotta edit the signature... need a +230rwhp in there
Splitime is offline   Reply With Quote
Old 08-06-2008, 10:34 AM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

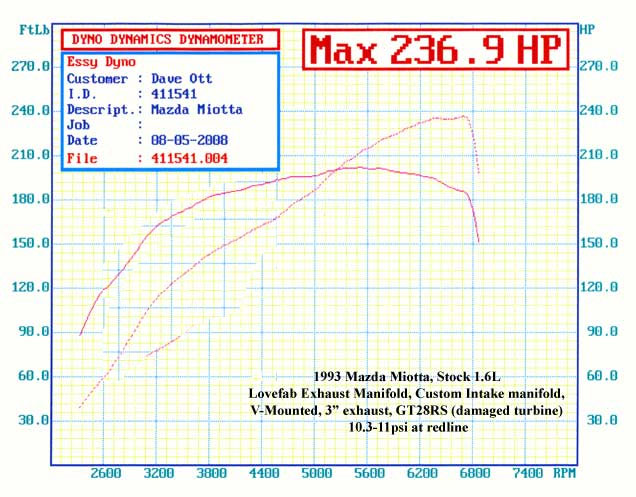

I bet next time it will look like this:
Attached Thumbnails
Miotta dyno results-dave_plot_fixed.jpg
Braineack is offline   Reply With Quote
Old 08-06-2008, 10:39 AM   #19
Miotta FTW!
Thread Starter
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,293
Total Cats: 26
Default

Had a minute to combine a few datalog snapshots.


Has anyone else noticed that you can't put multiple vertical lines and get extra datapoints on screen in MLV anymore? I swear you used to be able to...
Splitime is offline   Reply With Quote
Old 08-06-2008, 11:13 AM   #20
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

It's kind of hard to tell how much without verticle line on it but why it looks like you're leaning out a decent amount between 1 and 9 psi. I guess at that point you're still only at a couple psi so it shouldn't be an issue, but still shouldn't it be decending steadily?
johndoe is offline   Reply With Quote
