Default My Addiction on the dyno

So I'm finally happy with the tune after ditching the 16g and installing the GReddy kit I picked up from Fireindc. An opportunity to get a couple cheap pulls on a Dynojet popped up so I tossed it on last night.

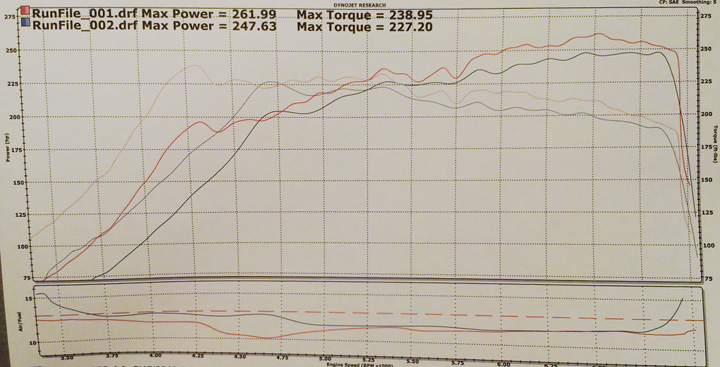

These pulls were 17psi peak tapering to 14 at redline. AFRs get pretty fat at peak boost but settle back to mid-11's. Made 262whp/239wtq on the 4th gear pull (in the video), and made 248/227 in 3rd on the next pull. The dyno operator went WOT 1K rpm later in the 3rd gear pull, so that accounts for the peak power and AFRs being misaligned between the pulls.

Not the same dyno I used pre-turbo, so unfortunately no direct comparison to my n/a numbers (94/85 on a DynoDynamics). I'm trying to figure out when to get back on that one, and I'm figuring ~15% less on it. Really happy with the numbers, pretty much right where I wanted to be, but I guess it's time to start thinking about rods, or turning the boost down (lame). If I get around to building it I'll go e85 and see what this little 15g can do, but it's mostly spun out at the current boost level. I've bumped it as high as 19psi and it does not net me any more airflow, so any gains with e85 will come mostly from higher timing/stabilizing boost/bigger exhaust, etc. (Inb4 go 1.8 fagoot)



Attached Thumbnails
My Addiction on the dyno-feb-15-2013-4th-gear-dynojet-sm.jpg
matthewdesigns is offline   Reply With Quote
Old 02-16-2013, 11:29 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

Spools a bit late but you're on a 1.6 so actually its not bad at all. 'Grats man, that's gotta be real fun on the street
18psi is offline   Reply With Quote
Old 02-16-2013, 11:46 PM   #3
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

Great numbers man, congrats.
pdexta is offline   Reply With Quote
Old 02-17-2013, 03:04 PM   #4
Free Moustache Rides
Thread Starter
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Thanks guys. It's fun for sure, and feels about as quick as my last Talon did at 330/360...power/weight is roughly the same now. I do wish it spooled earlier, but I'm not willing to go smaller (for cheap money), and I don't have the cash for a BB setup. So maybe a 3" exhaust will net earlier spool in the meantime while I save for rods/injectors.
matthewdesigns is offline   Reply With Quote
Old 02-17-2013, 09:57 PM   #5
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Awesome! I love it man, sounds great. Are those dyno results corrected or uncorrected?

Here was that same turbo kit on my car when I dynod last fall.

Attached Thumbnails
My Addiction on the dyno-dynoruns.jpg
Fireindc is offline   Reply With Quote
Old 02-17-2013, 10:22 PM   #6
Free Moustache Rides
Thread Starter
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Dey corrected...1.22 (which seems a little high but IDK). That makes the uncorrected numbers 215/196.

What about yours? And what gear was that?
matthewdesigns is offline   Reply With Quote
Old 02-18-2013, 12:28 PM   #7
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Not sure, but i know it was "SAE" corrected. Uncorrected was around 205whp.

It looks like your block should be perfectly safe at those power levels since that is the corrected number. I'd look at the uncorrected numbers to see the real stress on the block.

Although i'm sure its ****** fast, because mine when it made those dyno numbers really moved out.
Fireindc is offline   Reply With Quote
Old 02-18-2013, 01:20 PM   #8
Free Moustache Rides
Thread Starter
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Good point on the uncorrected numbers. My graph says "Correction:SAE" at the top, but there's a "1.22" in the info lines below the graph, so I figured that was how much it was corrected.

And yeah it definitely moves out...surprises lots of people.
matthewdesigns is offline   Reply With Quote
Old 02-18-2013, 01:47 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

ah, the greddy kit: none of the low-end with none of the high-end.
Braineack is offline   Reply With Quote
Old 02-18-2013, 02:17 PM   #10
Free Moustache Rides
Thread Starter
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

lol
matthewdesigns is offline   Reply With Quote
Old 02-18-2013, 04:50 PM   #11
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

To be fair, both him and I are above 6k feet elevation which hinders both spool and top end power.

This is why I'm doing my 1.8 swap
Fireindc is offline   Reply With Quote
Old 02-18-2013, 06:38 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

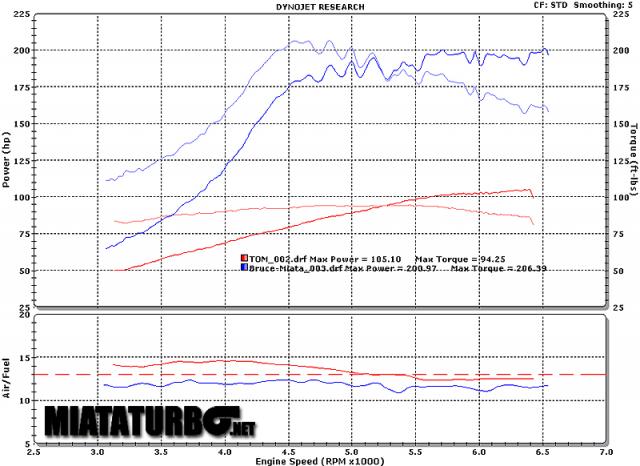

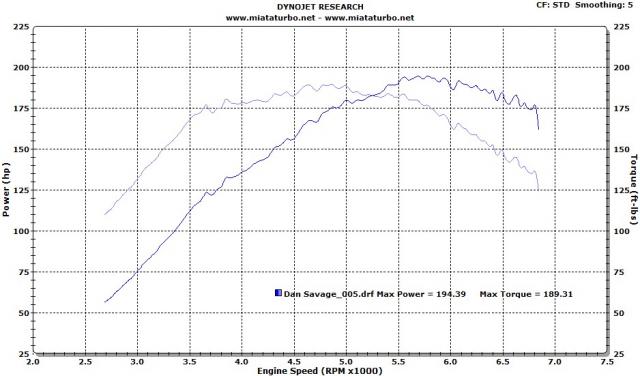

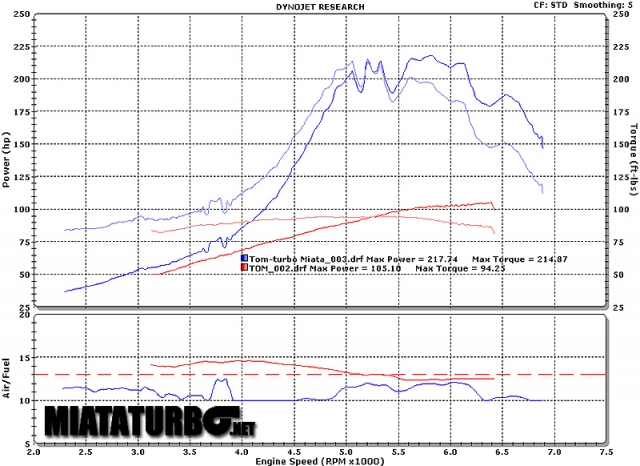

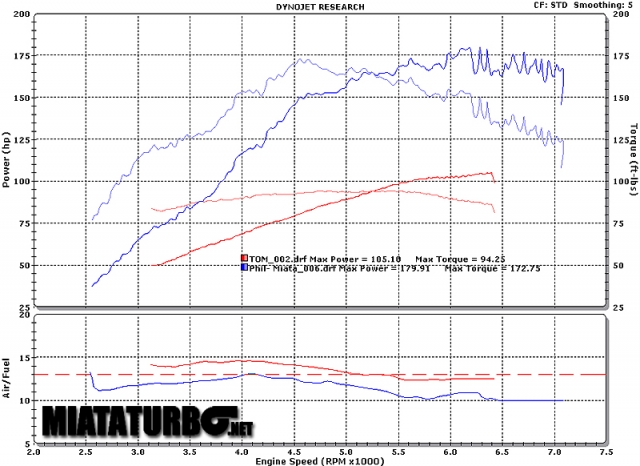

im at sea level and never seen a greedy spool well:










best was on a setup using an AUTO motor so it had a better intake cam:

Attached Thumbnails
My Addiction on the dyno-bruce_olderguy.jpg   My Addiction on the dyno-phil_mach929.jpg   My Addiction on the dyno-tom_brgracer.jpg   My Addiction on the dyno-rappadan.jpg
Braineack is offline   Reply With Quote
Old 02-18-2013, 10:41 PM   #13
Free Moustache Rides
Thread Starter
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Thanks for posting those. Looks like I'm not too far off of the average spool characteristics then, just 50ft/lbs better by the time it's singing

Guess I'll look for an auto intake cam and see what that'll do. Exhaust cam the same as a manual? Can't be terribly expensive, and I need to do a timing belt anyway.
