Default My first dyno

Disappointed
Supposedly this dyno reads super low.
All the modded speed3's were reading 210 to 220 hp uncorrected, mine read 148.4

Stock 1.6 roughly 60,000 miles
13PSI gt2560
2.5 catless exhaust

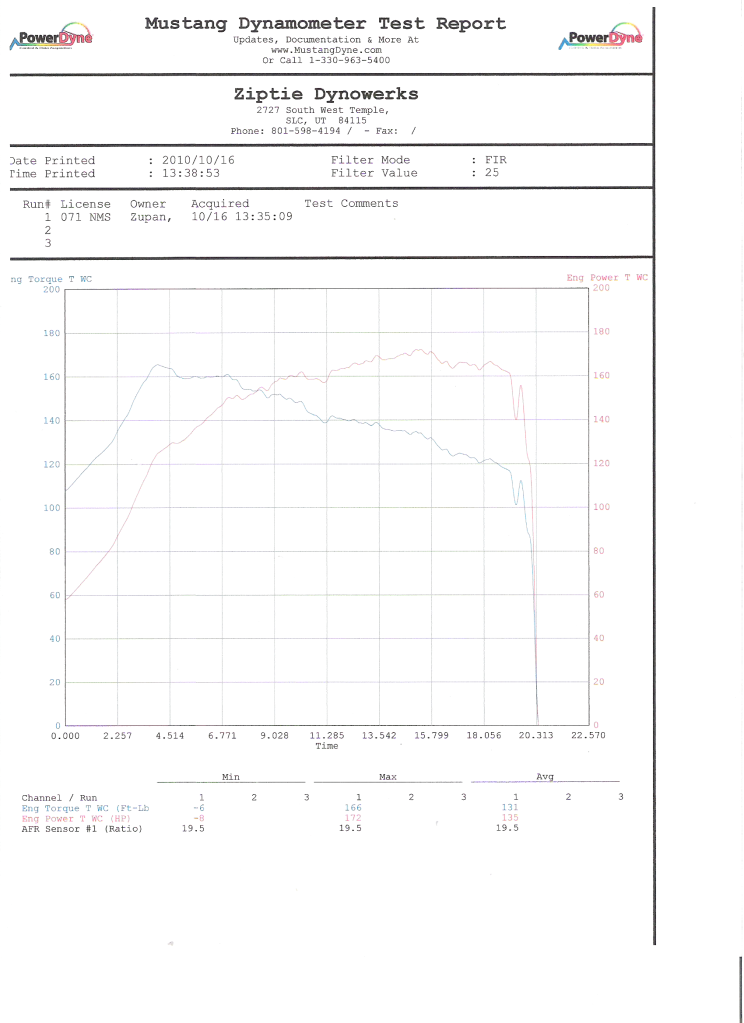

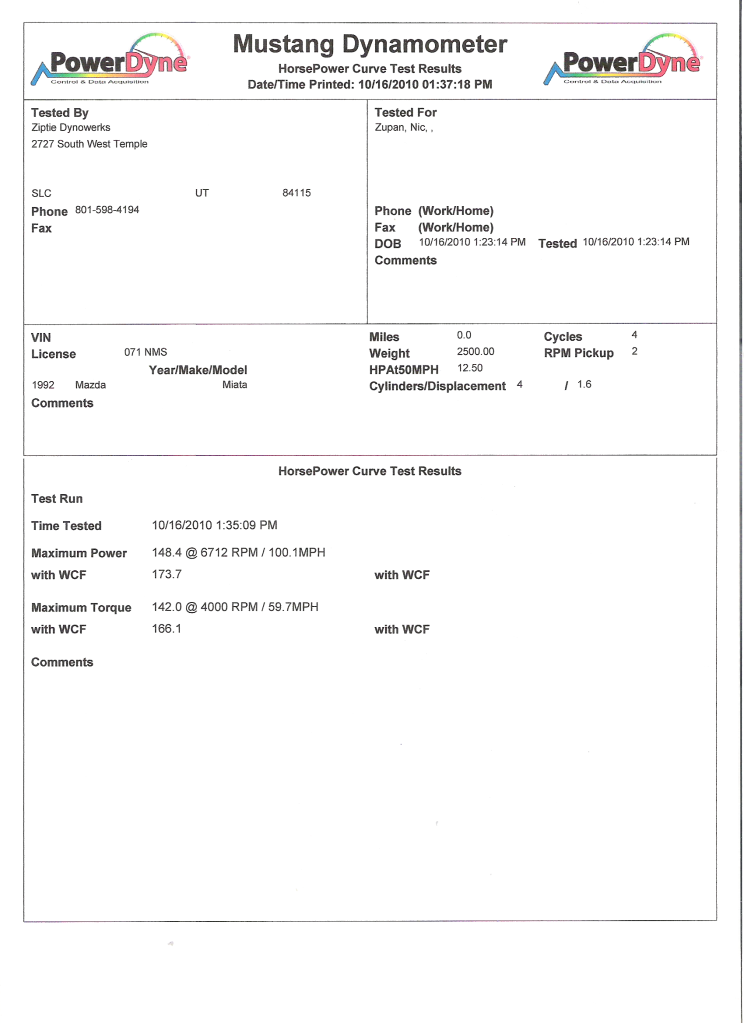

Name:  dyno1.png
Views: 2
Size:  183.0 KB


Name:  dyno3.png
Views: 2
Size:  199.8 KB

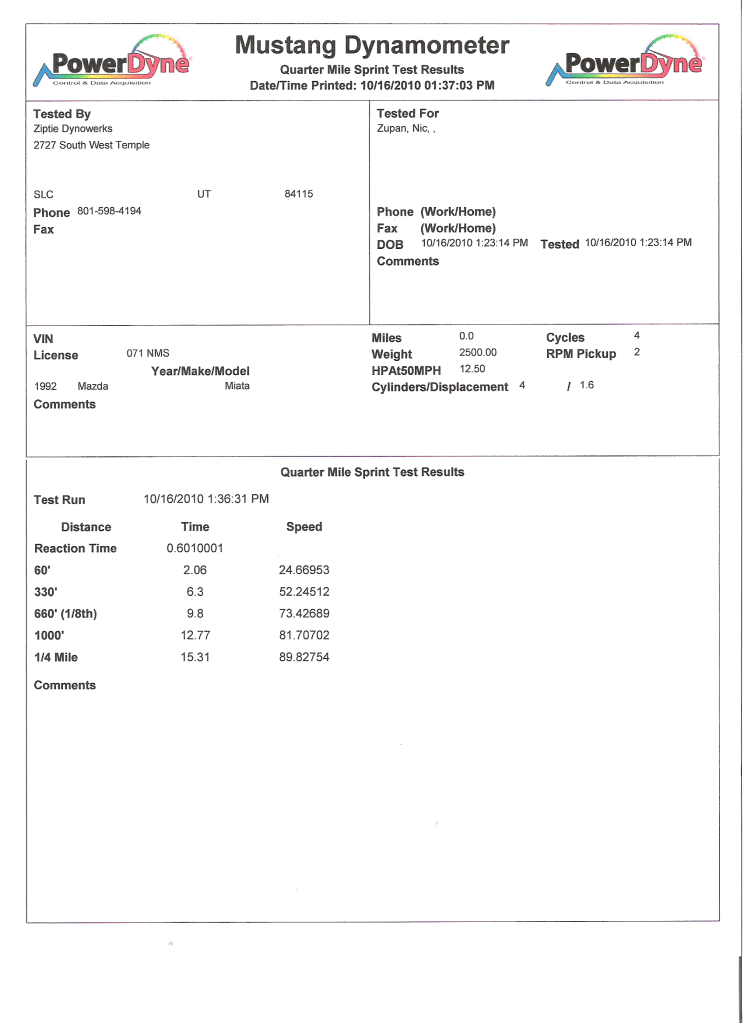

1/4 mile run
Name:  dyno4quartermile.png
Views: 2
Size:  179.3 KB

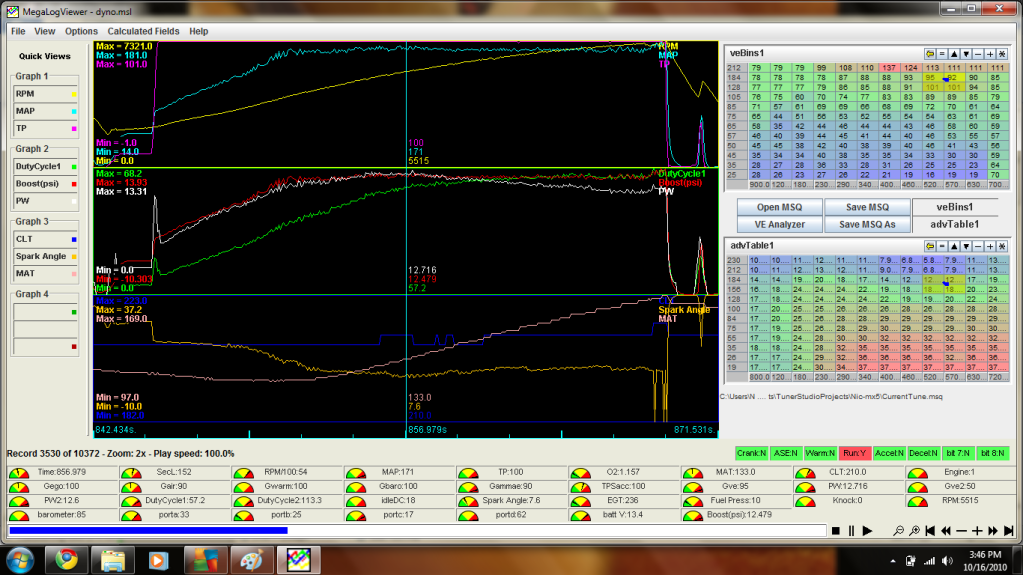

Here's a shot of the datalog.

Name:  dynolog.png
Views: 2
Size:  267.2 KB

They're cooling fans were worthless. The video shows the first pull. after that I went up to the front and held one of the blowers on the air intake while my friend held one in front of the intercooler.




All in all I'd say I need more tuning amongst other things.

Last edited by nicacus; 10-16-2010 at 07:39 PM.
nicacus is offline   Reply With Quote
Old 10-16-2010, 07:31 PM   #2
Senior Member
iTrader: (7)

Join Date: Dec 2006
Location: Chicagoland
Posts: 1,362
Total Cats: 3
Default

You really need a 3" exhaust my friend.
jtothawhat is offline   Reply With Quote
Old 10-16-2010, 07:34 PM   #3
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,163
Total Cats: 2,573
Default

he needs more tuning.
18psi is offline   Reply With Quote
Old 10-16-2010, 07:53 PM   #4
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Your exhaust is fine. I managed to crack the 200 HP mark with my stock 1.6 on a Dynojet with a 2.5" exhaust, a plain ole' ceramic cat, and a tiny little Greddy TD04H-15G turbo running 13-14 PSI, but it took a fair amount of tweaking to get there. I picked up over 20 ft/lbs in the midrange with a few simple fuel adjustments.

I don't see AFR logged anywhere, either on the dyno sheets or on your image of the datalog.

Your ignition timing looks quite conservative to me as well. The base timing in the spark map isn't too bad, but take, for instance, the point where the cursor is (5515 RPM @ 171 kPa). The base map is calling for about 15 there, and yet you're only seeing 7.6 in the log. Part of that is probably MAT (133F, climbing to 169?!) although the curves (MAT vs. Spark) don't seem to be tracking the way I'd expect. Get in there and figure out what's pulling your spark advance.
Joe Perez is offline   Reply With Quote
Old 10-16-2010, 08:35 PM   #5
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,805
Total Cats: 183
Default

Omg. How did I make 209 whp on a smaller turbo with a shitty setup? Oh..I know...I wasn't on a mustang dyno, and for 1/4 mile proof, I ran at a track that printed out a time slip saying 13.9.
A: you need to get on a real dyno.
2: you need to hit a real drag strip
D: you have to be making at least 200 whp. There is something wrong with your car/ tune.
thirdgen is offline   Reply With Quote
Old 10-16-2010, 09:26 PM   #6
Senior Member
iTrader: (7)

Join Date: Dec 2006
Location: Chicagoland
Posts: 1,362
Total Cats: 3
Default

Quote:
Originally Posted by thirdgen View Post
Omg. How did I make 209 whp on a smaller turbo with a shitty setup? Oh..I know...I wasn't on a mustang dyno, and for 1/4 mile proof, I ran at a track that printed out a time slip saying 13.9.
A: you need to get on a real dyno.
2: you need to hit a real drag strip
D: you have to be making at least 200 whp. There is something wrong with your car/ tune.

He has a 1.6L and you have a 99? lol either way the needs a tune badly.
jtothawhat is offline   Reply With Quote
Old 10-16-2010, 09:33 PM   #7
Senior Member
Thread Starter
iTrader: (7)

nicacus's Avatar

Join Date: Jul 2006
Location: SLC UT
Posts: 1,133
Total Cats: 0
Default

Here's the tune I was running and the full log.

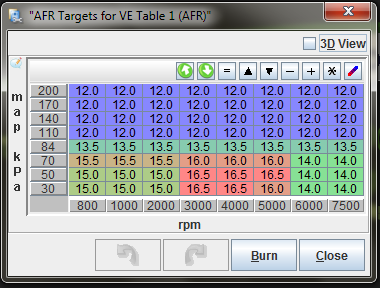

Here's a snapshot of the AFR target table
Name:  dynoAFR.png
Views: 2
Size:  36.1 KB

3" exhaust is in the works.

I wouldnt have gone to a mustang dyno normally, but this was a local mazda dyno day, so it was fairly cheap. Plus I figured it would show me where I was at after having the car turbo for 3+ years.
Attached Files
File Type: msq CurrentTune.msq (36.2 KB, 159 views)
File Type: msl dyno.msl (1.28 MB, 139 views)
nicacus is offline   Reply With Quote
Old 10-16-2010, 09:40 PM   #8
Senior Member
iTrader: (7)

Join Date: Dec 2006
Location: Chicagoland
Posts: 1,362
Total Cats: 3
Default

I don't know much about tuning but your transition into boost doesn't look good. But what do I know? Also 12.0 is a little lean for my liking.
jtothawhat is offline   Reply With Quote
Old 10-16-2010, 10:11 PM   #9
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

your fuel and spark tables are terrible. Let me know if you can't find the info you need from examples in the tuning forum and I'll point you on the way to glory.
hustler is offline   Reply With Quote
Old 10-16-2010, 10:32 PM   #10
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,790
Total Cats: 128
Default

Quote:
Originally Posted by Joe Perez View Post
Your ignition timing looks quite conservative to me as well. The base timing in the spark map isn't too bad, but take, for instance, the point where the cursor is (5515 RPM @ 171 kPa). The base map is calling for about 15 there, and yet you're only seeing 7.6 in the log. Part of that is probably MAT (133F, climbing to 169?!) although the curves (MAT vs. Spark) don't seem to be tracking the way I'd expect. Get in there and figure out what's pulling your spark advance.
Joe nailed it, as usual. Timing is huge and when you're pulling that much you're leaving tons of power on the table.
pdexta is offline   Reply With Quote
Old 10-17-2010, 06:09 PM   #11
Senior Member
Thread Starter
iTrader: (7)

nicacus's Avatar

Join Date: Jul 2006
Location: SLC UT
Posts: 1,133
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
your fuel and spark tables are terrible. Let me know if you can't find the info you need from examples in the tuning forum and I'll point you on the way to glory.
I have a few different spark maps that I have run in the past without any issues. Last time I posted one up everyone **** bricks about how aggressive it was..

So out of fear I switched it to the current map.

If there is a certain one anyone recommends i'm up for it

As for fuel all of the tuning there has been from the autotune in tunerstudios.

I'd love to hear suggestions on what to do there as well.
nicacus is offline   Reply With Quote
Old 10-17-2010, 06:19 PM   #12
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Quote:
Originally Posted by nicacus View Post
I have a few different spark maps that I have run in the past without any issues. Last time I posted one up everyone **** bricks about how aggressive it was..
As I said before, the spark map itself looks like a decent starting point, but you're not actually getting the ignition advance that it's calling for.

Find out why.
Joe Perez is offline   Reply With Quote
Old 10-17-2010, 06:20 PM   #13
Senior Member
Thread Starter
iTrader: (7)

nicacus's Avatar

Join Date: Jul 2006
Location: SLC UT
Posts: 1,133
Total Cats: 0
Default

Could it have been from the super high AITs??
nicacus is offline   Reply With Quote
Old 10-17-2010, 06:52 PM   #14
Senior Member
iTrader: (7)

Join Date: Dec 2006
Location: Chicagoland
Posts: 1,362
Total Cats: 3
Default

Quote:
Originally Posted by nicacus View Post
Could it have been from the super high AITs??
When you run very little timing like that that's usually you have high EGTs
jtothawhat is offline   Reply With Quote
Old 10-17-2010, 07:27 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

needs more timing and less AITs.
Braineack is offline   Reply With Quote
Old 10-18-2010, 01:18 AM   #16
Senior Member
Thread Starter
iTrader: (7)

nicacus's Avatar

Join Date: Jul 2006
Location: SLC UT
Posts: 1,133
Total Cats: 0
Default

Ok, went for a canyon drive and did some logs with a new spark table.

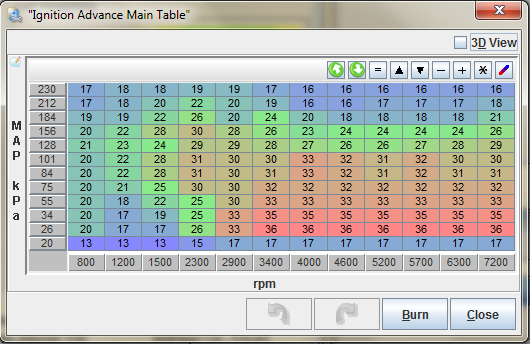

this:

Name:  timingtable.png
Views: 2
Size:  52.0 KB

Didn't hear any knock, and got no hesitation with that table. Is that table too aggressive?

Notice the manifold air temps on this log compared to the dyno log.
Ambient temperature was around 59* F

Here's a GPS track of the datalog.

http://maps.google.com/maps/ms?msa=0...c5ba47c728cbe5





datalog attached
Attached Files
File Type: zip canyon datalog.zip (586.9 KB, 51 views)
nicacus is offline   Reply With Quote
Old 10-18-2010, 09:53 AM   #17
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

for clarification... what is your altitude and are those numbers uncorrected?
aaronc7 is offline   Reply With Quote
Old 10-18-2010, 11:14 AM   #18
Senior Member
Thread Starter
iTrader: (7)

nicacus's Avatar

Join Date: Jul 2006
Location: SLC UT
Posts: 1,133
Total Cats: 0
Default

6400 feet
148 uncorrected
173 corrected
nicacus is offline   Reply With Quote
