Default 1.8 MAF wiring diagram help

Hi, I am trying to use a spare 1.8 MAF sensor I have in my garage for my Mechanical Engineering controls project. I can not find a wiring diagram to find the pin out for the sensor. Does anyone know the pins?

Were using it to create a PID feedback controller for a dynometer fan for my School's FSAE team
cyotani is offline   Reply With Quote
Old 02-25-2014, 11:14 PM   #2
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,323
Total Cats: 1,920
Default

Pinout varies by year.

For '94-97, wherein the IAT sensor is integrated into the MAF assembly:



Wherein:

W/R = 12v
R/B = IAT
R/W = MAF (0-5v)
B/L = signal ground
B/LG = power ground






For '99-'05:



Wherein:

W/R = 12v
LG/B = MAF (0-5v)
B/L = ground
Attached Thumbnails
1.8 MAF wiring diagram help-maf_na.gif   1.8 MAF wiring diagram help-maf_nb.gif
Joe Perez is offline   Reply With Quote
Old 02-25-2014, 11:17 PM   #3
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

https://www.miataturbo.net/megasquir...n-14166/page5/

I found this thread and put 12V to pin 5 and grounded pin 1 and used a DMM to read the voltage between 2 and 4 but am getting 0 volts.
cyotani is offline   Reply With Quote
Old 02-25-2014, 11:23 PM   #4
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,323
Total Cats: 1,920
Default

Quote:
Originally Posted by cyotani View Post
https://www.miataturbo.net/megasquir...n-14166/page5/

I found this thread and put 12V to pin 5 and grounded pin 1 and used a DMM to read the voltage between 2 and 4 but am getting 0 volts.
Re: the thread you linked to- know that there was a lot of misinformation floating around back then.

Re: your most recent test: Did you expect something other than 0v at the output with no airflow? (While the mechanical airflow meter in the '90-'93 cars scaled from 5v = no airflow to 0v = maximum airflow, rest assured that the hotwire MAF sensors in the '94-'05 cars scale "properly," wherein 0v = no airflow and 5v = maximum airflow.)
Joe Perez is offline   Reply With Quote
Old 02-25-2014, 11:26 PM   #5
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

Quote:
Originally Posted by Joe Perez View Post
Re: the thread you linked to- know that there was a lot of misinformation floating around back then.

Re: your most recent test: Did you expect something other than 0v at the output with no airflow? (While the mechanical airflow meter in the '90-'93 cars scaled from 5v = no airflow to 0v = maximum airflow, rest assured that the hotwire MAF sensors in the '94-'05 cars scale "properly," wherein 0v = no airflow and 5v = maximum airflow.)
Thanks for the help Joe!

I have a household fan and am measuring voltage with it off and with it blowing full blast into the MAF. I think that should be enough airflow to get a reading on my DMM but nada
cyotani is offline   Reply With Quote
Old 02-25-2014, 11:41 PM   #6
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

This is how I have it wired at the moment. red alligator is +11.55 from a battery and yellow is the battery negative terminal. 2nd pin from left is DMM ground and 4th from the left is DMM positive. (I made sure I have clean connections to the pin without the two adjacent alligator clips touching). Still no voltage regardless of airflow.



Attached Thumbnails
1.8 MAF wiring diagram help-photofeb2573646pm_zpsbabf003c.jpg   1.8 MAF wiring diagram help-photofeb2573635pm_zps1d74ac3a.jpg
cyotani is offline   Reply With Quote
Old 02-26-2014, 01:18 AM   #7
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

This says far left is ecu ground (signal ground). but either way I still get 0 V regardless of airflow.

How to Test a 1995 Mazda Miata Mass Air Flow Sensor | eHow



Nice write up by the way Joe!

AFM Removal from the 1.6 liter Miata using eManage Ultimate
cyotani is offline   Reply With Quote
Old 02-26-2014, 08:14 AM   #8
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,323
Total Cats: 1,920
Default

Just a quick note as I hop on the train- you should probably ground both MAF grounds to the same point, and take your measurement relative to that combined ground.
Joe Perez is offline   Reply With Quote
Old 02-26-2014, 10:41 AM   #9
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

Quote:
Originally Posted by Joe Perez View Post
Just a quick note as I hop on the train- you should probably ground both MAF grounds to the same point, and take your measurement relative to that combined ground.
Okay, so the sensor ground and power ground should both go to the negative battery terminal and use a DMM to find the voltage from common ground to the sensor output 0-5V?
cyotani is offline   Reply With Quote
Old 02-26-2014, 11:56 AM   #10
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,323
Total Cats: 1,920
Default

Quote:
Originally Posted by cyotani View Post
Okay, so the sensor ground and power ground should both go to the negative battery terminal and use a DMM to find the voltage from common ground to the sensor output 0-5V?
That's the idea.
Joe Perez is offline   Reply With Quote
Old 02-26-2014, 10:43 PM   #11
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

Quote:
Originally Posted by Joe Perez View Post
That's the idea.

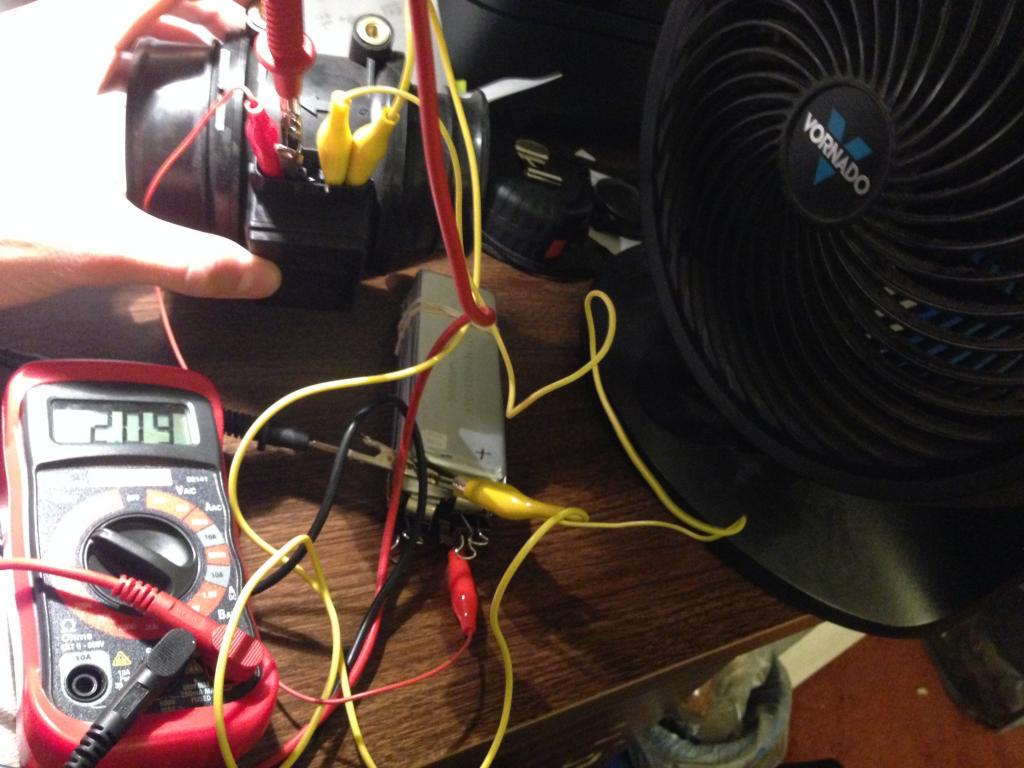

Worked like a charm! Thank you for the help good sir!

Electronic circuits is not my strong point. But now that I think about it common ground makes sense. I should known that one. Now on the PID portion. Should be a fun project.



Attached Thumbnails
1.8 MAF wiring diagram help-photofeb2664007pm_zps831a2a6c.jpg
cyotani is offline   Reply With Quote
Old 02-27-2014, 12:44 AM   #12
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,323
Total Cats: 1,920
Default

Quote:
Originally Posted by cyotani View Post
Worked like a charm! Thank you for the help good sir!


All that is visible must grow beyond itself, and extend into the realm of the invisible.
Attached Thumbnails
1.8 MAF wiring diagram help-dumont.jpg
Joe Perez is offline   Reply With Quote
