Default Alternator Control. Dead nailed. MS3 / MS3-Pro / MSPNP-Pro

Here is a "leaked" video that I think you guys will appreciate, showing MSPNP-MM0105 alternator control on a 01. This new feature will be included in MS3 firmware soon.

Ben is offline   Reply With Quote
Old 06-02-2014, 06:42 PM   #2
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

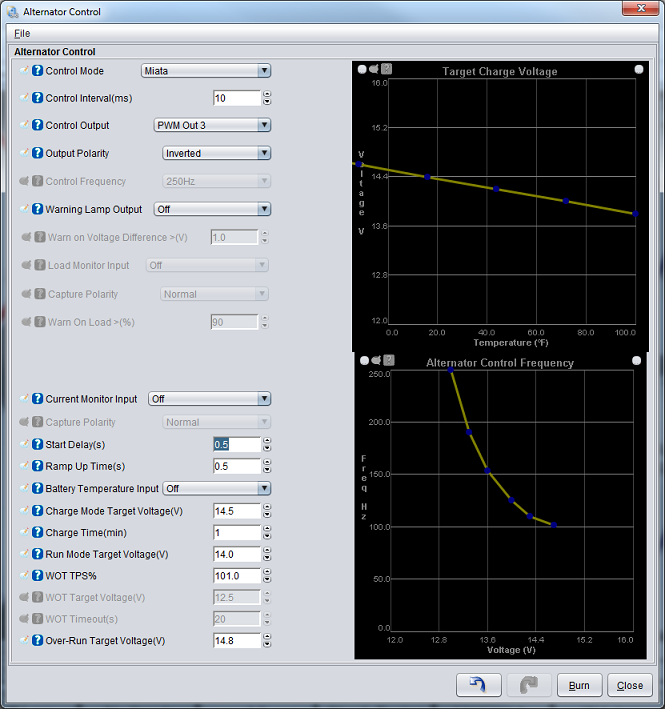

MS3 Alternator Control Menu. There is no "tuning" needed (we've done that for you). Just use the Control Mode called Miata.

Attached Thumbnails
Alternator Control.  Dead nailed.  MS3 / MS3-Pro / MSPNP-Pro-ms3-alternator-control.png
Ben is offline   Reply With Quote
Old 06-02-2014, 08:48 PM   #3
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

so awesome to see this implemented. sad that I don't have a miata to try it on!

does it address the change in MAP at idle as the alternator current increases? that's one thing that always caused me problems. voltage stayed steady but engine speed dipped as load increased to provide more amps.

mind you this is at 900 rpm idle, not 1100...
y8s is online now   Reply With Quote
Old 06-02-2014, 08:55 PM   #4
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by y8s View Post
so awesome to see this implemented. sad that I don't have a miata to try it on!

does it address the change in MAP at idle as the alternator current increases? that's one thing that always caused me problems. voltage stayed steady but engine speed dipped as load increased to provide more amps.

mind you this is at 900 rpm idle, not 1100...
My warm idle target is 900. The car is still in warmup during the video capture. I am using the idle VE table and idle advance to help maintain idle with increased load. I am very happy with the results.

Now go get yourself a Miata.
Ben is offline   Reply With Quote
Old 06-03-2014, 09:47 AM   #5
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

awesome....want ms3!
Preluding is offline   Reply With Quote
Old 06-03-2014, 10:32 AM   #6
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by Ben View Post
My warm idle target is 900. The car is still in warmup during the video capture. I am using the idle VE table and idle advance to help maintain idle with increased load. I am very happy with the results.

Now go get yourself a Miata.
If there is a miata out there with a back seat and room for a toddler seat, I'm game.

Tell me about how the alternator charges at startup/warmup. I used to get crazy belt squeal when it was enabled at crank because it would see low voltage and think it was time to charge like crazy. But if I disabled it, then flipping it on would be too abrupt. Does the MS algorithm allow a softer engagement after cranking and startup are settled?
y8s is online now   Reply With Quote
Old 06-03-2014, 12:41 PM   #7
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Quote:
Originally Posted by Ben View Post
Here is a "leaked" video that I think you guys will appreciate, showing MSPNP-MM0105 alternator control on a 01. This new feature will be included in MS3 firmware soon.
Don't want to be THAT guy, but time table for "soon"? Because now I can't decide whether to install my MS3+X with the alternator control board I bought or wait lol.
Schuyler is offline   Reply With Quote
Old 06-03-2014, 07:11 PM   #8
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by y8s View Post
If there is a miata out there with a back seat and room for a toddler seat, I'm game.
Protege 5?
Quote:
Tell me about how the alternator charges at startup/warmup. I used to get crazy belt squeal when it was enabled at crank because it would see low voltage and think it was time to charge like crazy. But if I disabled it, then flipping it on would be too abrupt. Does the MS algorithm allow a softer engagement after cranking and startup are settled?
See the settings screen capture in post #2. Configurable start up delay, then configurable ramp up time to after-start "charge time" voltage. You can then set a transition to a lower target voltage after a period of time, as desired.

No belt squeal experienced using this mode on my car. I could make the belt squeal using other control methods.
Ben is offline   Reply With Quote
Old 06-03-2014, 07:22 PM   #9
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by Schuyler View Post
Don't want to be THAT guy, but time table for "soon"? Because now I can't decide whether to install my MS3+X with the alternator control board I bought or wait lol.
Released as beta today.
Megasquirt MSEXTRA / MS3EFI • MS3 pre-1.3.2 beta 1 released (View topic)

Note that the control mode has been renamed to "high speed field control".
Ben is offline   Reply With Quote
Old 06-03-2014, 07:41 PM   #10
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: SE NM
Posts: 1,461
Total Cats: 48
Default

So this means a plug-in MS3 for 01+ is coming soon from you guys?
Chilicharger665 is offline   Reply With Quote
Old 06-03-2014, 08:04 PM   #11
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by Chilicharger665 View Post
So this means a plug-in MS3 for 01+ is coming soon from you guys?
Yes, within the next few weeks. Just wrapping up some loose ends on it, but the hardware is done and ready.
Ben is offline   Reply With Quote
Old 06-03-2014, 08:34 PM   #12
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: SE NM
Posts: 1,461
Total Cats: 48
Default

Count me as very interested. If it comes with a base map, then I will be set!
Chilicharger665 is offline   Reply With Quote
Old 06-03-2014, 10:14 PM   #13
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Damn Ben. That's a pretty sweet setup. I think the ramp time and startup delay will make all the difference compared to a simple on/off method.
y8s is online now   Reply With Quote
Old 06-04-2014, 09:51 PM   #14
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Good stuff. Did they implement a simple hysteretic control loop?
JasonC SBB is online now   Reply With Quote
Old 06-04-2014, 10:48 PM   #15
Junior Member
iTrader: (5)

Join Date: Mar 2010
Location: Houston
Posts: 370
Total Cats: 62
Default

Quote:
Originally Posted by Ben View Post
Yes, within the next few weeks. Just wrapping up some loose ends on it, but the hardware is done and ready.


Will there be a way to mount it included in the box or on the ECU itself? There certain customers who like that sort of thing. This comment does not relate to any other product of yours, something else that has been a pain. Also, AWESOME!
hankclaussen is offline   Reply With Quote
Old 06-04-2014, 11:13 PM   #16
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Thats mighty impressive.

Could you possibly try with a large, sudden load (inb4 innuedo), like, a huge SPAL fan turning on? I'm sure it pulls like 30A during start up
soviet is offline   Reply With Quote
Old 06-05-2014, 02:37 AM   #17
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 200
Default

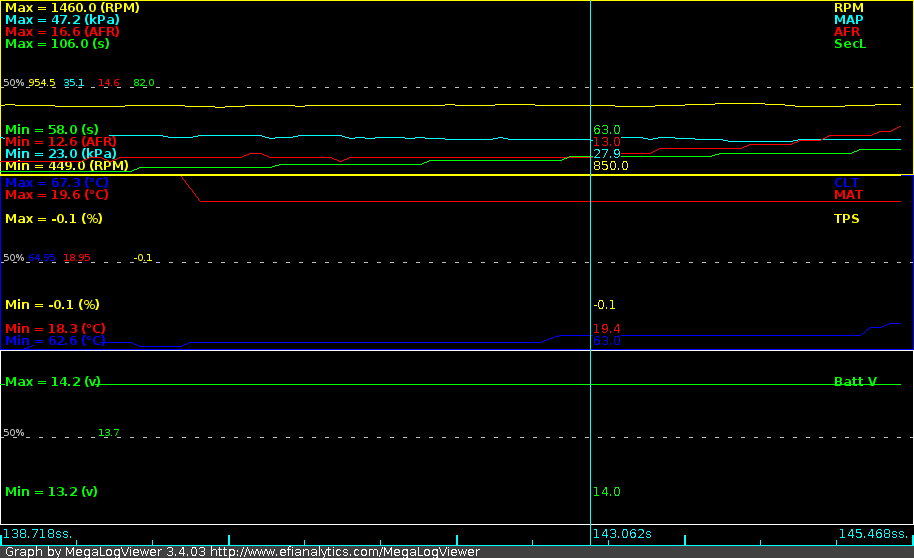

Any 99-05 Basic MS3 since December '12:



Attached Thumbnails
Alternator Control.  Dead nailed.  MS3 / MS3-Pro / MSPNP-Pro-basic-ms3-voltage.png
Reverant is online now   Reply With Quote
Old 06-08-2014, 11:20 PM   #18
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by JasonC SBB View Post
Good stuff. Did they implement a simple hysteretic control loop?
There is a hysteretic loop, with a couple of complications on top. Very high speed. minimum "stay in state" is 50uS.

Quote:
Originally Posted by hankclaussen View Post
Will there be a way to mount it included in the box or on the ECU itself? There certain customers who like that sort of thing. This comment does not relate to any other product of yours, something else that has been a pain. Also, AWESOME!
Unsure what you're asking... This is an improvement on a software feature in MS3 EMS. There is no external hardware needed.

Quote:
Originally Posted by soviet View Post
Thats mighty impressive.

Could you possibly try with a large, sudden load (inb4 innuedo), like, a huge SPAL fan turning on? I'm sure it pulls like 30A during start up
I don't have a SPAL fan to try it on, so sorry but no. I tested with other devices, such as power windows (which I had to install on the car as it had no doors). Stock Miata fans don't cause so much as a blip. The response is better than Mazda's control.

Quote:
Originally Posted by Reverant View Post
Any 99-05 Basic MS3 since December '12:
Looks good.
Ben is offline   Reply With Quote
Old 06-10-2014, 07:22 PM   #19
Junior Member

Join Date: Aug 2013
Location: Ohio
Posts: 78
Total Cats: -7
Default

Will this be applicable to the MS3 basic I bought from rev. last summer for my 2000 model?
6speed is offline   Reply With Quote
Old 06-10-2014, 09:04 PM   #20
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by 6speed View Post
Will this be applicable to the MS3 basic I bought from rev. last summer for my 2000 model?
This feature is available in MS3 1.3.2 Beta firmware and beyond. You will need to ask Rev about compatibility with his ECUs as I believe he incorporates some custom hardware.
Ben is offline   Reply With Quote
