Default Is this going to be an issue with the iat?

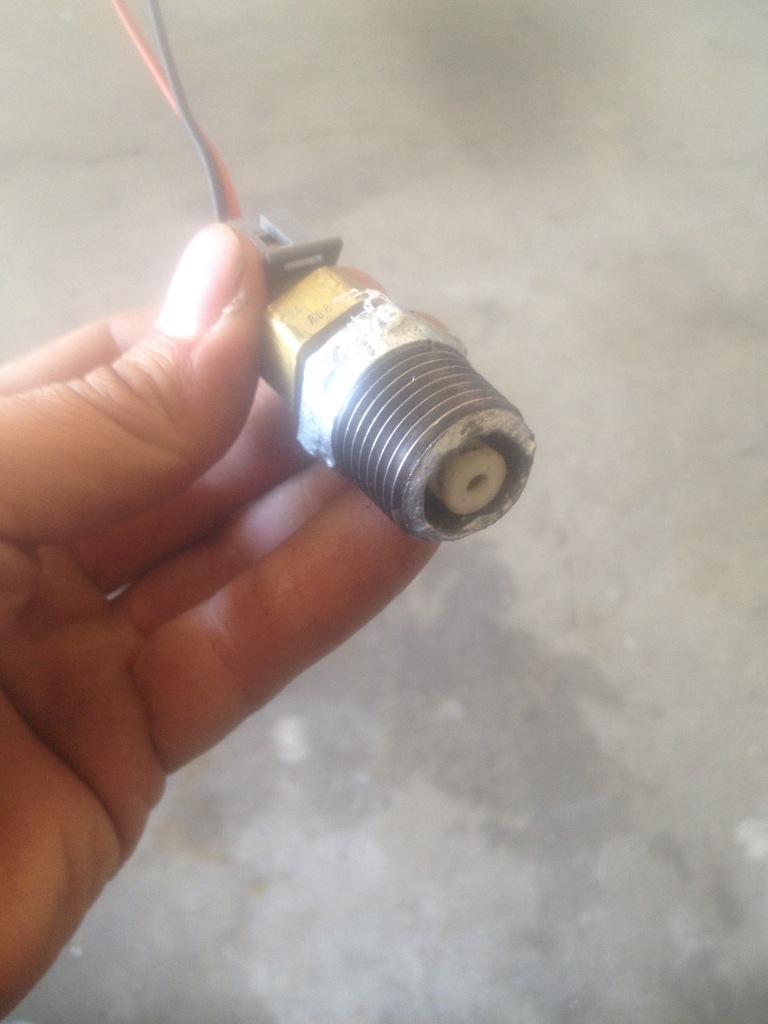

I didn't know how to search for this so sorry if this has been discussed before. One of my pipes was threaded for 1/2 but I needed 3/8 for the iat. I also had no use for the threaded hole in the pipe so I figured I would just use it for my iat. The adapter I bought doesn't let the sensor be directly exposed to the air. Will this be an issue? I want to make the adaptor shorter but I have no way to cut galvanized steel.

Attached Thumbnails
Is this going to be an issue with the iat?-null_zps8d1c6d40.jpg
Dot3 is offline   Reply With Quote
Old 10-18-2013, 04:44 PM   #2
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Yes, it could be an issue. Temp sensor is epoxied into the middle of the sensor and will see whatever heat the complete package is exposed to. What you want to do is expose it to the intake air as much as you can, without any insulating dead spots, etc.

Don't you have a grinder? Make some sparks!
hornetball is offline   Reply With Quote
Old 10-18-2013, 04:56 PM   #3
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,168
Total Cats: 2,573
Default

Its not the end of the world, but yes absolutely you want the sensor in direct airflow for proper operation
18psi is offline   Reply With Quote
Old 10-18-2013, 06:07 PM   #4
Senior Member
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 719
Total Cats: 55
Default

I would cut it down imo. A hacksaw would cut that.
Onyxyth is offline   Reply With Quote
Old 10-18-2013, 06:16 PM   #5
Junior Member
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

cut in half or more
you just need enough threads to thread it in and use silicone to make a tight seal
Alejo_NIN is offline   Reply With Quote
Old 10-18-2013, 06:23 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,168
Total Cats: 2,573
Default

18psi is offline   Reply With Quote
Old 10-18-2013, 06:31 PM   #7
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

I prefer sparks.
hornetball is offline   Reply With Quote
Old 10-18-2013, 07:14 PM   #8
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2011
Location: Albuquerque, NM
Posts: 381
Total Cats: -13
Default

Cool. I'll do my best to cut it down. Was just hopping i wouldn't have to try to cut it.
Thanks.
Dot3 is offline   Reply With Quote
