Old 04-30-2010, 09:50 PM   #1
Junior Member
Thread Starter
iTrader: (4)

Join Date: Feb 2009
Location: Raleigh, NC
Posts: 321
Total Cats: 0
Default injector install advice needed- cranking PW%

Ok so I have searched for a couple hours on this here, in megamanual, and searching for TS info, but cant figure it all out. Some of this is just double-checking, some may have an obvious answer I'm missing, but here goes...

I am ready to install my 460's, and I calculated my reqfuel to be 57.6%, giving 7.48 (13.0 is where I am currently)

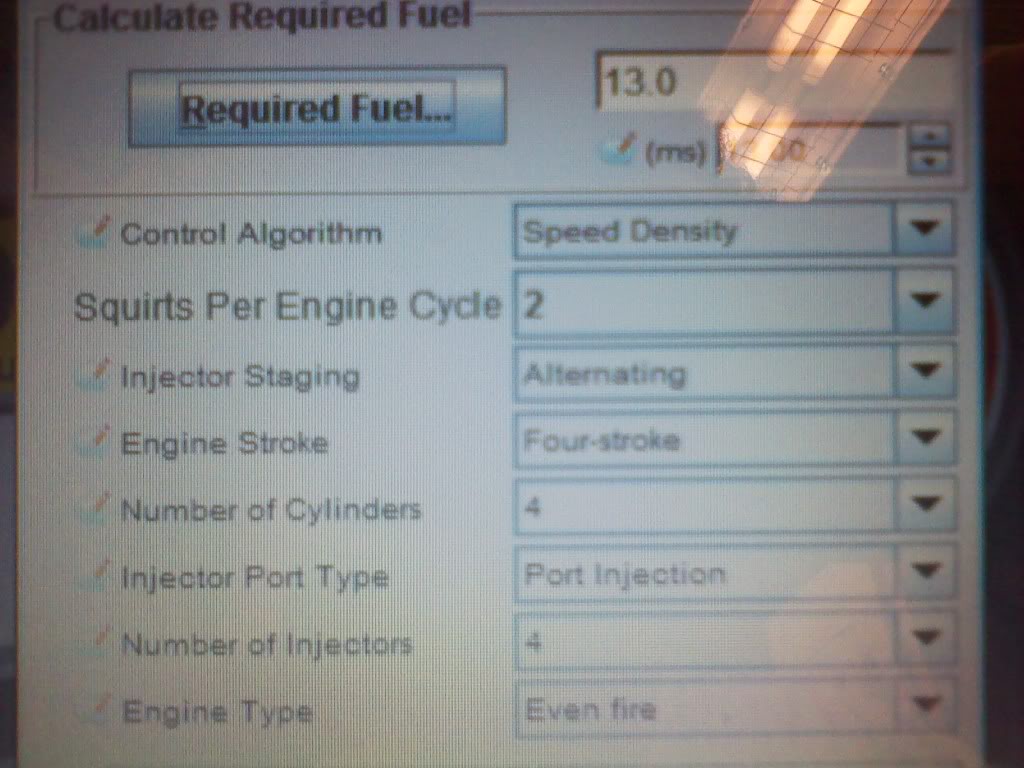

Step One) Under basic setup > engine constants, change the 13.0 to 7.48?
Name:  0430102014a.jpg
Views: 2
Size:  111.6 KB

I have read that accel enrichment should be scaled by the same percent also, this make sense since it is a percent, and the same percent on a larger injector will supply more "enrichment"

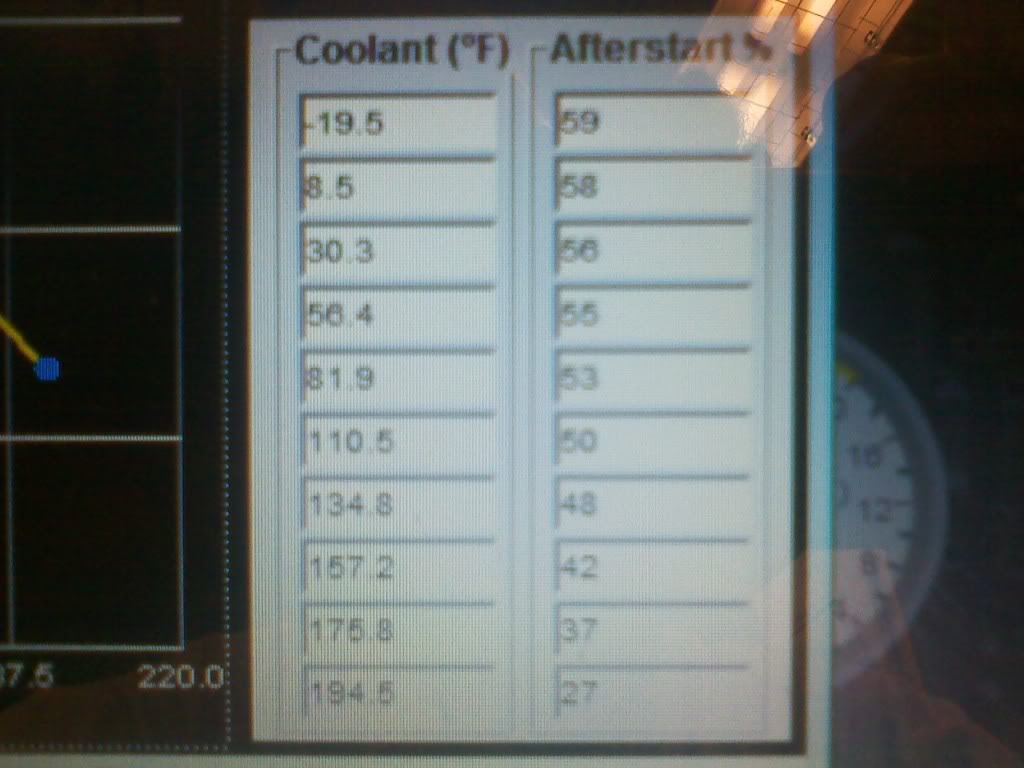

Step two) Under Startup/Idle > ASE Percentage, multiply the percentages by .576?
Name:  0430102022a.jpg
Views: 2
Size:  91.7 KB

I have read that accel enrich must be adjusted, but havn't found how...

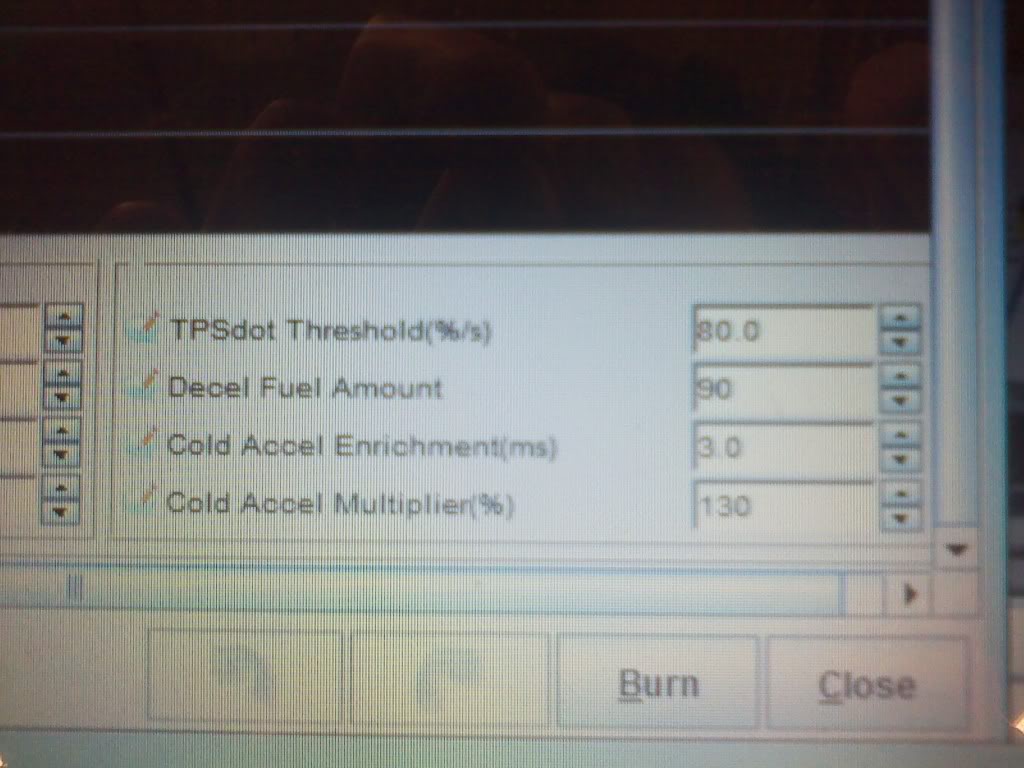

Step three) Under accel enrich > acceleration wizard, multiply these bottom-right numbers to 57%?
Name:  0430102034a.jpg
Views: 2
Size:  106.4 KB

Cranking PW must be changed, and reading up on that I've found a huge range of suggested PW's, but all in milliseconds... I can only find my Cranking PW's in a percentage, which is pretty much a straight line from -20 to 195 degrees F, 326 to 101 percent PW...

Step four) decrease these percentages by .576 factor? Where's my actual PW besides a log?

Last question, do I need to mess with the warmup enrichment also?

THANKS TUNING GODS
kewilso3 is offline   Reply With Quote
Old 05-02-2010, 01:10 PM   #2
Junior Member
Thread Starter
iTrader: (4)

Join Date: Feb 2009
Location: Raleigh, NC
Posts: 321
Total Cats: 0
Default

OK PW % apparently is a MS2 thing, so i guess I will just need to change the percentages
kewilso3 is offline   Reply With Quote
Old 05-02-2010, 02:26 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,814
Total Cats: 1,780
Default

just change the REQ_Fuel and leave the rest... since it's in % now you don't need to rescale anything else.
Braineack is online now   Reply With Quote
Old 05-04-2010, 03:51 PM   #4
Junior Member
Thread Starter
iTrader: (4)

Join Date: Feb 2009
Location: Raleigh, NC
Posts: 321
Total Cats: 0
Default

ha it's just too easy! Scaled it to 7.5, started up, went for a nice autotune/log session, and it drives better than it did before! If I knew anything about tuning and was brave enough, this would be even more fun.
kewilso3 is offline   Reply With Quote
Old 05-20-2010, 05:39 PM   #5
Junior Member
iTrader: (7)

Join Date: May 2007
Location: Buffalo, NY
Posts: 332
Total Cats: 0
Default

I also installed rx7 460cc injectors today. I changed the req. fuel to 7.5. My car starts and drives, but the engine runs like crap. It sounds like a Subaru. It is not smooth at all. The injectors are freshly cleaned. Any advice?
longuyen88 is offline   Reply With Quote
Old 05-20-2010, 07:02 PM   #6
Junior Member
iTrader: (7)

Join Date: May 2007
Location: Buffalo, NY
Posts: 332
Total Cats: 0
Default

I went out and checked the resistance on the injectors. They all checked out fine, 15 ohms. I used a screwdriver to listen to the injector clicks. They all click. But the sounds are different. Injector 1+4 is louder than the other two injectors. Is this normal?

At idle it is kinda rough. If I rev it up with my hands on the throttle cable the engine gets smoother. Yet when I drive it, it's rough.

Maybe I should start a new thread?
longuyen88 is offline   Reply With Quote
Old 05-21-2010, 10:57 AM   #7
Junior Member
Thread Starter
iTrader: (4)

Join Date: Feb 2009
Location: Raleigh, NC
Posts: 321
Total Cats: 0
Default

I'd help you if i could, but im more of a noob than you so my advice is to tune, or go back to your stockers and get that tune more reliable first... If your stock injectors were flowing poorly maybe it threw off your VE numbers
kewilso3 is offline   Reply With Quote
Old 05-21-2010, 01:22 PM   #8
Junior Member
iTrader: (7)

Join Date: May 2007
Location: Buffalo, NY
Posts: 332
Total Cats: 0
Default

I just installed NB2 injectors, and car runs a lot better. Just needs a tune now. I will be sending my rx7 injectors out to get recleaned and flow tested.
longuyen88 is offline   Reply With Quote
