ME221 ecu - full retard


Old 04-26-2017, 08:01 AM
  #1
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 640
Total Cats: -422
Default ME221 ecu - full retard

Hey,

I'm helping a guy here and the current state is the car "cuts" at around 5000rpm (NB05) 220-230kpa, current timing is 6deg...

Could the retard timing cause that ?
What would be same timing with 98RON fuel ?

Thanks
Elior
elior77 is offline
Old 04-26-2017, 08:17 AM
  #2
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 3,157
Total Cats: 382
Default

is it the Launch control activating? are you experiencing spark blowout? what ignition and how much boost?
ryansmoneypit is offline
Old 04-26-2017, 08:24 AM
  #3
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 640
Total Cats: -422
Default

Checking about the LC, spark blowout = misfire ?

R8 red cops and 220-230kpa boost (17-18psi)

LC is set at 4000... but when this "cuts" happen it is normal pull with no clutch engagement.

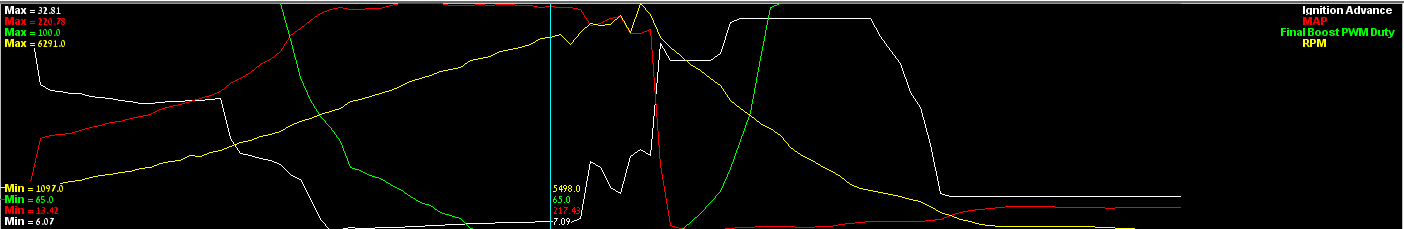

In the attched pic you can see the rpm drop at around 5500rpm with 7deg.
Attached Thumbnails ME221 ecu - full retard-capture.png
elior77 is offline
Old 04-26-2017, 08:37 AM
  #4
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,584
Total Cats: 241
Default

Stock engine? Compression?
__________________
Originally Posted by ninerwfo View Post
The “into to megasquirt thread” mentions that the MS3 basic has 5 inputs with built in pull up resistors - and I was just wondering why it would have so many, while the MS3Pro PnP has just 2 (with no pull ups?)
MS Labs: Plug and Play Megasquirt ECUs for ANY 90-05 Miata (NA, NB1, NB2 w/VVT, MSM), including basemaps to get you started ASAP. PM me or email or details.
For support on MS Labs ECUs: Please email, be sure to include the unit's serial number and include a datalog and your current map.
Reverant is online now
Old 04-26-2017, 08:47 AM
  #5
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 640
Total Cats: -422
Default

Manley rods, all stock
elior77 is offline
Old 04-26-2017, 09:12 AM
  #6
Boost Czar
iTrader: (62)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 76,372
Total Cats: 2,294
Default

6°?!

I'd be running closer to 16...

might be one of the most retarded spark maps ive seen to date.
Braineack is offline
Old 04-26-2017, 11:26 AM
  #7
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,584
Total Cats: 241
Default

Definitely too retarded, however 220-230kPa with stock pistons isn't going to last long, even with rods.
__________________
Originally Posted by ninerwfo View Post
The “into to megasquirt thread” mentions that the MS3 basic has 5 inputs with built in pull up resistors - and I was just wondering why it would have so many, while the MS3Pro PnP has just 2 (with no pull ups?)
MS Labs: Plug and Play Megasquirt ECUs for ANY 90-05 Miata (NA, NB1, NB2 w/VVT, MSM), including basemaps to get you started ASAP. PM me or email or details.
For support on MS Labs ECUs: Please email, be sure to include the unit's serial number and include a datalog and your current map.
Reverant is online now
Old 04-26-2017, 11:28 AM
  #8
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,141
Total Cats: 3,145
Default

18psi is offline
Old 04-26-2017, 11:32 AM
  #9
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,481
Total Cats: 1,628
Default

Post log and tune please
aidandj is offline
Old 04-27-2017, 01:32 AM
  #10
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 640
Total Cats: -422
Default

It is an ME221, I will post the files shortly.

The car came to me with this map and cuts at around 5500rpm, after tuning it yesterday I got it up to about 12deg at 210kpa no knock but the cuts came back after a couple of hours...
elior77 is offline
Old 04-27-2017, 07:10 AM
  #11
Boost Czar
iTrader: (62)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 76,372
Total Cats: 2,294
Default

oh that explain everything.
Braineack is offline
Old 04-27-2017, 02:03 PM
  #12
Junior Member

Join Date: Oct 2016
Posts: 75
Total Cats: 10
Default

Check injector duty.

They have a stupid hard coded fuel cut once the Injectors reach something like 90% duty cycle
phil21191 is offline
Old 04-27-2017, 03:08 PM
  #13
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,141
Total Cats: 3,145
Default

never go full retard
18psi is offline
Old 04-27-2017, 05:17 PM
  #14
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 640
Total Cats: -422
Default

Originally Posted by phil21191 View Post
Check injector duty.

They have a stupid hard coded fuel cut once the Injectors reach something like 90% duty cycle
The ME221 have fuel cut at 90% ?? really ?? well... it does show around 90%, we use FF640cc 210-220kpa, 90% is true ?
elior77 is offline
Old 04-27-2017, 05:24 PM
  #15
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 14,389
Total Cats: 1,328
Default

Originally Posted by elior77 View Post
The ME221 have fuel cut at 90% ?? really ?? well... it does show around 90%, we use FF640cc 210-220kpa, 90% is true ?
​​​​​​​You would have to ask the makers of the ME221 about that. As there is very little support for it outside of them.
shuiend is offline
Old 04-27-2017, 05:25 PM
  #16
Junior Member

Join Date: Oct 2016
Posts: 75
Total Cats: 10
Default

Originally Posted by elior77 View Post
The ME221 have fuel cut at 90% ?? really ?? well... it does show around 90%, we use FF640cc 210-220kpa, 90% is true ?
Yea, there was something Motorsport Electronics posted somewhere on Facebook recently that mentioned it. It may be 95% it cuts at but it definately cuts fuel/spark at a hard coded injector pulse width
phil21191 is offline
Old 04-27-2017, 05:32 PM
  #17
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 640
Total Cats: -422
Default

I opened 42 tickets in the last 18 months, some related to hardware (missing component, some fw bugs and some software and gui bugs, I must say that they responded to all of them and implemented most of my feedback - at first they questioned my tuning ability but at the end I saw that my ticket turned into "change log" on the never-ending beta 2.0 rc27.... fw.
elior77 is offline
Old 04-27-2017, 05:36 PM
  #18
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,481
Total Cats: 1,628
Default

Digging through the software (between the crashes) I found a setting called PW Limiter Mod. No idea what it means, but it might point to where your issue is.
aidandj is offline
Old 04-27-2017, 05:49 PM
  #19
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 640
Total Cats: -422
Default

Originally Posted by aidandj View Post
Digging through the software (between the crashes) I found a setting called PW Limiter Mod. No idea what it means, but it might point to where your issue is.
Can't find that, I use version 1.7.1
elior77 is offline
Old 04-27-2017, 05:51 PM
  #20
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,481
Total Cats: 1,628
Default

Its under Limiters.
aidandj is offline
