Default Mounting wells tps210

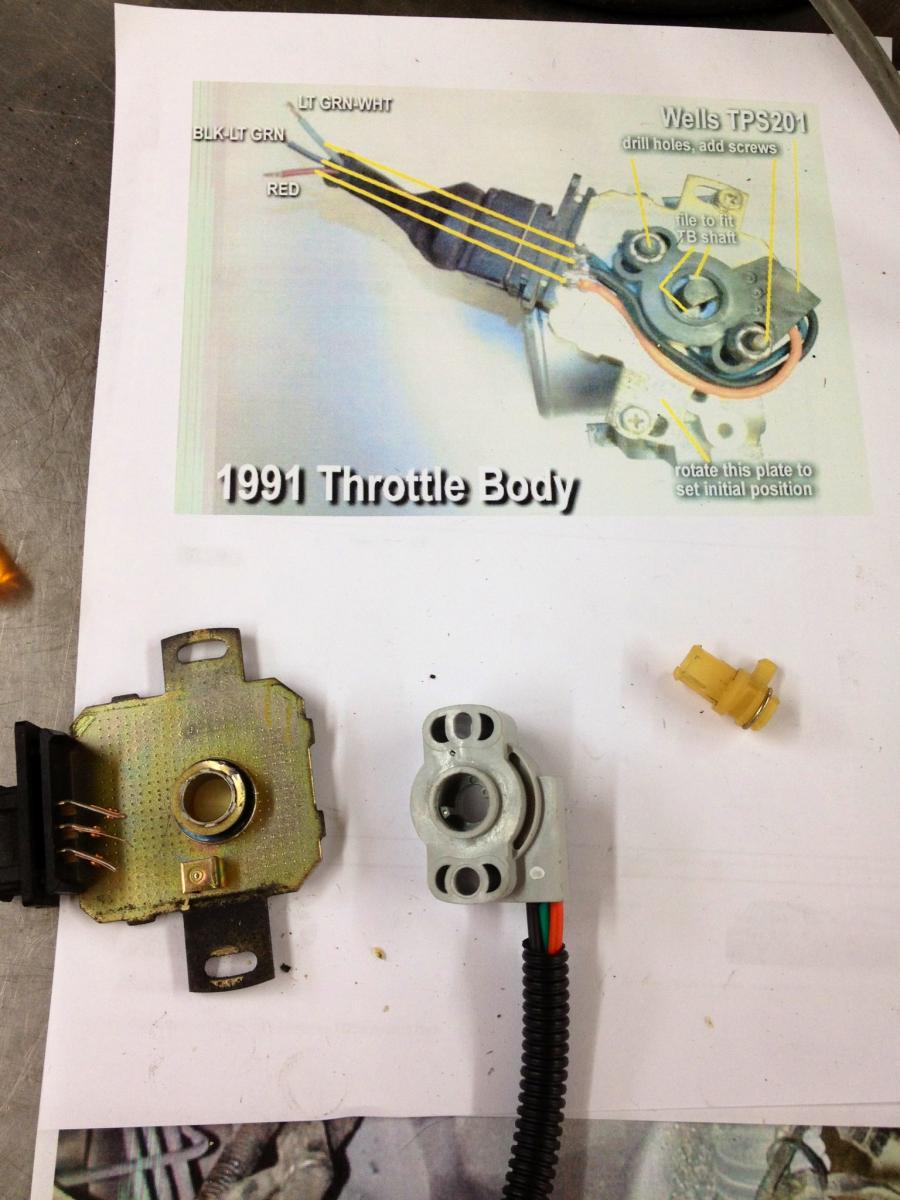

How does the tps mount to the plate? How does it detect the throttle position, I am not comprehending this, also my sensor slides over the throttle shaft without needing to file anything to fit like the "how-to" states.

Should the tps rotate with the throttle shaft?

Does washer/post combo need to be cut off so the tps can sit flush on that mounting plate?

Is that yellow plastic collar piece required in the right side of the photo?
Attached Thumbnails
Mounting wells tps210-photo-1-.jpg
tplociniak is offline   Reply With Quote
Old 08-03-2012, 10:31 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

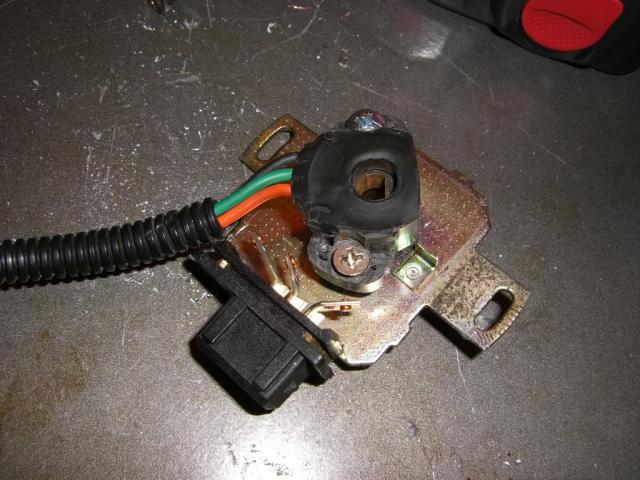

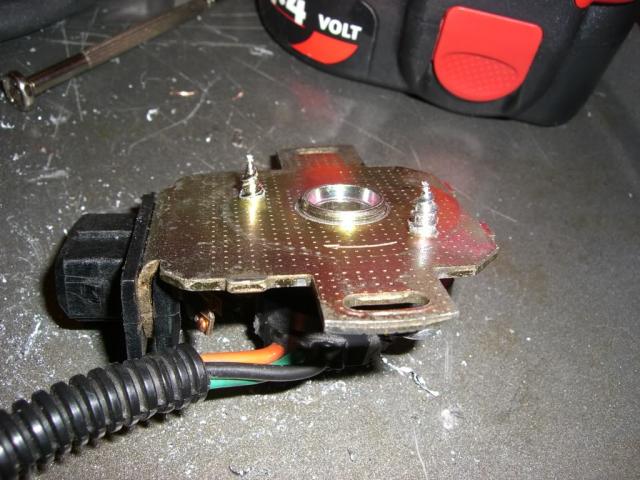

mine.
Attached Thumbnails
Mounting wells tps210-cimg1730.jpg   Mounting wells tps210-cimg1731.jpg
Braineack is offline   Reply With Quote
Old 08-03-2012, 10:44 AM   #3
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2012
Location: Moscow, PA
Posts: 118
Total Cats: 2
Default

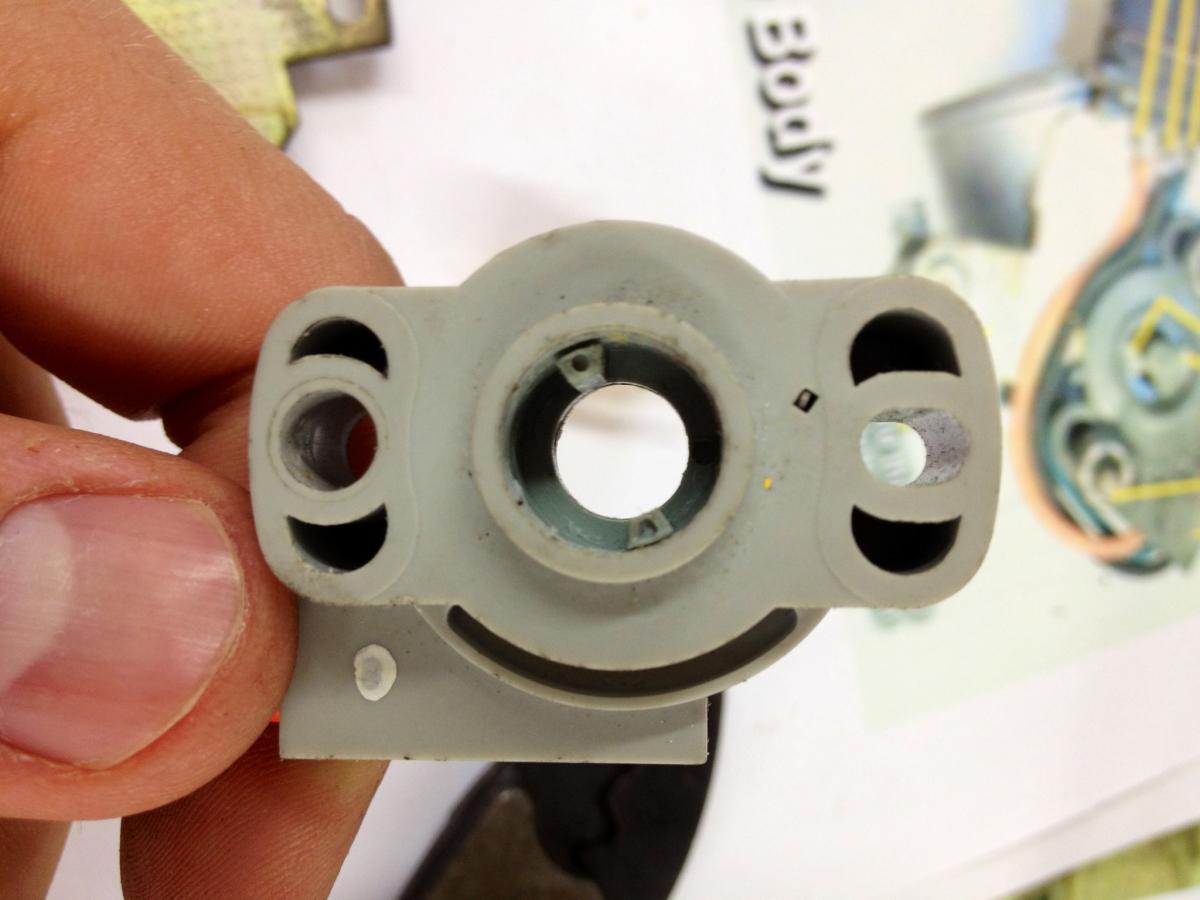

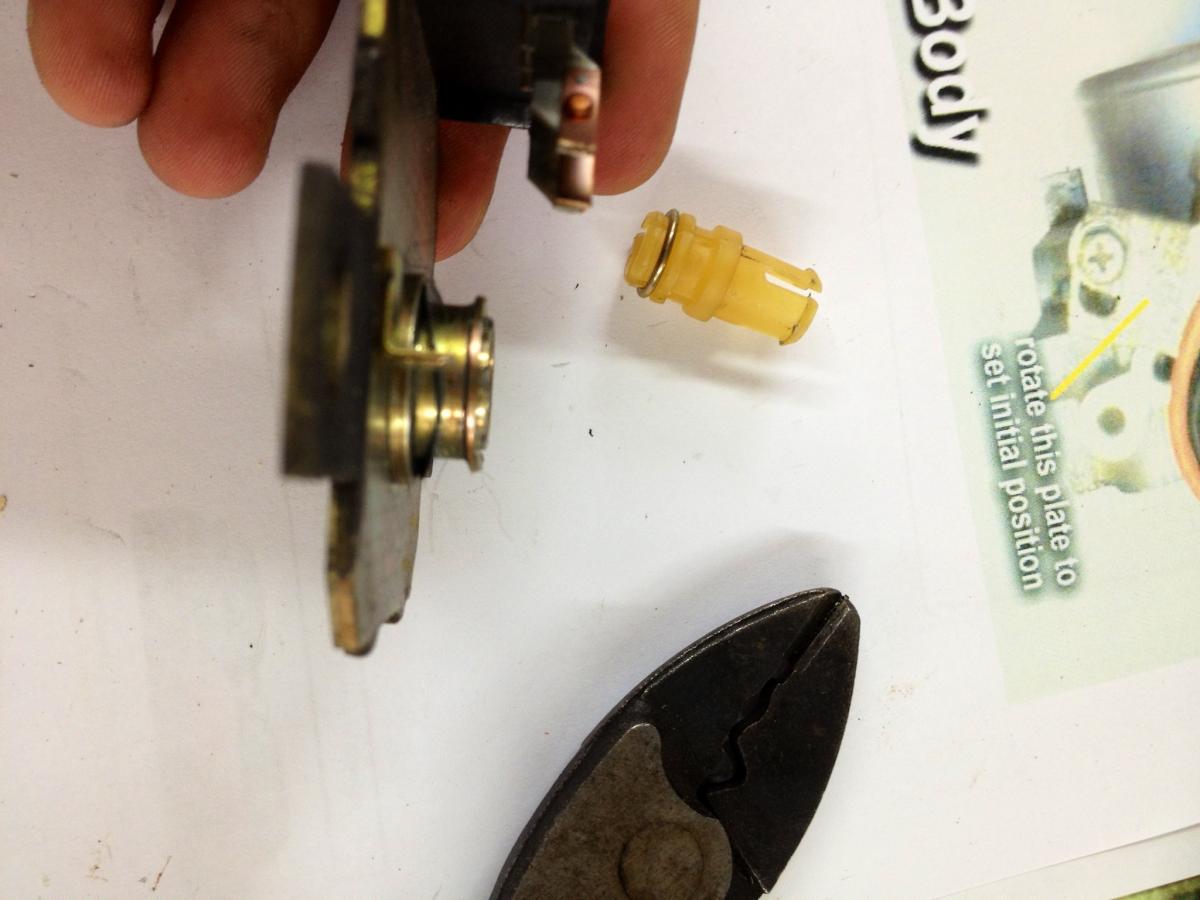

Your photo shows a "D" type opening that keys into the throttle shaft which I do not have. I am still unsure how this reads the position, it appears yours is mounted on top of that post where the old plastic mounted was mounted (shown in second photo), is that correct?
Attached Thumbnails
Mounting wells tps210-photo-1-1-.jpg   Mounting wells tps210-photo-2.jpg
tplociniak is offline   Reply With Quote
Old 08-03-2012, 10:48 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

mine's not the same Wells are yours.








I need to find the one ggreg used and update the post with that. it has the correct shaft key like the one i edned up with.

Notice on Ben's writeup that you need to shave the center to fit the TB's "D-shaped shaft...
Attached Thumbnails

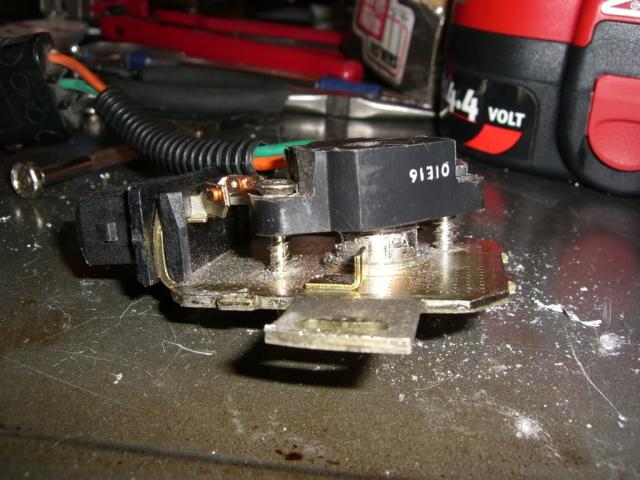

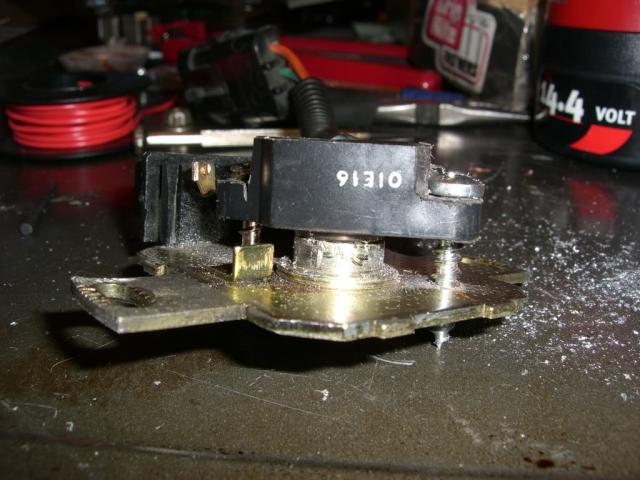

Mounting wells tps210-cimg1732.jpg   Mounting wells tps210-cimg1733.jpg
Braineack is offline   Reply With Quote
Old 08-03-2012, 10:52 AM   #5
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2012
Location: Moscow, PA
Posts: 118
Total Cats: 2
Default

I read that, but my opening is large enough that the shaft slides through without needing to file anything, that is also where I am confused.
tplociniak is offline   Reply With Quote
Old 08-03-2012, 11:11 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

maybe the design has changed? or you didnt get the 201 and got the 210 like in thread title??
Braineack is offline   Reply With Quote
Old 08-03-2012, 11:24 AM   #7
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2012
Location: Moscow, PA
Posts: 118
Total Cats: 2
Default

I ordered the 210 like it says in the instructions
tplociniak is offline   Reply With Quote
Old 08-03-2012, 11:28 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

look at the picture in your first post.
Braineack is offline   Reply With Quote
Old 08-03-2012, 11:40 AM   #9
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2012
Location: Moscow, PA
Posts: 118
Total Cats: 2
Default

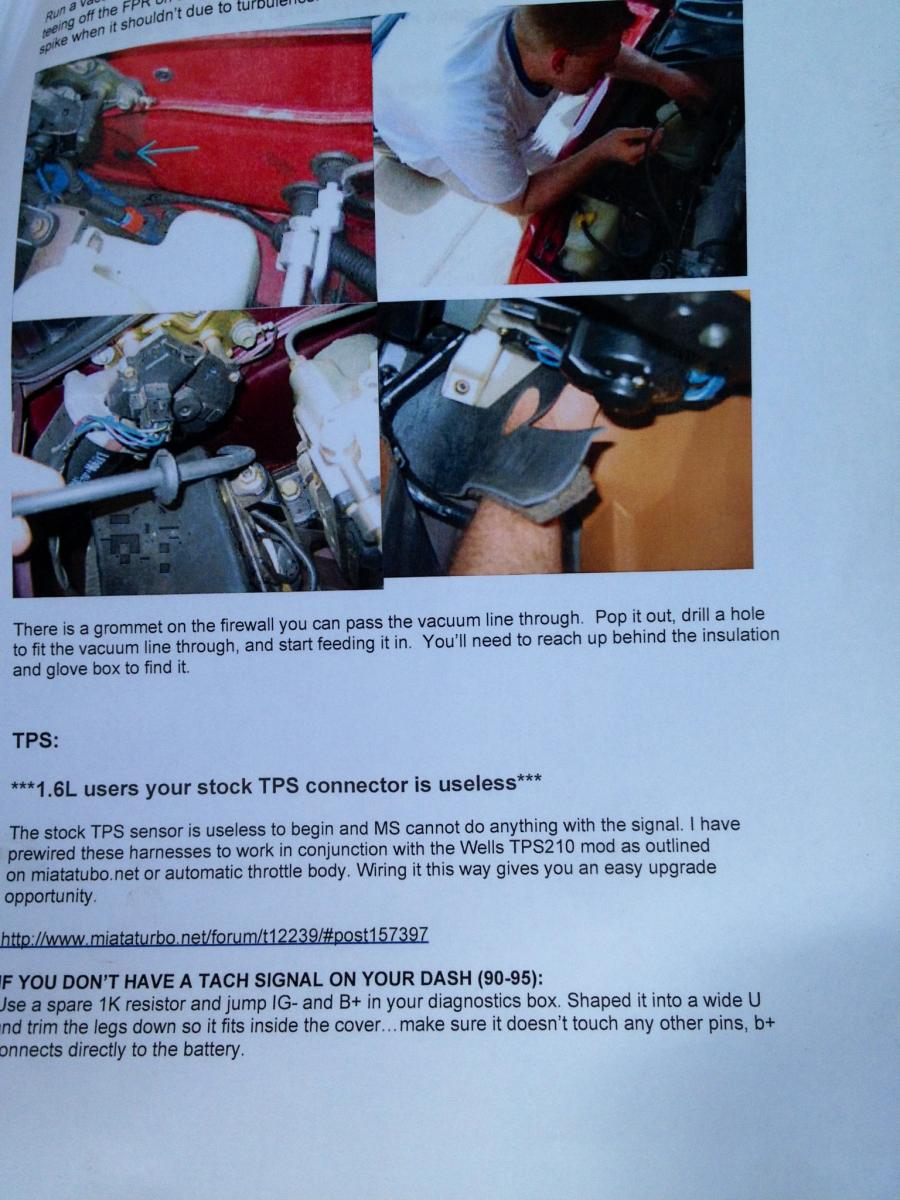

Guess I should have read through the link in the instructions closer before ordering...
Attached Thumbnails
Mounting wells tps210-photo.jpg
tplociniak is offline   Reply With Quote
Old 08-03-2012, 11:44 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

im dylsexic. sorry about that.


find the WELLS TPS that ggreg ended up with, he posted it here somewhere. that's the one to score.
Braineack is offline   Reply With Quote
Old 08-03-2012, 11:49 AM   #11
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2012
Location: Moscow, PA
Posts: 118
Total Cats: 2
Default

no you tell me...

no problem, what is ggreg's name on here so I can search for his post, wells tps only seems to return my two posts
tplociniak is offline   Reply With Quote
Old 08-03-2012, 11:53 AM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

search function is dead. hold on, ill find it.
Braineack is offline   Reply With Quote
Old 08-03-2012, 11:54 AM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Braineack is offline   Reply With Quote
Old 08-03-2012, 11:59 AM   #14
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2012
Location: Moscow, PA
Posts: 118
Total Cats: 2
Default

Thanks, too bad the ebay seller I purchased the wells tps from only does exchanges and not refunds
tplociniak is offline   Reply With Quote
Old 08-03-2012, 12:10 PM   #15
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2012
Location: Moscow, PA
Posts: 118
Total Cats: 2
Default

And it turns out that sensor is no longer manufactured
tplociniak is offline   Reply With Quote
Old 08-03-2012, 12:22 PM   #16
Junior Member

Join Date: Aug 2011
Location: Ottawa,Ontario
Posts: 45
Total Cats: 0
Default tps

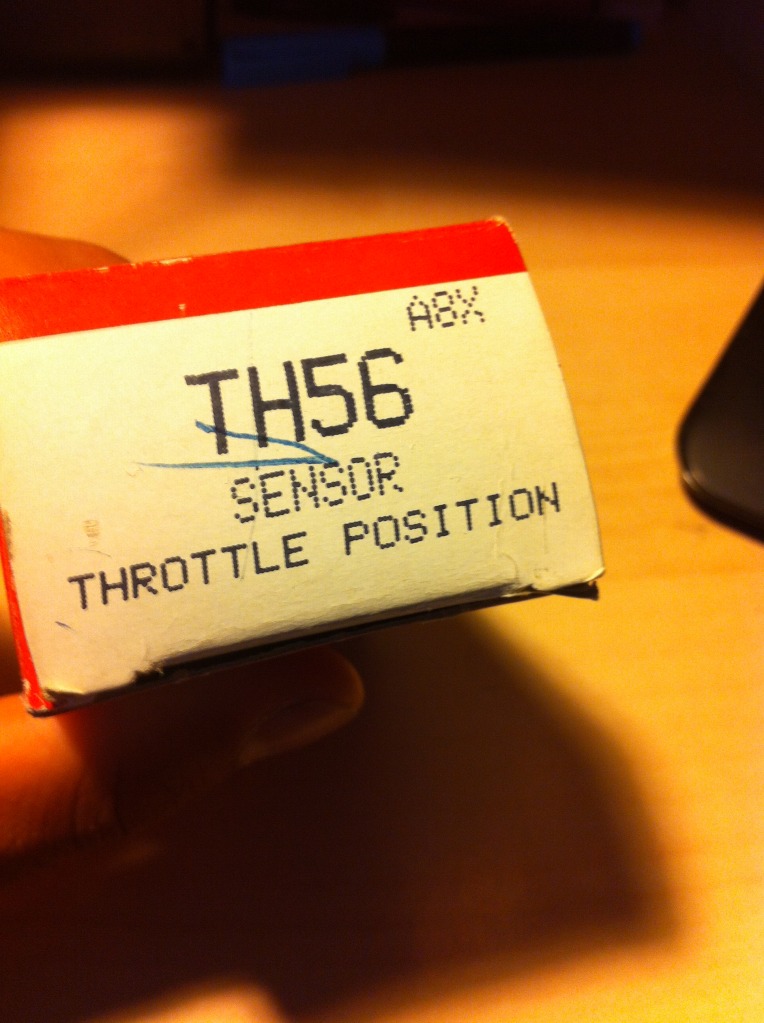

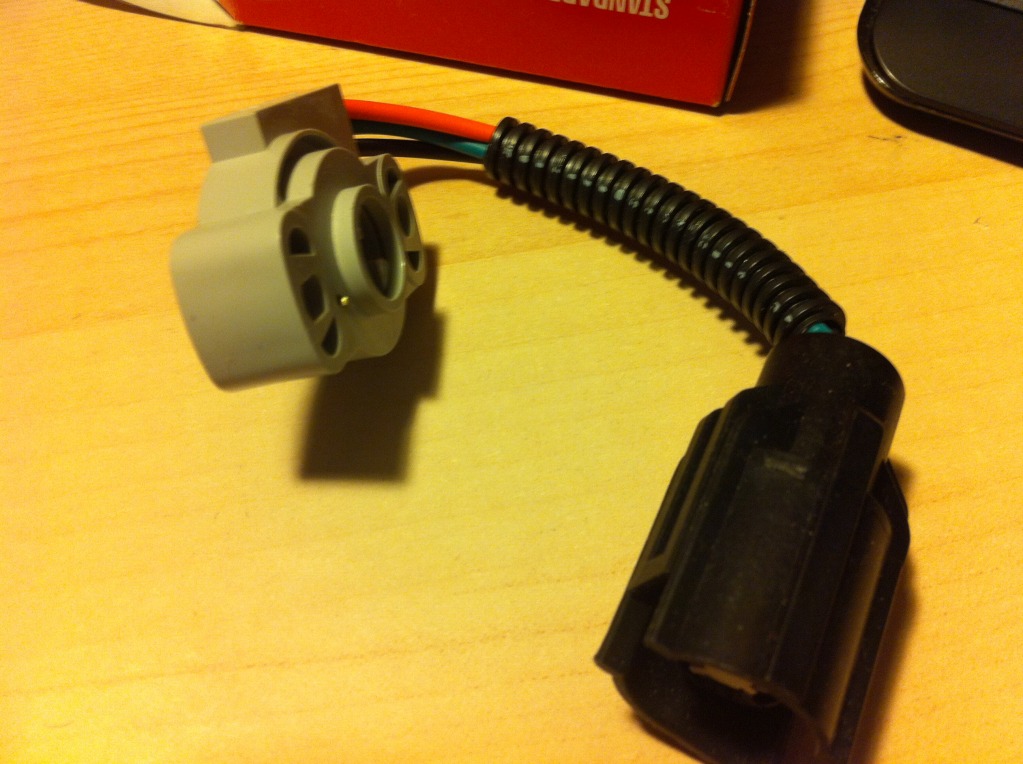

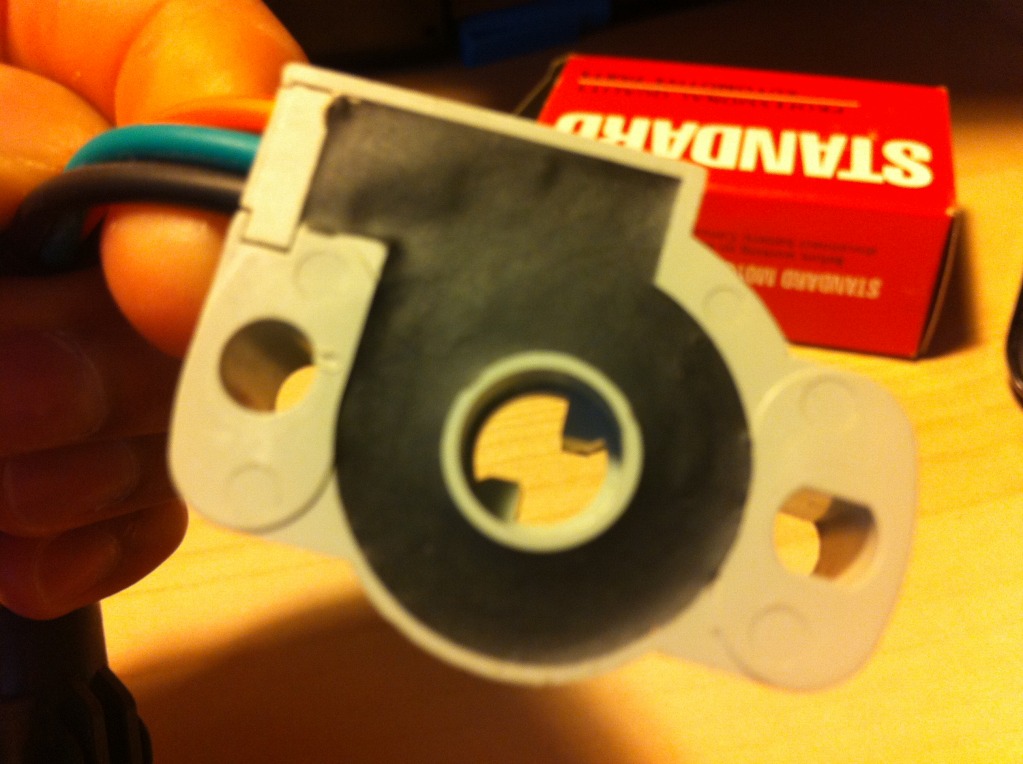

If you can't find the Wells anymore then you could try Standard th56.I cross referenced the Wells part number and the th56 is the alternative.Looks almost the same to me!


Attached Thumbnails
Mounting wells tps210-img_1692.jpg   Mounting wells tps210-img_1693.jpg   Mounting wells tps210-img_1694.jpg
djtc is offline   Reply With Quote
Old 08-19-2012, 10:35 AM   #17
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2012
Location: Moscow, PA
Posts: 118
Total Cats: 2
Default

Ended up using the tps210, see my link below for how I mounted it

https://www.miataturbo.net/megasquir...install-67899/
tplociniak is offline   Reply With Quote
Old 11-13-2013, 01:23 PM   #18
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

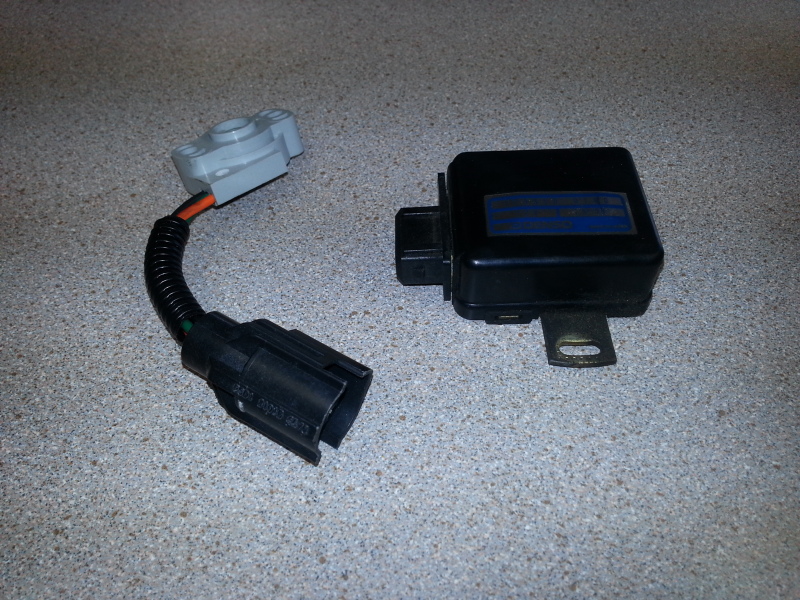

Ancient thread... But I am attempting to get some stuff installed today and my Wells TPS is on my list. Will this thing work with the stock ECU? I'm doing this at my work's garage and if I cant get up and running on my MS I will have to swap back to the stock ECU to get home.

Attached Thumbnails
Mounting wells tps210-20131113_122155_zpsf0b349f2.jpg

Last edited by BTMiata; 11-13-2013 at 01:43 PM.
BTMiata is offline   Reply With Quote
Old 11-13-2013, 02:08 PM   #19
Senior Member
iTrader: (4)

Join Date: Jul 2006
Location: Shelton, CT
Posts: 672
Total Cats: 2
Default

Pretty sure that's a no.
Harv is offline   Reply With Quote
Old 11-13-2013, 02:40 PM   #20
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Harv View Post
Pretty sure that's a no.
Yeah thats pretty much what I was thinking, but figured it was worth asking. Look's like I am going to have to wait till I have a few day stretch where I wont be SOL if I can't get my car to run. Maybe i'll pick up a spare stock TPS...Hmm
BTMiata is offline   Reply With Quote
