Old 05-23-2012, 11:23 PM   #21
Newb
Thread Starter

Join Date: Jul 2011
Posts: 21
Total Cats: -1
Default

Also, you might see a cowl'd miata to take care of some clearance issues. I already plan to redo the front cross bar on the cross member. Plan is to build a tubular bar in front of the cross member and bracing it on each of the sides. I have pictures of someone else doing this somewhere that ill post. I also plan on using the factory kia intake until I get one of the magnus intakes welded onto a fe3 flange. I wish I knew how to weld aluminum, or rather, had the correct gas/ spool to even try.

This post makes me realize it might be time to start a build thread.
cypres is offline   Reply With Quote
Old 05-24-2012, 11:41 AM   #22
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,885
Total Cats: 1,790
Default

Have you seen Rob's writeup?
Braineack is online now   Reply With Quote
Old 05-24-2012, 06:12 PM   #23
Newb
Thread Starter

Join Date: Jul 2011
Posts: 21
Total Cats: -1
Default

yes I have read his build tread several times. As well as every other fe3 swap thread on the internet, miata or not. At least it seems that way, you know? I wish all the pictures in his thread were working, thats my only gripe. Great thread with lots of info other wise.

Kirt
cypres is offline   Reply With Quote
Old 05-24-2012, 07:02 PM   #24
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 290
Default

Quote:
Originally Posted by Braineack View Post
rob are you using a miata CAS on your FE3?
Yes. I reindexed the Miata CAS wheel for the Mazda FE3 camshaft.

My photobucket acct was mysteriously obliterated. I still have all the photos just haven't gotten them all up on 'net.
m2cupcar is offline   Reply With Quote
Old 05-24-2012, 09:33 PM   #25
Newb
Thread Starter

Join Date: Jul 2011
Posts: 21
Total Cats: -1
Default

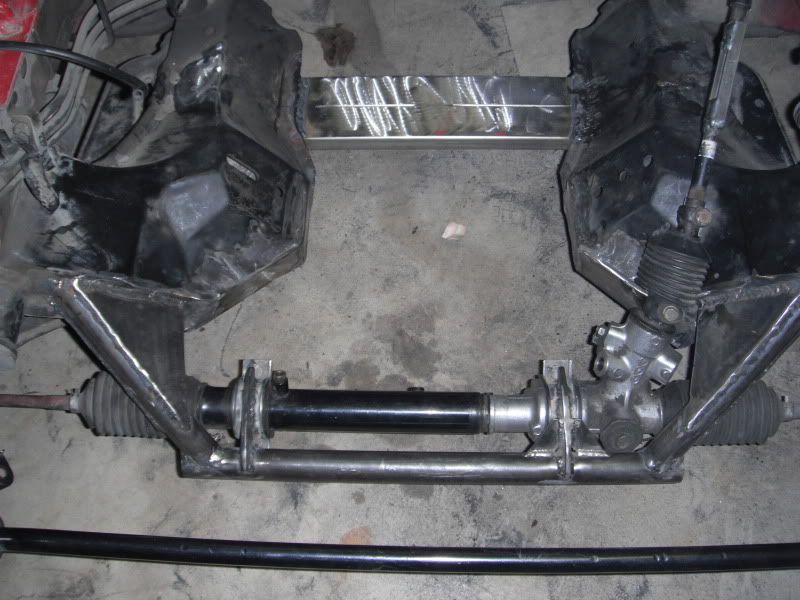

Deciding what I want to do with my oil pan setup and wondering what you guys think about modifying the front cross member as see in this pic http://i51.photobucket.com/albums/f3...e/DSCF0119.jpg then possibly using a b2200 pan and pick up. I want to do some measuring but I think this maybe a bolt on oil pan option. Id like to get them both in my hand... anyone thought about using a factory pan (probe, b2000, ect?) and modifying the frame around it?

or is the way m2 did it the best option?
cypres is offline   Reply With Quote
Old 06-04-2012, 10:06 AM   #26
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 290
Default

I think a boxed sub is stronger than the stock. Also a lot more work and much heavier. You won't be able to use any F oil pans as stock- they're all far too deep. If you get the engine under the hood, a stock pan will need 3+ inches removed from the sump. My first build shimmed the subframe and IMO was not ideal- but done for simplicity and the fact that it was used successfully by multiple V8 swaps. DC's swap uses the stock sub and runs the pickup tube to the side of the mains and it all fits under the stock hood. That's the most simple solution. This time around I am sectioning the front sub for clearance and getting my engine almost 1.5" lower and further back.
Attached Thumbnails
Stand alone suggestions for Kia Fe3 swap.-11_0823_subframe-mod26.jpg
m2cupcar is offline   Reply With Quote
Old 06-04-2012, 10:42 AM   #27
Senior Member
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

I love how turbo tim did his oil pickup too. If i get to do it again ill try something like that just so i dont have to deal with the super tight clearance of the pan and pickup tube.

Cypres. you may have seen my thread/s I'm using ms3X on my FE3 swap. If you're familiar with tuning / how sensors work / how to properly wire sensors you will have way less problems than i've had. I've been so frustrated and struggled to get this megasquirt set up right but if you consider the money invested and the capabilities of the ms3x compared to other options i think the choice is clear. 90% of the time if i would have just read the effing manual as Brain suggested i could have figured the stuff out on my own.
yank is offline   Reply With Quote
Old 06-04-2012, 04:01 PM   #28
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,885
Total Cats: 1,790
Default

Quote:
Originally Posted by yank View Post
90% of the time if i would have just read the effing manual as Brain suggested i could have figured the stuff out on my own.
Braineack is online now   Reply With Quote
