Old 12-12-2012, 12:22 PM   #41
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by Joe Perez View Post
IIRC, there is one, with a two-way solenoid between it and the manifold. The solenoid exposes the sensor to atmo as a reference, and then switches it to the manifold for the functional test.
The one solenoid on my car is (was) there for the fuel tank vapors. It is connected to the canister on one side and to the intake on the other. The canister itself is also connected to the fuel tank and the atmosphere valve and filter.
Reverant is offline   Reply With Quote
Old 12-12-2012, 12:54 PM   #42
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by Braineack View Post
yeah, I think I was confusing the EGR Boost Sensor Solenoid, for a second sensor.
The Fuel tank pressure sensor?


Quote:
Originally Posted by Reverant View Post
The one solenoid on my car is (was) there for the fuel tank vapors. It is connected to the canister on one side and to the intake on the other. The canister itself is also connected to the fuel tank and the atmosphere valve and filter.
So, the Euro NBs do have the six-wire EGR valve, but they do not have an EGR pressure sensor?
Joe Perez is offline   Reply With Quote
Old 12-12-2012, 01:10 PM   #43
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by Joe Perez View Post
The Fuel tank pressure sensor?



So, the Euro NBs do have the six-wire EGR valve, but they do not have an EGR pressure sensor?
I'd have to check the number of wires on my car, but I'm pretty sure it has 6 wires.

Could well be an EGR pressure sensor elsewhere in addition to the Barr sensor
richyvrlimited is offline   Reply With Quote
Old 12-12-2012, 05:34 PM   #44
Newb
Thread Starter

Join Date: Aug 2010
Posts: 32
Total Cats: -6
Default

Quote:

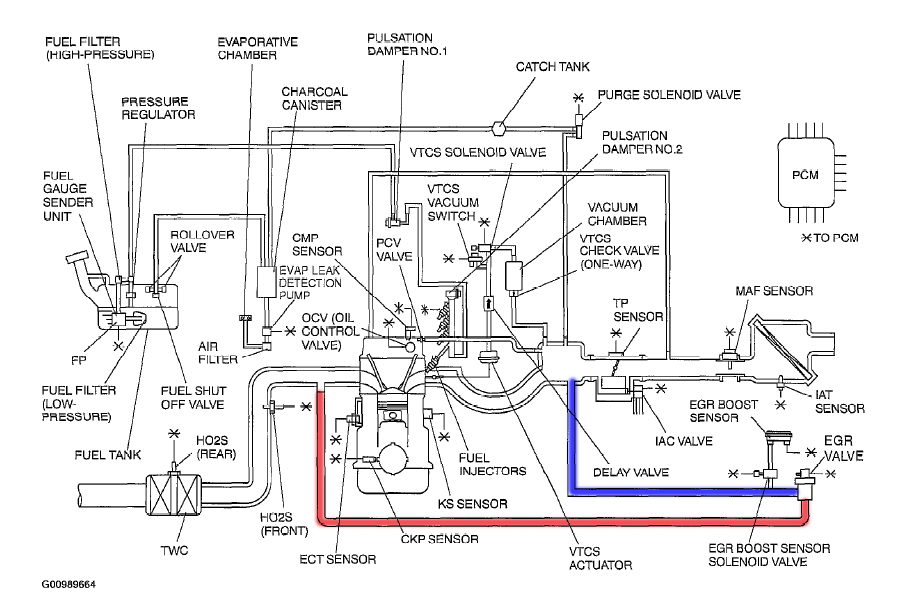

Originally Posted by Braineack View Post
yeah, I think I was confusing the EGR Boost Sensor Solenoid, for a second sensor.

anyways, it references the exhaust flow back into the intake.

Great diagram...Thanks.
PhilM is offline   Reply With Quote
Old 12-12-2012, 05:37 PM   #45
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by Joe Perez View Post
So, the Euro NBs do have the six-wire EGR valve, but they do not have an EGR pressure sensor?
Correct. We also don't have the VTCS.
Reverant is offline   Reply With Quote
