Default thought we needed another wideband thread

Because everything I've read indicates that every affordable wideband is the best ever and the biggest POS. Amazing

LC-1: great if you wire it properly and downgrade the firmware. A complete POS and requires calibration
MTX-L: 1000000000x better than LC1...why? A POS and requires calibration
UEGO: Just works and no calibration. But it's slow and inaccurate. Also a POS.
ZT-2: slow and inaccurate but super awesome. Expensive.
ZT-3: new, nobody uses it. maybe better than ZT-2.


I really like the idea of an LC-1 w/ DB gauge and then upgrade to a VEI dual display down the line to combine boost and AFR into one. But apparently the LC-1 is junk and people are upgrading to MTX-L. I'd like to consolidate gauges but not if it means subpar sensors.

Still on the stock ECU now but will be upgrading to a Reverant built MS2 soon. Figured I'd get this installed now and have one less thing to deal with when the MS shows up. That and I can see just how badly Mazda tuned the MSM.

So why shouldn't I get the LC-1?
midpack is offline   Reply With Quote
Old 02-06-2012, 03:18 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Mtx-l = lc-1 for the people that are convinced the UEGO is actually better.
Braineack is offline   Reply With Quote
Old 02-06-2012, 03:48 PM   #3
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Day One: Wire up LC-1.

Drive Hard
Tune
Turbo
Tune
Drive Harder
Tune
Upgrade
Tune
Upgrade some more
Tune
Drive 50K turbocharged miles, harder than ever
Tune
Smile


Present Day (3yrs later): Not a single problem, at all, ever, with an LC-1 on any of my setups, or those I've helped tune (a handful).
gospeed81 is offline   Reply With Quote
Old 02-06-2012, 03:51 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

I used to have trouble getting in and out of my house...then I found that I had installed my doorknob wrong.
Braineack is offline   Reply With Quote
Old 02-06-2012, 04:10 PM   #5
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

For your sake I hope it was a fancy electronically controlled doorknob.

So I'm gonna order up an LC-1 unless I hear a good reason not to.
midpack is offline   Reply With Quote
Old 02-06-2012, 04:12 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

the MTX-L is newer and it a much better gauge than the DB. what's the price difference?
Braineack is offline   Reply With Quote
Old 02-06-2012, 04:25 PM   #7
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

Couple $ maybe, they're close enough that price isn't a consideration. But I plan on replacing the DB guage & my existing boost gauge with one of these in a couple months
http://www.veisystems.com/d1-bopwba-m.html

Can I wire the LC-1 to both the VEI gauge and MS2? The VEI needs 0-5v output. If I can't do that then I'll just get a MTX or maybe UEGO.
midpack is offline   Reply With Quote
Old 02-06-2012, 04:51 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Yes. Get the lc-1 then.
Braineack is offline   Reply With Quote
Old 02-06-2012, 05:25 PM   #9
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

midpack get a 14point7 SLC
http://14point7.com/SLC-Pure-Plus-2.php
http://14point7.com/SLC-DIY-2.php
mutiple gauge inputs as well

The only innovate i want is the LM-2
Techsalvager is offline   Reply With Quote
Old 02-06-2012, 05:27 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

expensive and cant output two 0-5v outputs.
Braineack is offline   Reply With Quote
Old 02-06-2012, 05:51 PM   #11
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

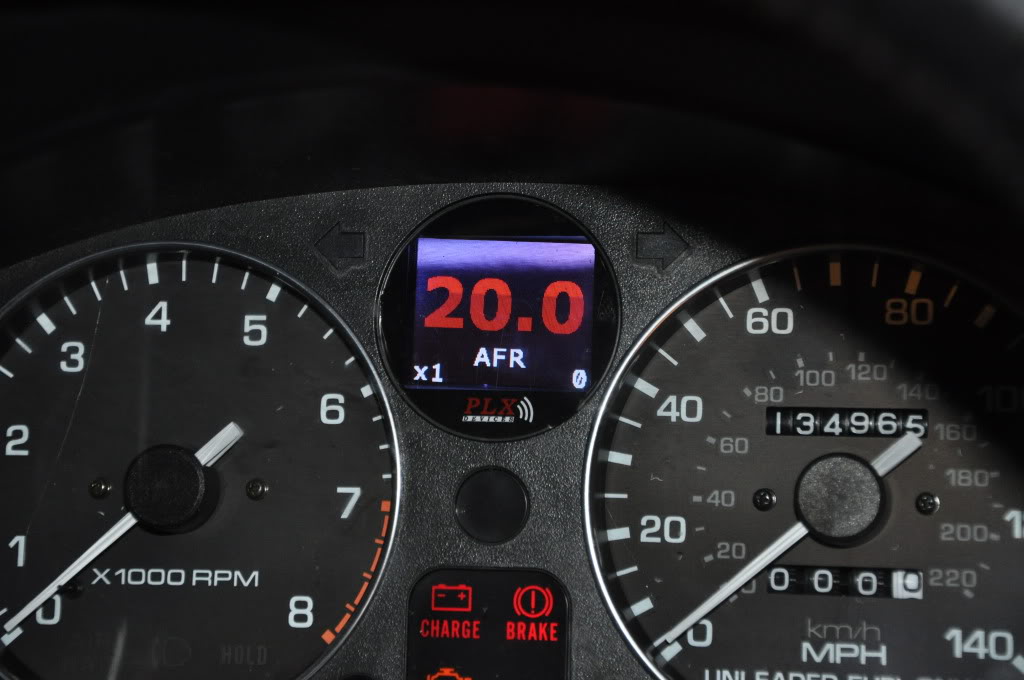

you can affords PLX?

Attached Thumbnails
thought we needed another wideband thread-dsc_0446.jpg   thought we needed another wideband thread-dsc_0450.jpg
fooger03 is offline   Reply With Quote
Old 02-06-2012, 05:53 PM   #12
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

If the DIY was $50 less or included a warranty I'd consider it. Having a bright green display in a sea of orange would look retarded.
midpack is offline   Reply With Quote
Old 02-06-2012, 06:13 PM   #13
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

Quote:
Originally Posted by fooger03 View Post
you can affords PLX?
What gauges are those? Can't seem to find them on their site.
midpack is offline   Reply With Quote
Old 02-06-2012, 06:25 PM   #14
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

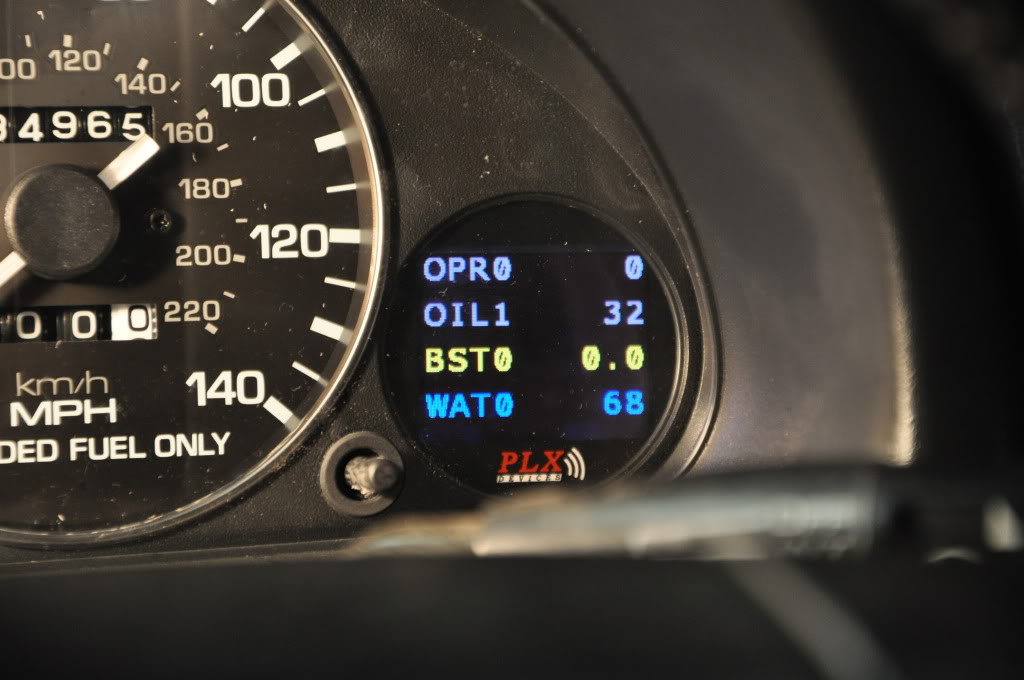

a pair of DM-100 display units - non-OBD II type. Looks like they got rid of the non-OBDII type in their product line, and just started selling the OBDII at near the non-OBDII price... you'll have to do a search for the DM-100 units, the sensors are sold seperately
fooger03 is offline   Reply With Quote
Old 02-07-2012, 02:57 AM   #15
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 197
Default

The MTX-L is better than the LC-1 in that the gauge is showing the actual AFR measured, where as with the LC-1 (and the DB red/blue gauges), the AFR shown swings wildly due to the nature of the analog signal being measured, also it offset by ~0.3.

I would suggest the MTX-L.

The AEM tends to overfilter (low pass) the analog output, so does the Zeitronix (which is also slow to respond on the display AND inaccurate).
Reverant is offline   Reply With Quote
Old 02-07-2012, 01:12 PM   #16
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

Ordered the VEI boost/AFR gauge and sender last night. Found a couple gaugeless LC-1s for a decent price and I'll order one once the VEI stuff ships.

Is the MS smart enough to ignore the wild swings or will it see the same fluctuating AFR that my gauge displays?

The PLX stuff looks awesome and had myself convinced to pick up a wideband + DM5 combo for a little more than LC1 or MTX but the lack of configurable outputs was a problem with the VEI gauges. Not sure basing the wideband decision on VEI is the greatest of ideas but oh well. If it works out then I'll have boost, AFR, oil temp and pressure split between 2 gauges for cheaper than anything else I've seen.
midpack is offline   Reply With Quote
Old 02-07-2012, 01:43 PM   #17
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 197
Default

Quote:
Originally Posted by midpack View Post
Is the MS smart enough to ignore the wild swings or will it see the same fluctuating AFR that my gauge displays?
It has a configurable filter on the input signal, called a lag factor. I set this to a sensible value on every MS I build and program.
Reverant is offline   Reply With Quote
Old 02-07-2012, 01:48 PM   #18
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

And that is why you are building it and not me. Well that and a whole bunch of other reasons including my soldering skills which would completely destroy half the components either from heat or electrons going where they should not.
midpack is offline   Reply With Quote
Old 02-07-2012, 01:49 PM   #19
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

MTX-L.

I have it, it works great. just do the first calibration right and set it and forget it, or follow the innovate calibration regiment if it makes you sleep better at night.
Seefo is offline   Reply With Quote
Old 02-07-2012, 01:55 PM   #20
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

Unlike hustler I have no problems sleeping. How many street and track miles do you have since the initial install?
