Default TunerstudioMS speedo.

How do I calibrate it? I'm planning to replace the stock dash with a low-power computer running TSMS but I'm having trouble configuring the speedometer option. Where is there an option to input ratios, rear end, tire size?

Any help is appreciated, thanks.

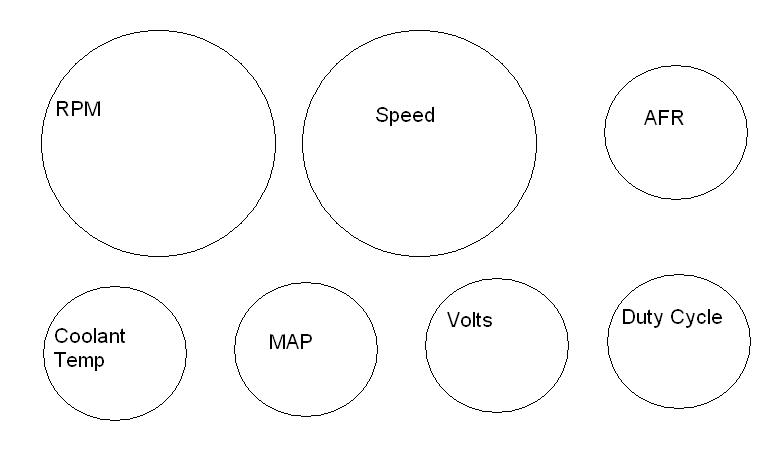

Also, can I scale gauges? I wanna go with the RPM and Speedo big, and the rest (AFR, volts, temp, duty cycle) small around the outside. Like this:
Name:  Dashlayout.jpg
Views: 2
Size:  25.5 KB

Last edited by rider384; 06-22-2010 at 01:51 AM.
rider384 is offline   Reply With Quote
Old 06-22-2010, 09:21 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Input your VSS.


the settings you want are in your project properties.
