Twibs415

iTrader: (8)

now we need 99+ tps

Zaphod

See post 38 - if it's a '00 TPS it's also a '99 TPS connector...

Twibs415

iTrader: (8)

didnt see that. excellent work!

Mobius

iTrader: (2)

This thread is full of win. The tab on my IAC connector snapped off when I removed it. BAM! Thread delivers!

AbeFM

iTrader: (3)

OMG - have you guys checked out the spreadsheet? Sven went madhouse on it and now it's like at least half filled out.

We have part numbers for:

IAT
Idle Valve (IAC)
TPS
Camshaft Position
Crank Position from Eng Harness
Crank Position from Sensor
Knock Sensor from Eng Harness
Knock Sensor from Sensor
Cop Harness From Eng Harness
COP Harness to Eng Harness


Still need: info on
OEM COP
CLT
VICS
VVT
Various fuel injectors
Toyo COP
MAF
OEM ECU plugs
Dash stuff.....


Basically, we're pretty close. With the list just a bit more filled out, it'll be worth trying to track down vendors to sell it all. I'll add a couple columns for competing prices/vendors and soon people will be able to get any individual plug or redo a whole harness/create a PNP at will!

Zaphod

Wait, wait, wait - I just had to stop, because I had no time...;-)

I will see what I can do on the rest soon.

I will take pics of the CLT sensor connector and of some other...

shuiend

iTrader: (24)

Which side OEM ECU plugs are we talking about? The female or male side? I can get detailed pictures of my VVT plug tomorrow.

Zaphod

ECU connectors (out of the How to make your own Megasquirt)

(1) 26 Pin Female connector (174516-6)
(1) 22 Pin Female connector (174515-6)
(1) 16 Pin Female connector (174514-6)

All Tyco/Amp
Added to the spreadsheet

Edit:
Toyota Cops Connector added to the spreadsheet

Sven

AbeFM

iTrader: (3)

We are seriously getting there. I was like two days from giving up before.
Try to get a temp sender plug pic as well!
-Abe.

Zaphod

Added Knock sensor, Coil pack connectors info in the spreadsheet.

I (might) have found the info on the OEM coolant sensor connector for the 99-00:

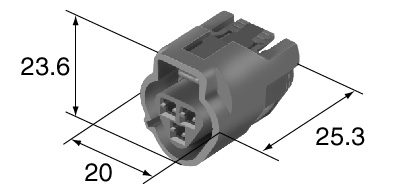

Sumitomo SL sealed series 090(2.3mm) 3 Position Female Housing [Black] [6189-0646] : New United Race Tech, New United Race Tech

Sumitomo Part.-Nr. 6189-0646 SL sealed series

Could be this one - BUT Sumitomo doesn't seem to produce them anymore...
At least it's not in the SL series PDF anymore.
http://swsct.sws.co.jp/components/series/pdf/sls.pdf

We need pictures of the following connectors:

MAF 99-00
VSS
Neutral switch
Reverse switch
Clutch switch
Fuel injectors OEM

Greets
Sven

shuiend

iTrader: (24)

Do you mean the plug for the speed sensor on a NB for VSS? I know at least for the NA that VSS is handled by the gauge cluster.

For neutral and reverse switch those are just little clips on the transmission. I can try to get pictures of those in the next day or so, but I do not know which sensor on the trans is which.

OEM fuel injectors, I should have a spare harness in my shed that I can hopefully snap pictures of.

Zaphod

Could someone please make some nice pictures of the VVT connector!

Edit: I might also have found the correct connector for the VICS.

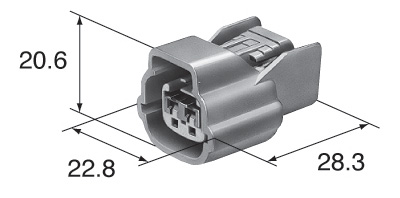

It could be a SUMITOMO 62 sealed series connector


http://www.newunitedracetech.com/sho...91_598_601_610

I am not quite sure about this one - but I haven't found another connector with this little "wings" on the back of the connector.

for reference - here are Abe's pictures of this connector.




Maybe you could cross-check this...

emilio700

iTrader: (3)

Maybe sticky this thread in ECUs and Tuning?

Midtenn

iTrader: (15)

I would say thats a great idea, but just in case I'm subscribing for later reference.

AbeFM

iTrader: (3)

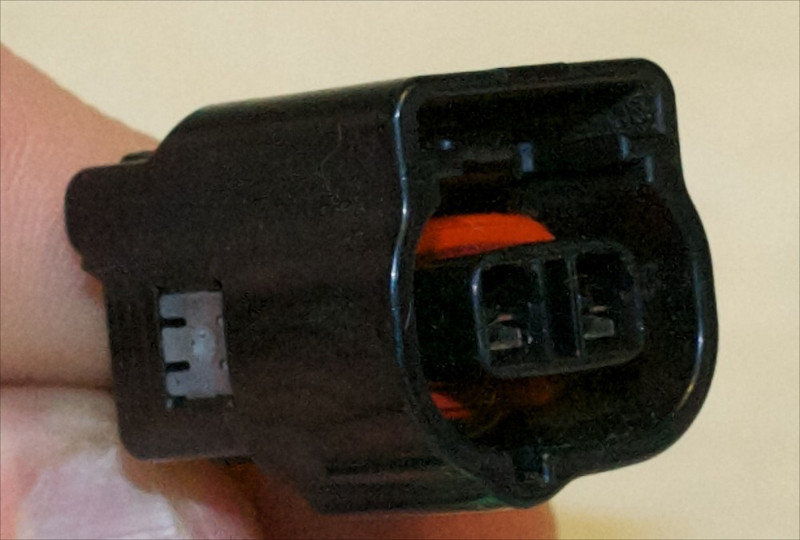

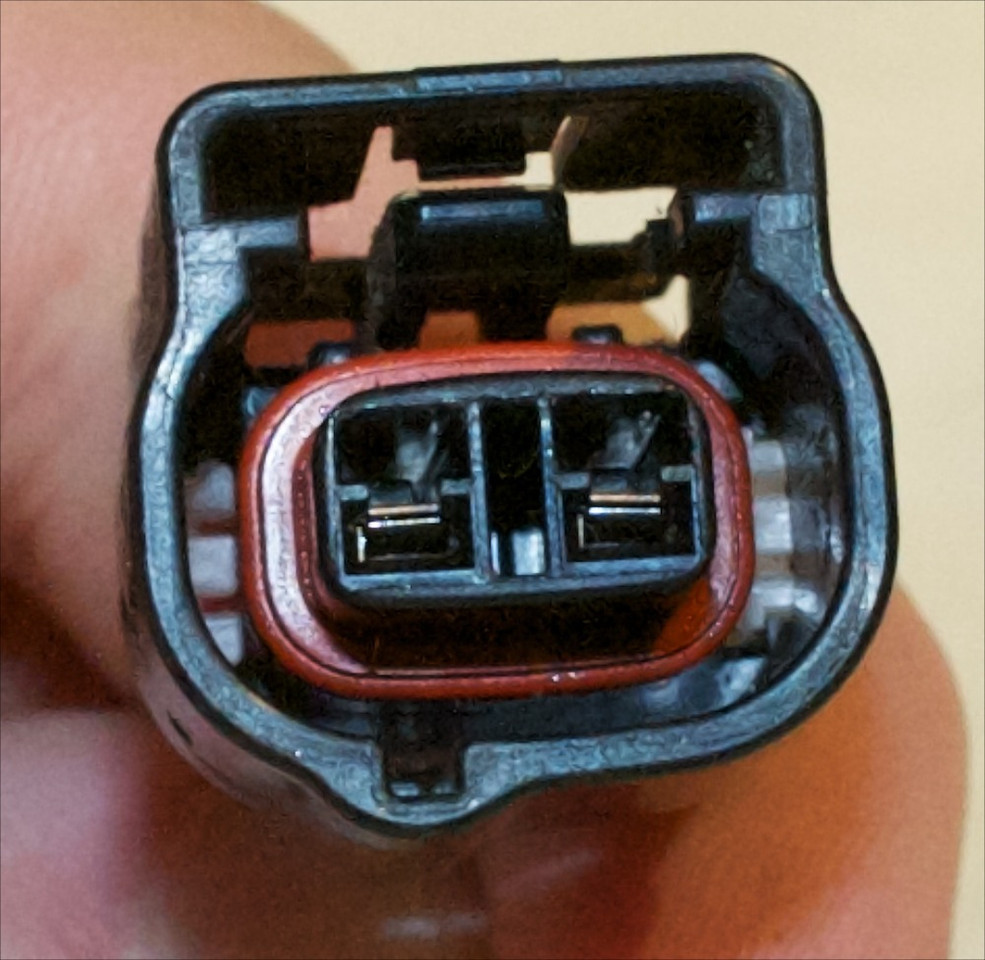

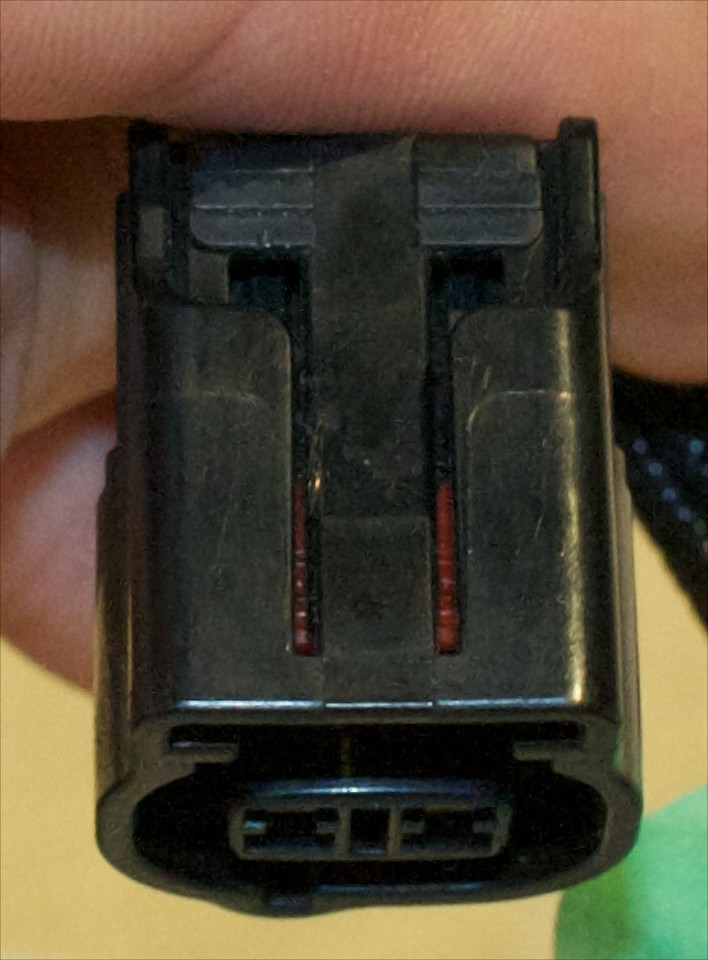

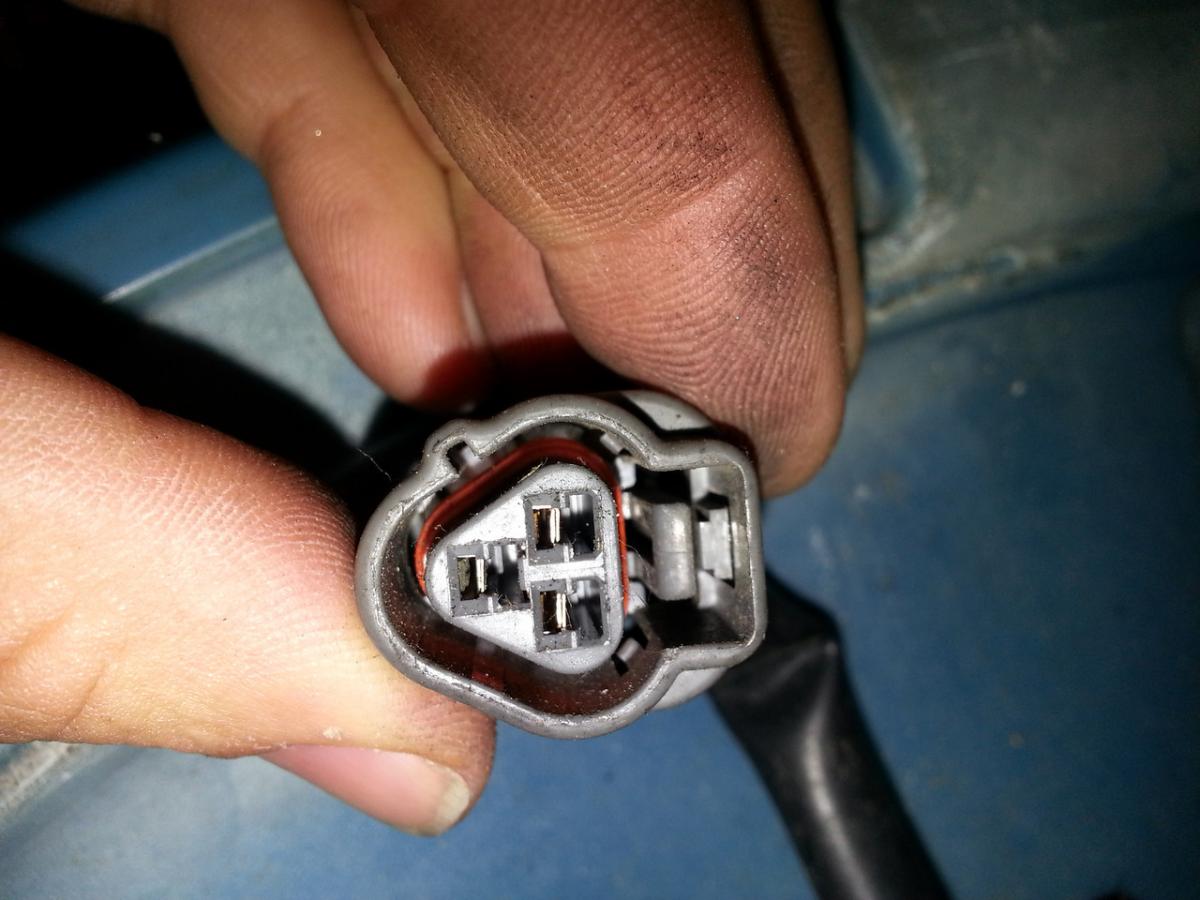

All pics of a VVT '01 from a kindly fellow over on m.net

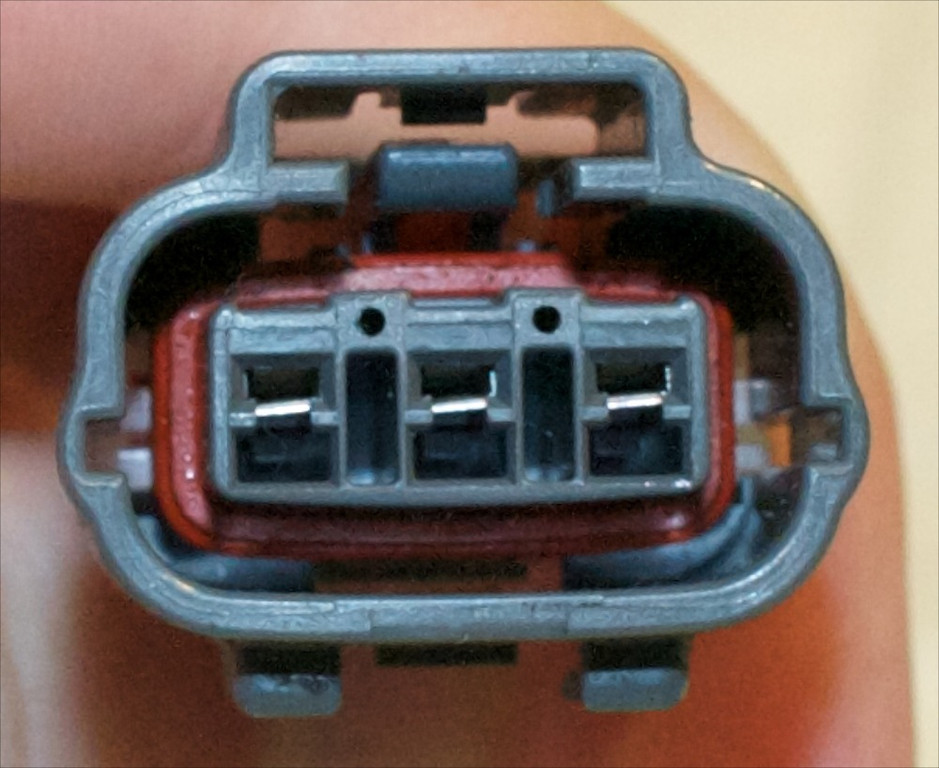

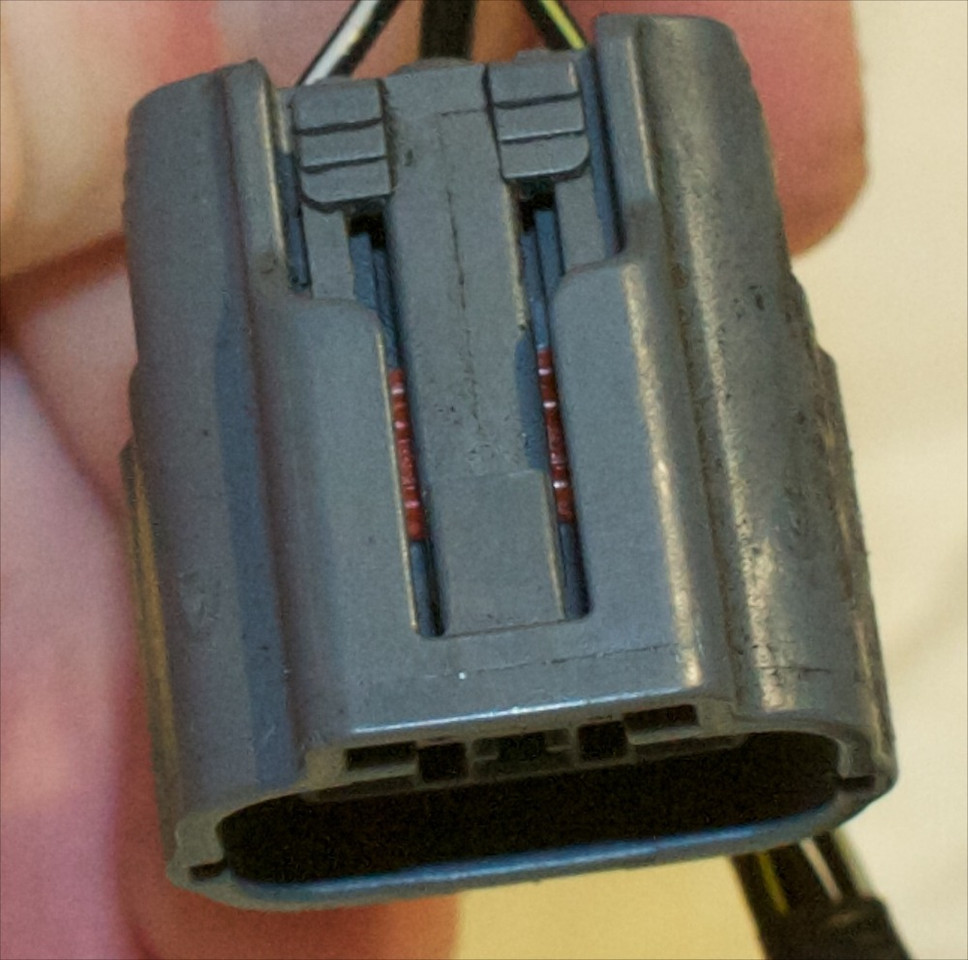

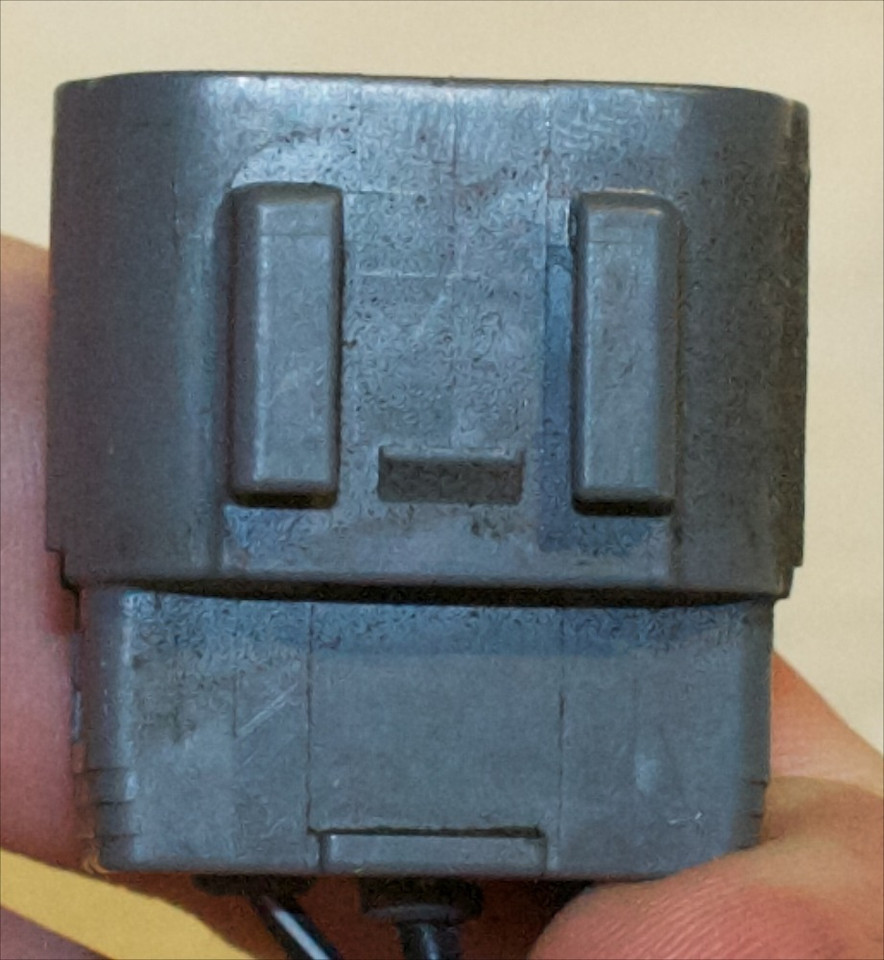

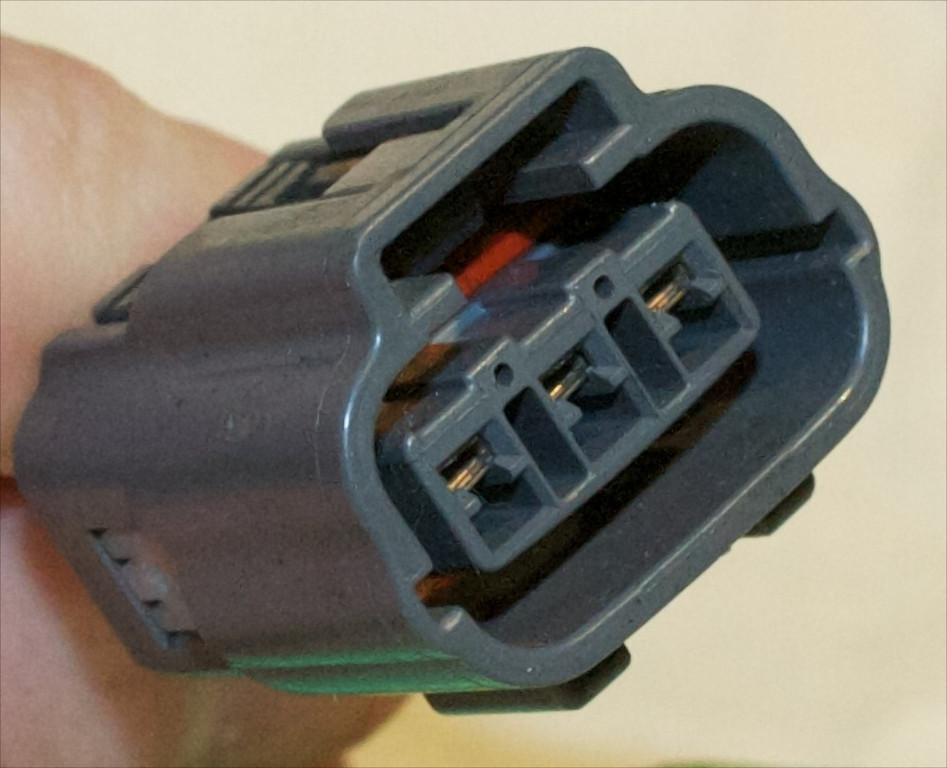

Those are the OEM COP

I can try to get more of the transmission sensors.

Certainly the Temp Sender you showed LOOKS right. Gotta be available somewhere.


Guess I'll go see if I can find the OEM fuel injector connector - might have one since I was doing some bench testing of some low ohm drivers recently.

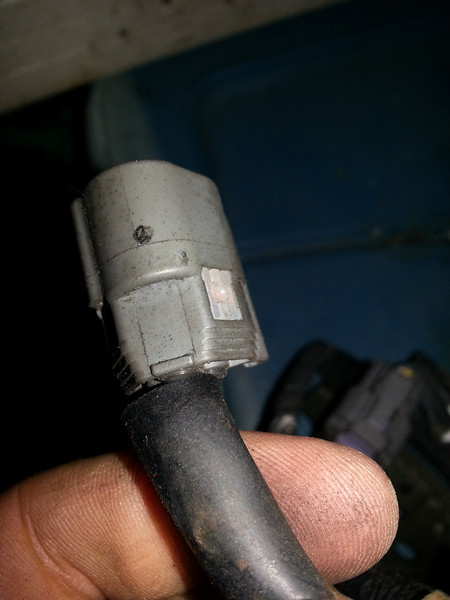

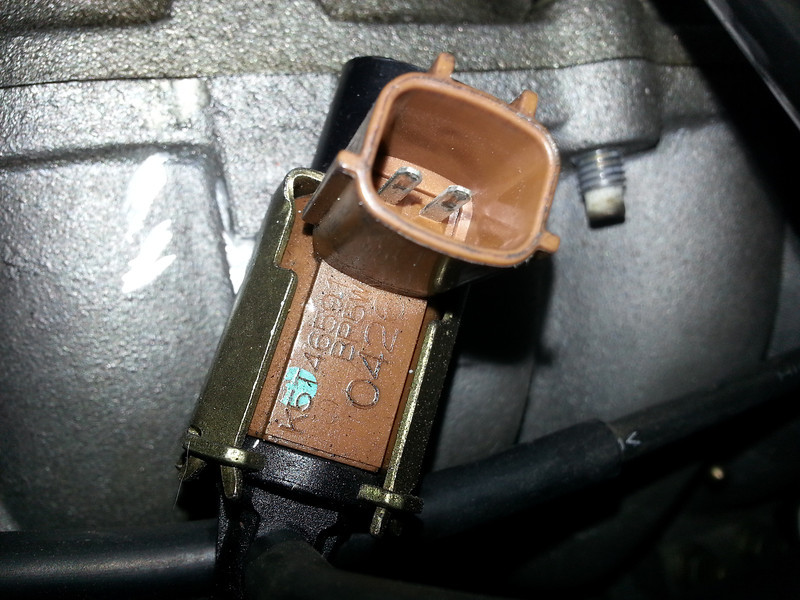

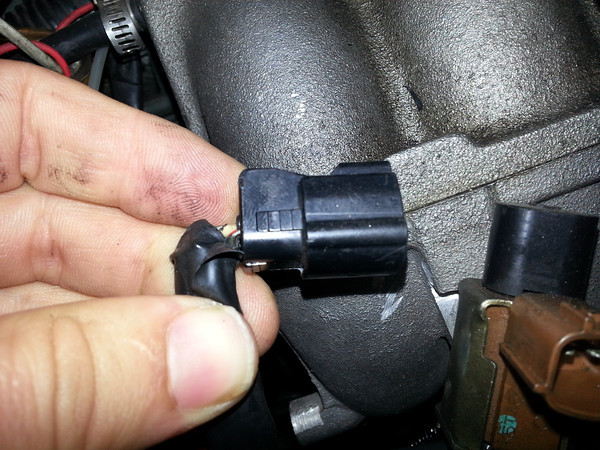

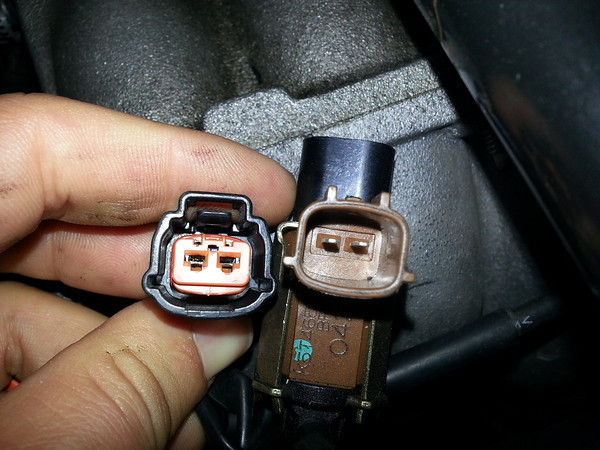

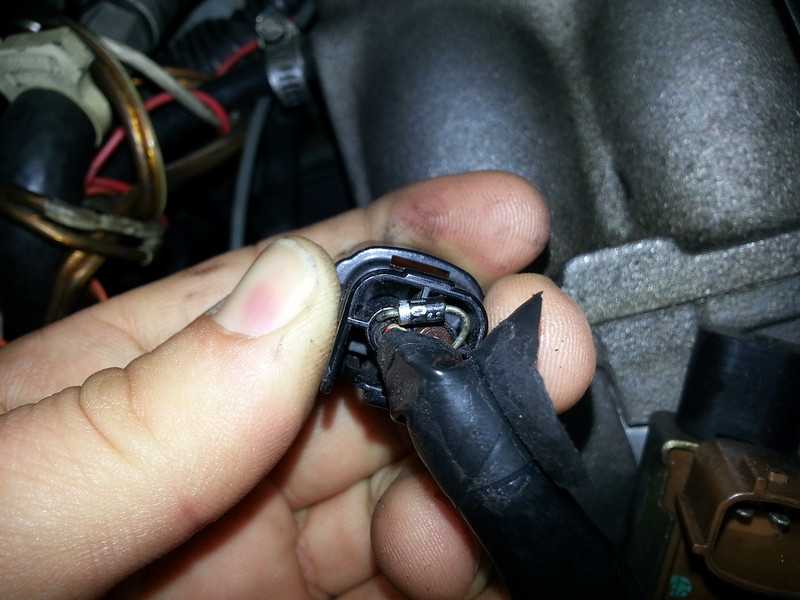

More pics of the VICS connector:

(Ignore the diode I soldered on there. That was a megasquirt issue)



I'll dig around for the MAF. Otherwise I'll bug the guy I mailed it to to get some pics for me.

Leafy

iTrader: (1)

OEM COP is the same as the crank sensor. I cant add it to the spreadsheet because I'm at work.

AbeFM

iTrader: (3)

Oh yeah - that was obvious when I saw it. Guess I should tweak the sheet.



Looks right, even has the key.

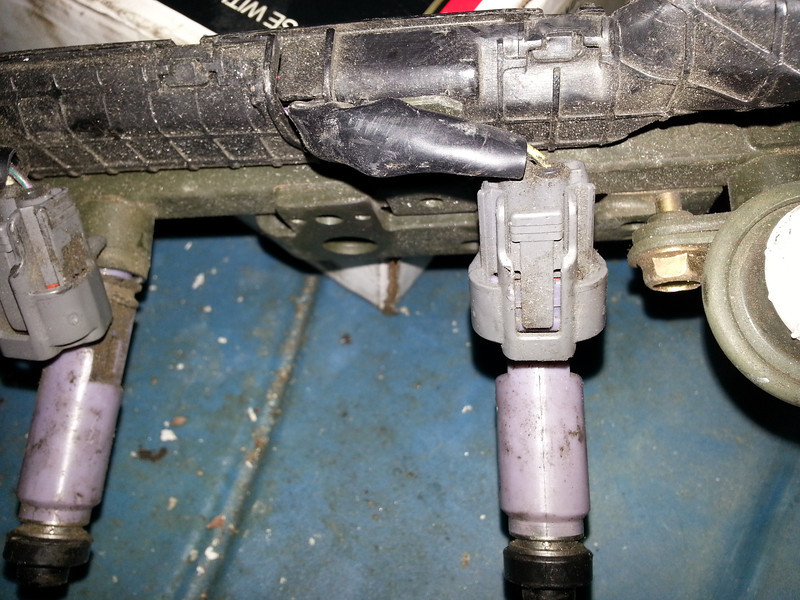

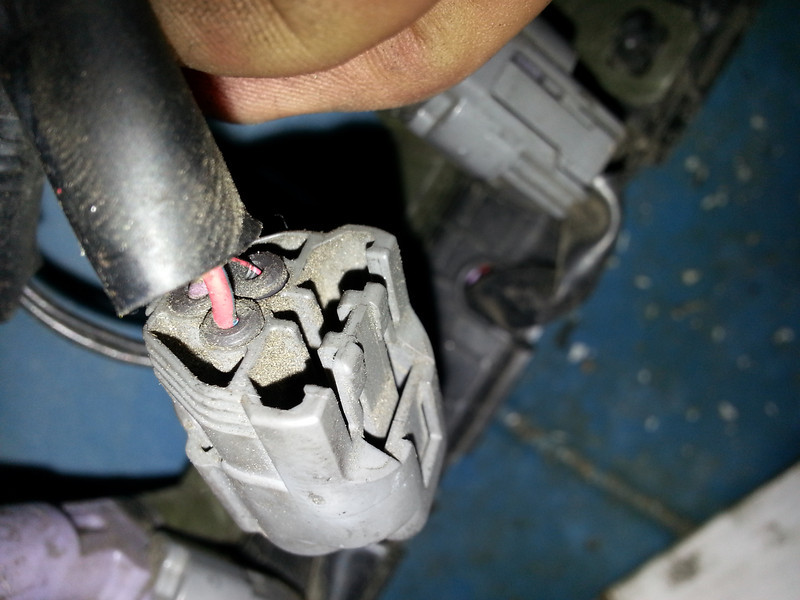

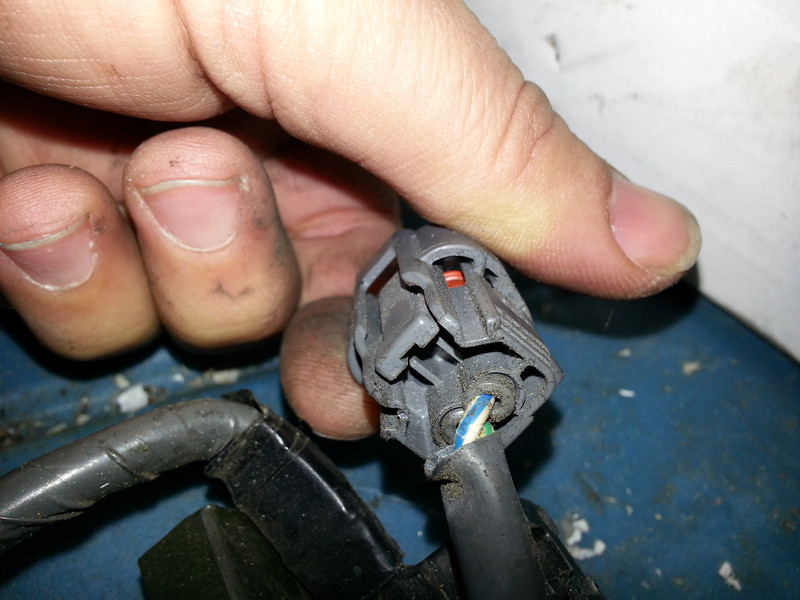

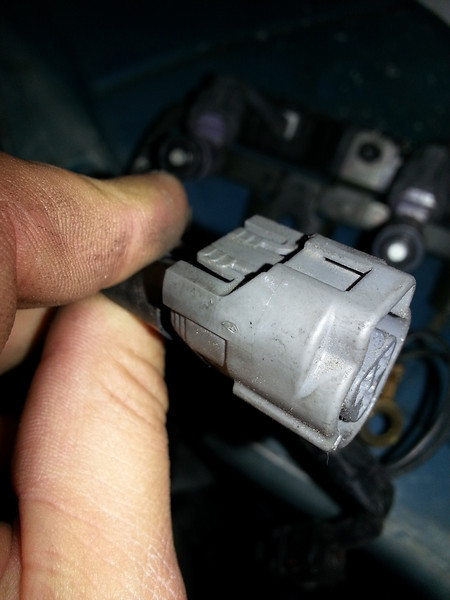

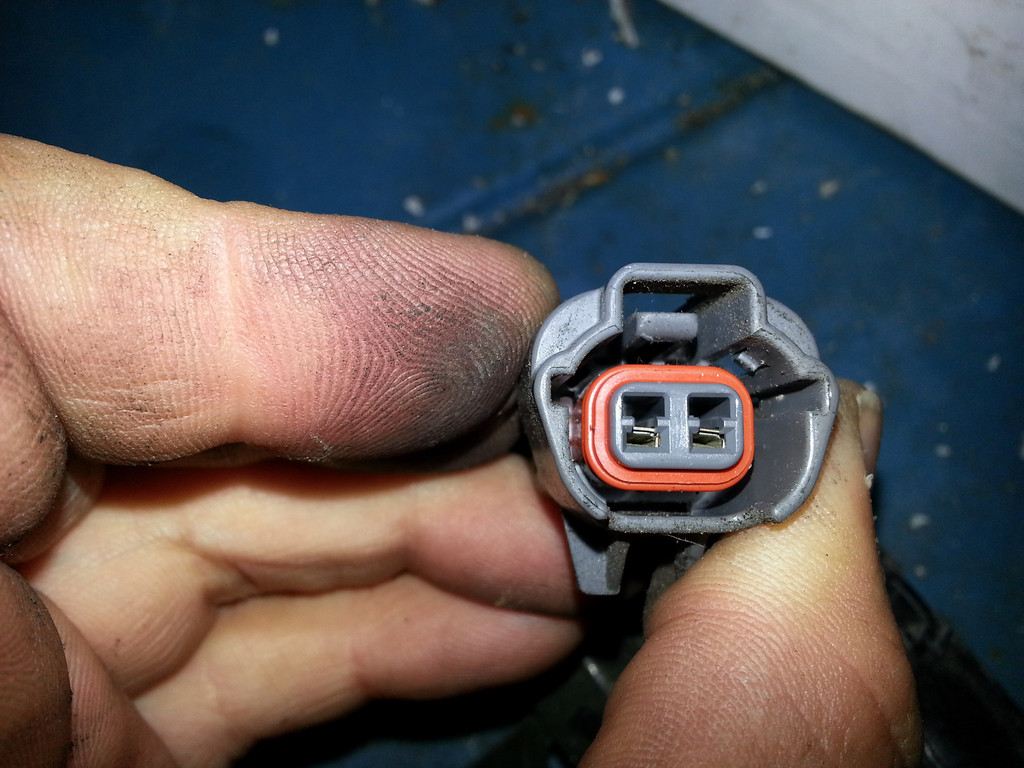

Fuel Injectors:

AbeFM

iTrader: (3)

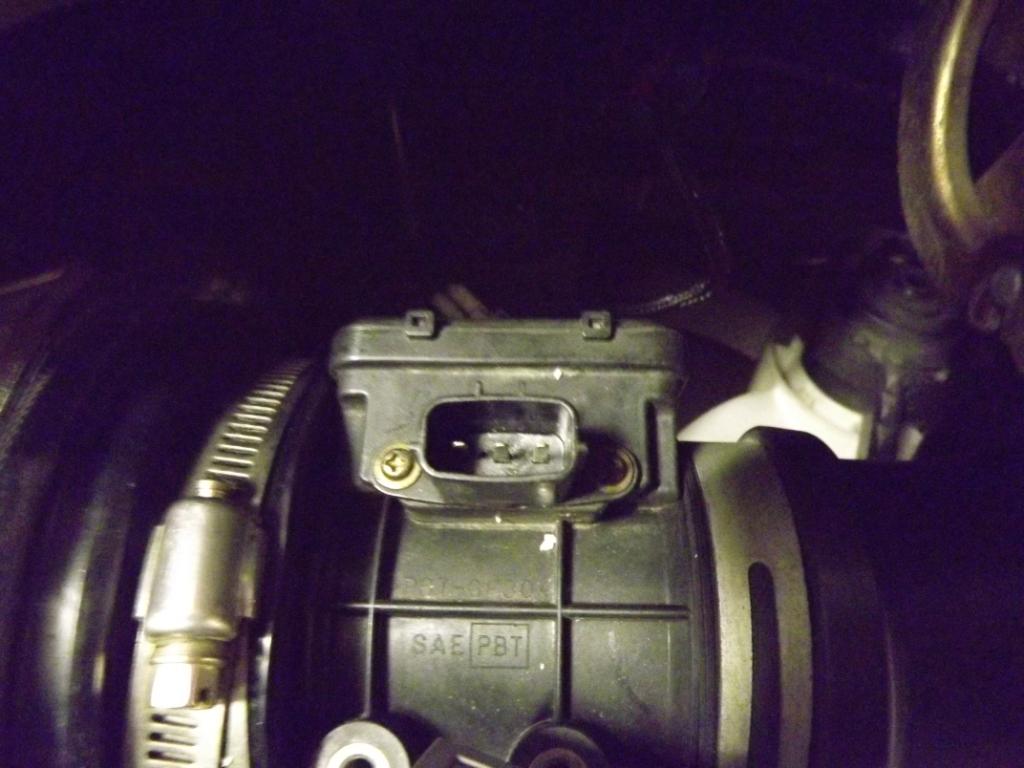

Looks like the only pic I have of the MAF. Then again, it looks a lot like the Crank Position Sensor.

Actually, I know it is, because I had a friend who plugged one into the other and lit his dash on fire (+5 and GND are always on the "same" side, so when mated they short.)....

So it's the opposite gender of the one we have. Still trying to get other friend to take pic of it.

Miater

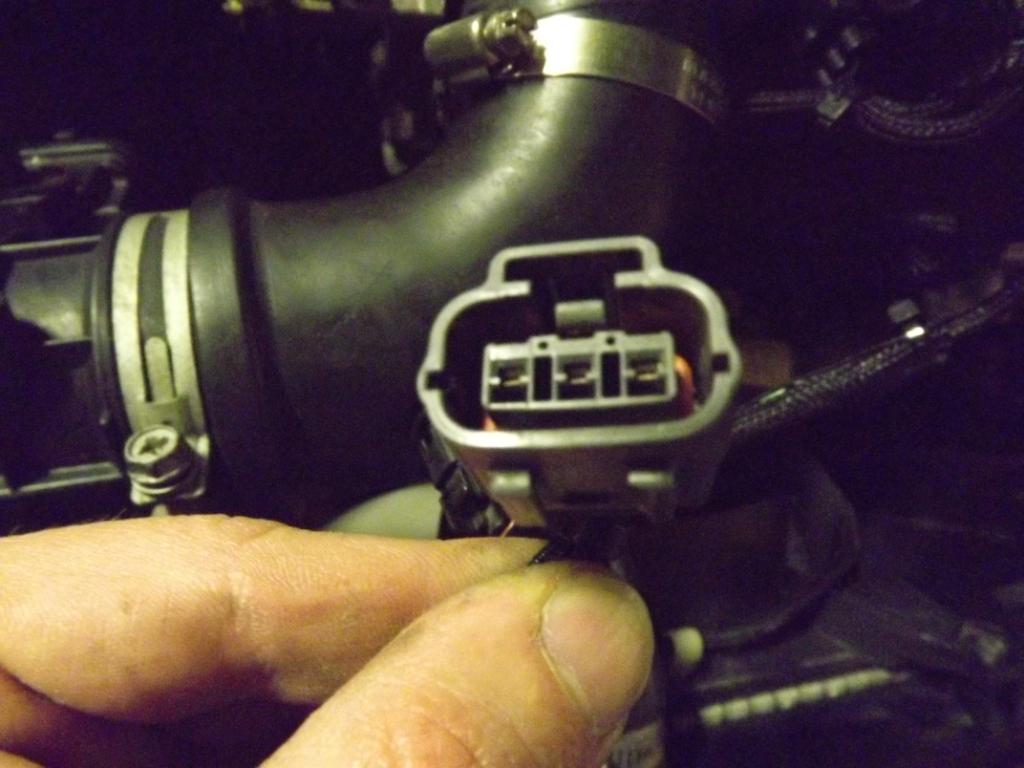

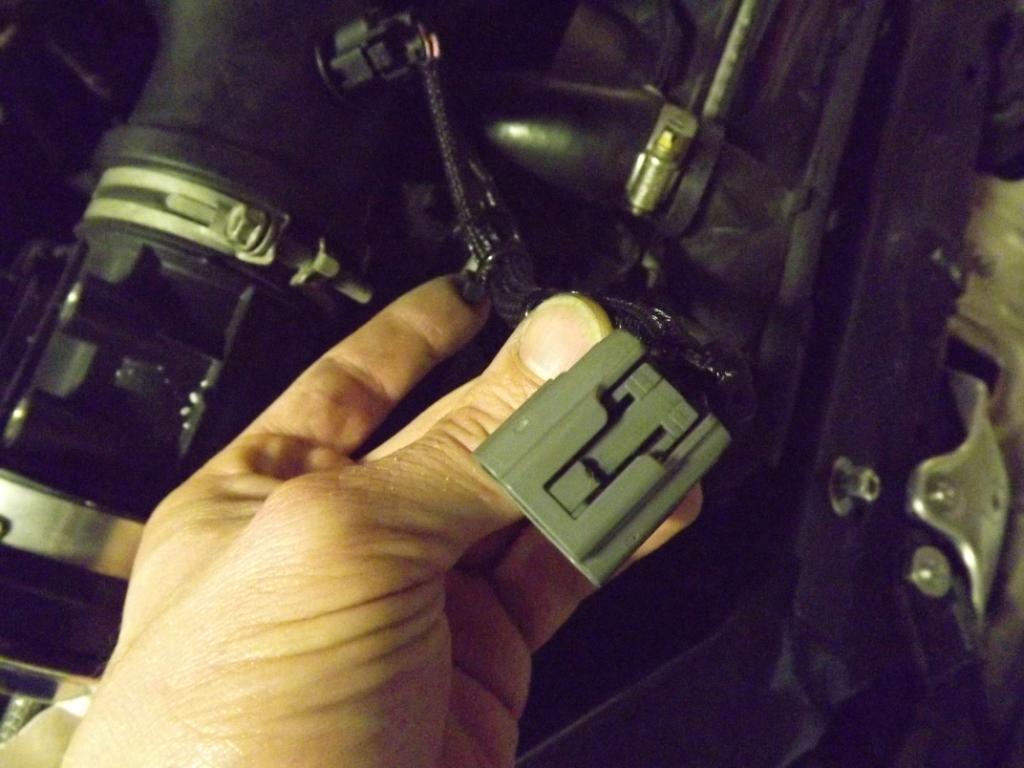

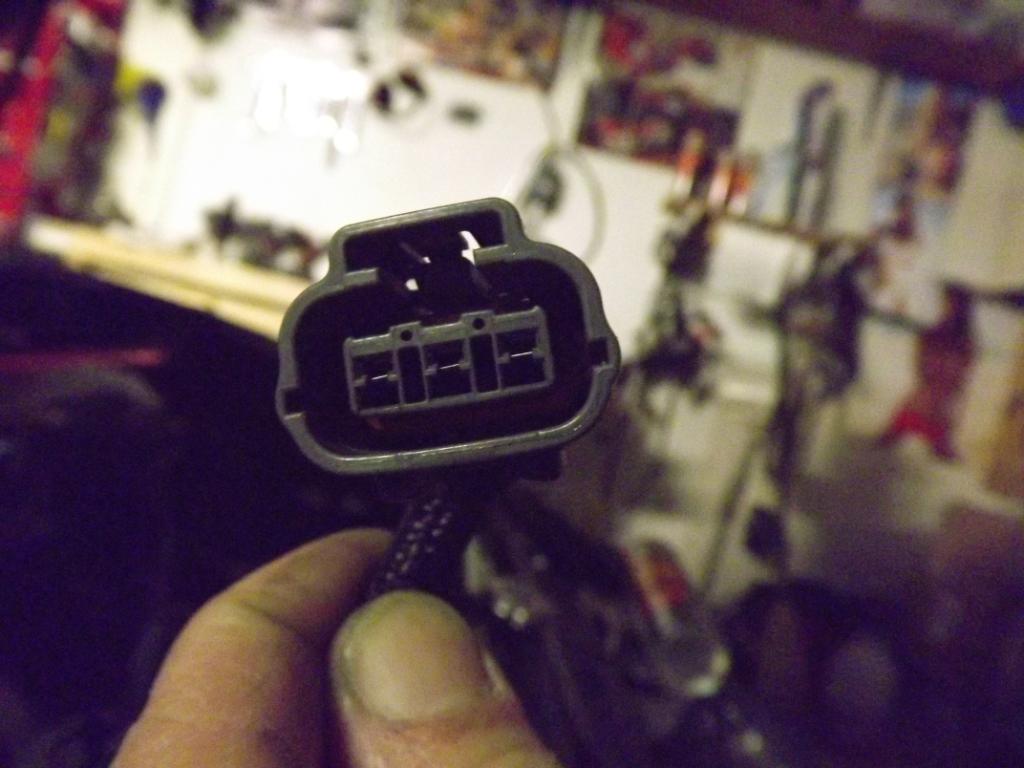

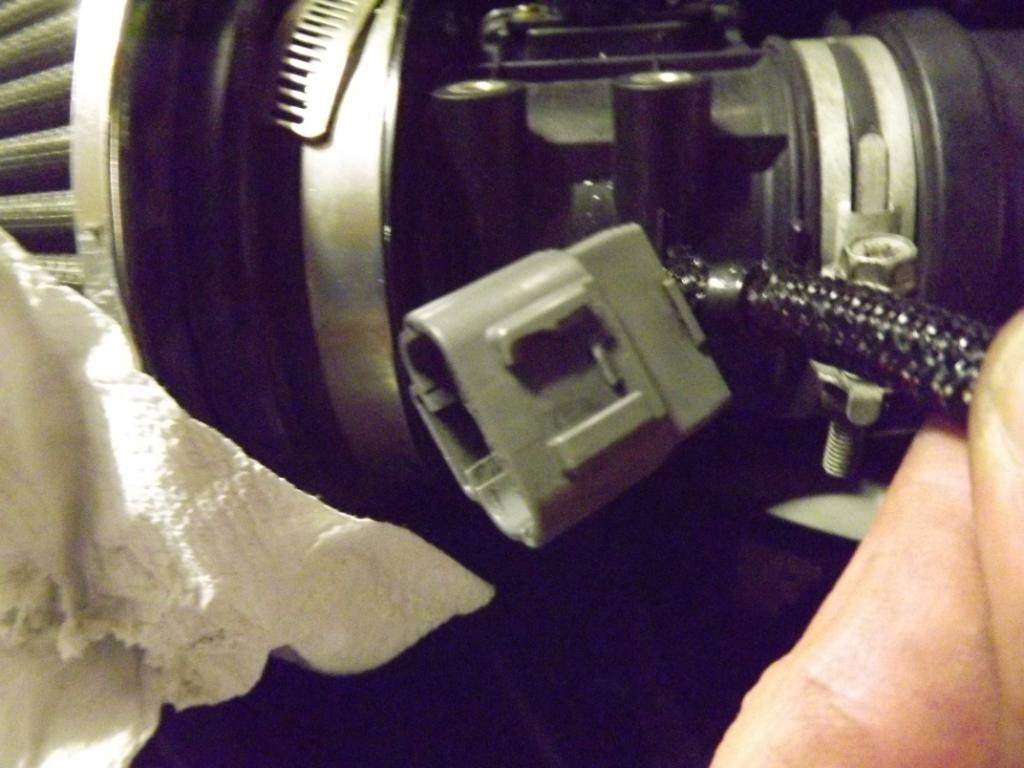

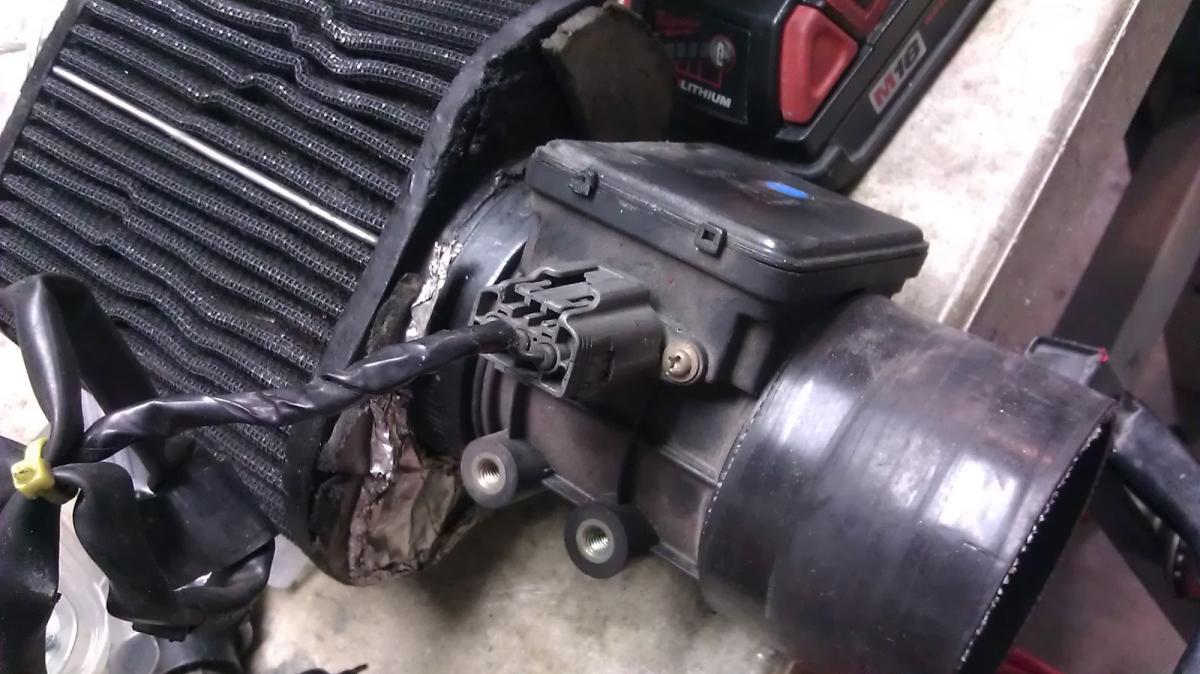

99 MAF

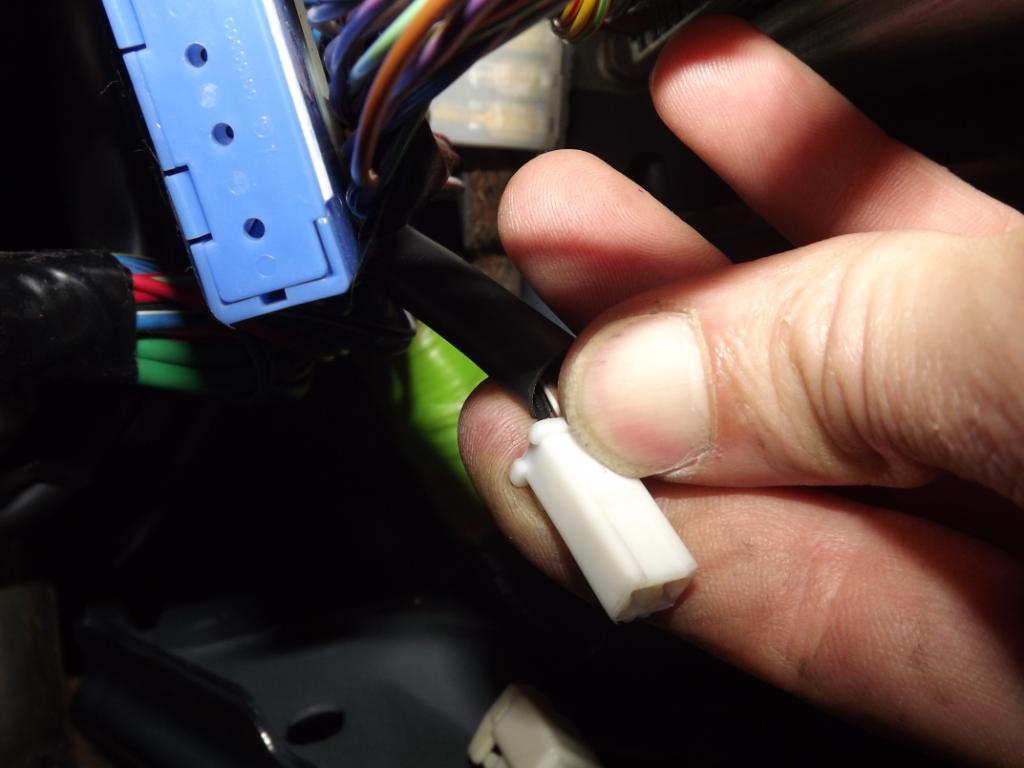

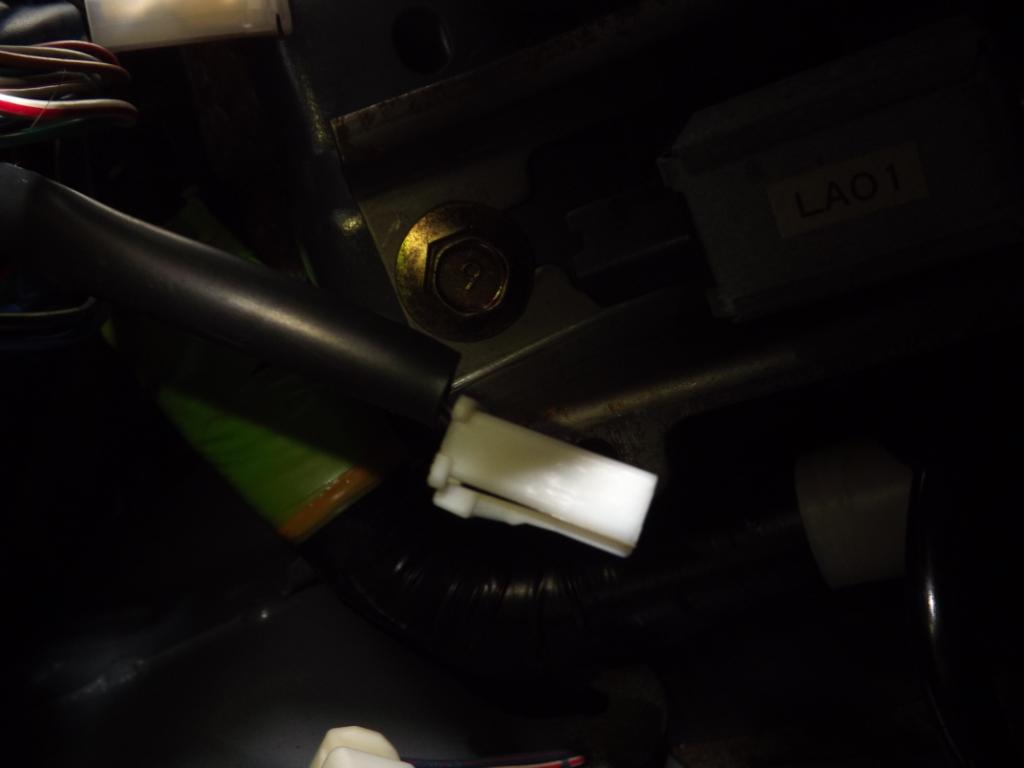

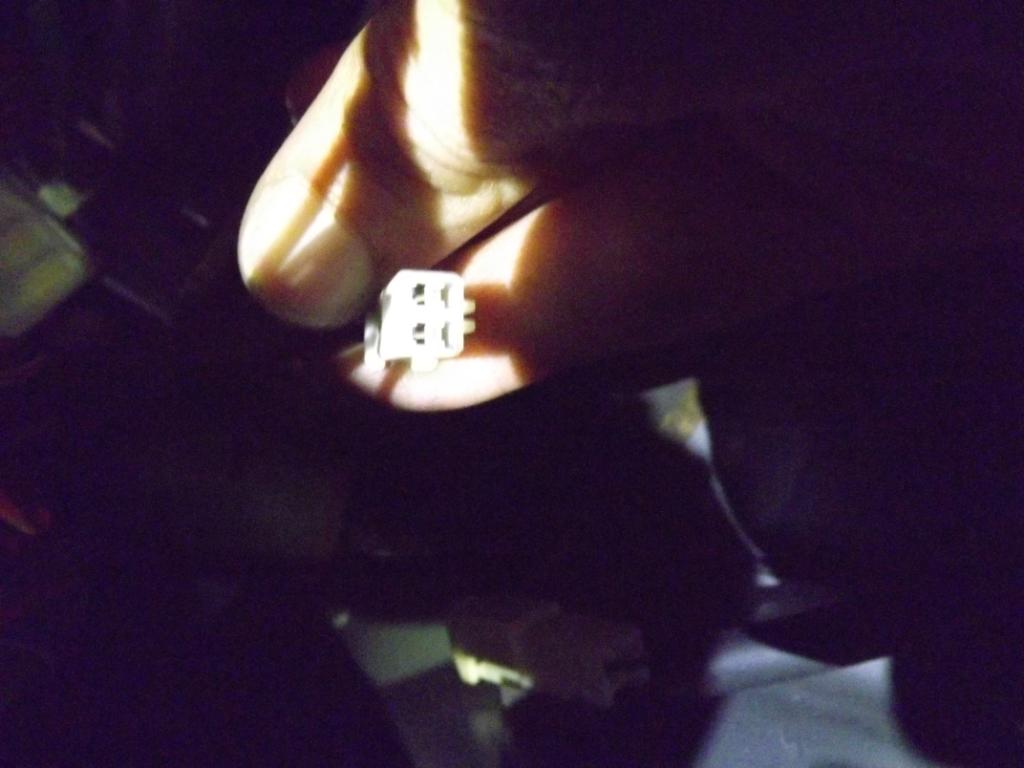

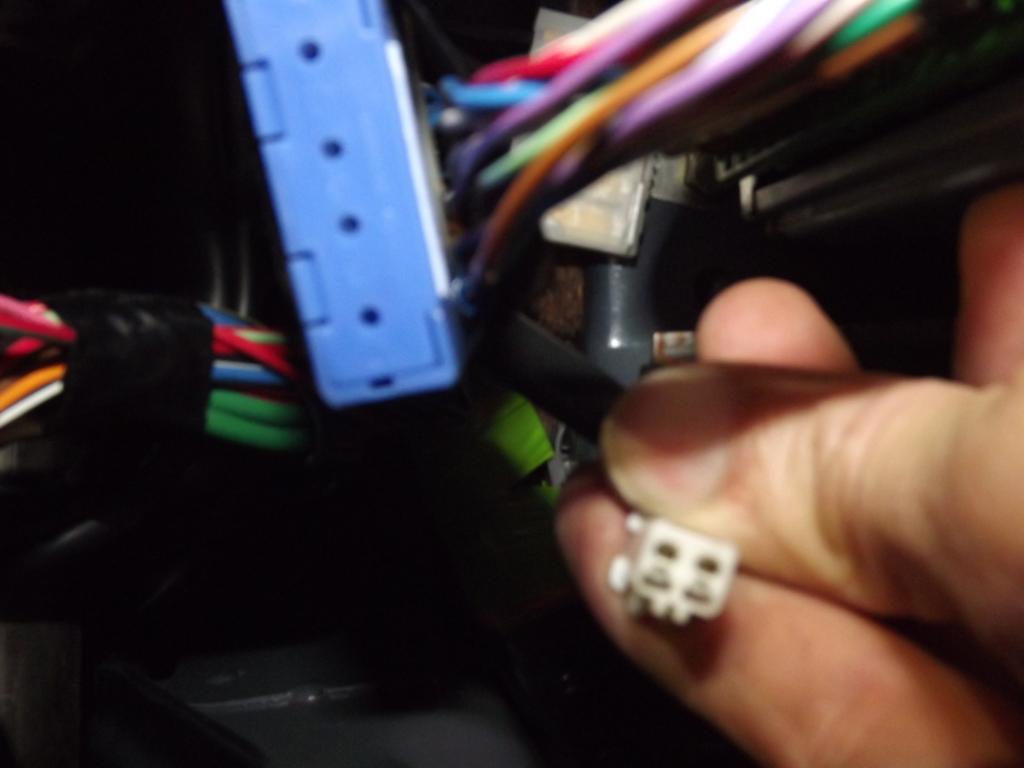

99 Clutch

AbeFM

iTrader: (3)

I have no idea what series those less intricate connectors are - speedo, tach, etc.... It'd be nice to know, at least to buy the pins, so they could be redone and those traction-control and tach drives could all be done....
