Connector Witch Hunt
#144

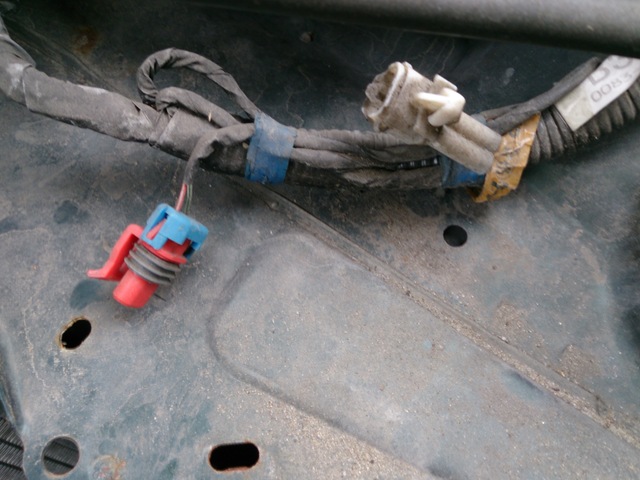

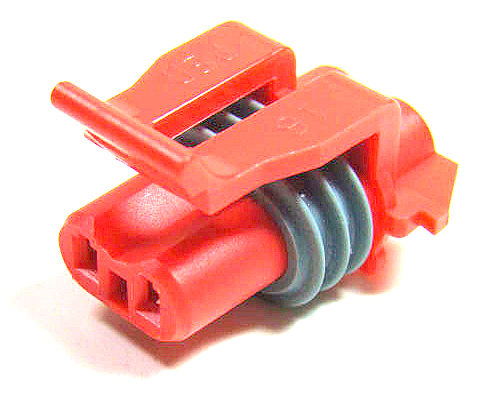

The red connector - Refrigerant pressure switch
It's a
2 cavity Delphi 12052643 Red Metripack 150 female connector
Delphi 12052643 Red Metripack 150 female connector
Recommended terminal 12048074
Terminal release tool: 12094429
Assembly Components:
12052637 Connector
12103067 Seal
Cross references:
GM service 12101858
Kenworth CN1080
Topkick connector C112
Used on AC Delco pigtail PT250 / 12101858
It can also be bought at Ballenger Motorsports - though it's black then:
Home » Shop » Connectors / Harnesses » Delphi / Packard » Connector Kits » GM Delphi / Packard - 2 Way Metripack 150 Plug Kit, Black
It's a
2 cavity Delphi 12052643 Red Metripack 150 female connector
Delphi 12052643 Red Metripack 150 female connector
Recommended terminal 12048074
Terminal release tool: 12094429
Assembly Components:
12052637 Connector
12103067 Seal
Cross references:
GM service 12101858
Kenworth CN1080
Topkick connector C112
Used on AC Delco pigtail PT250 / 12101858
It can also be bought at Ballenger Motorsports - though it's black then:
Home » Shop » Connectors / Harnesses » Delphi / Packard » Connector Kits » GM Delphi / Packard - 2 Way Metripack 150 Plug Kit, Black
#145

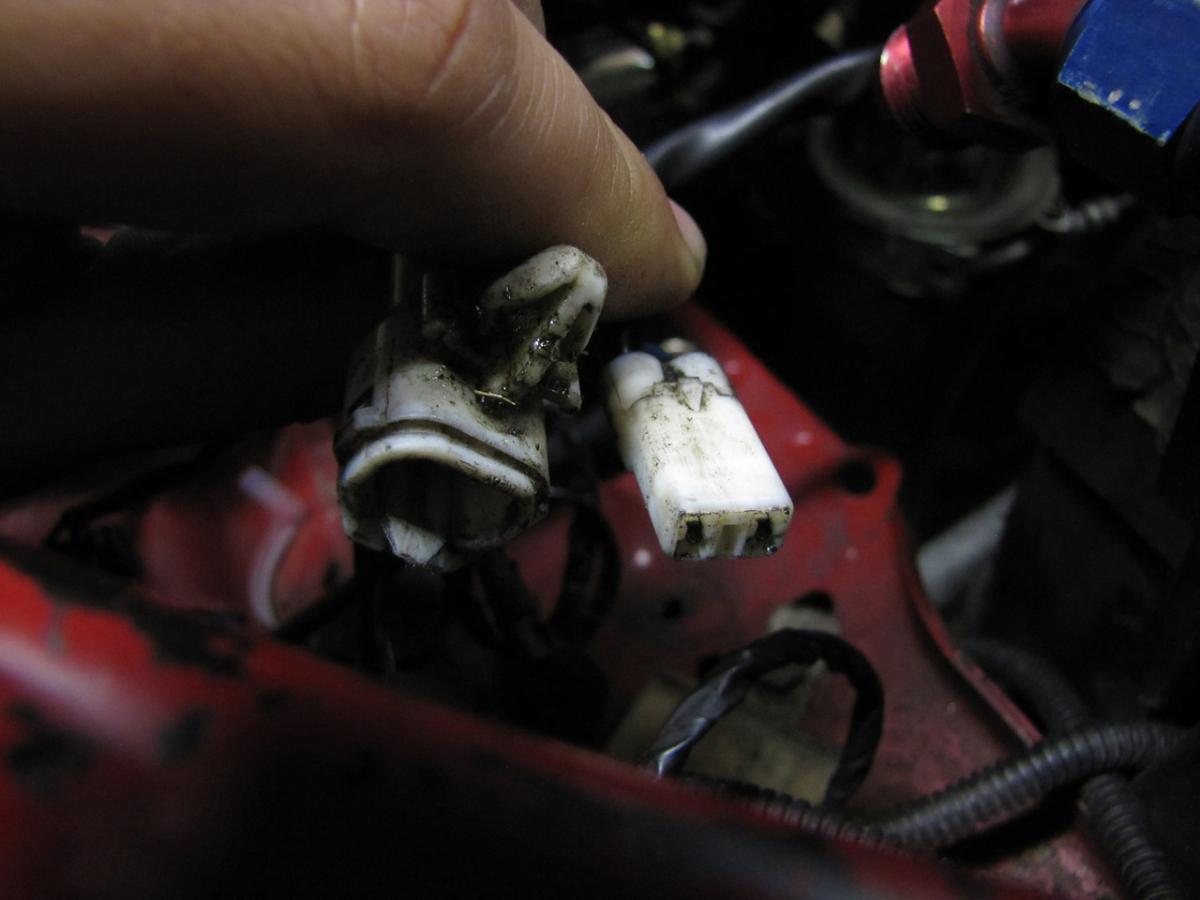

The white/natural connector - the condenser fan connector
is definitely a Yazaki connector
To be seen because of the little triangular sign on the front of the left connector:
But it seems to be outdated.
I think that this SUMITOMO connector might be a fitting replacement:

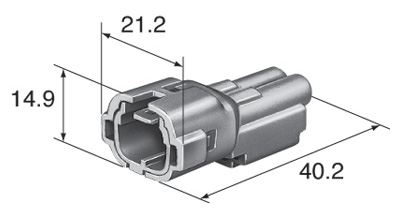

Male connector
Part.Nr. 6187-2801
SWS Components for Automobiles
Female connector
Part.Nr. 6180-2451
SWS Components for Automobiles
Greets
is definitely a Yazaki connector
To be seen because of the little triangular sign on the front of the left connector:
But it seems to be outdated.
I think that this SUMITOMO connector might be a fitting replacement:
Male connector
Part.Nr. 6187-2801
SWS Components for Automobiles
Female connector
Part.Nr. 6180-2451
SWS Components for Automobiles
Greets
#146

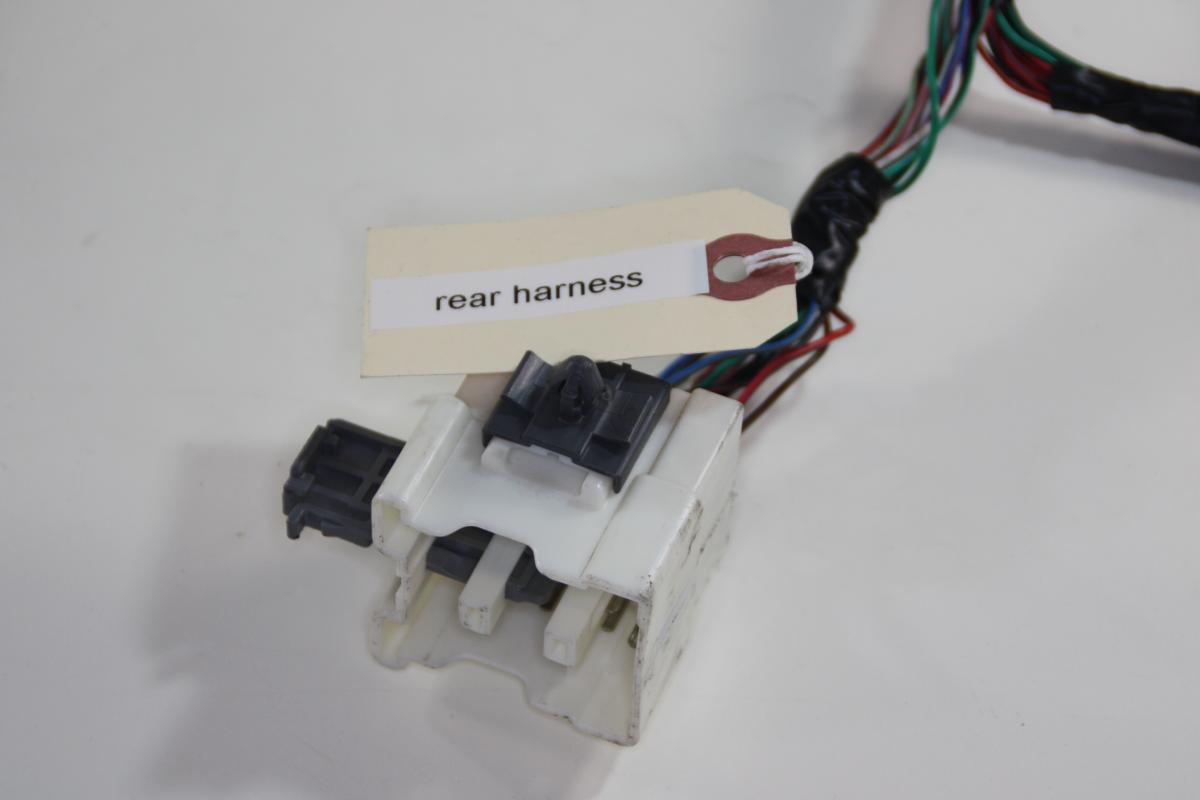

Anyone that finds the part numbers for the big blocky connectors gets a free Catfish t-shirt.
16 pin Tyco? Sumitomo? I dunno, but they are the main connectors between the engine, main, dash and PPF harnesses.
BTW, I have pictures and descriptions of every connector on a 1999 harness, but no part numbers. I'd be happy to upload or send them to whomever is building a list.
16 pin Tyco? Sumitomo? I dunno, but they are the main connectors between the engine, main, dash and PPF harnesses.
BTW, I have pictures and descriptions of every connector on a 1999 harness, but no part numbers. I'd be happy to upload or send them to whomever is building a list.
It's definitely a Yazaki 2.3 + 4.8 hybrid connector, even the grey holder has a Yazaki part.nr. on it. (But Yazaki doesn't have a 2.3 + 4.8 hybrid connector with 28/4 positions anymore and I can't find information about outdated connectors from Yazaki. Maybe Ballenger Motorsports can help us out here.)
#147

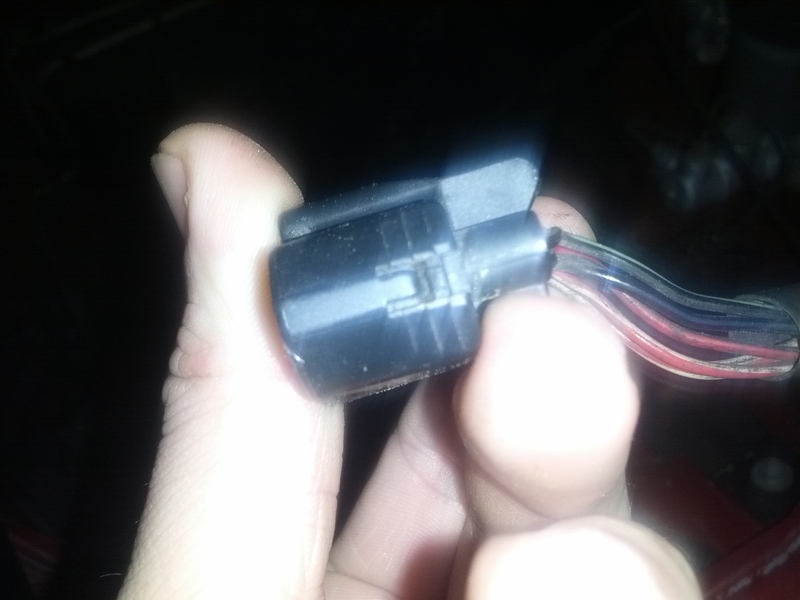

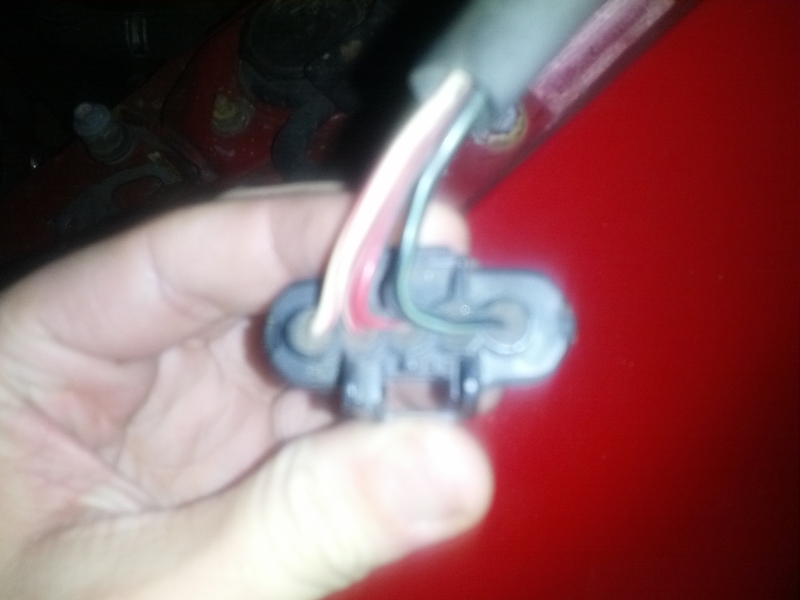

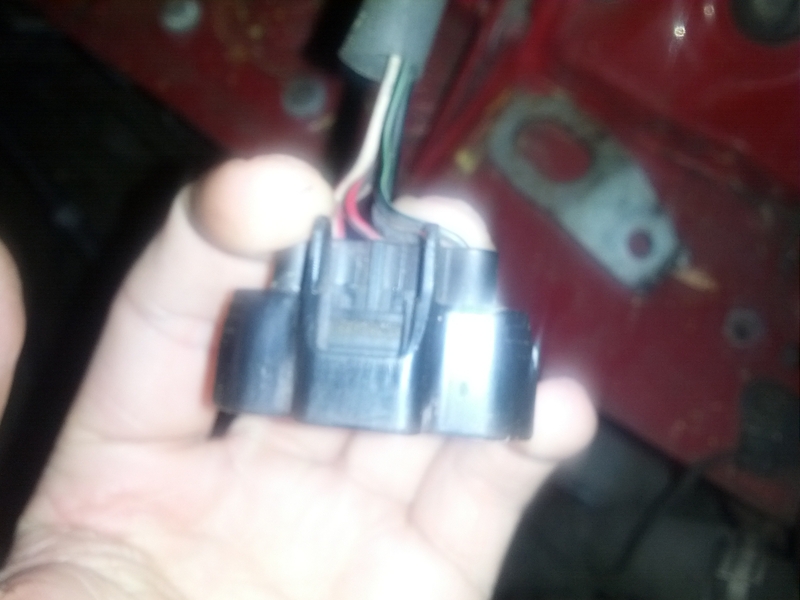

Just had a look at our 94/95 Can Miata.

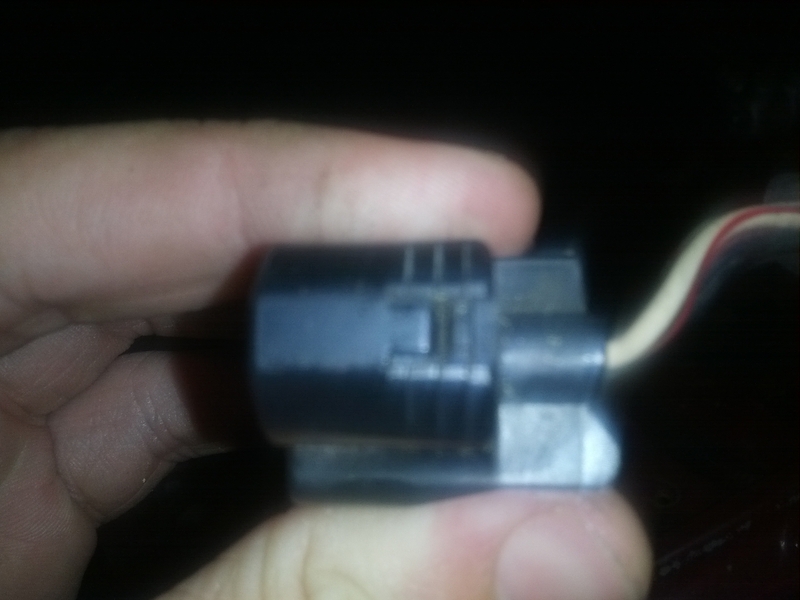

The TPS connector is a

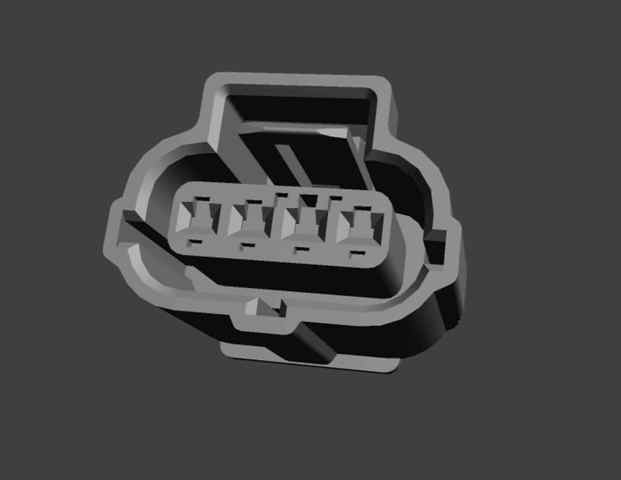

AMP SSC (Sealed Sensor Connector) 4 Position connector
AMP SSC 4 Position Housing Key - A [Black] [184046-1] : New United Race Tech, New United Race Tech
It's a OEM Toyota connector:
Part.Nr. 90980-10711
and

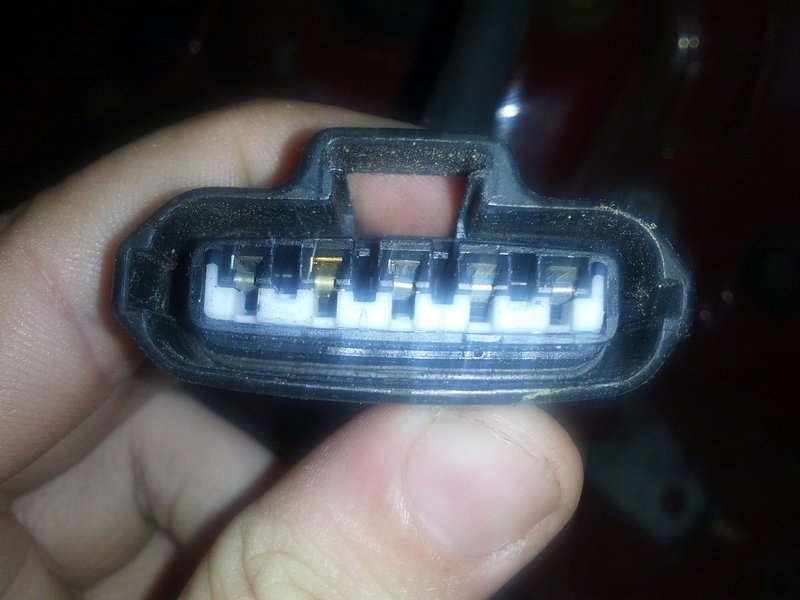

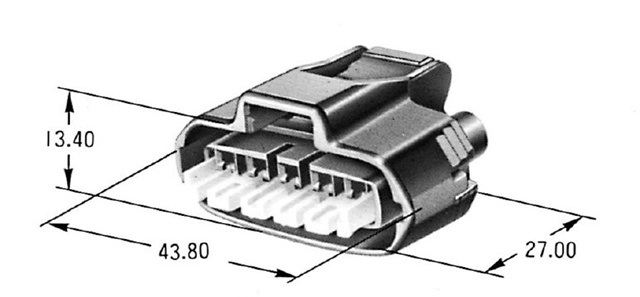

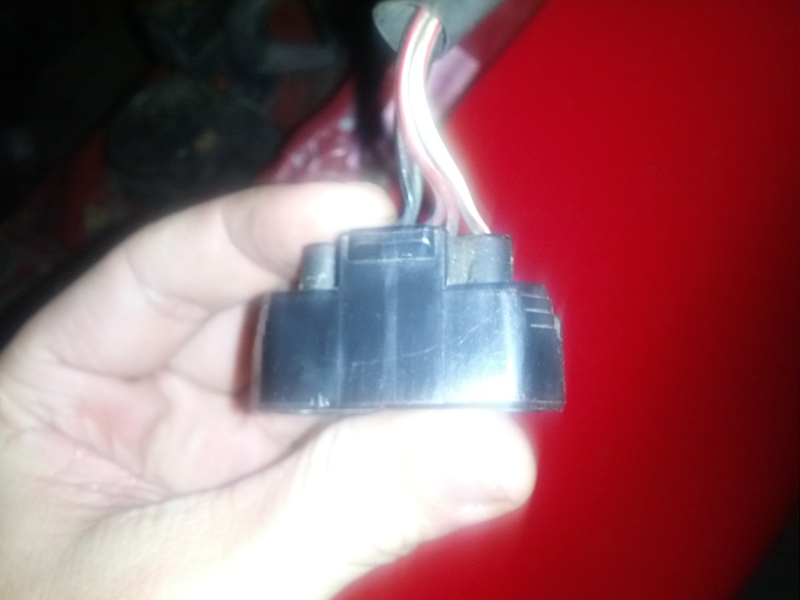

The MAF connector is a
Yazaki 2.3II(090II) Connectors Sealed 5 Position Female Housing [Black]
Part.Nr. 7283-1056-30
Yazaki 2.3II(090II) Connectors Sealed 5 Position Female Housing [Black]
Greets
It's a OEM Toyota connector:
Part.Nr. 90980-11317
The TPS connector is a
AMP SSC (Sealed Sensor Connector) 4 Position connector
AMP SSC 4 Position Housing Key - A [Black] [184046-1] : New United Race Tech, New United Race Tech
It's a OEM Toyota connector:
Part.Nr. 90980-10711
and
The MAF connector is a
Yazaki 2.3II(090II) Connectors Sealed 5 Position Female Housing [Black]
Part.Nr. 7283-1056-30
Yazaki 2.3II(090II) Connectors Sealed 5 Position Female Housing [Black]
Greets
It's a OEM Toyota connector:
Part.Nr. 90980-11317
#150
Elite Member
Thread Starter
iTrader: (1)
Join Date: Jun 2012
Location: NH
Posts: 9,479
Total Cats: 104
The iat is for 99+ I should change that I wanted to make sure the older one's dont it it, I know the 94-97 style doesnt and now we know the 90-93 style doesnt (if its even different from the 94-97).
#152
In preparation of my 1,6 to VVT swap some more 1,6 connectors:

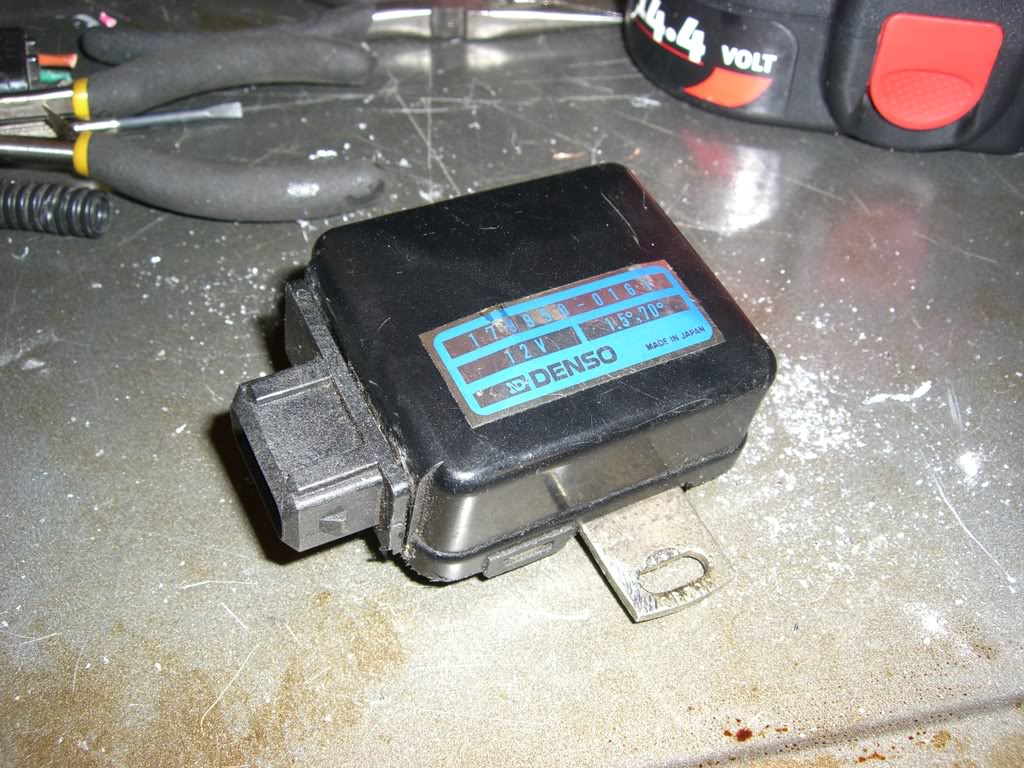

90-93 (-97 in Europe) TPS connector
Is a Bosch Automotive connector 3 position
Part.Nr. 1237000039
connector TPS 3 pin plug Bosch
http://www.summitracing.com/parts/bch-1237000039
This should be the mating male connector:
3 PIN MALE
Bosch | The Knock Box
I suppose this one will also be fitting:
http://www.ebay.com/itm/3-way-Bosch-...item5893418465
Another name for the connector is AMP JPT Junior Power Timer
Greets
90-93 (-97 in Europe) TPS connector
Is a Bosch Automotive connector 3 position
Part.Nr. 1237000039
connector TPS 3 pin plug Bosch
http://www.summitracing.com/parts/bch-1237000039
This should be the mating male connector:
3 PIN MALE
Bosch | The Knock Box
I suppose this one will also be fitting:
http://www.ebay.com/itm/3-way-Bosch-...item5893418465
Another name for the connector is AMP JPT Junior Power Timer
Greets
Last edited by Zaphod; 04-10-2013 at 09:10 AM.
#153
Boost Czar
iTrader: (62)
Join Date: May 2005
Location: Chantilly, VA
Posts: 79,493
Total Cats: 4,080
Just had a look at our 94/95 Can Miata.
The TPS connector is a
AMP SSC 4 Position Housing Key - A [Black] [184046-1] : New United Race Tech, New United Race Tech
The TPS connector is a
AMP SSC 4 Position Housing Key - A [Black] [184046-1] : New United Race Tech, New United Race Tech
#156
Another source for Yazaki and Sumitomo Connectors:
Sumitomo Connector - Alternative Connection
Also, the 99-00, 94-95.5, and 95.5-97 coil pack connectors are linking to the wrong part on the google excel sheet. It should be linked to: http://www.newunitedracetech.com/sho...58_676_681_682
Sumitomo Connector - Alternative Connection
Also, the 99-00, 94-95.5, and 95.5-97 coil pack connectors are linking to the wrong part on the google excel sheet. It should be linked to: http://www.newunitedracetech.com/sho...58_676_681_682
Last edited by rharris19; 04-11-2013 at 09:04 AM.
#157
mkturbo.com
iTrader: (24)
Join Date: May 2006
Location: Charleston SC
Posts: 15,177
Total Cats: 1,681
If there are any more connectors off of a 92, 94, 95, or 96 harness that we need I can spend time this weekend taking pictures of the connectors.
#159
I need to look back through here to find the 94-95.5 m/f coil pack harness to main harness 6 pin connector.
I want to make an entire harness just for the ecu to control the engine and nothing else in it, ala LS1 swap harnesses, out of the harness that goes from the ECU to the dash on the 94-97 models.
Did you guys ever found the alternator plug? I would love to help, but I have no idea about this stuff. Also Coolant temp sensor for 94-97.
I want to make an entire harness just for the ecu to control the engine and nothing else in it, ala LS1 swap harnesses, out of the harness that goes from the ECU to the dash on the 94-97 models.
Did you guys ever found the alternator plug? I would love to help, but I have no idea about this stuff. Also Coolant temp sensor for 94-97.
#160
I need to look back through here to find the 94-95.5 m/f coil pack harness to main harness 6 pin connector.
I want to make an entire harness just for the ecu to control the engine and nothing else in it, ala LS1 swap harnesses, out of the harness that goes from the ECU to the dash on the 94-97 models.
Did you guys ever found the alternator plug? I would love to help, but I have no idea about this stuff. Also Coolant temp sensor for 94-97.
I want to make an entire harness just for the ecu to control the engine and nothing else in it, ala LS1 swap harnesses, out of the harness that goes from the ECU to the dash on the 94-97 models.
Did you guys ever found the alternator plug? I would love to help, but I have no idea about this stuff. Also Coolant temp sensor for 94-97.
This one should be the one you can buy here - I would need pictures of the connector to tell what brand and part.-nr. it is...
http://store.driftmotion.com/static/...mpconn2pin.php
Edit - found it:

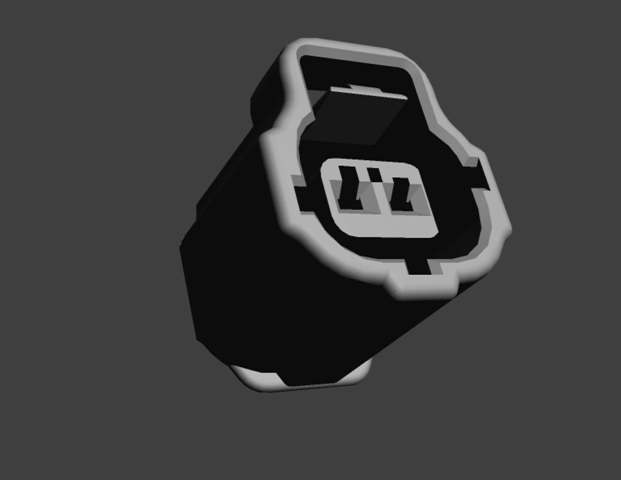

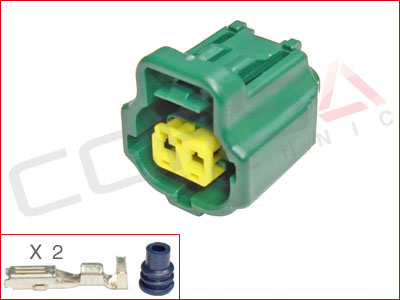

It's an AMP SSC 2 Position
http://www.newunitedracetech.com/sho...-d-p-5764.html
Part.Nr. is 184006-1
Last edited by Zaphod; 04-12-2013 at 11:32 AM.
