[carnage] Savington throws a rod, hilarity ensues

Engine Performance This section is for discussion on all engine building related questions.
Sponsored by:
Sponsored by:

[carnage] Savington throws a rod, hilarity ensues


Old 03-02-2009, 05:56 PM
  #21
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 76,100
Total Cats: 2,268
Default

Originally Posted by Savington View Post
\The goal is to source a 1.8, get the turbo setup swapped over

that's what i should have done, with a new begi manifold everything else would have pretty much been a direct swap.
Braineack is offline
Old 03-02-2009, 07:07 PM
  #22
Senior Member

Join Date: Sep 2007
Location: Alamo City, Tejas
Posts: 771
Total Cats: 1
Default

Sav -

Sorry to hear about the loss.

Have already sourced a replacement block or are you hoping all the damage is internal and reusing the current block?

Like Hustler, I built the motor and sized the turbo to exceed my power requirements. As long as I don't get stupid with the tune or have cooling issues, it should hold together for whatever abuse I put it through.

As soon as the budget allows, I'll start tracking the car and see how well the theory holds up...

- L
l_bader is offline
Old 03-02-2009, 09:23 PM
  #23
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 15,222
Total Cats: 1,976
Default

Epic carnage update:

Pretty cut and dry case of number 4 rod failure. Popped the rod, snapped it into 3 clean pieces, punched a nice neat hole in the block. The piston came up to the head, just barely tapped it (nearly no damage to the head), but it did blow the head gasket when it came up, which quickly joined the oil and coolant passages and spun all the rod and main bearings in short order.

These motors are ******* TANKS, though. I drove this motor 1 mile at 55mph with 3 rods intact. It ran, albeit roughly, until I shut it down myself. It even kept oil pressure until the end.

On the way out:
Name:  DSCN1271.jpg
Views: 28
Size:  64.8 KB

Name:  DSCN1274.jpg
Views: 24
Size:  64.0 KB

Name:  DSCN1276.jpg
Views: 24
Size:  74.4 KB

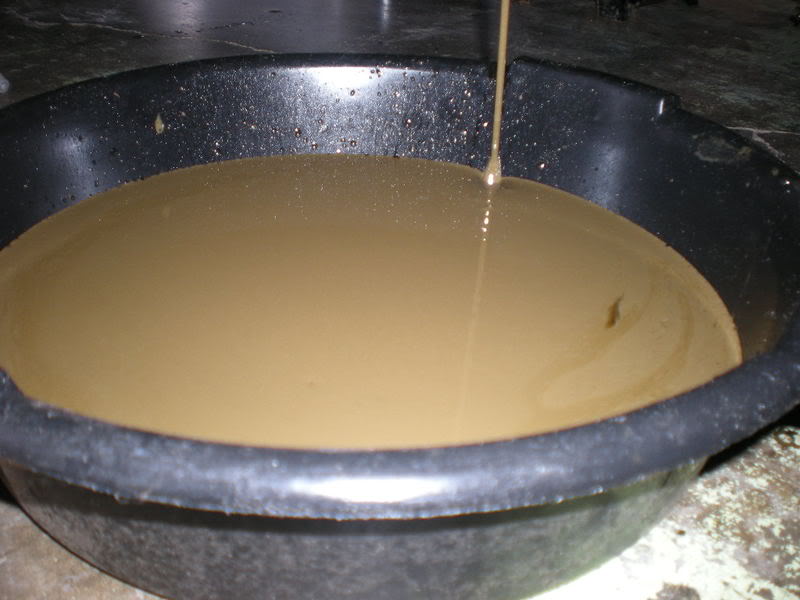

"uhh, thats not good."

Name:  DSCN1270.jpg
Views: 23
Size:  55.5 KB

Number 4 head:
Name:  DSCN1279.jpg
Views: 23
Size:  67.9 KB

There's the hole:


The rest of the rod:
Name:  DSCN1289.jpg
Views: 23
Size:  25.7 KB

Big end:
Name:  DSCN1290.jpg
Views: 26
Size:  54.6 KB

Small end:
Name:  DSCN1291.jpg
Views: 24
Size:  61.5 KB

4, 3, 2, 1. The rest of the rods actually look straight.
Name:  DSCN1292.jpg
Views: 23
Size:  70.8 KB

Cylinder 1
Name:  DSCN1282.jpg
Views: 25
Size:  51.1 KB

Cylinder 2
Name:  DSCN1281.jpg
Views: 25
Size:  55.5 KB

Cylinder 3
Name:  DSCN1280.jpg
Views: 25
Size:  62.7 KB

I think the head is salvageable, provided the cam bearing caps are good (doubt it). The bottom end is a throwaway.
__________________
Trackspeed Engineering
High-Performance Turbo Specialists - Sunnyvale, CA - 650-701-7223 - Email us!
Originally Posted by codrus View Post
Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".

Last edited by Savington; 03-03-2009 at 01:01 AM.
Savington is offline
Old 03-02-2009, 09:32 PM
  #24
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,847
Total Cats: 28
Default

Originally Posted by Savington View Post
Epic carnage update:

Pretty cut and dry case of number 4 rod failure. Popped the rod, snapped it into 3 clean pieces, punched a nice neat hole in the block.
That sounds familiar... Is there another hole under the starter?
ZX-Tex is offline
Old 03-02-2009, 09:40 PM
  #25
Elite Member
iTrader: (30)

levnubhin's Avatar

Join Date: Aug 2007
Location: Va Beach
Posts: 7,304
Total Cats: 5
Default

So whats the plan Sav?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline
Old 03-02-2009, 09:44 PM
  #26
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 928
Total Cats: 10
Default

Originally Posted by ZX-Tex View Post
That sounds familiar... Is there another hole under the starter?
That hole was under the starter.... the only one.
crashnscar is offline
Old 03-02-2009, 09:45 PM
  #27
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 15,222
Total Cats: 1,976
Default

Originally Posted by levnubhin View Post
So whats the plan Sav?
I don't want to rush a build. The plan is to source another stock longblock and just do a straight swap, keep the boost around 12-13psi, and then move my built motor timetable way up.
__________________
Trackspeed Engineering
High-Performance Turbo Specialists - Sunnyvale, CA - 650-701-7223 - Email us!
Originally Posted by codrus View Post
Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".
Savington is offline
Old 03-02-2009, 09:55 PM
  #28
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,034
Total Cats: 5
Default

Originally Posted by Savington View Post
I don't want to rush a build. The plan is to source another stock longblock and just do a straight swap, keep the boost around 12-13psi, and then move my built motor timetable way up.
eBay Motors: 99 miata engine motor , 96k miles, NB to NA (item 130290719915 end time Mar-05-09 14:35:33 PST)

That would source your 99 head

Although i cannot take credit for it as Mark linked me to this.
thesnowboarder is offline
Old 03-02-2009, 10:05 PM
  #29
Newb

Join Date: Nov 2007
Posts: 3
Total Cats: 0
Default

Nick, he already knows about it
mk128 is offline
Old 03-02-2009, 10:10 PM
  #30
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 15,222
Total Cats: 1,976
Default

Purchased.

This thread is now about what I need to purchase to get the '99 motor swapped into my '94 chassis. I will keep my '94 alternator, purchase a longer oil feed line, and use my COP setup, but what am I missing?
__________________
Trackspeed Engineering
High-Performance Turbo Specialists - Sunnyvale, CA - 650-701-7223 - Email us!
Originally Posted by codrus View Post
Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".
Savington is offline
Old 03-02-2009, 10:10 PM
  #31
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 928
Total Cats: 10
Default

And may or may not have already purchased it....

Edit: Crap, too late.

Anyways, what about controlling the VCIS?

Edit2: Just found: http://forum.miata.net/vb/showthread...=311587&page=1
crashnscar is offline
Old 03-02-2009, 10:11 PM
  #32
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,518
Total Cats: 30
Default

Good time for that coolant reroute.

Keep the sensors and throttle body from your '94. Maybe not the dummy oil pressure sender, but the rest of them. The rear temp sensor is different between the two.
RotorNutFD3S is offline
Old 03-02-2009, 10:12 PM
  #33
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,141
Total Cats: 3,141
Default

carnage indeed
18psi is offline
Old 03-02-2009, 10:12 PM
  #34
Senior Member

Join Date: May 2006
Posts: 887
Total Cats: -1
Default

Name:  DSCN1270.jpg
Views: 23
Size:  55.5 KB

Looks like chocolate milk!

So, what you're saying is the rods are the weak point?
firedog25 is offline
Old 03-02-2009, 10:13 PM
  #35
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 15,222
Total Cats: 1,976
Default

The 99 i just bought is from an automatic car. Any complications arising from that?
__________________
Trackspeed Engineering
High-Performance Turbo Specialists - Sunnyvale, CA - 650-701-7223 - Email us!
Originally Posted by codrus View Post
Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".
Savington is offline
Old 03-02-2009, 10:13 PM
  #36
Junior Member
iTrader: (7)

Join Date: Mar 2007
Location: Texas Panhandle
Posts: 211
Total Cats: 0
Default

Originally Posted by Savington View Post
Epic carnage update:
mmm... Chocolate Milk!

EDIT: haha firedog beat me to it.
jsisco is offline
Old 03-02-2009, 10:16 PM
  #37
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,518
Total Cats: 30
Default

Originally Posted by Savington View Post
The 99 i just bought is from an automatic car. Any complications arising from that?
You may already know this, but thrust bearing failure was prevalent in some of those motors, but less likely on the auto cars since the thrust bearing was technically unused. There's a vin range posted somewhere on m.net.
RotorNutFD3S is offline
Old 03-02-2009, 10:18 PM
  #38
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 15,222
Total Cats: 1,976
Default

Thrust bearing shows up within 40k miles or so. This one has 96k. Good idea, though, thanks.
__________________
Trackspeed Engineering
High-Performance Turbo Specialists - Sunnyvale, CA - 650-701-7223 - Email us!
Originally Posted by codrus View Post
Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".
Savington is offline
Old 03-02-2009, 10:31 PM
  #39
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,518
Total Cats: 30
Default

Originally Posted by Savington View Post
Thrust bearing shows up within 40k miles or so. This one has 96k. Good idea, though, thanks.
IIRC, that's mainly applicable to the manual cars. In any case, here's the Mazda TSB, worth checking out just to make double sure. That would sour a mood real quick.
http://www.miata.net/garage/tsb/sb00-01-014r-808r2.pdf
RotorNutFD3S is offline
Old 03-02-2009, 10:49 PM
  #40
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 15,222
Total Cats: 1,976
Default

****. It's within the VIN range, but it was an auto motor and only a few of the cars in the range were affected. I'll check the endplay when I throw it in, but I don't think it will be an issue that needs immediate involvement.
__________________
Trackspeed Engineering
High-Performance Turbo Specialists - Sunnyvale, CA - 650-701-7223 - Email us!
Originally Posted by codrus View Post
Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".
Savington is offline
