Old 03-14-2016, 11:58 AM   #361
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,090
Total Cats: 576
Default

Why not place it in the wiper cowl or through the fender?
triple88a is offline   Reply With Quote
Old 03-14-2016, 12:11 PM   #362
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 737
Total Cats: 66
Default

Either of those are probably good locations. When the car is not moving, the air in front of the radiator gets about 10 degrees hotter. Also, I think it would help to move the sensor to the edge of the filter cap.

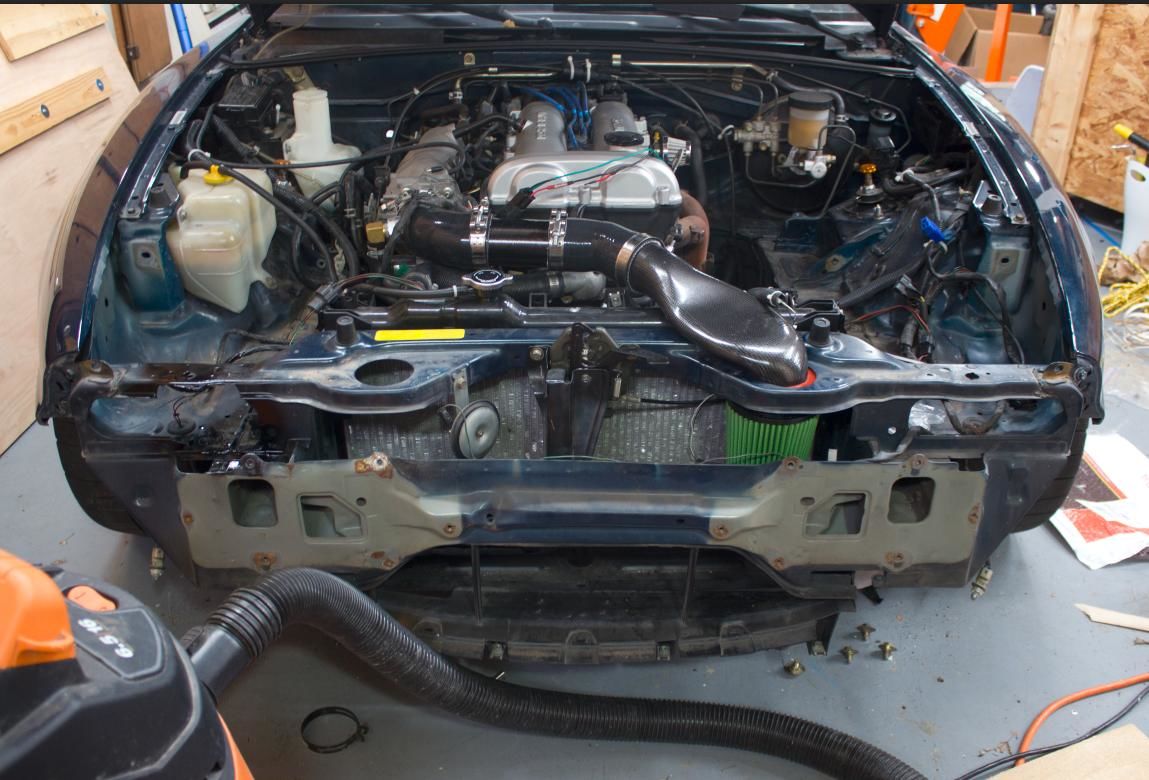

The bigger air filter with the silicone reducer just barely fits:

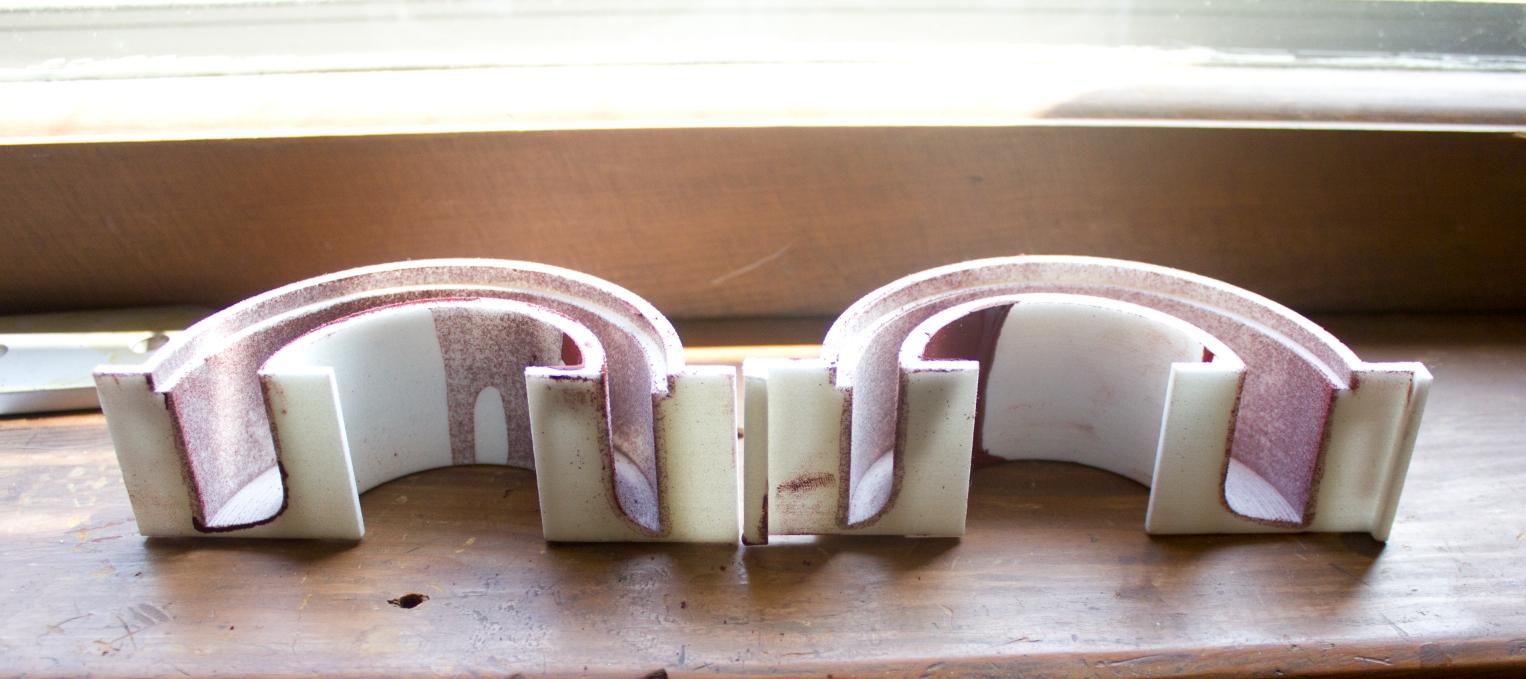

Also, I had a version printed as a two piece mold and was able to get the part out without the mold breaking this time. SLS nylon is so porous that the silicone doesn't like to come out cleanly. Im going to print another version as 3 peices (two sides, center section) which will help with release and allow me to paint and polish the inside surfaces to make them nice and shiny.


Attached Thumbnails
3d printed intake for N/A NA miatas-80-uq6ehhw_3096c83f0d3d612d740cf254e879ccc70afd2647.jpg   3d printed intake for N/A NA miatas-80-wzqftim_1538fa7434b6ad8e018c9e26c033297e93225f07.jpg
asmasm is offline   Reply With Quote
Old 03-14-2016, 12:26 PM   #363
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,090
Total Cats: 576
Default

Also why do you need the open element sensor? The stocker sensor will work fine. You're measuring ambient temperature, not the temp after the hair drier.
triple88a is offline   Reply With Quote
Old 03-14-2016, 12:29 PM   #364
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,866
Total Cats: 1,260
Default

Because it helps with things like hot restarts and whatnot. And like alec said, the air in front of the radiator gets hot when sitting. Speed density is more touchy with AIT than MAF.
aidandj is offline   Reply With Quote
Old 03-14-2016, 12:32 PM   #365
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,090
Total Cats: 576
Default

Right but if you put it in a spot that wont get heat soked then you'll be fine. AKA through the firewall into the wiper area or the fender. Hell with the stock sensor its all plastic, you wont even need a filter on it.
triple88a is offline   Reply With Quote
Old 03-14-2016, 12:33 PM   #366
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,866
Total Cats: 1,260
Default

Wiper area will be a lot cooler than in front of the radiator idling in traffic.
aidandj is offline   Reply With Quote
Old 03-14-2016, 01:51 PM   #367
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 737
Total Cats: 66
Default

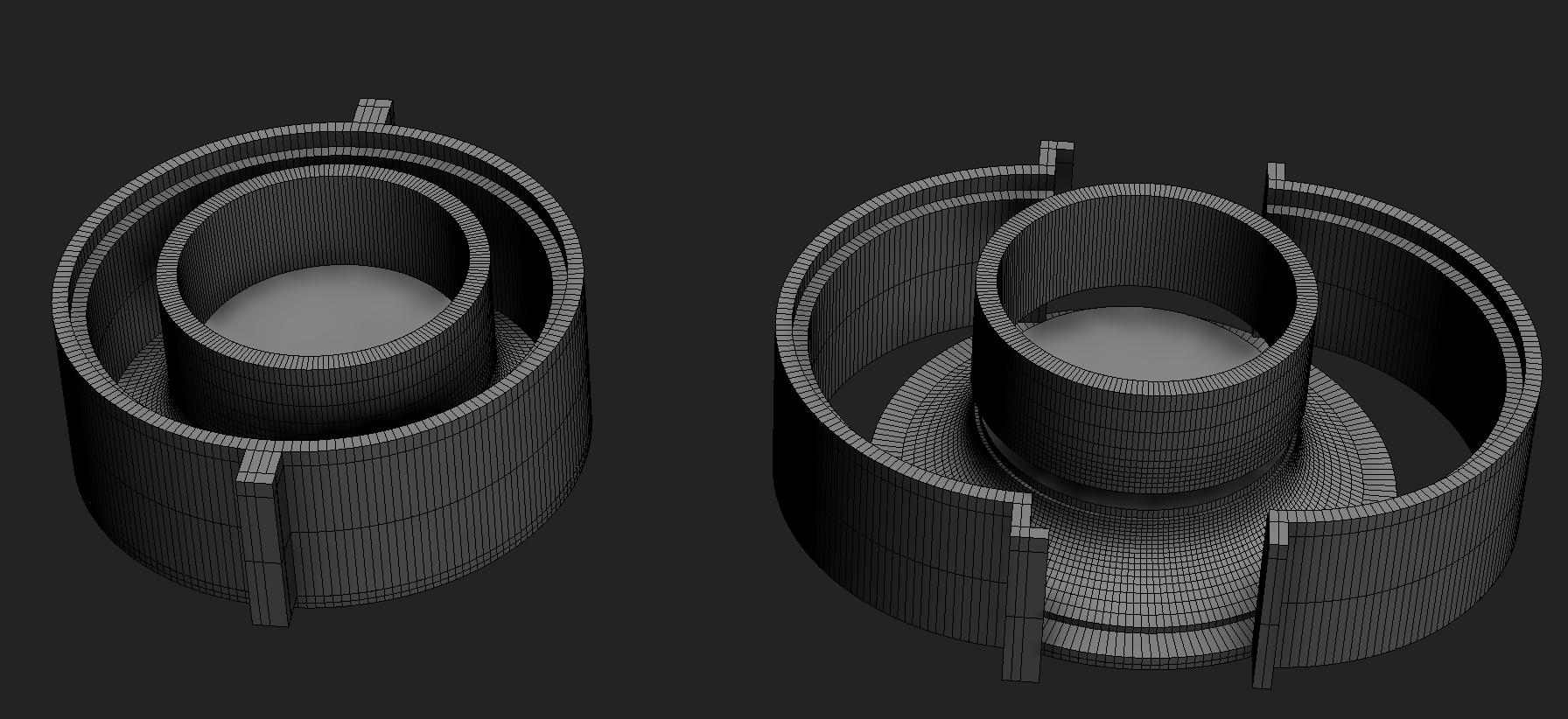

One thing I love about 3d printing is that you don't pay for complexity. Also, shapeways likes smaller models so it was actually about $10 cheaper to get this 4 piece mold printed than the two piece version:
Attached Thumbnails
3d printed intake for N/A NA miatas-80-xfyxpft_3311a44ad9c4f447c192b700a64c30e43c57a1bb.png
asmasm is offline   Reply With Quote
Old 03-17-2016, 09:20 AM   #368
Junior Member
iTrader: (2)

Join Date: Mar 2011
Posts: 262
Total Cats: -160
Default

in for an nb version
blkmkiii is offline   Reply With Quote
Old 04-13-2016, 04:12 PM   #369
Newb

Join Date: Mar 2011
Location: VA
Posts: 37
Total Cats: 0
Default

when are you doing an NB version?
mzmanny is offline   Reply With Quote
Old 04-13-2016, 04:18 PM   #370
Junior Member
iTrader: (1)

Join Date: May 2015
Location: Salem, OR
Posts: 292
Total Cats: 35
Default

Probably should get an efficient production process nailed down before developing for the NB.

I had to bail on the first run due to unforeseen circumstances. Hoping to get in on the next one.
dleavitt is offline   Reply With Quote
Old 04-13-2016, 04:34 PM   #371
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 737
Total Cats: 66
Default

I don't really have plans for an NB version. However, next time I have one in front of me I will look around for areas to draw external air from. My understanding is that there is a hole near the fender.

Also, fwiw there are no runs on this. I can still make people the gen1 carbon versions I have posted a few pages back but I am finishing up tooling for the new design which will be superior in every way (flow, strength, cosmetics...). Each part is made one at a time by me, so no batches or anything resembling mass production.
asmasm is offline   Reply With Quote
Old 04-13-2016, 04:36 PM   #372
Junior Member
iTrader: (1)

Join Date: May 2015
Location: Salem, OR
Posts: 292
Total Cats: 35
Default

Quote:
Originally Posted by asmasm View Post
I don't really have plans for an NB version. However, next time I have one in front of me I will look around for areas to draw external air from. My understanding is that there is a hole near the fender.

Also, fwiw there are no runs on this. I can still make people the gen1 carbon versions I have posted a few pages back but I am finishing up tooling for the new design which will be superior in every way (flow, strength, cosmetics...). Each part is made one at a time by me, so no batches or anything resembling mass production.
Is email still the best way to get an order in? When do you estimate the new design will be ready?
dleavitt is offline   Reply With Quote
Old 04-13-2016, 09:13 PM   #373
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 737
Total Cats: 66
Default

Hard to say. I need to finish up some details first, and my day job has had me working overtime lately. I am hoping to get the cad files finished this weekend, then get quotes for machining. If all goes well, June?

If it turns out to be cost effective to make parts with this tooling, and there is demand, I am looking at devoting a set number of hours/days per week to making parts and then scaling that to how much demand there is.
asmasm is offline   Reply With Quote
Old 05-31-2016, 06:06 PM   #374
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,461
Total Cats: 110
Default

Quote:
Originally Posted by asmasm View Post
Not for most people. Some early chassis don't have a hole in the radiator support. I haven't been able to figure out exactly which cars since it isn't something obvious like all 1990 cars.
Canadian non Airbag cars did not have the hole.
bbundy is offline   Reply With Quote
Old 05-31-2016, 09:47 PM   #375
Senior Member
iTrader: (6)

Join Date: Sep 2007
Posts: 1,063
Total Cats: 27
Default

My dumb 1990 doesn't have the hole either. Has (or, had) AC, however.
albumleaf is offline   Reply With Quote
Old 06-01-2016, 10:44 AM   #376
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,461
Total Cats: 110
Default

Quote:
Originally Posted by albumleaf View Post
My dumb 1990 doesn't have the hole either. Has (or, had) AC, however.
was it a non- airbag version?
bbundy is offline   Reply With Quote
Old 06-01-2016, 11:51 AM   #377
Senior Member
iTrader: (6)

Join Date: Sep 2007
Posts: 1,063
Total Cats: 27
Default

Quote:
Originally Posted by bbundy View Post
was it a non- airbag version?
USDM, has airbag.
albumleaf is offline   Reply With Quote
Old 06-01-2016, 12:00 PM   #378
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,461
Total Cats: 110
Default

Quote:
Originally Posted by albumleaf View Post
USDM, has airbag.
Well I guess that's not it. I do know all the non airbag ones I've seen in Canada don't have the hole.
bbundy is offline   Reply With Quote
Old 06-01-2016, 12:01 PM   #379
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 737
Total Cats: 66
Default

Attached Thumbnails
3d printed intake for N/A NA miatas-80-21fnhssidpl_0faa9359cf69eb34ecf9a7b83bf04e152cd3edef.jpg
asmasm is offline   Reply With Quote
Old 06-01-2016, 01:05 PM   #380
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,904
Total Cats: 1,075
Default

Quote:
Originally Posted by albumleaf View Post
My dumb 1990 doesn't have the hole either. Has (or, had) AC, however.
Rover is an early '90 build (vin number <6000, came with a smooth-fin 1.6L diff) and doesn't have the hole either. I'll measure and cut it in the shell myself.
Savington is online now   Reply With Quote
