Old 03-20-2012, 12:35 AM   #41
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

That looks like failaids. Seriously, I don't think a single person on this forum is impressed with it. The fact that you could fit 4 gallons of water or whatever he heck it was into it means dick. get a proper IM
18psi is offline   Reply With Quote
Old 03-20-2012, 01:16 AM   #42
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Bah as i said i will see

Todd you can get a plenum extrusion but now your total price is slproaching 300 or more. Close to custom prices
Faeflora is offline   Reply With Quote
Old 03-20-2012, 04:12 AM   #43
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by triple88a View Post
Ian, turbo engine at 10-15psi flows a lot more than a NA engine, how doesn't that matter?
Because intake manifold resonance tuning depends on volume flow and not mass flow. In boost, the volume flow in the manifold is the same - it's just denser. The speed of sound changes little with pressure. This is also the reason why the correct VICS switchover RPM is close to 5500 RPM, both for n/a and boosted engines.
JasonC SBB is offline   Reply With Quote
Old 03-20-2012, 04:23 AM   #44
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by usd2bfst View Post
My theory is that it's not worth the effort, and here's why.
a) We know it makes zero difference N/A.
b) N/A is effected by VE changes where FI really isn't.
c) While gutting it may affect VE, it does not change the fact that your throttle body & your intake runner sizes are not changed a bit.
d) Therefore, I theorize that it won't make a bit of difference on a FI car except if you like adding mods to your mod sheet.
a) Wheres the gutted vs normal dyno?
b) Change in VE doesnt change power output for FI?
c) But intake runner sizes are changed.. especially if using the vics butterflys to get the dual lenght runners effect.
triple88a is offline   Reply With Quote
Old 03-20-2012, 03:21 PM   #45
Junior Member
iTrader: (9)

Join Date: Dec 2011
Location: SFBay
Posts: 339
Total Cats: 39
Default

Hey pardon my ignorance but, do all 99/00's have VICS? What rpm does it normally switch over at?
scenturion is offline   Reply With Quote
Old 03-20-2012, 03:55 PM   #46
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by mr_hyde View Post
OK, so if I have a VICS manifold on a turbo track only car (~15psi), do I get more area under the curve with the VICS intact or gutted?
My VICS is zip-tied to use only the long runners because I'm power limitted in my class but wanted that nasty torque. I don't have a dyno yet and the dyno won't tell the truth because I had bent valves previously.
hustler is offline   Reply With Quote
Old 03-20-2012, 04:51 PM   #47
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Originally Posted by JasonC SBB
Yes operational, at 5400 RPM. I find 5600 RPM the "correct" point when RPMs are slowly rising. If RPMs are rising rapidly a lower switch point is better.

Quote:
Originally Posted by usd2bfst View Post
...yes but if RPMs are slowly rising, either power is not your concern at the moment or your tune sucks. :P

In calibrating lots of VICS N/A & FI engines, 5400 is a fat sweet spot for *most*.
I was talking about say, 2nd gear vs. 4th gear. In theory for 2nd gear you need the switch point lower, and higher for 4th gear.
JasonC SBB is offline   Reply With Quote
Old 03-20-2012, 05:27 PM   #48
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Quote:
Originally Posted by 18psi View Post
/\ I am of the same mindset, though have don't have much proof of this theory (but neither do like 99% of us discussing this). A bottleneck in the intake is more significant than a bottleneck in the ehxaust IMO, and I'm not sure simply enlarging the plenum while keeping stock tb and runners will do much (on top of what the VICS already does). But again, intake mani resonance, waves, etc etc all that isht is over my head....I just know the basics
What about the gutting + Giant throttle body? Suspect maybe it might only benefit from the throttle body and minimal of the gutting?
elesjuan is offline   Reply With Quote
Old 03-20-2012, 05:30 PM   #49
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Costs money to make a new flange.
Faeflora is offline   Reply With Quote
Old 03-20-2012, 05:37 PM   #50
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

Quote:
Originally Posted by elesjuan View Post
What about the gutting + Giant throttle body? Suspect maybe it might only benefit from the throttle body and minimal of the gutting?
At that point it would be stupid not to just fit a whole 'new mani.
Also: have you seen how terrible the throat is between the TB and IM on a 99+?

I've changed my mind at this point about messing with the stock IM altogether. Not worth it. Going to leave hte 01 as is and run OBX/honda or make a custom sheetmetal one if I exceed 300whp
18psi is offline   Reply With Quote
Old 03-20-2012, 06:29 PM   #51
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,284
Total Cats: 178
Default

Call Magnus Moda or AMS and (profit).







Profit is in parentheses as accounting notation of a negative value.
Scrappy Jack is offline   Reply With Quote
Old 03-20-2012, 07:01 PM   #52
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Smile

Quote:
Originally Posted by 18psi View Post
At that point it would be stupid not to just fit a whole 'new mani.
Also: have you seen how terrible the throat is between the TB and IM on a 99+?

I've changed my mind at this point about messing with the stock IM altogether. Not worth it. Going to leave hte 01 as is and run OBX/honda or make a custom sheetmetal one if I exceed 300whp
Sounds good. Fully build a miata from the ground up again, dyno, then turn around and sell it at a loss a week later. This time though, part out and sell me your baller sheetmetal intake ftw
Faeflora is offline   Reply With Quote
Old 03-20-2012, 07:18 PM   #53
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

sell me your 3071 setup for 1500 and I'll do that
18psi is offline   Reply With Quote
Old 03-20-2012, 09:21 PM   #54
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by 18psi View Post
sell me your 3071 setup for 1500 and I'll do that
Haha OK if you build an intake and then sell me back my 3071 rig AND the intake when you're done
Faeflora is offline   Reply With Quote
Old 03-20-2012, 09:59 PM   #55
Junior Member
iTrader: (9)

Join Date: Dec 2011
Location: SFBay
Posts: 339
Total Cats: 39
Default

Quote:
Originally Posted by scenturion View Post
Hey pardon my ignorance but, do all 99/00's have VICS? What rpm does it normally switch over at?
hep hep
scenturion is offline   Reply With Quote
Old 03-20-2012, 11:08 PM   #56
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

yes 5300 rpm from the factory
JasonC SBB is offline   Reply With Quote
Old 03-21-2012, 02:06 PM   #57
Former Vendor

Join Date: Feb 2008
Posts: 128
Total Cats: 2
Default

Quote:
Originally Posted by triple88a View Post
a) Wheres the gutted vs normal dyno?
b) Change in VE doesnt change power output for FI?
c) But intake runner sizes are changed.. especially if using the vics butterflys to get the dual lenght runners effect.
a) Here's the dyno from our VVT/ Hydra/ 11:1 stroker car. Run 31 uses the stock VICS IM, run 34 uses the gutted-upper VICS IM with VICS still operational. I call that no functionl difference. Keith backed ths up years ago on a similar engine.



b) Not really. For any pressure row, if you have a stable AFR output across the row & there are swings in VE, you will see corresponding swings in your fuel values across that row. Since FI forces the air in as opposed to coming in under a vacuum, the end tuned result is most typically a smooth, flat fuel row with a slight rise around torque peak. Doing this same excercise in a N/A car you will often see dips & bumps in the fuel curve corresponding to VE changes.

c) Runner length or volume may be changed, but the TB diameter & port diameter are not changed. Neither is the valve lift. These are limiting factors.
Attached Thumbnails
IM dyno comparo:  VICS vs VTCS vs Flat-top (EUDM)-yolk%2520vics31%2520vs%2520guttedvics34.jpg
usd2bfst is offline   Reply With Quote
Old 04-19-2013, 01:52 AM   #58
Junior Member
iTrader: (9)

Join Date: Dec 2011
Location: SFBay
Posts: 339
Total Cats: 39
Default

Sorry to bump this ancient thread, but I figure its better than starting a new one. For a mostly stock Miata track car with some simple bolt ons (intake, tubular header), do you think the 99-00 VICS intake manifold would be better for area under the curve than a squaretop manifold? It's hard to say based on the dyno here, since the engine already makes like 60% more power than stock.
scenturion is offline   Reply With Quote
Old 04-19-2013, 11:17 AM   #59
I'm Miserable!
iTrader: (1)

Join Date: Jan 2008
Posts: 203
Total Cats: 8
Default

A lot of people (me included) are subscribing to using the VVT head + the Squaretop.

The VVT head will make up/mask any mid-range losses with the Squaretop, and you still get the high-end power of the Squaretop. It is a compromise, but if a compromise feels this good, I really don't mind.
GAMO is offline   Reply With Quote
Old 04-19-2013, 11:37 AM   #60
Former Vendor

Join Date: Feb 2008
Posts: 128
Total Cats: 2
Default

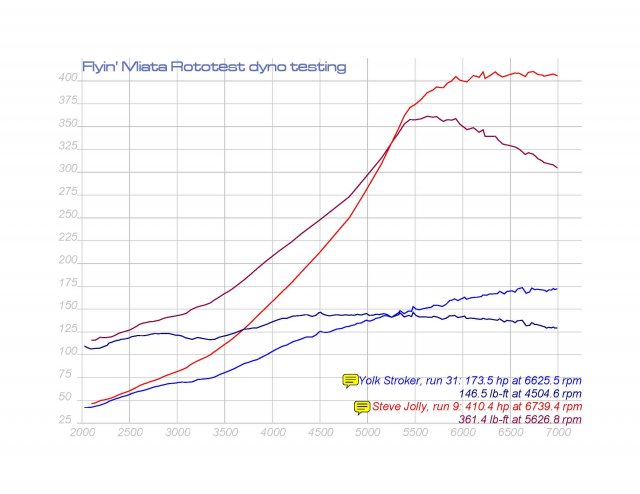

Here are some more comparos from the same sessions on our 11:1 Stroker VVT Hydra motor.

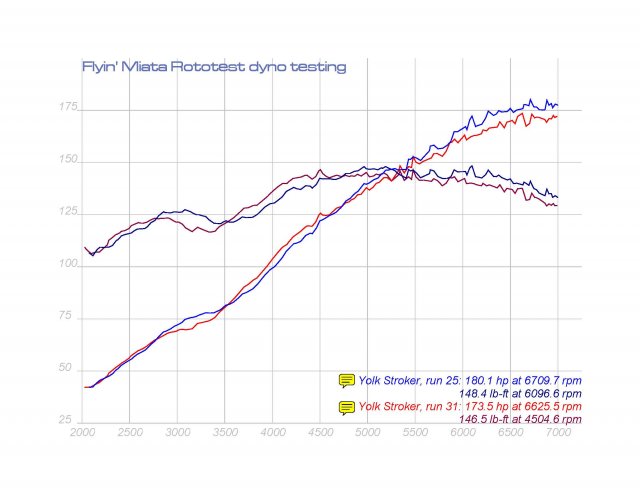

Run 31 is the VICS, and run 25 is the FTM. Gain some, lose some. For the price difference I'd do VICS w/ an adjustable intake cam gear or VVT.

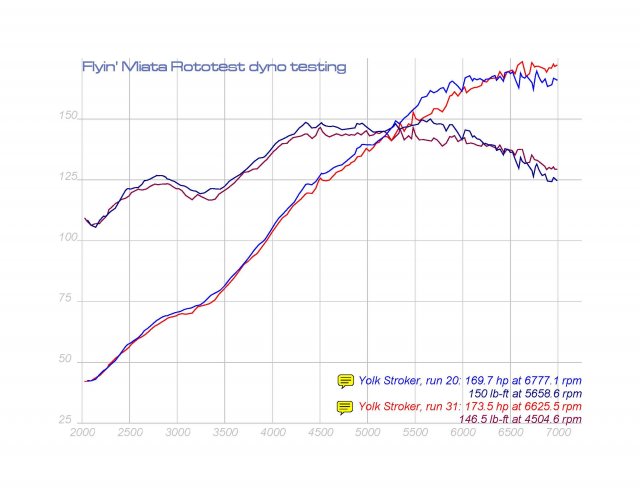

Run 31 is the VICS, run 20 is VTCS.

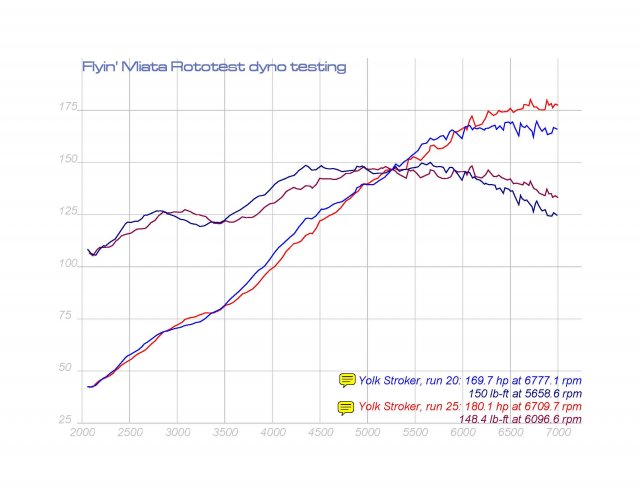

Run 20 is VTCS, and 25 is the FTM.

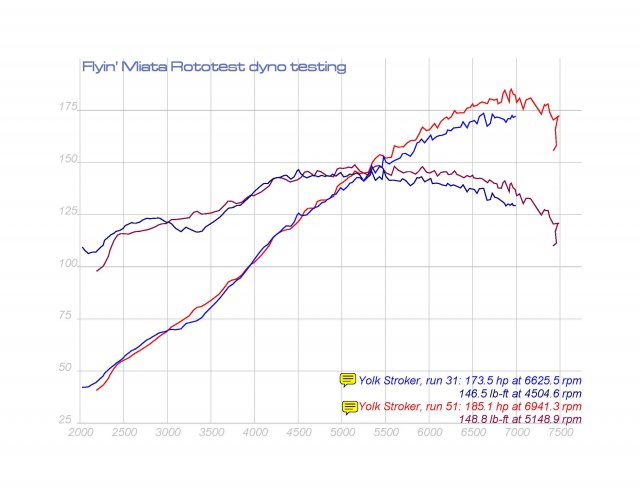

Run 31 is VICS, Run 51 is w/ Extrudabody IRTBs. BTW I really don't care for IRTBs on a car you need to reliably drive.
