Old 04-16-2012, 11:34 PM   #101
Junior Member

Join Date: Apr 2012
Posts: 61
Total Cats: 3
Default

Quote:
Originally Posted by redturbomiata View Post
so open tours of said lab?
It's not an open lab for regular tours but we just had a handful of guys come though. If we have interested people we may be able to setup another visit.
superdve is offline   Reply With Quote
Old 04-16-2012, 11:43 PM   #102
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,648
Total Cats: 1,559
Default

Quote:
Originally Posted by y8s View Post
this community is a few things:

1. cheap

2. skeptical

3. relentless in its mockery

if you can get past those things, most of us are good people with a significant level of technical skill and understanding.
I would go ahead and enumerate number 4 as you had it listed:
4. Most of us are good people with a significant level of technical skill and understanding.

List is quoted for truth.

And for what its worth Dave, arguing with Blaen99 is always pointless, lol.
sixshooter is offline   Reply With Quote
Old 04-16-2012, 11:47 PM   #103
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by superdve View Post
Just be sure to take a good look at the strap/electrodes after a pull and sneak up on boost. I know the plug is cold and all but I always check to be sure it's cold enough.

Also there is nothing wrong with the AR3923 racing plug but it might not be as cold as you want.
Will do, and thanks. Ordered a set, hopefully they'll be in soon.
blaen99 is offline   Reply With Quote
Old 04-17-2012, 02:15 AM   #104
Senior Member
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Back on the oil filter topic.
I had a fram filter fail, it split the cover from the plate. Lucky for me it was in my garage right before I was going to change the oil.
Ps. It was on a ford ranger
redturbomiata is offline   Reply With Quote
Old 04-17-2012, 03:17 PM   #105
Newb

Join Date: Apr 2012
Posts: 12
Total Cats: 1
Default FRAM Lab Tour

Quote:
Originally Posted by blaen99 View Post
Okay, you've got my interest now. Where are your labs located?
They lab is located in Perrysburg Ohio, 60 miles south of Detroit. I would be more than happy to host a group there from this forum or any other anytime you have time to visit. Or, I will even pick you up at the airport and show you our enineering labs one on one as well. The doors are open and we invite you in.
motorking is offline   Reply With Quote
Old 04-17-2012, 03:21 PM   #106
Newb

Join Date: Apr 2012
Posts: 12
Total Cats: 1
Default

Quote:
Originally Posted by hornetball View Post
Just find some curves. Nobody will keep up with you.

I dig the green Dart though. Have a '66 Sport Fury in the garage.

We crave real data here. Of course, that stuff tends to be proprietary, but I would love a repository of real test data.

The other thing I'd like to know . . . does anyone make their filters in the USA? It would be worth extra to me to buy those -- all else being equal.
Ya think? Apparently yuou havent ridden in a CTS-V. Its kind of like a Miata, with power and brakes, and room for your friends......
motorking is offline   Reply With Quote
Old 04-17-2012, 03:36 PM   #107
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Quote:
Originally Posted by motorking View Post
Ya think? Apparently yuou havent ridden in a CTS-V. Its kind of like a Miata, with power and brakes, and room for your friends......
and it only weighs about one ton more
olderguy is offline   Reply With Quote
Old 04-17-2012, 04:10 PM   #108
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by motorking View Post
Ya think? Apparently yuou havent ridden in a CTS-V. Its kind of like a Miata, with power and brakes, and room for your friends......
I own a G8 GT (with aftermarket wheels and Michelin Pilot SS tires, tune, headers . . . you get the picture). It is almost exactly like a CTS-V.

Doesn't hold a candle to Miata in the curves. Frankly, very few cars do.
hornetball is offline   Reply With Quote
Old 04-17-2012, 04:33 PM   #109
Newb

Join Date: Apr 2012
Posts: 12
Total Cats: 1
Default

Quote:
Originally Posted by hornetball View Post
I own a G8 GT (with aftermarket wheels and Michelin Pilot SS tires, tune, headers . . . you get the picture). It is almost exactly like a CTS-V.

Doesn't hold a candle to Miata in the curves. Frankly, very few cars do.
The brembo brakes and magna ride shocks make the cts-v very different than the G8. That said, I love watching the Miata's smoke the much more expensive cars at the local track, they are awesome. They remind me of my race kart, speed on the str8's just doesnt matter if you can't carry that speed through the corners. Love seeing them get passes on the straightaways only to see the Miata's show them taillights on the corner exit.
motorking is offline   Reply With Quote
Old 04-18-2012, 02:10 AM   #110
Junior Member

Join Date: Apr 2012
Posts: 61
Total Cats: 3
Default

Quote:
Originally Posted by motorking View Post
The brembo brakes and magna ride shocks make the cts-v very different than the G8. That said, I love watching the Miata's smoke the much more expensive cars at the local track, they are awesome. They remind me of my race kart, speed on the str8's just doesnt matter if you can't carry that speed through the corners. Love seeing them get passes on the straightaways only to see the Miata's show them taillights on the corner exit.
Jay's V is fun to thrash around because no matter how bad I punish it, I know that he will do worse! Those 120 degree coolant temps and 6,000 rpm powershifts highlight the durability of the LS1 and that's with a Fram XG filter even. All jokes aside a used 04-07 V is a pretty nice car.
superdve is offline   Reply With Quote
Old 04-21-2012, 05:03 PM   #111
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Yo, Superdve/Jay, what gap should I run on these XS3922's that you recommended?
blaen99 is offline   Reply With Quote
Old 04-21-2012, 07:18 PM   #112
Junior Member

Join Date: Apr 2012
Posts: 61
Total Cats: 3
Default

Quote:
Originally Posted by blaen99 View Post
Yo, Superdve/Jay, what gap should I run on these XS3922's that you recommended?
Blaen,

If you are running coil packs I'd suggest .028-.030, you may be able to get away with .032-.033 with COP coils as they should have a bit more saturation time depending on the circuit that's controlling them. I'm sure you know this but be careful when gapping to not put any pressure on the small diameter centerwire if you need to open the gap. Finewire plug designs weld the Iridium rivet to a nickel center conductor and side pressure can damage the rivet. So you want to gently pry the sidewire with the "gap opener" feature on your gapping tool vs. some guys who wedge something in between the center and side electrode. To tighten the gap you can rap the sidewire on a hard surface like a butcher block work bench. FWIW, I suggest using a roundwire gauge for accuracy if you have one.

If your setup is big boost, (>20psi), and you need a "racier plug" we have our wild AR3910X's we can send you to try but those are non suppressor and may give you some unwanted EMI.

Dave

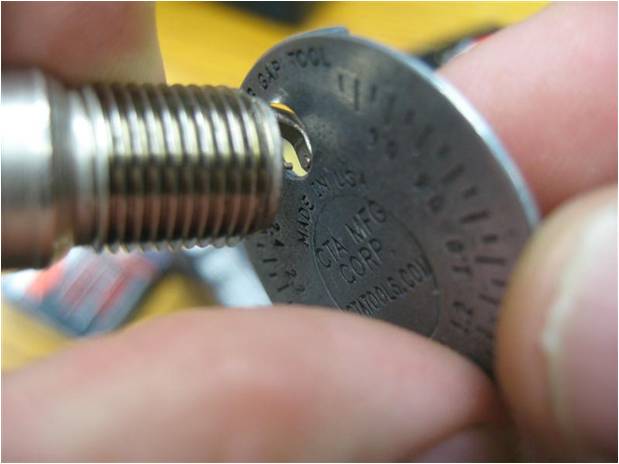

Opening gap with cheapie tool. We suggest not using it for too much else as it can give inaccurate readings

Attached Thumbnails
Oil filter Cut away- Fram and Wix-opening%2520gap%2520cheapie%2520tool.jpg

Last edited by superdve; 04-21-2012 at 07:28 PM. Reason: Added gap opener picture
superdve is offline   Reply With Quote
Old 04-21-2012, 08:19 PM   #113
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Great, I'll do that! Thanks!
blaen99 is offline   Reply With Quote
Old 04-21-2012, 09:30 PM   #114
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

BMW/MINI filter not-cutaway:

y8s is offline   Reply With Quote
Old 04-22-2012, 03:55 AM   #115
Elite Member
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Any thoughts on a fleece filter versus a paper filter?
JayL is offline   Reply With Quote
Old 04-23-2012, 07:35 PM   #116
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by superdve View Post
Blaen,

If you are running coil packs I'd suggest .028-.030, you may be able to get away with .032-.033 with COP coils as they should have a bit more saturation time depending on the circuit that's controlling them. I'm sure you know this but be careful when gapping to not put any pressure on the small diameter centerwire if you need to open the gap. Finewire plug designs weld the Iridium rivet to a nickel center conductor and side pressure can damage the rivet. So you want to gently pry the sidewire with the "gap opener" feature on your gapping tool vs. some guys who wedge something in between the center and side electrode. To tighten the gap you can rap the sidewire on a hard surface like a butcher block work bench. FWIW, I suggest using a roundwire gauge for accuracy if you have one.

If your setup is big boost, (>20psi), and you need a "racier plug" we have our wild AR3910X's we can send you to try but those are non suppressor and may give you some unwanted EMI.
Well, ----.

My AFR's leaned out by close to 1 point with the change in back to back tests (BRK6E vs. your plug). Is this intended?

Color me impressed if so. Granted, this is just idle, but still. Color me impressed.
blaen99 is offline   Reply With Quote
Old 04-23-2012, 08:48 PM   #117
Senior Member
Thread Starter
iTrader: (1)

BogusSVO's Avatar

Join Date: Mar 2012
Location: Pensacola Fla.
Posts: 590
Total Cats: 191
Default

How to cut open an oil filter.

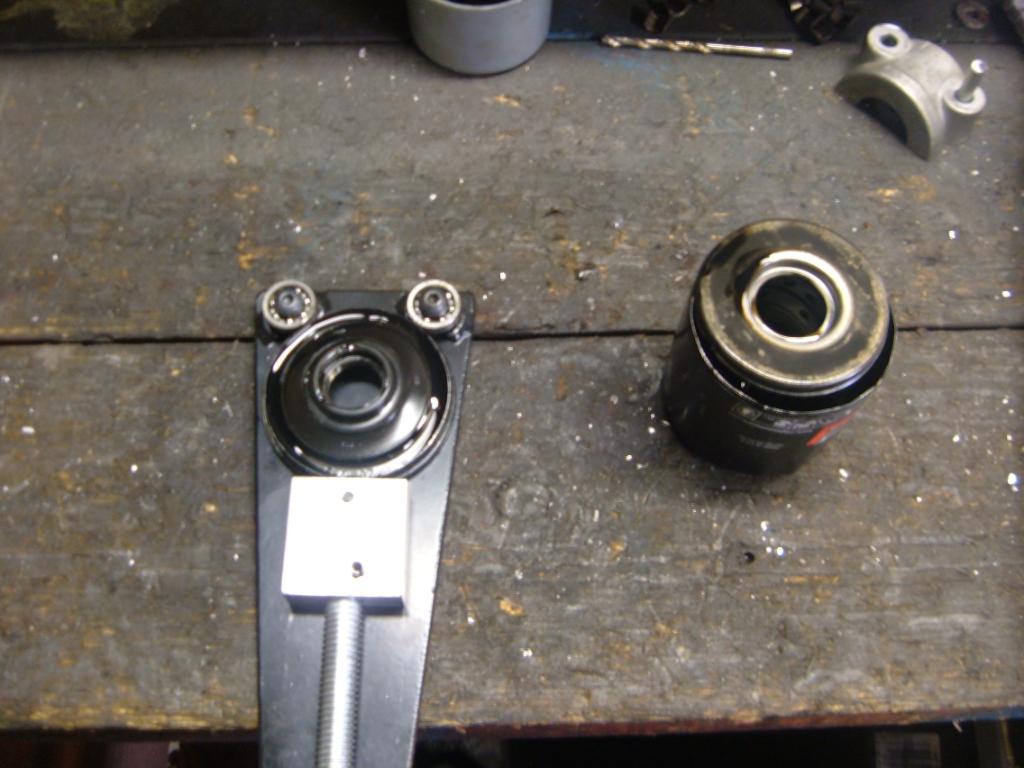

I bought a inexpensive oil filter cutter from Ebay ($38 Shipped)

It is a decent enough tool, simple solid design, with rollers.

Twisted 3 times and the filter can was cut.

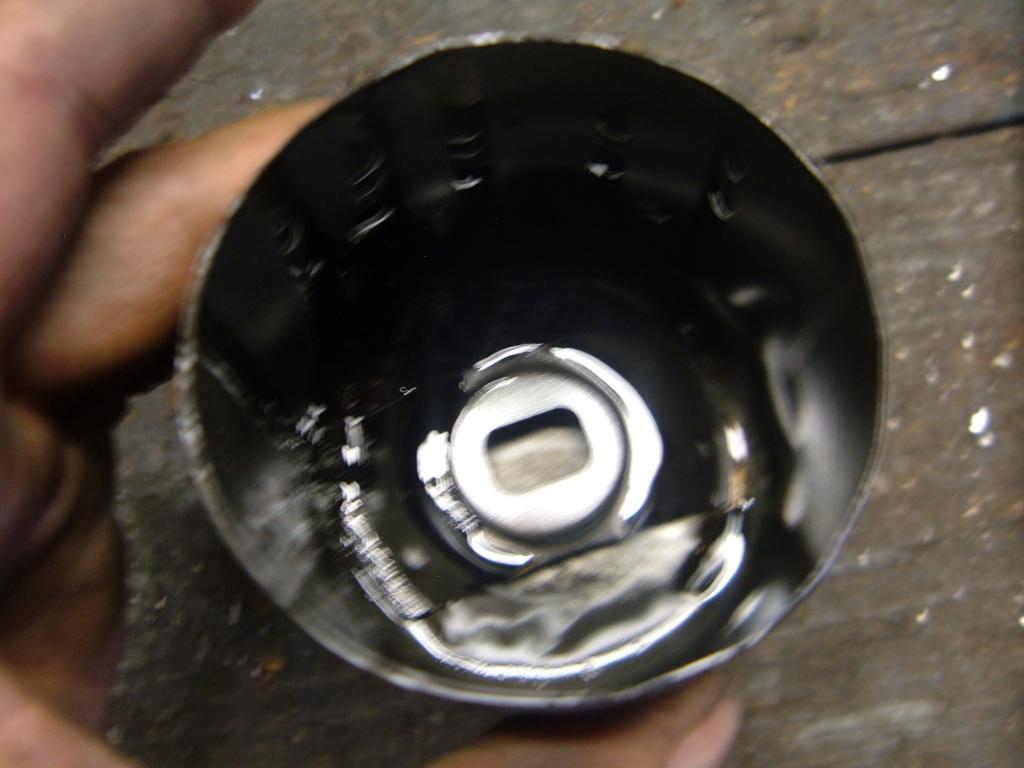

It will leave a sharp edge on both the can and the filter mount.



I cut the oil filter that came on a 1.8L BP Mazda engine

Mighty M4612

It has a rubber anti drain back.

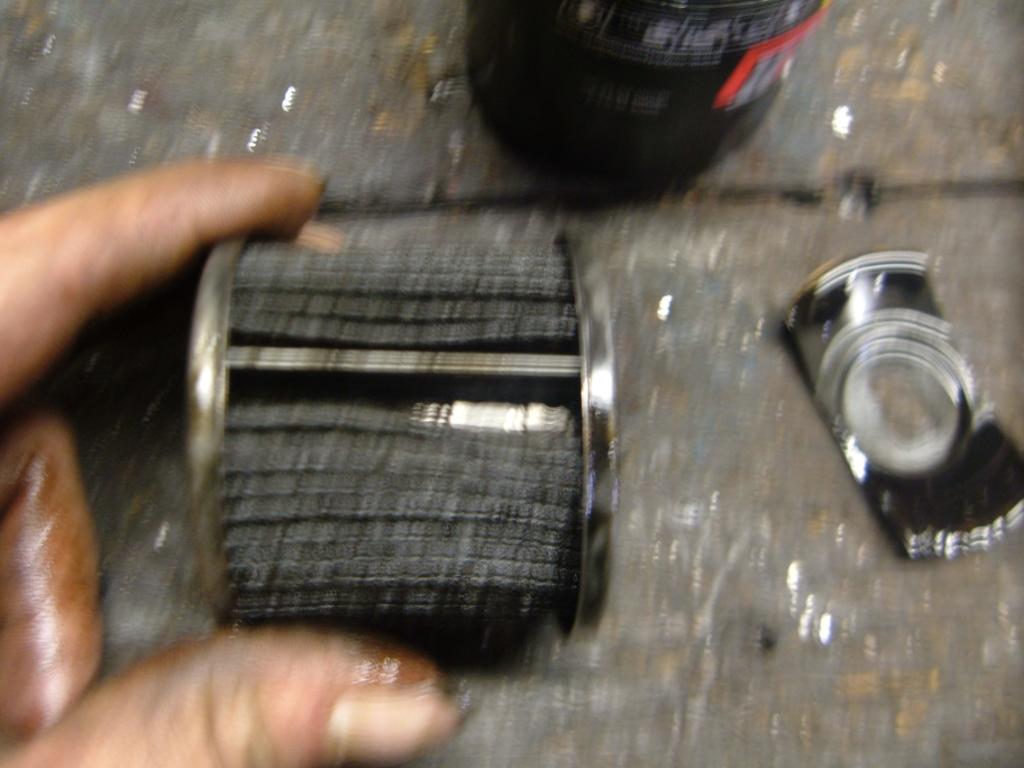

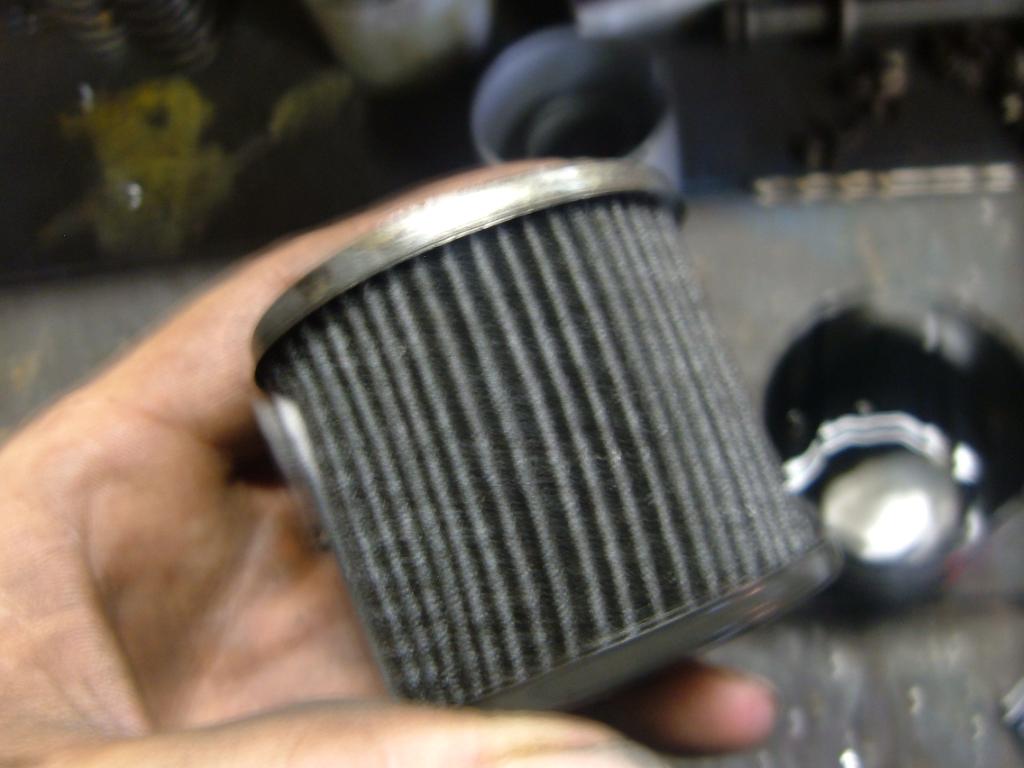

I lifted the filter cartridge from the mounting plate.
Nasty as all get out.

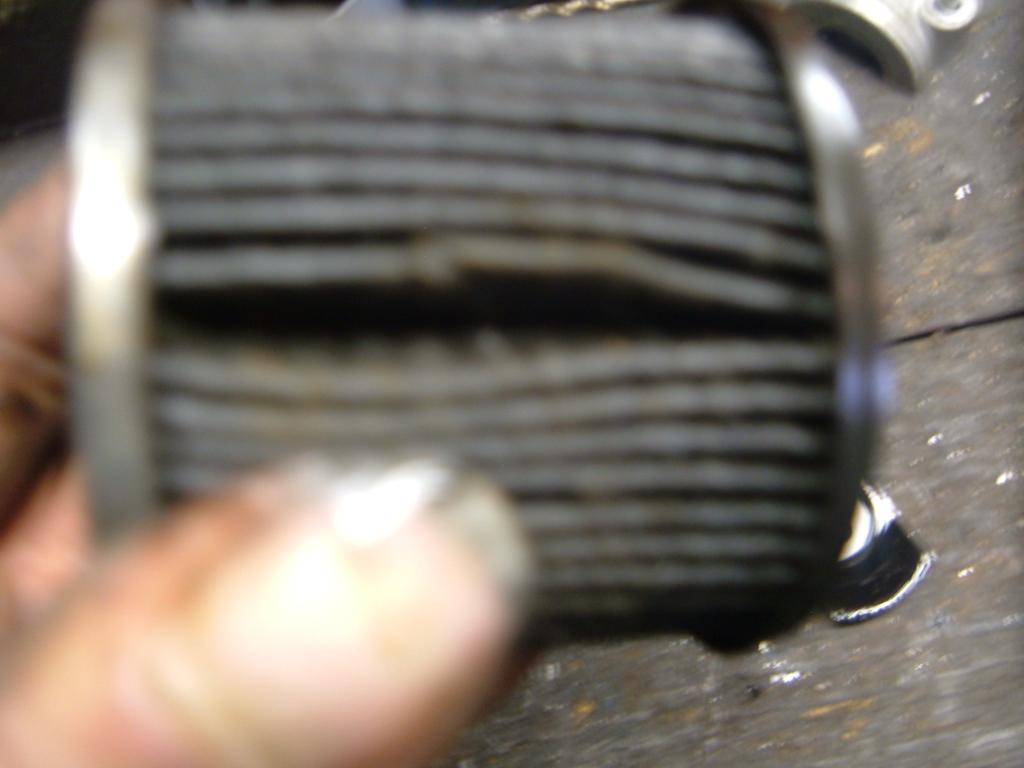

Looking around it, I noticed a large rip to the core, This allowed unfiltered oil through the engine.



Also looking into the folds I saw metal flake

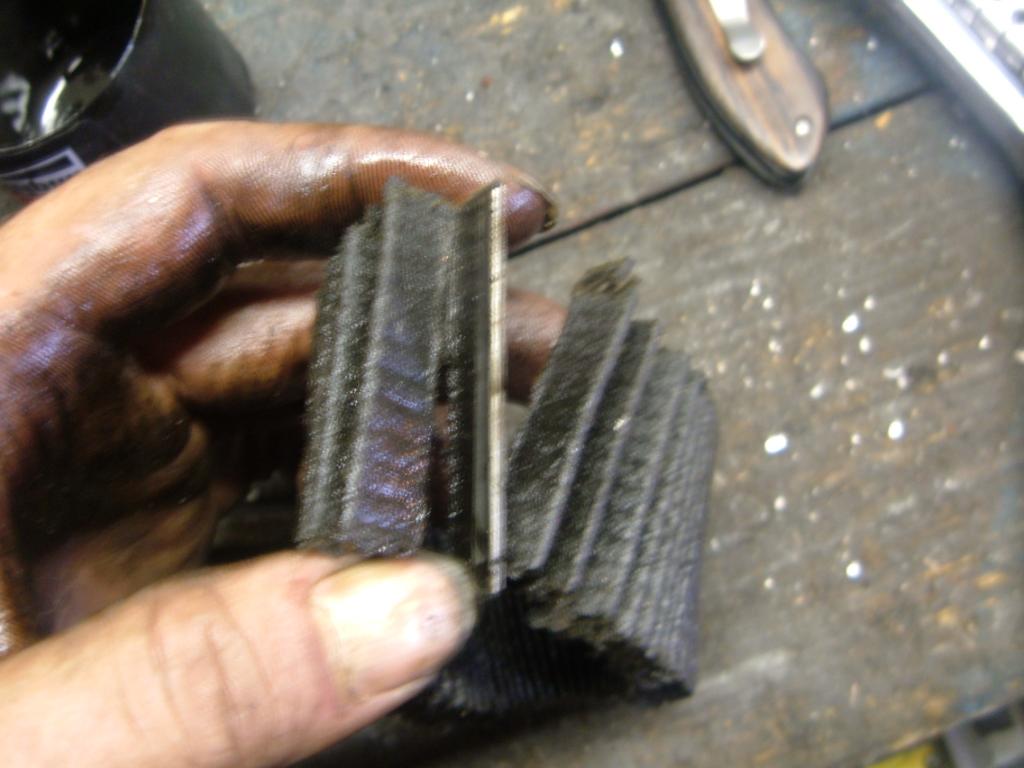

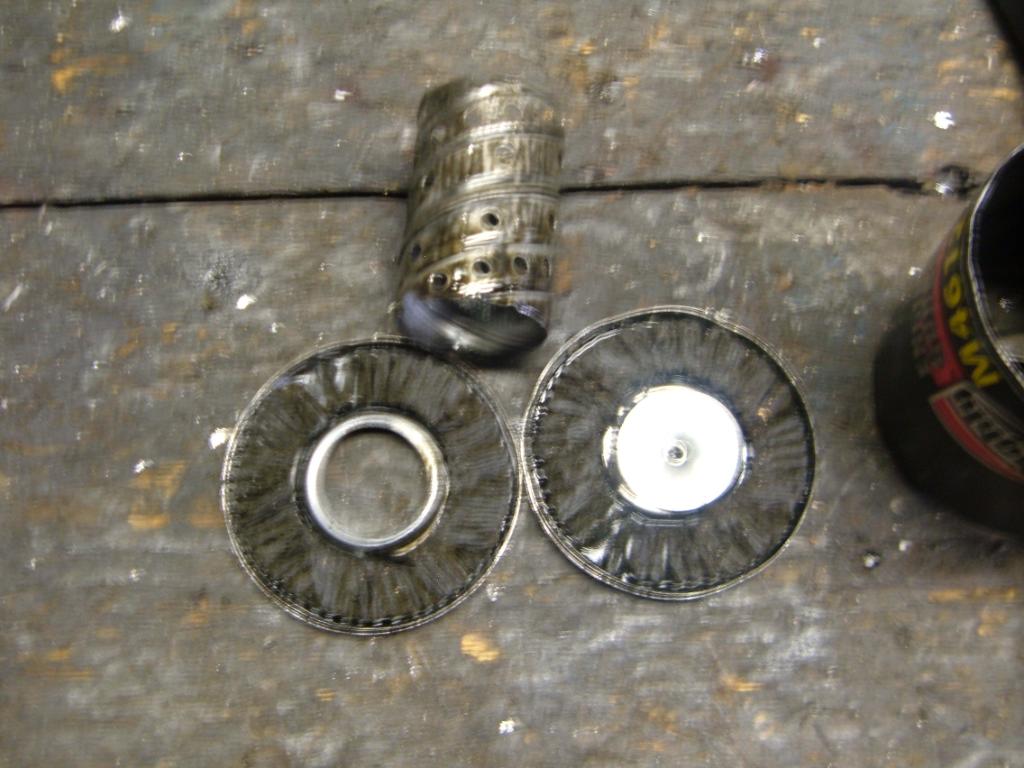

Taking my pocketknife, I cut the filter media to remove the tin end caps.


Now the tear on both sides of the crimp.



It also has a tin perforated core.

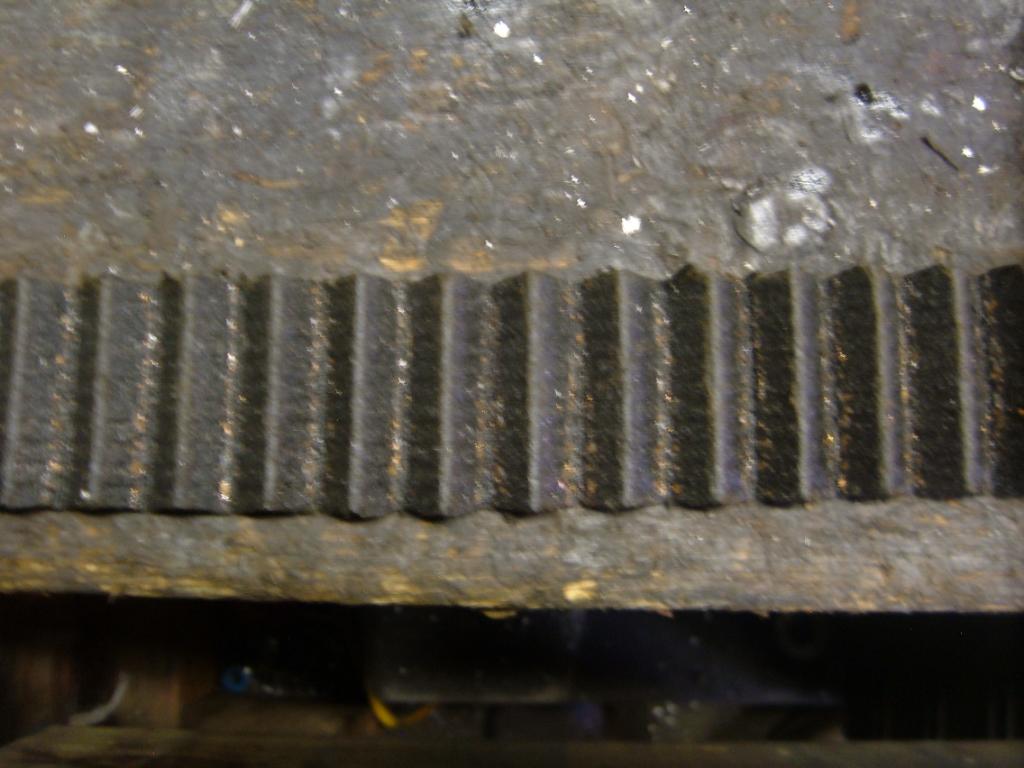

Now, unrolling the filter media, and looking at the bottom of the pleats, I can see just how much metal flake there is.


At this point bearing damage would be a concern.

The whole engine should be pulled down and all oil galleys plugs and jets cleaned and inspected for metal debris in the oil galleys.
Attached Thumbnails
Oil filter Cut away- Fram and Wix-dscf6129.jpg   Oil filter Cut away- Fram and Wix-dscf6130.jpg   Oil filter Cut away- Fram and Wix-dscf6133.jpg   Oil filter Cut away- Fram and Wix-dscf6136.jpg   Oil filter Cut away- Fram and Wix-dscf6134.jpg

Oil filter Cut away- Fram and Wix-dscf6143.jpg   Oil filter Cut away- Fram and Wix-dscf6139.jpg   Oil filter Cut away- Fram and Wix-dscf6140.jpg
BogusSVO is offline   Reply With Quote
Old 04-24-2012, 10:26 AM   #118
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,284
Total Cats: 178
Default

Bogus - I really do appreciate your photo-taking efforts but am compelled to offer some constructive criticism. Check the setting on your camera and make sure it's in the "auto" mode when the camera is more than 6" away from the subject and in "macro" mode when the camera is closer than 6" from the subject.

I think that will help with the out of focus pictures.
Scrappy Jack is offline   Reply With Quote
Old 04-24-2012, 11:01 AM   #119
Senior Member
Thread Starter
iTrader: (1)

BogusSVO's Avatar

Join Date: Mar 2012
Location: Pensacola Fla.
Posts: 590
Total Cats: 191
Default

The camera was in macro/flower mode on auto setting
BogusSVO is offline   Reply With Quote
Old 04-24-2012, 10:27 PM   #120
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

I find it pretty funny that these purolator commercials are hitting the TV lately.

Almost feels like they've been watching or something. lol

Vashthestampede is offline   Reply With Quote
