Thumbs up our first ported oem intake manifold

Well here is a 94-97 intake manifold that was donated by one of the members on here Thanks!

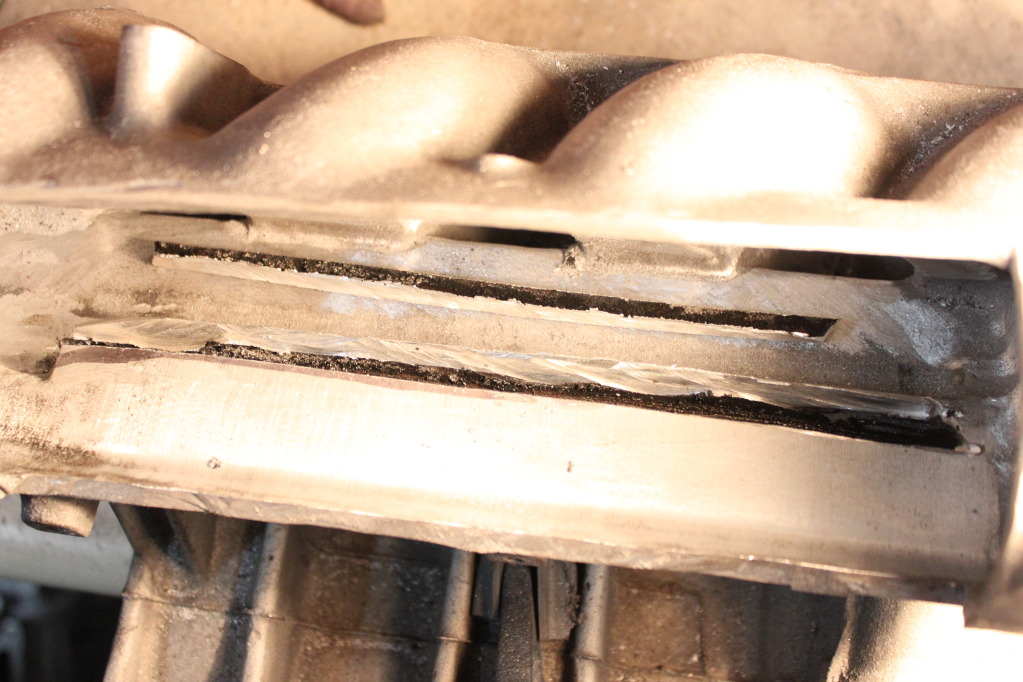

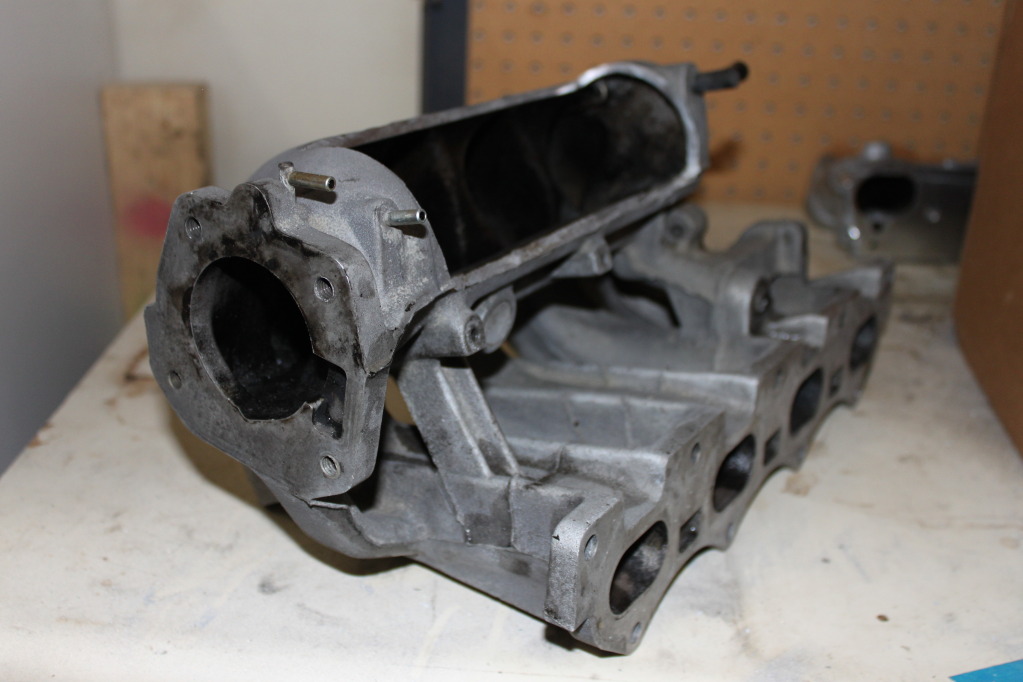

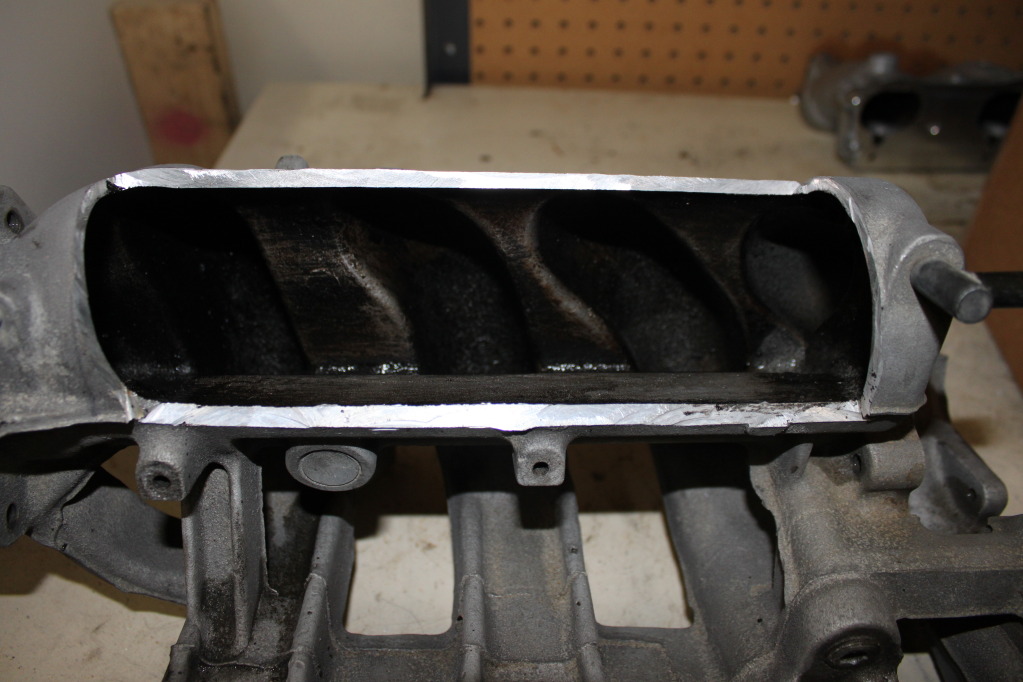

first cut open. The EGR really destroys the inside huh!?

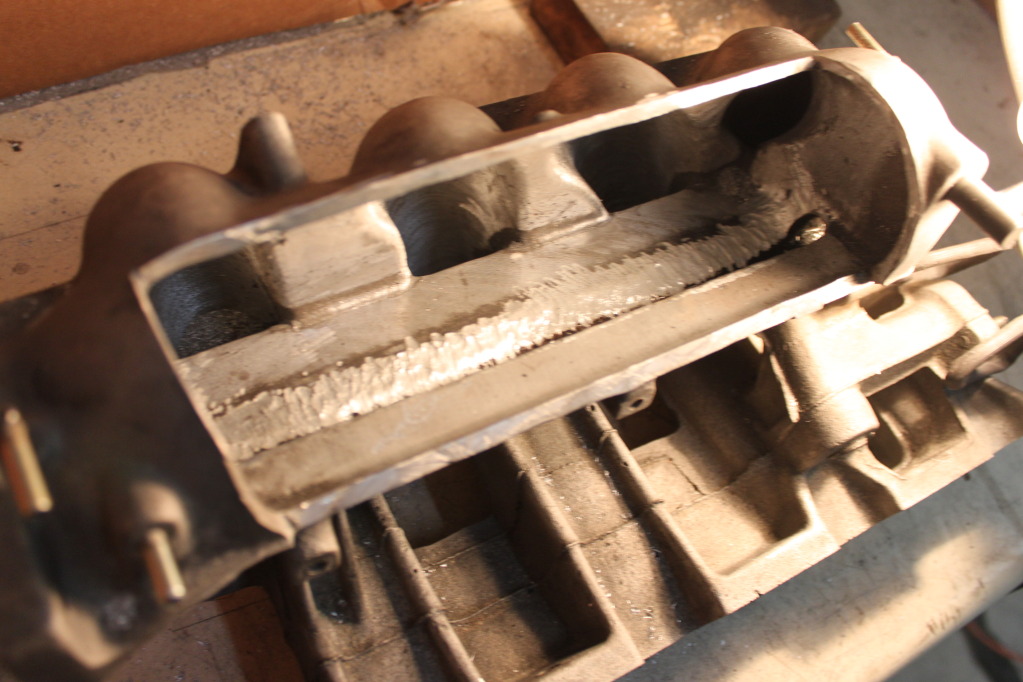

removed the EGR tunnel. It consumed a large amount of volume, removig this helped increase the internal volume size.

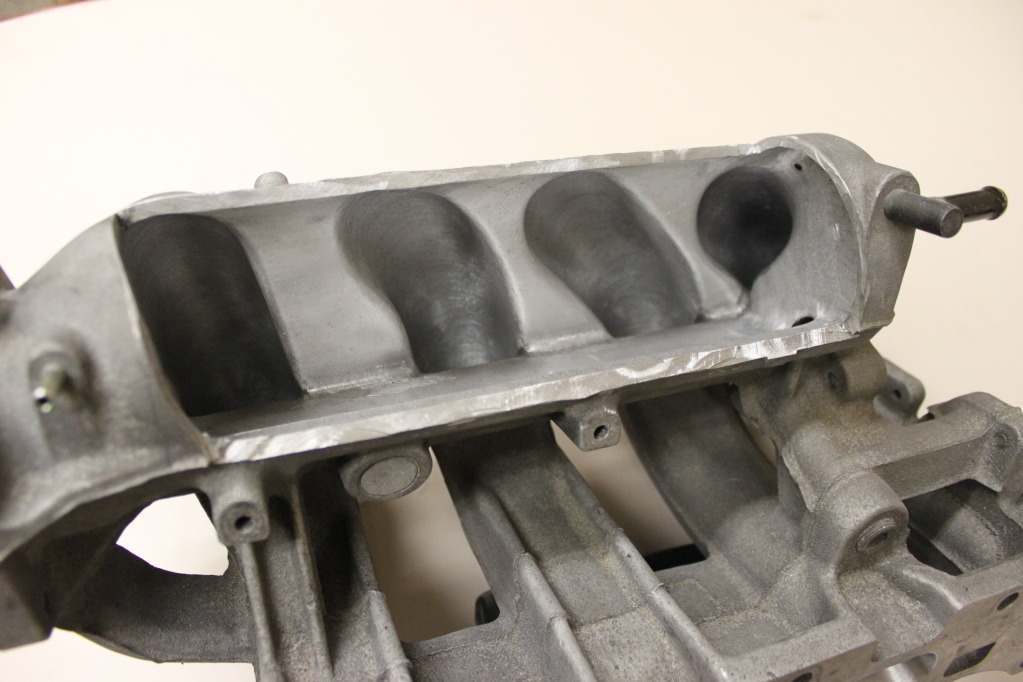

This is it before it gets welded. This was without the thermal ceramic coating option.

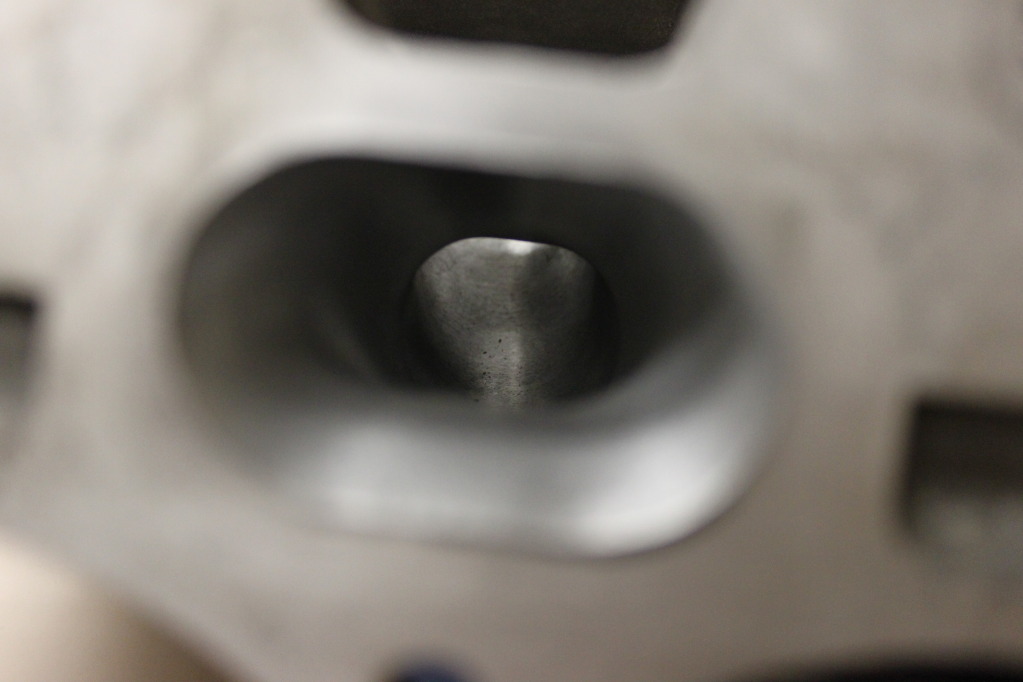

Overall as you can see the last cylinder on the right is the largest hurdle in this intake manifold design. We plan on giving this to a member who whats to try it out and tell us how much better the car feels and responds. We do tons of port work daily and this one was alot of fun, we know we definitively made improvements to the manifold. with as many different manifolds that we have done we know what works and does not.
Attached Thumbnails
our first ported oem intake manifold-img_6132.jpg   our first ported oem intake manifold-img_6133.jpg   our first ported oem intake manifold-img_6137.jpg   our first ported oem intake manifold-img_6141.jpg   our first ported oem intake manifold-img_6154.jpg

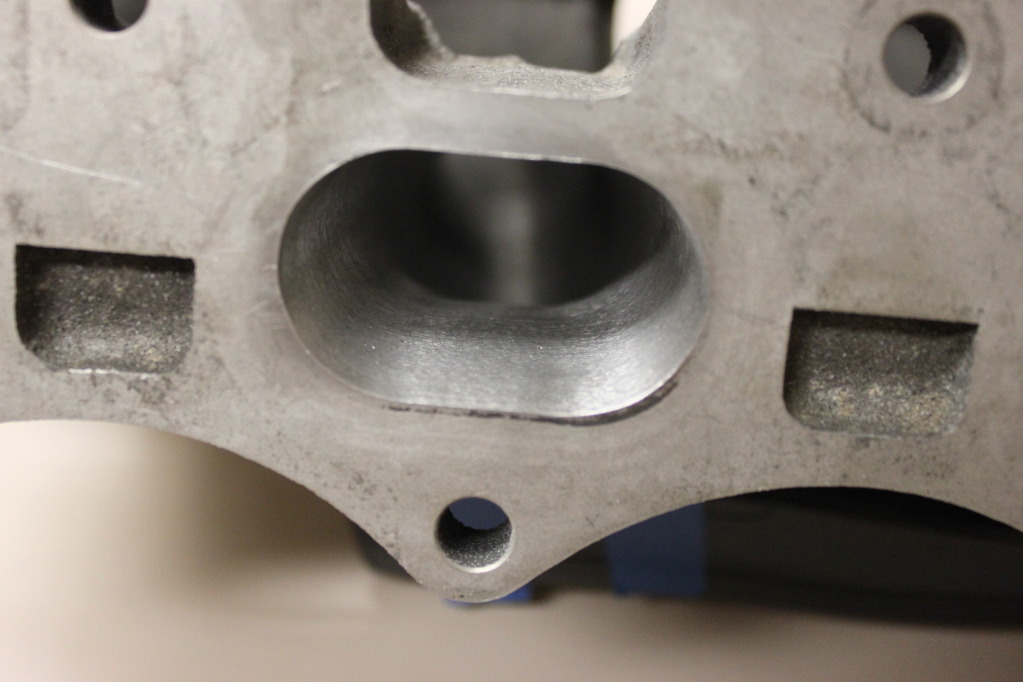

our first ported oem intake manifold-img_6157.jpg   our first ported oem intake manifold-img_6158.jpg   our first ported oem intake manifold-img_6159.jpg

Last edited by Renown Performance; 11-03-2011 at 04:21 PM.
Renown Performance is offline   Reply With Quote
Old 11-02-2011, 11:38 PM   #2
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 65
Default

I will try it out
RyanRaduechel is offline   Reply With Quote
Old 11-03-2011, 12:22 AM   #3
Senior Member
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

How about a 99-00 intake.
yellowihss is offline   Reply With Quote
Old 11-03-2011, 12:30 AM   #4
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

I have a 01-05 I can donate to let you try working on.
Doppelgänger is offline   Reply With Quote
Old 11-03-2011, 12:55 AM   #5
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Wow didnt know mazda made such a horrible design on the 4th piston.
triple88a is offline   Reply With Quote
Old 11-03-2011, 04:26 AM   #6
Former Vendor
Thread Starter
iTrader: (8)

Join Date: Sep 2011
Posts: 487
Total Cats: 4
Default

Yea that wasn't the best solution on Mazda's part there or more efficient ways to mount the EGR devices.

For the few different styles of OEM manifolds we are willing to port them out. PM us and we will discuss what were looking for. We really only need one of each.

PM's sent
Renown Performance is offline   Reply With Quote
Old 11-03-2011, 04:31 AM   #7
Former Vendor
Thread Starter
iTrader: (8)

Join Date: Sep 2011
Posts: 487
Total Cats: 4
Default

Doppelgänger! Your not excepting PM's so feel free to contact us. We can get everything sorted out.

Thanks.
Renown Performance is offline   Reply With Quote
Old 11-03-2011, 07:14 AM   #8
Junior Member
iTrader: (2)

Join Date: Apr 2010
Location: albion, mi
Posts: 303
Total Cats: 17
Default

I've got a 99 intake to donate if needed.

Edit: also have a 94-97 as well. Both ready to ship.
glade is offline   Reply With Quote
Old 11-03-2011, 09:52 AM   #9
Junior Member
iTrader: (8)

Join Date: Mar 2007
Location: Sarasota, FL
Posts: 334
Total Cats: 0
Default

I'd like to see what you can do with a '99 intake, lots of unnecessary material in there.
chokeasphyxia is offline   Reply With Quote
Old 11-03-2011, 10:03 AM   #10
Senior Member
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

I would love to try that out.
redturbomiata is offline   Reply With Quote
Old 11-03-2011, 10:18 AM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,830
Total Cats: 1,786
Default

that's not a 1.6L IM that's a 94-97.
Braineack is offline   Reply With Quote
Old 11-03-2011, 10:24 AM   #12
Senior Member
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Quote:
Originally Posted by Braineack View Post
that's not a 1.6L IM that's a 94-97.
Does the 90-93 have egr
redturbomiata is offline   Reply With Quote
Old 11-03-2011, 10:50 AM   #13
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by redturbomiata View Post
Does the 90-93 have egr
No.

I've got the 99 and an 01 Euro manifold ready to go.
Ben is offline   Reply With Quote
Old 11-03-2011, 10:56 AM   #14
Senior Member
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Quote:
Originally Posted by Ben View Post
No.

I've got the 99 and an 01 Euro manifold ready to go.
didn't think so, i didn't remember seeing any of the normal stuff when i had mine off. but i also have the memory of a goldfish
redturbomiata is offline   Reply With Quote
Old 11-03-2011, 11:52 AM   #15
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

If you DO do a 99-00 intake manifold, I'm curious to see how you deal with the VICS resonance chamber. completely removing it might be a mistake depending on the end goals of the car.
y8s is offline   Reply With Quote
Old 11-03-2011, 12:18 PM   #16
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

I don't want the VICS chamber removed or butterflies disabled on my 99 manifold. However if someone has another manifold to donate to the cause, and if Brandon wants to port it, I can back to back test various configurations.

I do want the VTCS system removed on the 01 manifold. EGR too, especially if it looks silly like the pictured NA8 manifold.
Ben is offline   Reply With Quote
Old 11-03-2011, 01:12 PM   #17
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

here's some good reference info:
http://forum.miata.net/vb/showpost.p...9&postcount=17

Quote:
Originally Posted by Keith @ FM

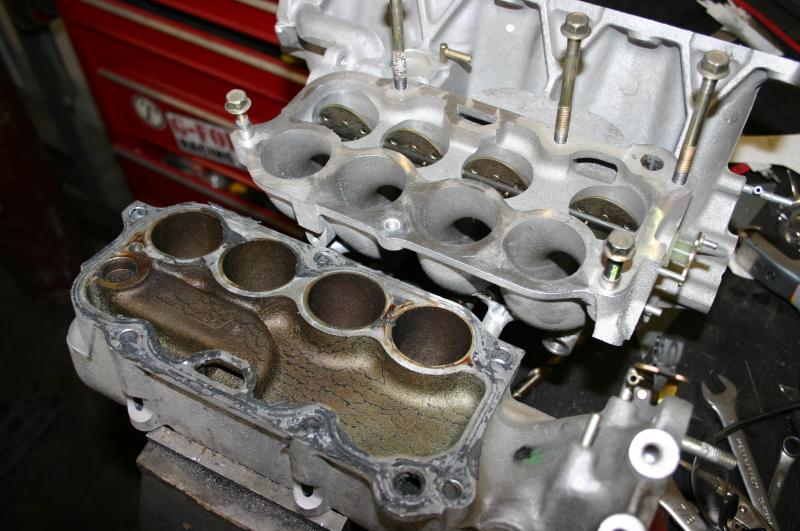

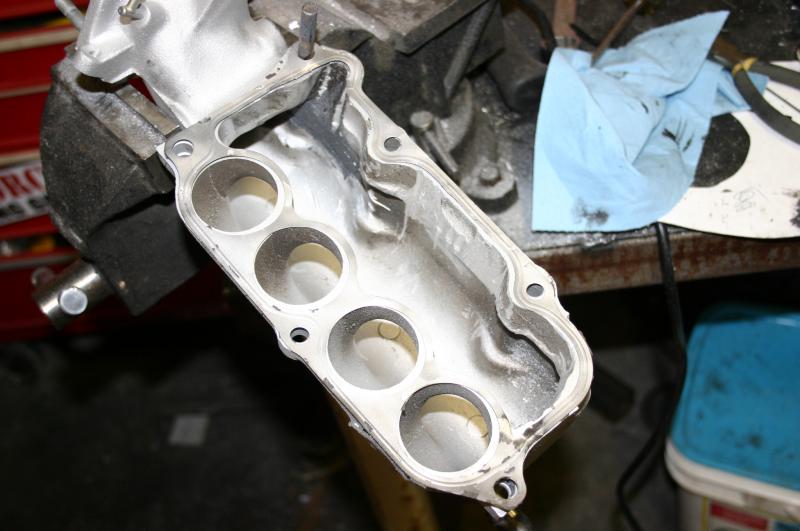

the modification changes the manifold from one with a resonance chamber to a dual-length runner design.


Attached Thumbnails
our first ported oem intake manifold-img_3643.jpg   our first ported oem intake manifold-img_3639.jpg
y8s is offline   Reply With Quote
Old 11-03-2011, 03:04 PM   #18
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

in for 99 results. may go this route, would be more simple than honda intake mani
aaronc7 is offline   Reply With Quote
Old 11-03-2011, 04:09 PM   #19
Former Vendor
Thread Starter
iTrader: (8)

Join Date: Sep 2011
Posts: 487
Total Cats: 4
Default

Simple and OEM! Cant go wrong there!
Renown Performance is offline   Reply With Quote
Old 11-03-2011, 04:16 PM   #20
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

PM sent
Doppelgänger is offline   Reply With Quote
