Old 11-08-2013, 10:46 PM   #21
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,332
Default

The solution is to return it to the factory coolant routing. Whether you use the factory pipe that returns coolant to the mixing manifold post-radiator, or return it via rubber hose and a tee to the lower coolant hose that is also post-radiator, is up to you.
Savington is offline   Reply With Quote
Old 11-08-2013, 11:50 PM   #22
Elite Member
iTrader: (11)

Trent's Avatar

Join Date: Feb 2006
Location: Louisiana
Posts: 1,625
Total Cats: 5
Default

At this point, rerouting the rubber hose is an attractive option since it doesn't involve removal of the whole hot side of the engine to get at that mixing manifold. Thanks for the info.
Trent is offline   Reply With Quote
Old 11-09-2013, 03:05 AM   #23
Junior Member
Thread Starter

Join Date: Sep 2013
Location: Israel
Posts: 418
Total Cats: -43
Default

Since the start of this topic I got a different route. I'm implementing a three-way ball valve which will have both hoses and controlling the flow with the valve.
yossi126 is offline   Reply With Quote
Old 11-09-2013, 03:09 AM   #24
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

Quote:
Originally Posted by yossi126 View Post
Since the start of this topic I got a different route. I'm implementing a three-way ball valve which will have both hoses and controlling the flow with the valve.
That sounds like a good use of time.
Full_Tilt_Boogie is offline   Reply With Quote
Old 11-09-2013, 09:25 AM   #25
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

Yossi, do you work in the plumming section of Home Depot?
Miater is offline   Reply With Quote
Old 11-09-2013, 10:20 AM   #26
Junior Member
Thread Starter

Join Date: Sep 2013
Location: Israel
Posts: 418
Total Cats: -43
Default

Quote:
Originally Posted by Miater View Post
Yossi, do you work in the plumming section of Home Depot?
Not sure if you're cynical or not, but I got everything off eBay. I would definitely try this reroute before spending more money.
yossi126 is offline   Reply With Quote
Old 11-09-2013, 11:27 AM   #27
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Keep factory routing but plumb an oil t-stat into the heater outlet so that when the coolant is cold it's open, and when hot it's closed. That way when you're overheating and you turn on the heater for additional engine cooling, it opens.
JasonC SBB is offline   Reply With Quote
Old 11-09-2013, 12:04 PM   #28
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 800
Total Cats: 58
Default

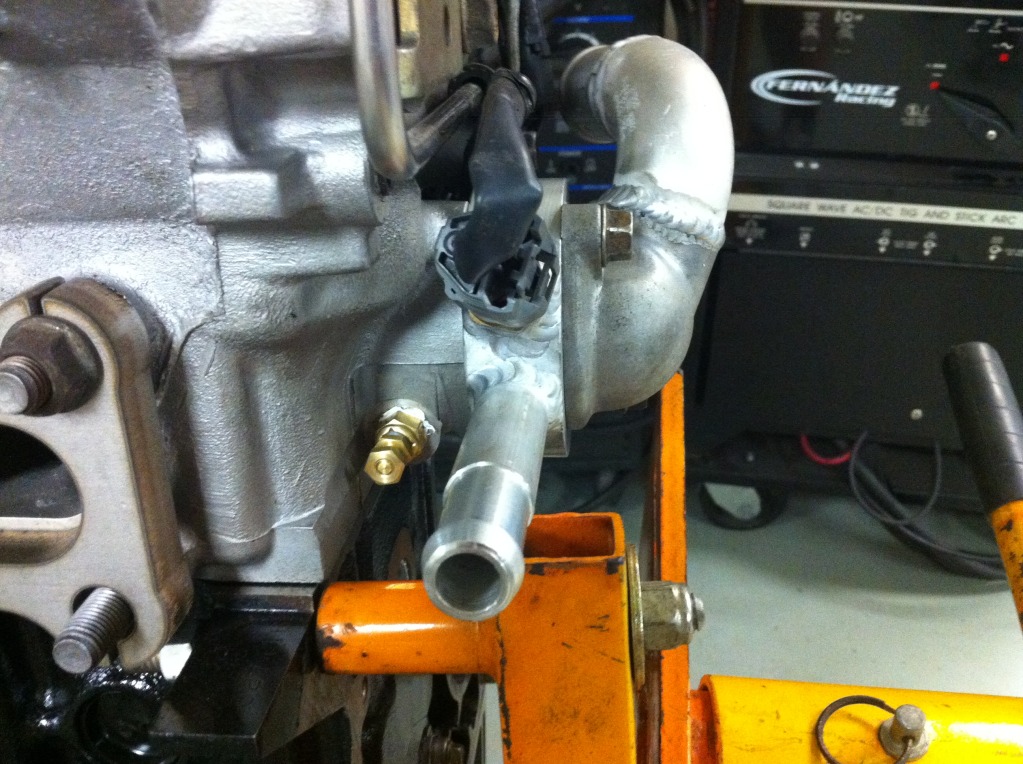

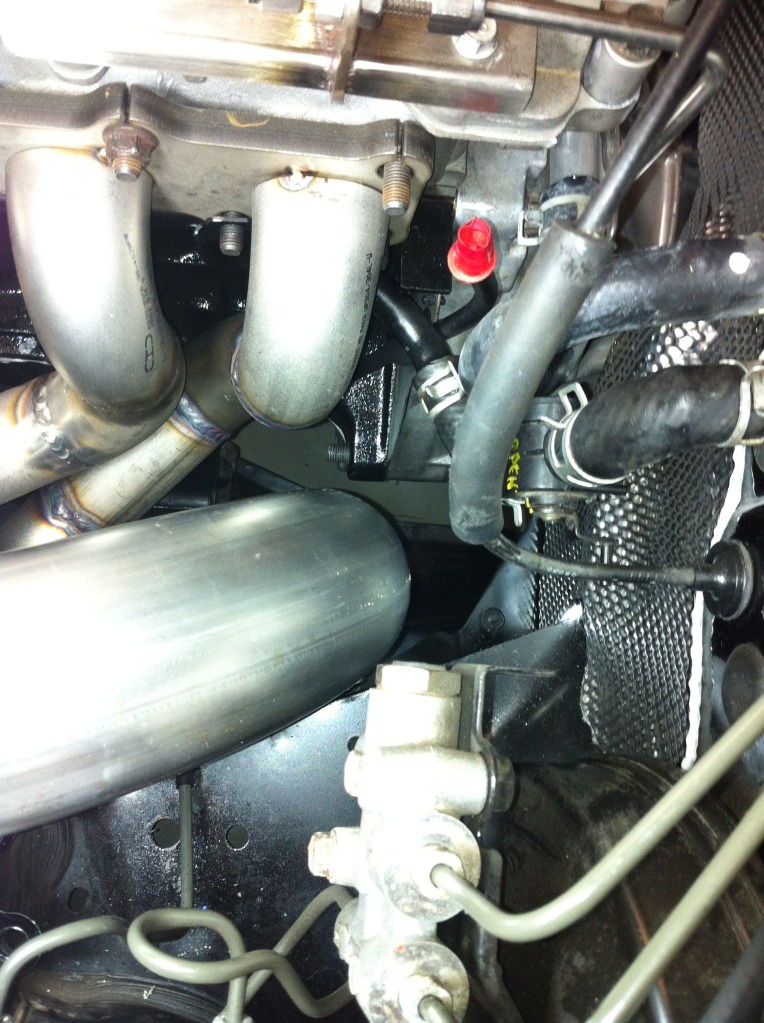

I cannot understand why they would ever route the heater return to the top rad hose and expect the engine to warm up at a reasonable rate while getting all that cold water from the radiator.
I am going to use a honda heater valve (nice and compact) with a pull **** in the cabin to block off the coolant flow from the heater core to the mixing manifold (or lower rad hose)for track use, it worked great on my NA oem warmup times and no hot water going back in the engine on track.

Attached Thumbnails
A probable solution to Begi's racer reroute warmup times?-null_zps26e41629.jpg   A probable solution to Begi's racer reroute warmup times?-null_zps2fb59ede.jpg
HHammerly is offline   Reply With Quote
Old 11-09-2013, 12:37 PM   #29
Elite Member
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

Quote:
Originally Posted by Braineack View Post
yes. or put in other words: fixing what you broke.
Exactly, why do people keep screwing with the stock coolant system. I have never seen a single system failure that can be attributed to uneven cooling\heating of the block or cylinders.

The likely hood that there is any real power to be gained is also very very low. As far as I can tell all these re route kits have ever done is cause problems.
TravisR is offline   Reply With Quote
Old 11-09-2013, 01:13 PM   #30
Junior Member
Thread Starter

Join Date: Sep 2013
Location: Israel
Posts: 418
Total Cats: -43
Default

Because not everyone are able to spend 600$ for a racing radiator and probably another 600$ for shipping and taxes because I'm not from the US.
yossi126 is offline   Reply With Quote
Old 11-09-2013, 01:28 PM   #31
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

What the actual **** is going on in here??

Keep it ******* stock (with a reroute)! I have a $100 radiator from ebay, a simple $90 reroute spacer, and $12 GM upper radiator hose. Heater core route is essentially stock, and with a 180* thermostat I have great warm up times, heat in the cabin, and an easily controlled engine temp.

WHY ARE THERE VALVES IN YOUR HEATING SYSTEM???
curly is offline   Reply With Quote
Old 11-09-2013, 01:35 PM   #32
Elite Member
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

Quote:
Originally Posted by yossi126 View Post
Because not everyone are able to spend 600$ for a racing radiator and probably another 600$ for shipping and taxes because I'm not from the US.
Your coolant rerouting has nothing to do with the heat rejection that your radiator is capable of.

Your engine adds some value of Q (Joules) to your coolant. Your radiator must reject this Q (Joules) to the atmosphere. It doesn't matter what back flips it goes through inbetween, those are the facts. If your radiator is too small, then your radiator is too small.

Further I've been running a Mishimoto "Heavy duty" for like 4 years. It cost 300 bucks. It has a warranty, and is good quality. If you have the money to put a turbo on your car, you probably should be able to afford $300.

The second option is to ream in moderation. Ream for 60 seconds, then let it cool off. If you want maximum ream, then you have to pay maximum dollars.
TravisR is offline   Reply With Quote
Old 11-09-2013, 03:43 PM   #33
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,332
Default

Quote:
Originally Posted by TravisR View Post
Exactly, why do people keep screwing with the stock coolant system. I have never seen a single system failure that can be attributed to uneven cooling\heating of the block or cylinders.

The likely hood that there is any real power to be gained is also very very low. As far as I can tell all these re route kits have ever done is cause problems.
Ah, no. Mazda is the one that "screwed" with the coolant system when they took the Protege motor and turned it sideways for use in the Miata. Lots of empirical testing shows that good reroutes that return the engine to its original FWD coolant routing (i.e. M-tuned or similar design) improve system efficiency by evening coolant distribution across the four cylinders, resulting in lower coolant temps.

Don't confuse garbage reroutes like the one shown in this thread with the high-quality reroutes that most people build and/or install themselves.
Savington is offline   Reply With Quote
Old 11-09-2013, 03:57 PM   #34
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 800
Total Cats: 58
Default

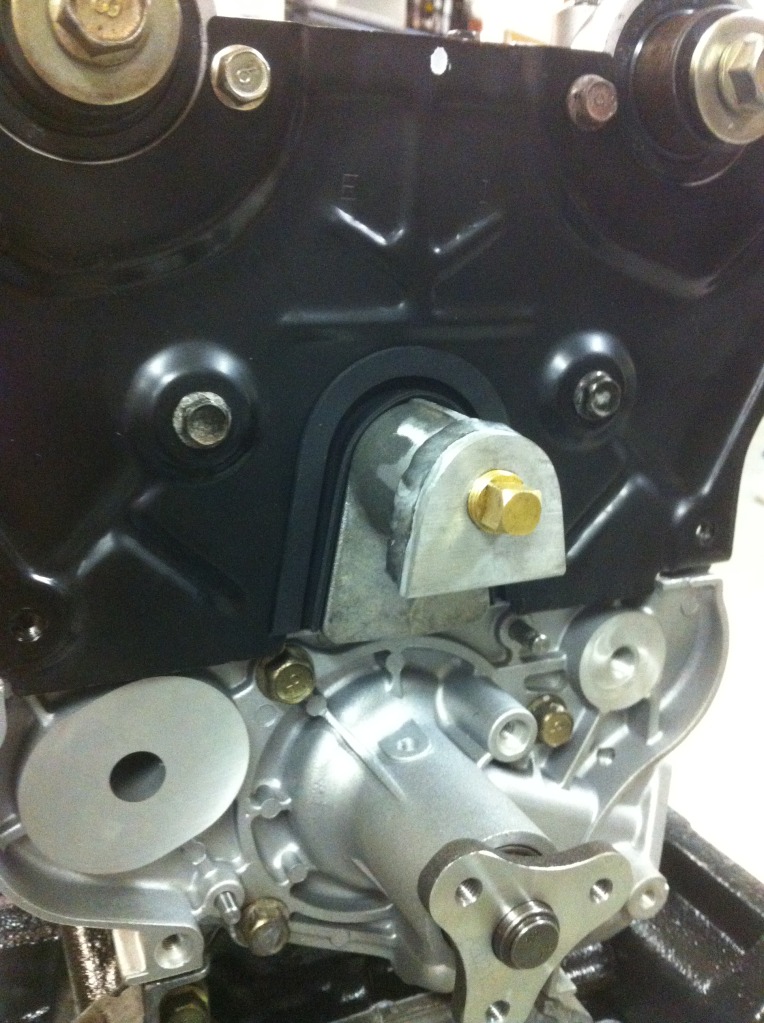

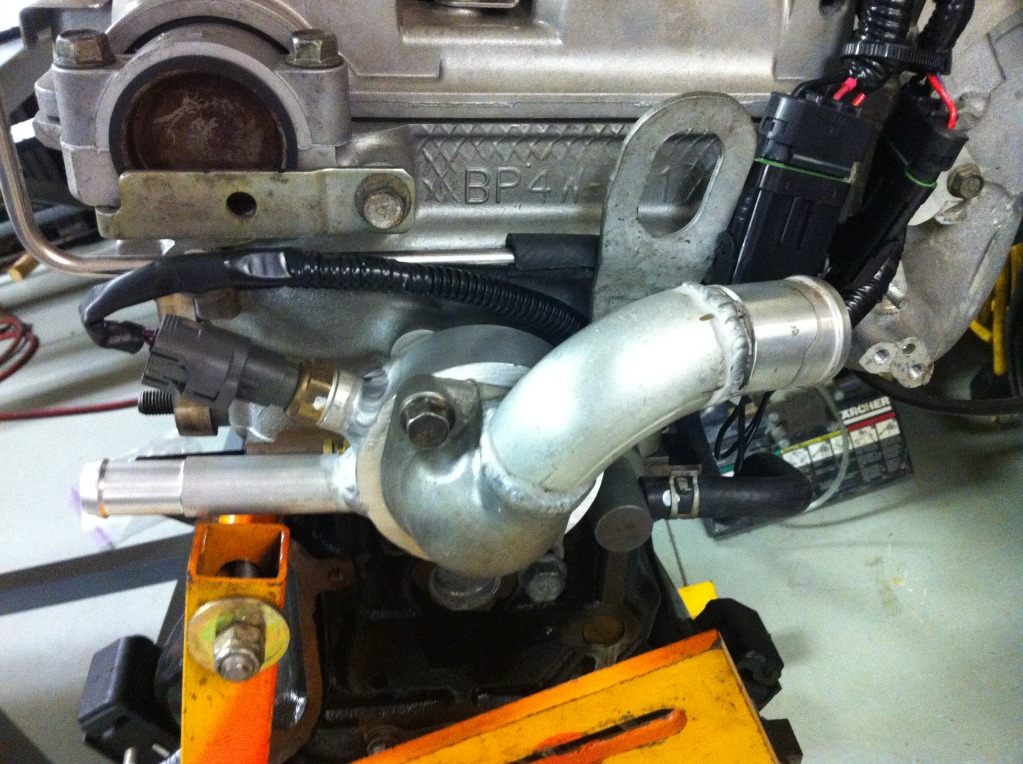

Savington, don't like my DYI re-route? lOL

Attached Thumbnails
A probable solution to Begi's racer reroute warmup times?-null_zps41ed42d4.jpg   A probable solution to Begi's racer reroute warmup times?-null_zps542458d3.jpg
HHammerly is offline   Reply With Quote
Old 11-09-2013, 04:01 PM   #35
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,332
Default

Quote:
Originally Posted by HHammerly View Post
Savington, don't like my DYI re-route? lOL
]
Actually, yours is fine. I'd prefer to see one of our Coolant Blockoff kits instead of the stock water neck on the front of the motor, but to each his own. I was referring to the OP's reroute, which is not ideal (as evidenced by the issues he's having with it). Yours moves the thermostat and main coolant exit to the back of the head, where it belongs, so it's a good improvement over the stock setup. The M-Tuned kits are great because they drop into place with no fabrication required (even for people who still have EGR) and they work as intended, but if you can get the same function with DIY parts and are willing to spend the time to make it work, more power to you.

Trackspeed Coolant Blockoff

M-Tuned Reroute @ Trackspeed
Savington is offline   Reply With Quote
Old 11-09-2013, 04:29 PM   #36
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 800
Total Cats: 58
Default

I just like to be able to burp the air out the front of the engine when filling it (seems like there is always a little bit of air traped there) hence the threaded plug on the front but it will probably burp out the back if you break hard a few times when the thermosthat is open or track the car.
HHammerly is offline   Reply With Quote
Old 11-09-2013, 04:49 PM   #37
Elite Member
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

Quote:
Originally Posted by Savington View Post
Ah, no. Mazda is the one that "screwed" with the coolant system when they took the Protege motor and turned it sideways for use in the Miata. Lots of empirical testing shows that good reroutes that return the engine to its original FWD coolant routing (i.e. M-tuned or similar design) improve system efficiency by evening coolant distribution across the four cylinders, resulting in lower coolant temps.

Don't confuse garbage reroutes like the one shown in this thread with the high-quality reroutes that most people build and/or install themselves.
The effect of this more even distribution issssss?????????? The difference between you and detonation? Extra cylinder wear? Proof? You guys must be getting pretty damn good with those mega squirts if that is the case.
TravisR is offline   Reply With Quote
Old 11-09-2013, 05:16 PM   #38
Junior Member
Thread Starter

Join Date: Sep 2013
Location: Israel
Posts: 418
Total Cats: -43
Default

Quote:
Originally Posted by Savington View Post
Don't confuse garbage reroutes like the one shown in this thread with the high-quality reroutes that most people build and/or install themselves.

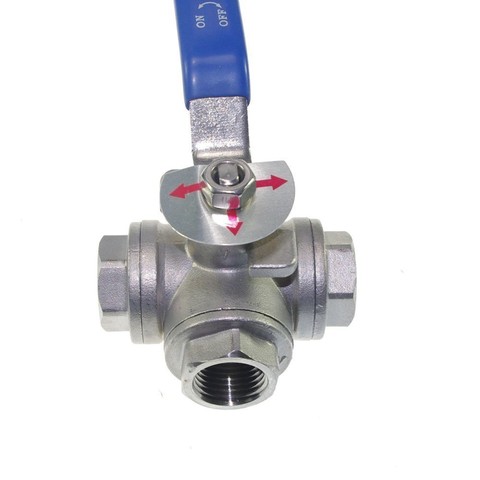

Thank you, sir. My garbage reroute works just fine. This is the valve in use -


screen cap

And TravisR, I'm not running a turbo in my car.
Attached Thumbnails
A probable solution to Begi's racer reroute warmup times?-t2e_c16h_hjh0_fg2_3s_rb_wbsgb9_clwo_q_60_57.jpg
yossi126 is offline   Reply With Quote
Old 11-09-2013, 06:05 PM   #39
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

If your garbage is working fine don't start threads about this ****.

Maybe start a group buy...
Miater is offline   Reply With Quote
Old 11-09-2013, 08:08 PM   #40
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,332
Default

Quote:
Originally Posted by TravisR View Post
The effect of this more even distribution issssss?????????? The difference between you and detonation? Extra cylinder wear? Proof? You guys must be getting pretty damn good with those mega squirts if that is the case.
Lower coolant temps, as measured empirically. Any more questions?
Savington is offline   Reply With Quote
