Old 09-22-2010, 12:45 AM   #81
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,323
Total Cats: 1,920
Default

Quote:
Originally Posted by JKav View Post
It's been a while since I saw a Miata oil squirter up close -- are they the usual ball and spring type that opens up at a certain oil pressure, or simply a redirected leak?
Ball & Spring.
Joe Perez is offline   Reply With Quote
Old 09-22-2010, 12:55 AM   #82
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

nvm joe beat me to it.
magnamx-5 is offline   Reply With Quote
Old 09-22-2010, 10:33 AM   #83
Senior Member
iTrader: (1)

Join Date: Oct 2008
Location: Trailer County
Posts: 530
Total Cats: -9
Default

Correction, they are called oil jets, not oil squirters, lol.

I would NOT remove them. Everytime I open the motors that have been prepped for N/A or turbo applications, always the bottom of the piston looks pretty and shinny. I guess the oil JETS are doing their job.

What the hell, remove them and report to us about 1 year from now.

Edit: the engine block I got is from a Mazda Protege LX, it also uses ball and spring, FYI, no need to use a lot of torque to tighten them. If I remember its about 10 psi.
mazpr is offline   Reply With Quote
Old 09-22-2010, 10:44 AM   #84
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

What oil pressure do they open at?
Faeflora is offline   Reply With Quote
Old 09-22-2010, 12:07 PM   #85
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by JKav View Post
It's been a while since I saw a Miata oil squirter up close -- are they the usual ball and spring type that opens up at a certain oil pressure, or simply a redirected leak?

That's curious about the stock Miata pistons' lack of holes. The oil's gotta leak out of the oil groove somehow. Sometimes it happens on the outside surface of the piston -- is there a notch or channel on the outside that connects the oil groove to the wristpin?
There are two blind holes drilled near the wrist pin area on each side they dont go through to the underside of the piston though. drain back must occur in this area somhow.

I suspect most all the aftermarket pistions I have seen will have some degree of oil control issues because of their design in combination with the oil squirters.

FWIW on my FM 2.0L the wrist pin hole cuts half way throught the oil control ring groove.

Bob
bbundy is offline   Reply With Quote
Old 10-31-2010, 08:55 PM   #86
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

To add to the story

So my autocross/track season is over and I am finally getting around to re assembling the 2.0L

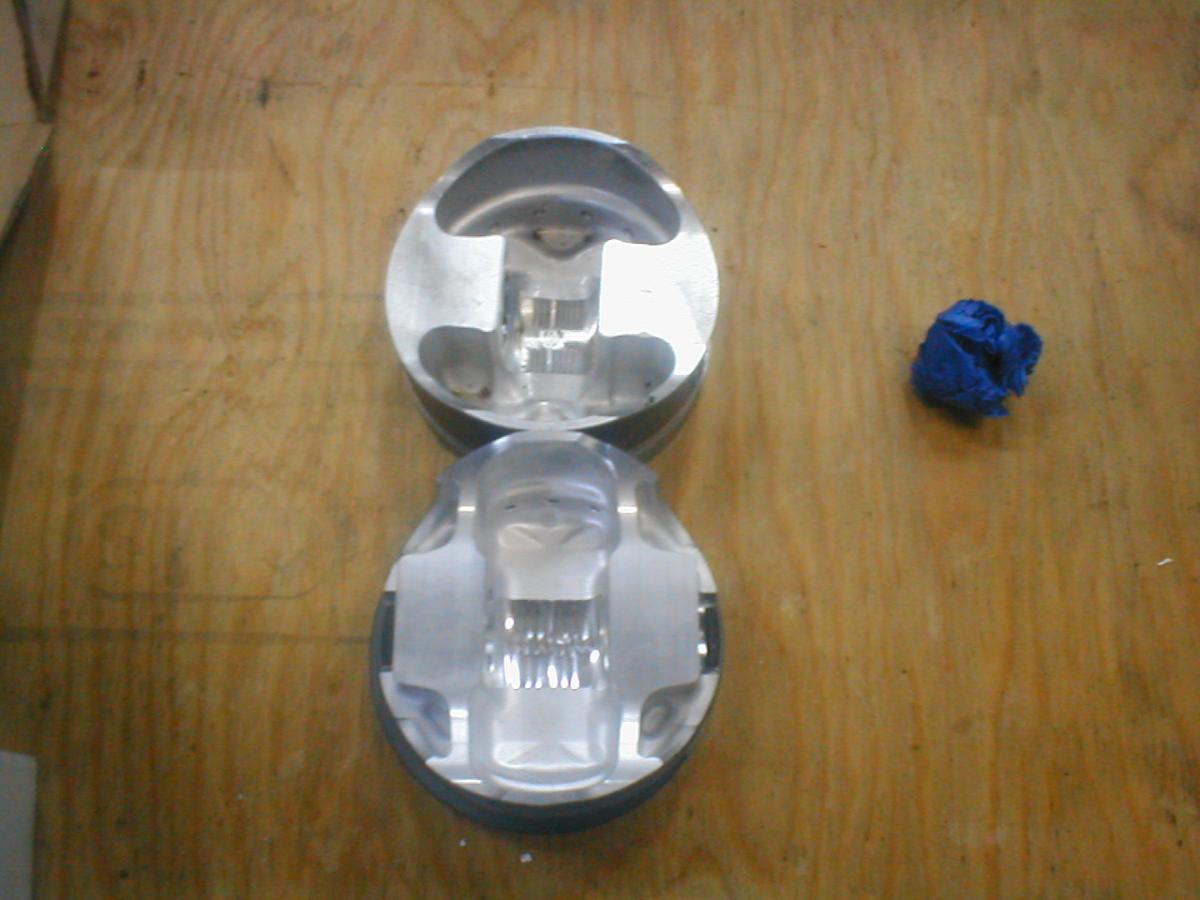

An interesting discovery. I planned on removing the oil squirters anyway but checking the new pistons it looks like they would be incompatible with the oil squirters anyway. The stock oil squirter hits the new location of the reinforcing rib on the underside of the piston squarely.

These are new FM Wiseco’s

Bob
Attached Thumbnails
thoughts on removing oil injectors?-p1010012.jpg   thoughts on removing oil injectors?-p1010018.jpg   thoughts on removing oil injectors?-p1010019.jpg
bbundy is offline   Reply With Quote
Old 10-31-2010, 09:04 PM   #87
Junior Member

Join Date: Jun 2007
Location: Grayslake IL
Posts: 410
Total Cats: 2
Default

Quote:
Originally Posted by bbundy View Post
To add to the story

So my autocross/track season is over and I am finally getting around to re assembling the 2.0L

An interesting discovery. I planned on removing the oil squirters anyway but checking the new pistons it looks like they would be incompatible with the oil squirters anyway. The stock oil squirter hits the new location of the reinforcing rib on the underside of the piston squarely.

These are new FM Wiseco’s

Bob
spin the piston 180 degrees?
Aricjm15 is offline   Reply With Quote
Old 10-31-2010, 09:25 PM   #88
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,896
Total Cats: 109
Default

Maraha has special squirters for strokers. Their kit has more stroke than FM, and the piston comes in contact with the stock squirter.
miata2fast is offline   Reply With Quote
Old 10-31-2010, 10:17 PM   #89
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by Aricjm15 View Post
spin the piston 180 degrees?
Won't help the bottoms of the pistons are pretty much symetric. Maybe if you had specal rods that twisted about 5 degrees.

Bob
bbundy is offline   Reply With Quote
Old 10-31-2010, 10:26 PM   #90
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by miata2fast View Post
Maraha has special squirters for strokers. Their kit has more stroke than FM, and the piston comes in contact with the stock squirter.

It looks like Maraha modifies the location of the alignment pin to get them to clear a similar sort of piston.

More stroke. Interesting the skirt on the FM stroker piston skirts already sticks out the bottom of the cylinder at the bottom of the stroke. Maraha must stick out even more.

Bob
bbundy is offline   Reply With Quote
Old 11-01-2010, 11:33 PM   #91
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,327
Default

Quote:
Originally Posted by Aricjm15 View Post
spin the piston 180 degrees?
Please tell me you were joking.
Savington is offline   Reply With Quote
Old 11-02-2010, 12:08 AM   #92
Junior Member

Join Date: Jun 2007
Location: Grayslake IL
Posts: 410
Total Cats: 2
Default

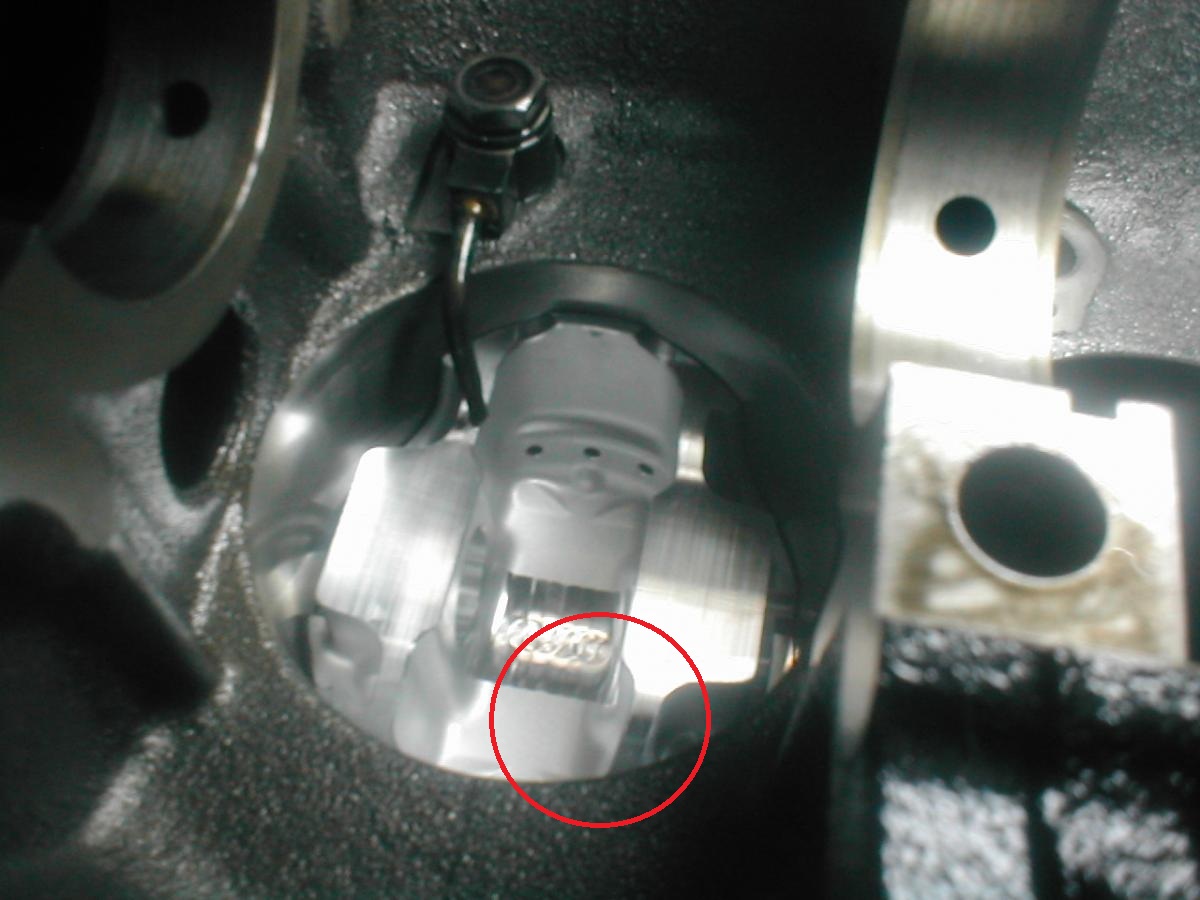

I find it hard to believe that a company would sell a piston that could not be used with the oil squirters. From this angle the piston does not look symmetrical.
Attached Thumbnails
thoughts on removing oil injectors?-p1010018.jpg
Aricjm15 is offline   Reply With Quote
Old 11-02-2010, 12:22 PM   #93
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

Quote:
Originally Posted by Aricjm15 View Post
I find it hard to believe that a company would sell a piston that could not be used with the oil squirters. From this angle the piston does not look symmetrical.
1. FM specifically states on their website that those Wisecos were meant to be run without the oil squirters.
2. It's a ******* shadow in the pic.

D. You can't install pistons 180* around. Not if they have valve pockets, anyway.
ScottFW is offline   Reply With Quote
Old 11-02-2010, 03:29 PM   #94
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Quote:
Originally Posted by Savington View Post
Please tell me you were joking.
when he wrote that i checked my supertech 8.8:1 pistons i have on my shelf.

they arent symetrical... so if the poster had them in wrong that is a valid point.

there is a relief in the skirt for the squirter on my pistons.



One of the engine builders i talked to recently mentioned boring out the oil passages... would this be for the bearings or the squirters?
shlammed is offline   Reply With Quote
Old 11-02-2010, 03:34 PM   #95
Junior Member

Join Date: Jun 2007
Location: Grayslake IL
Posts: 410
Total Cats: 2
Default

Quote:
Originally Posted by ScottFW View Post
1. FM specifically states on their website that those Wisecos were meant to be run without the oil squirters.


D. You can't install pistons 180* around. Not if they have valve pockets, anyway.
1.If he already knew this then why post? If the manufacturer says "Don't use this ****", then obviously you wouldn't use it.

D. No ****. The pistons also normally have cutouts for the oil squirters on one side.
Aricjm15 is offline   Reply With Quote
Old 04-24-2014, 06:29 PM   #96
Newb

Join Date: Mar 2011
Posts: 12
Total Cats: 0
Default

For everyone that has removed the oil squirters what have you plugged the holes with?

M10 x 1.25 bolts with copper washers?
Cut and flattened the factory squirters nozzles?
M10 x 1.25 set screws with threadlocker/theadsealer?
nismo240 is offline   Reply With Quote
Old 04-24-2014, 06:48 PM   #97
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Fun fact.

When Ford built the new Boss 302, they modified the 412 hp "coyote" engine to make 444 hp with different camshafts and intake manifold. They also gave it forged pistons and removed the oil squirters.
Not saying you should remove them. But its not that retarded of an idea. If you have a forged bottom end and want reliable oiling at high rpm, I would consider ditching them.

EDIT:
4 year old thread. Why.
Full_Tilt_Boogie is offline   Reply With Quote
Old 04-24-2014, 06:52 PM   #98
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Fun fact.

When Ford built the new Boss 302, they modified the 412 hp "coyote" engine to make 444 hp with different camshafts and intake manifold. They also gave it forged pistons and removed the oil squirters.
Not saying you should remove them. But its not that retarded of an idea. If you have a forged bottom end and want reliable oiling at high rpm, I would consider ditching them.

EDIT:
4 year old thread. Why.
I had fun reading my old posts

Splitime is offline   Reply With Quote
Old 04-24-2014, 07:21 PM   #99
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Fun reading my old post.

FWIW my engine still going strong without the oil squirters and has lasted now 3X longer than any of my 350+hp builds that all failed with oil consumption, bearing, and piston wall wear issues.

Bob
bbundy is offline   Reply With Quote
Old 06-01-2014, 01:14 AM   #100
Junior Member
iTrader: (1)

Join Date: Aug 2013
Posts: 224
Total Cats: 13
Default

my squirters are removed. We rebuilt the engine after last season and the bearings where absolutely like brand new inside and that egine was revved to 8k for 10hrs and was zinged several times. no oil pressure issues or piston issues
circuitmstr74 is offline   Reply With Quote
