Old 08-21-2013, 08:24 PM   #41
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

Someone tell me if post 13 is wrong or not.

Im like 97% sure I have the right idea and lots of people are confused, but it could be me.

Dann
nitrodann is offline   Reply With Quote
Old 08-21-2013, 10:52 PM   #42
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

Seems legit dude. You got fixed volume of air and the sc takes a gulp of it each time. Not sure what hte pressure ratio would be though as rpms increase.
triple88a is offline   Reply With Quote
Old 08-22-2013, 08:27 AM   #43
Junior Member

Join Date: Aug 2010
Posts: 81
Total Cats: -9
Default

You need to read this paper: TVSŪ V-Series Supercharger Development for Single and Compound Boosted Engines


I have a copy on the PC at home.

The results of the study I believe showed sequential turbo charging with a small quick spool turbo and complex exhaust and intake valving and control system to be the most efficient option. This gave the largest area under the torque speed curve.
Lloyd_D is offline   Reply With Quote
Old 08-22-2013, 08:29 AM   #44
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

Can you upload it as a torrent or email me please?

Thanks,
Dann
nitrodann is offline   Reply With Quote
Old 10-20-2013, 08:11 AM   #45
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

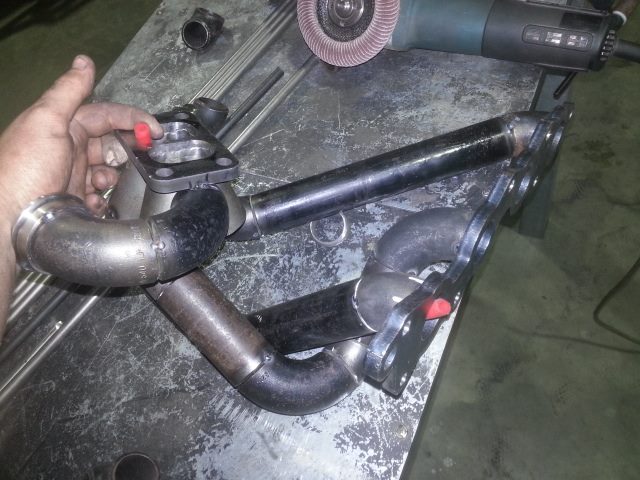

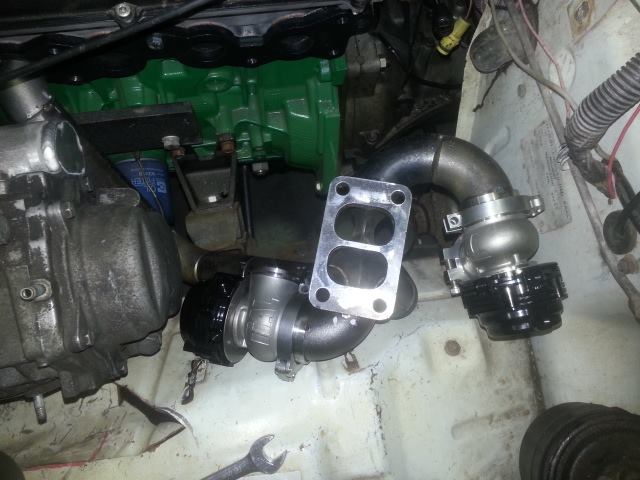

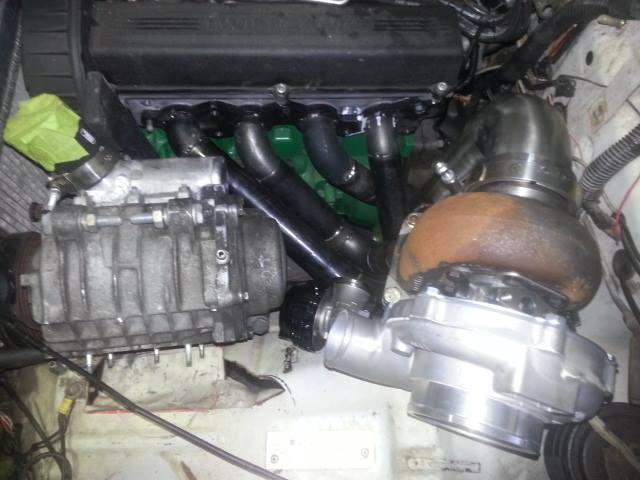

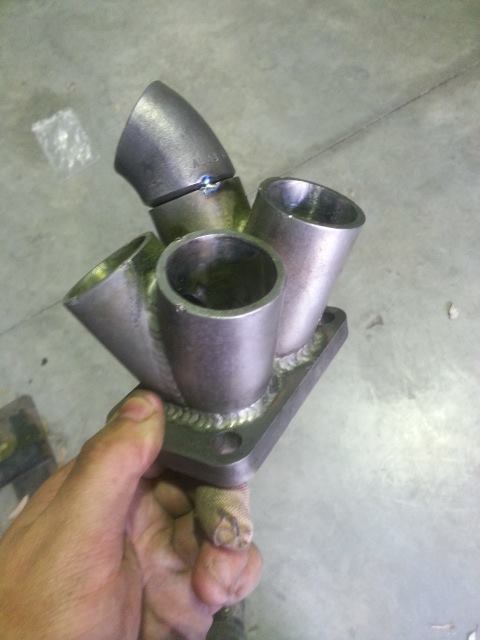

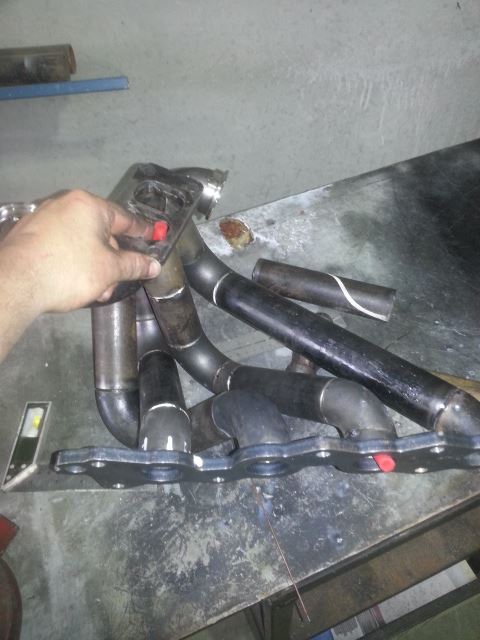

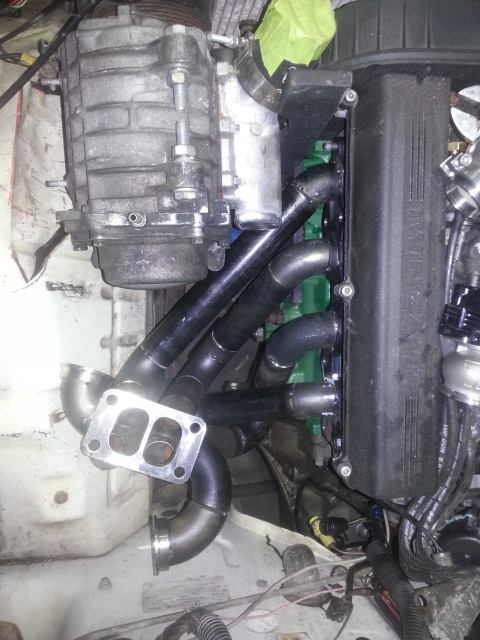

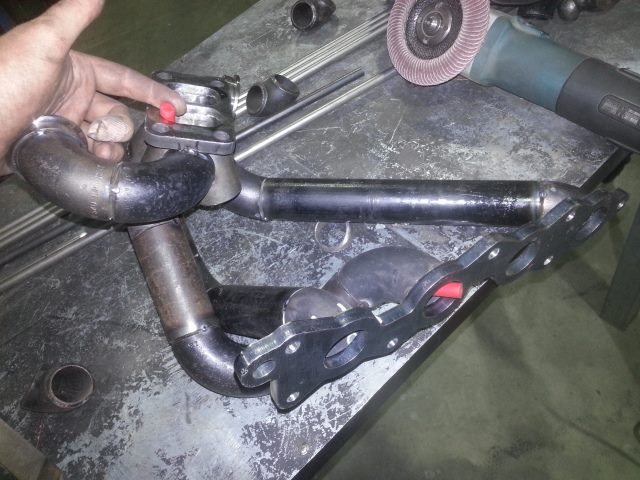

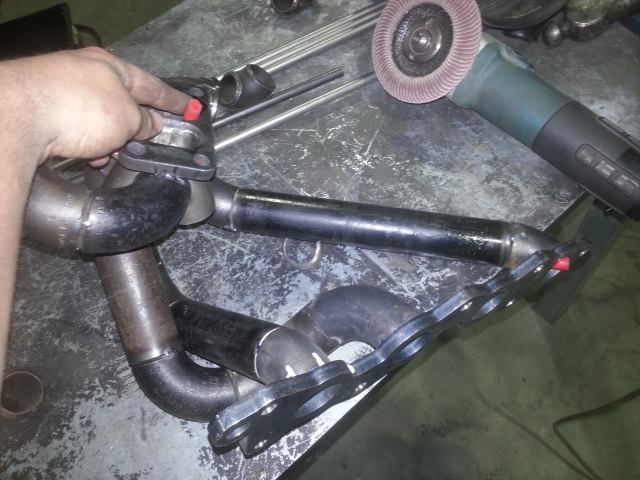

And OP delivers.


















Dann
Attached Thumbnails
Twincharging, Serious discussion.-1005008_215633238614036_2018396345_n.jpg   Twincharging, Serious discussion.-1384024_215633338614026_122054485_n.jpg   Twincharging, Serious discussion.-1390717_215633401947353_1233544680_n.jpg   Twincharging, Serious discussion.-994944_215633551947338_1306122884_n.jpg   Twincharging, Serious discussion.-1382227_215633548614005_227455020_n.jpg

Twincharging, Serious discussion.-1395426_215868971923796_942679675_n.jpg   Twincharging, Serious discussion.-10003_215877565256270_1101128667_n.jpg   Twincharging, Serious discussion.-1379526_215877688589591_2124714848_n.jpg
nitrodann is offline   Reply With Quote
Old 11-06-2013, 09:42 AM   #46
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

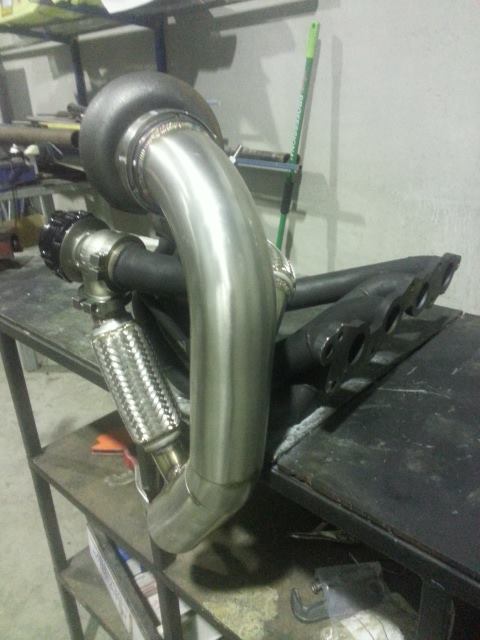

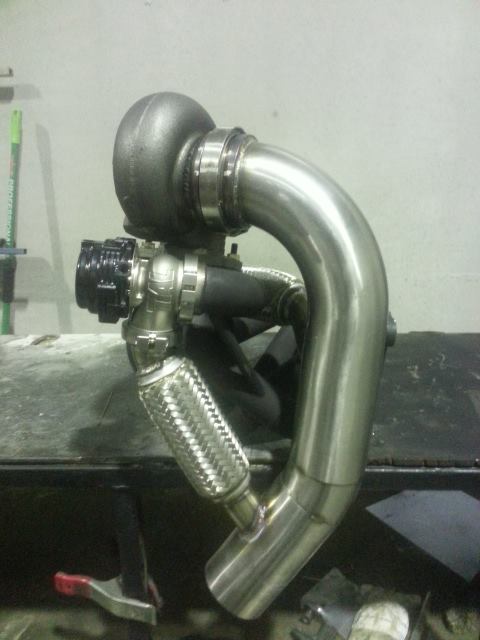

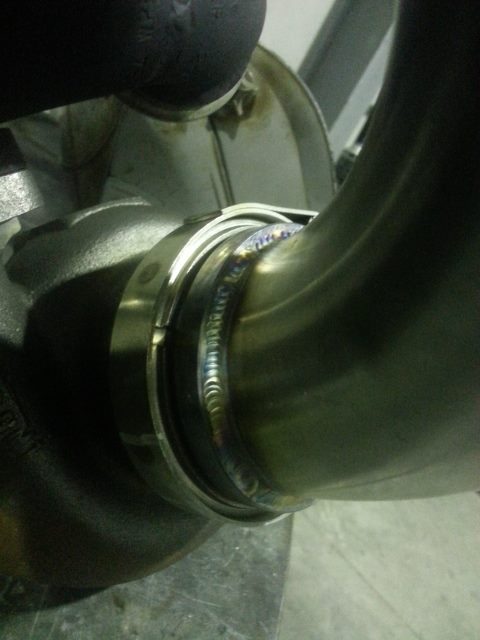

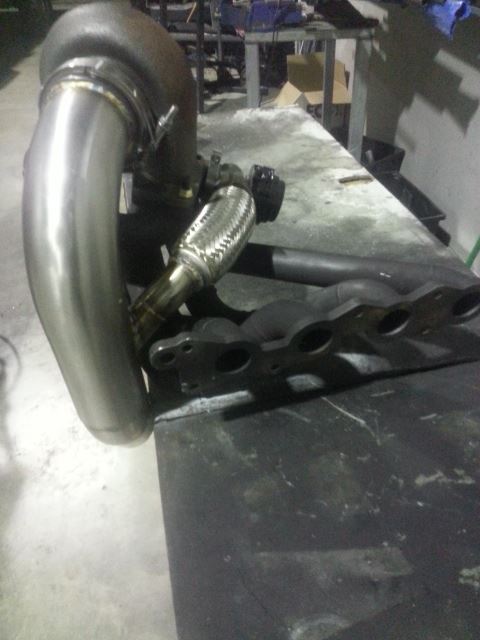

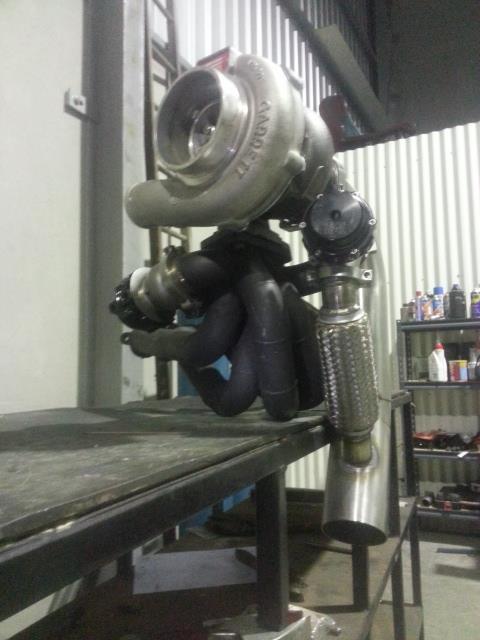

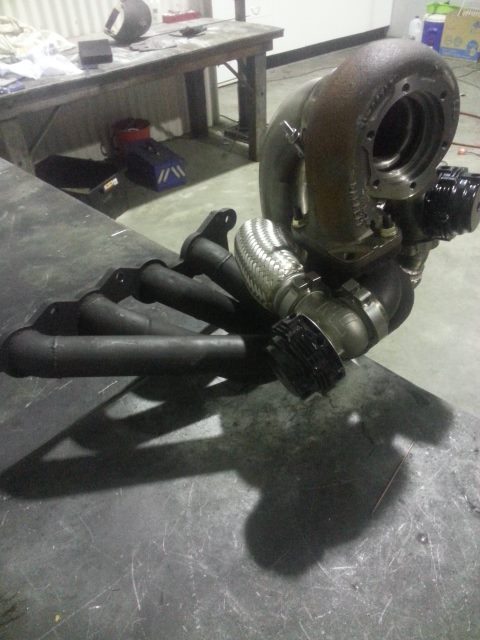

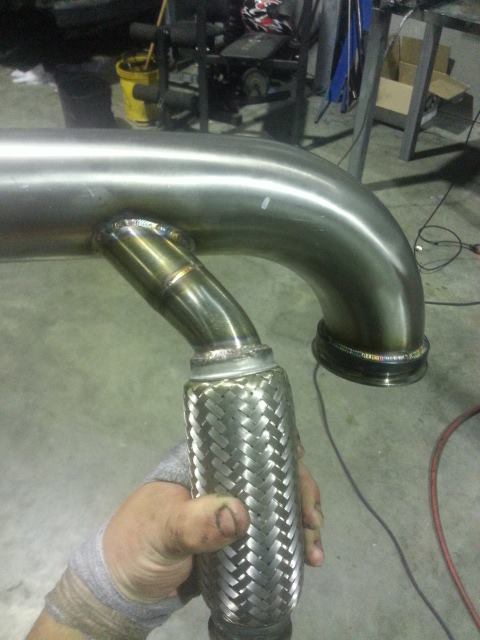

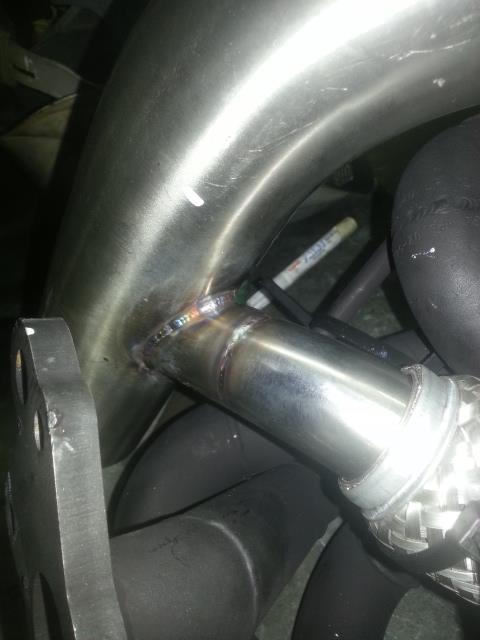

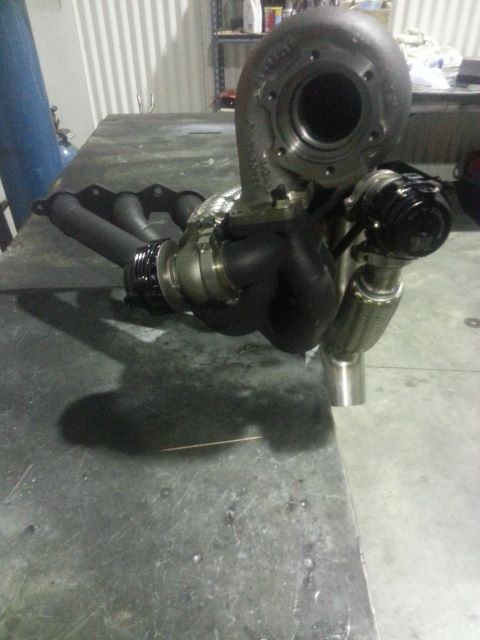

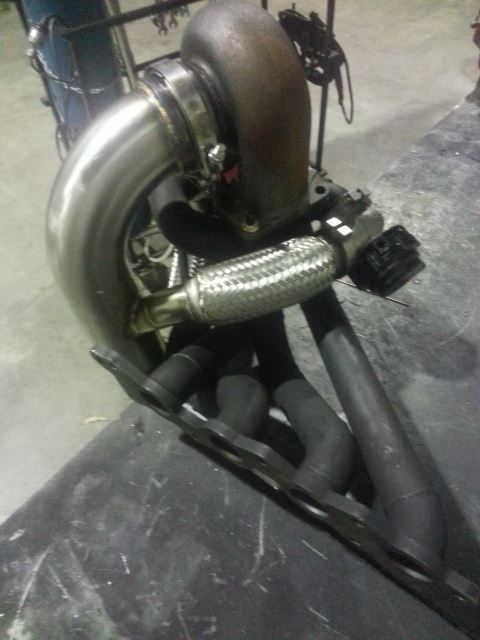

Here is a bunch more photos.

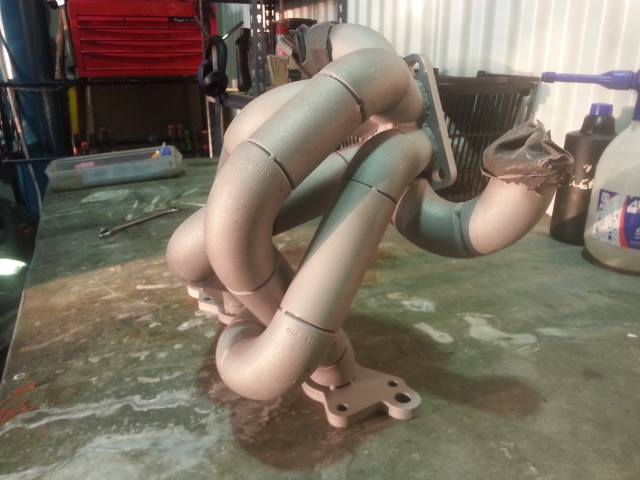

Sandblasted and ready to cut back down and weld the runners.






















Ready for IC piping and we are done for now, off to the dyno for a low boost tune and run in and then sort out the blower and go twincharged.

Dann
Attached Thumbnails
Twincharging, Serious discussion.-1391819_216056895238337_288779006_n.jpg   Twincharging, Serious discussion.-1441288_221342488043111_271960621_n.jpg   Twincharging, Serious discussion.-1456006_221342494709777_2112745270_n.jpg   Twincharging, Serious discussion.-1441539_221342521376441_273871659_n.jpg   Twincharging, Serious discussion.-1235546_221342574709769_353599774_n.jpg

Twincharging, Serious discussion.-625575_221342584709768_1506052287_n.jpg   Twincharging, Serious discussion.-1461857_221342604709766_1008026561_n.jpg   Twincharging, Serious discussion.-1450853_221342651376428_1193644554_n.jpg   Twincharging, Serious discussion.-1461441_221342684709758_1613820702_n.jpg   Twincharging, Serious discussion.-1456707_221342711376422_392011527_n.jpg

Twincharging, Serious discussion.-1391755_221345748042785_1903545851_n.jpg
nitrodann is offline   Reply With Quote
Old 11-10-2013, 04:40 PM   #47
Senior Member
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 719
Total Cats: 55
Default

Dang.
Onyxyth is offline   Reply With Quote
Old 11-10-2013, 05:33 PM   #48
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,687
Total Cats: 216
Default

Aw snap
Full_Tilt_Boogie is offline   Reply With Quote
Old 11-10-2013, 06:14 PM   #49
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Inb4 hate train.
FRT_Fun is offline   Reply With Quote
Old 11-10-2013, 08:58 PM   #50
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

Manifold looks lovely.
triple88a is offline   Reply With Quote
Old 11-10-2013, 10:41 PM   #51
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

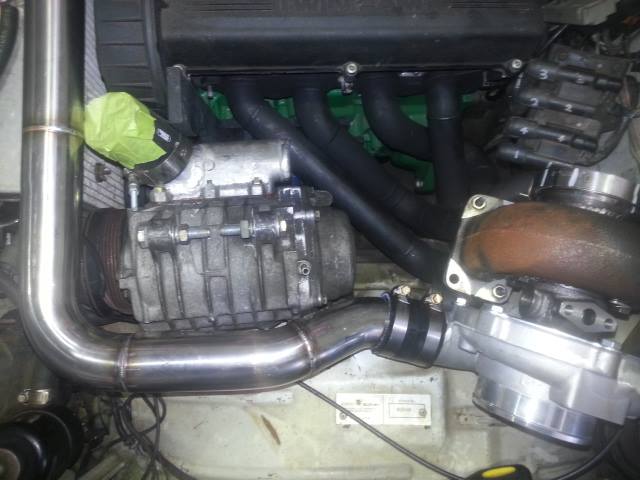

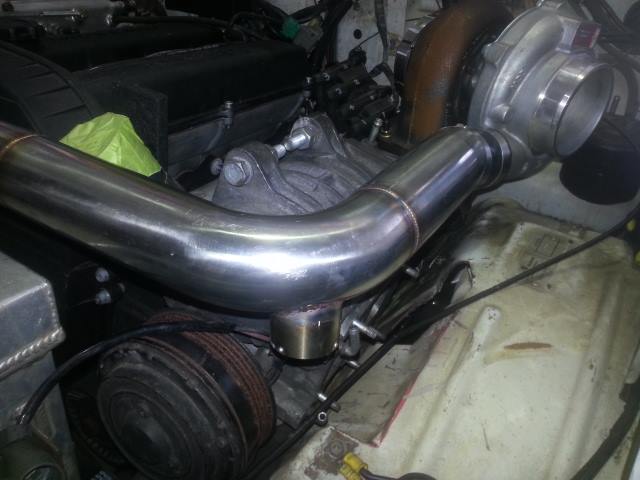

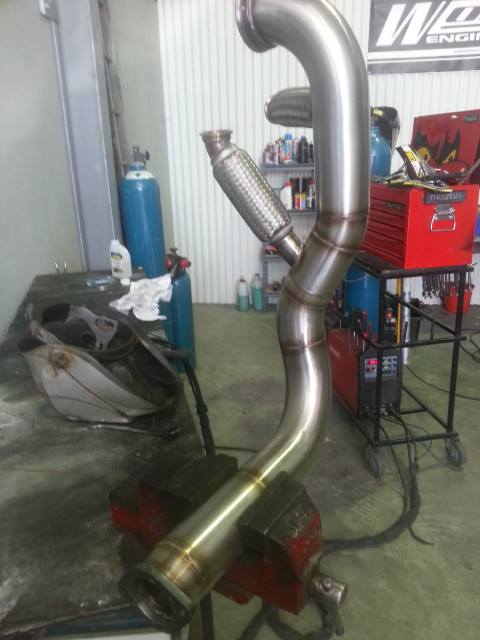

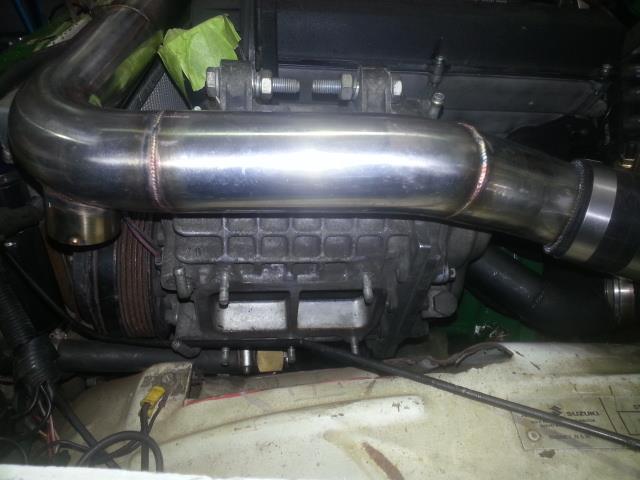

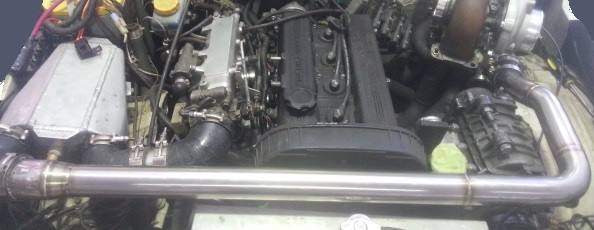

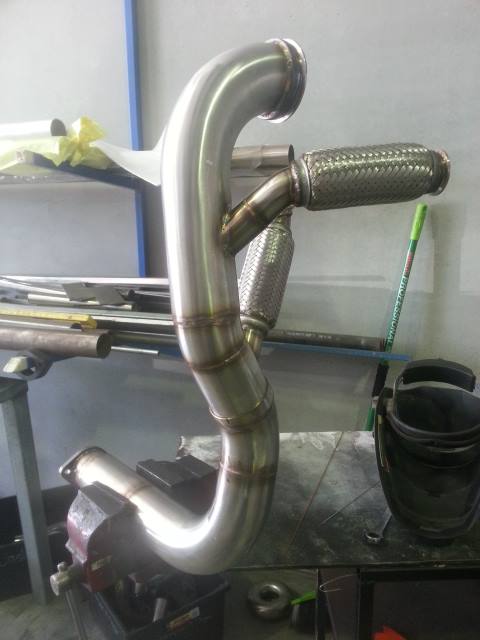

Intercooler piping mostly done. New supercharger brackets on the way.

Dann
Attached Thumbnails
Twincharging, Serious discussion.-1426721_221753598002000_985124065_n.jpg   Twincharging, Serious discussion.-995890_221753594668667_1800090730_n.jpg   Twincharging, Serious discussion.-1452123_221753621335331_1201749530_n.jpg   Twincharging, Serious discussion.-1384238_221753664668660_1724046012_n.jpg   Twincharging, Serious discussion.-1422452_221753678001992_1173507267_n.jpg

Twincharging, Serious discussion.-529152_221753694668657_829240894_n.jpg
nitrodann is offline   Reply With Quote
Old 11-11-2013, 04:58 AM   #52
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,687
Total Cats: 216
Default

Im confused. Is that IC piping temporary while you wait on the supercharger bracket?
Full_Tilt_Boogie is offline   Reply With Quote
Old 11-11-2013, 05:08 AM   #53
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

Well, it's complicated, the owner wants to feed the turbo with the blower with some odd valving system using high speed actuators and some separate logic based on boost pressure, pressure differential and rpm.

When he arrived I said that I kept the piping simple because it would be temporary, and the then pulled some actuators out and said "well....".

So at this point I don't really understand his exact plans, I will keep everyone updated.

Dann
nitrodann is offline   Reply With Quote
Old 11-11-2013, 01:15 PM   #54
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,687
Total Cats: 216
Default

That doesnt sound good. He needs to feed the supercharger with the turbo.
Full_Tilt_Boogie is offline   Reply With Quote
Old 11-11-2013, 01:16 PM   #55
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
That doesnt sound good. He needs to feed the supercharger with the turbo.
The customer is always right.
Leafy is offline   Reply With Quote
Old 11-13-2013, 05:48 AM   #56
Newb

Join Date: Nov 2013
Posts: 12
Total Cats: 4
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
That doesnt sound good. He needs to feed the supercharger with the turbo.
What makes you say that?

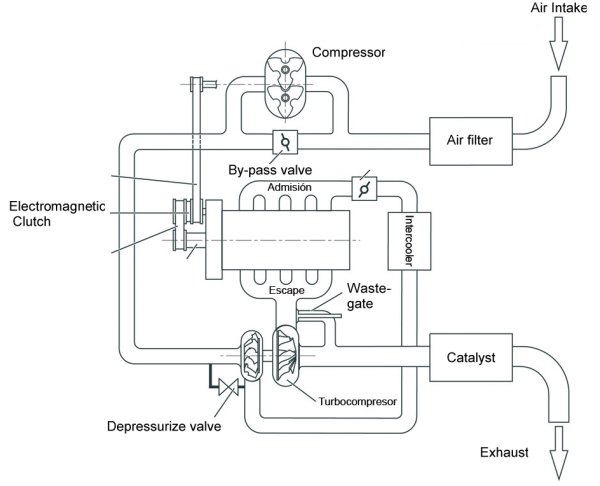

In a sequential twin charged configuration without compound boost, Stage-1 Supercharger and Stage-2 Turbocharger is a perfectly viable method. It has been used by several automotive manufacturers and is the preferred configuration in the aeromotive industry.

Take for example, the Volkswagen TSI twincharge engine. The video below is well worth a watch.


Attached Thumbnails
Twincharging, Serious discussion.-twincharger_theory.jpg
Mark-o is offline   Reply With Quote
Old 11-13-2013, 06:06 AM   #57
Elite Member
iTrader: (8)

Join Date: Oct 2007
Location: Dallas
Posts: 1,841
Total Cats: 0
Default

Curious to see how it works out for you. Keep up the good work. Usually I don't even read these twin charge threads. But with you going for 500hp. I'm intrested.
Toddcod is offline   Reply With Quote
Old 11-13-2013, 09:13 AM   #58
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by Leafy View Post
The customer is always right.
And a pattern emerges in Dann's builds...
Braineack is offline   Reply With Quote
Old 11-13-2013, 10:18 AM   #59
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

That is him 2 posts before you, have at him brain. Or.. or, just relax and let it take it's course.

Dann
nitrodann is offline   Reply With Quote
Old 11-13-2013, 10:22 AM   #60
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by Mark-o View Post
What makes you say that?
In a sequential twin charged configuration without compound boost, Stage-1 Supercharger and Stage-2 Turbocharger is a perfectly viable method. It has been used by several automotive manufacturers and is the preferred configuration in the aeromotive industry.

Take for example, the Volkswagen TSI twincharge engine. The video below is well worth a watch.

1.4 TSI Dual-charging de la VW - YouTube

Its not wrong, its just kind of silly in now that the EFR turbos are out, especially the 7163 that will hit your power goal without you giving up too much low end compared to this setup. Doing with compound charging with the turbo feeding the blower could theoretically get you a whole lot more power.
Attached Thumbnails
Twincharging, Serious discussion.-twincharger_theory.jpg
Leafy is offline   Reply With Quote
