Old 03-08-2013, 12:09 PM   #161
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Quote:
Originally Posted by shlammed View Post
Take a class at a community college and they will teach you the basics.
I'm thinking about doing this while I wait for parts (hurry up Reverant and Savington).

But if I do, am I crazy to think I could take a 1 semester welding class, and then weld myself a manifold (something simple like has been posted many times to the DIY mani thread)? Or should I just leave that to the experts and start with something more simple (like probably the rest of the exhaust)?
thenuge26 is offline   Reply With Quote
Old 03-08-2013, 12:21 PM   #162
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,349
Total Cats: 65
Default

Quote:
Originally Posted by thenuge26 View Post
I'm thinking about doing this while I wait for parts (hurry up Reverant and Savington).

But if I do, am I crazy to think I could take a 1 semester welding class, and then weld myself a manifold (something simple like has been posted many times to the DIY mani thread)? Or should I just leave that to the experts and start with something more simple (like probably the rest of the exhaust)?
If you pick up the basics fairly quickly, invest in a decent used welder and just keep practicing there is no reason why you can't build your own manifold.
RyanRaduechel is offline   Reply With Quote
Old 03-08-2013, 12:44 PM   #163
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,707
Total Cats: 1,078
Default

I just took a TIG class at my local community college. It was 4 weeks long and we only welded with mild steel. The actual classes that teach more then that were regular semester long classes, but those have a 2 year wait on them. I honestly would not recommend the class unless it goes over more then just mild steel. I did get better at welding during it, but that is more because I spend tons of time practicing.

If you are interested in only building 1 manifold and thats it then I would suggest going to Abe and getting it done. If you want to actually be able to fabricate and build things in the future then I would say learn to weld. After you factor in costs of welder, and saws, and other tools your costs will far exceed the cost of just having a custom made.
shuiend is offline   Reply With Quote
Old 03-08-2013, 12:52 PM   #164
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

Quote:
Originally Posted by shuiend View Post
I just took a TIG class at my local community college. It was 4 weeks long and we only welded with mild steel. The actual classes that teach more then that were regular semester long classes, but those have a 2 year wait on them. I honestly would not recommend the class unless it goes over more then just mild steel. I did get better at welding during it, but that is more because I spend tons of time practicing.

If you are interested in only building 1 manifold and thats it then I would suggest going to Abe and getting it done. If you want to actually be able to fabricate and build things in the future then I would say learn to weld. After you factor in costs of welder, and saws, and other tools your costs will far exceed the cost of just having a custom made.
What else do you want to cover? Stainless (304L at least) welds pretty much like very clean mild. 4130 acts a bit funny but you'll figure it out, just be sure to use the correct filler rod. And aluminum is a whole other beast entirely. Welding anything else I don't know much about, but Ti, Mag, and nickel alloys are kind of specialty items anyways.
Leafy is offline   Reply With Quote
Old 03-08-2013, 12:58 PM   #165
Senior Member
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

I also took a welding class at a community college. I agree its kind of a waste. You do get a lot of practice for the money and in my case I met my instructor, who is a machinist and lets me use his shop and tools, etc. I also built a log manifold after my class and its been fine since then. It's really not tough to do a simple manifold.
gorillazfan1023 is offline   Reply With Quote
Old 03-08-2013, 01:02 PM   #166
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,707
Total Cats: 1,078
Default

Quote:
Originally Posted by Leafy View Post
What else do you want to cover? Stainless (304L at least) welds pretty much like very clean mild. 4130 acts a bit funny but you'll figure it out, just be sure to use the correct filler rod. And aluminum is a whole other beast entirely. Welding anything else I don't know much about, but Ti, Mag, and nickel alloys are kind of specialty items anyways.
Basically we were just given mild steel pieces 3" long by 1.5" and about a quarter inch thick I think and practiced different joints on them. I would have loved to had tubing to practice one. Also learning how to properly back purged stainless and how to weld aluminum would have been nice.
shuiend is offline   Reply With Quote
Old 03-08-2013, 01:14 PM   #167
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,169
Total Cats: 1,875
Default

Quote:
Originally Posted by shuiend View Post
The actual classes that teach more then that were regular semester long classes, but those have a 2 year wait on them.
I was shocked to learn that the situation is the same at Palomar College, the local trade school in my area. I would think that more welding classes would be made available with such high demand for them.
Joe Perez is offline   Reply With Quote
Old 03-08-2013, 01:15 PM   #168
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

Quote:
Originally Posted by Joe Perez View Post
I was shocked to learn that the situation is the same at Palomar College, the local trade school in my area. I would think that more welding classes would be made available with such high demand for them.
There are only so many people willing/able/should be allowed to instruct.
Leafy is offline   Reply With Quote
Old 03-08-2013, 01:18 PM   #169
Senior Member
iTrader: (1)

Join Date: Oct 2009
Posts: 1,414
Total Cats: 55
Default

If you're buying a welder JUST to do a manifold, it's a complete utter waste. My hobby arrangement that will be 'complete' by spring is: $400 for new MIG welder with gas connections on super clearance from Sears, $150 for 40ft3 argon/co2, $40 welding hood, ~$100 angle grinder, $50 misc. accessories (chipper, brushes, gloves, glasses/shield, etc.)...probably ~$150 for DIY manifold materials (flange, elbows)...and you're already at the cost of a brand new Begi S4 manifold ($829+shipping).

You will definitely see savings for continued use. Mine's already paid for itself.
Rocker repair - quoted ~$1400 , DIY ~$400 , Savings ~$1000
Seat mounts - retail ~$200 , DIY ~$60 , Savings ~$140
Enginerd is offline   Reply With Quote
Old 03-08-2013, 01:25 PM   #170
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,454
Total Cats: 240
Default

I don't see what's difficult about TIG. Anyone can do it.

Throttle pedal controls the heat. A sharp point on the electrode makes it easy to direct the heat. Make both pieces turn into liquid. bring in your filler wire. Done.

Weld elbows are thick enough that you don't have to worry about burning thru.

The practice comes in how big to make the liquid area of the base material before bringing in the filler, and how large of a filler to use. Thin materials are more unforgiving obviously.

This applies to steels and aluminum. With aluminum, it just takes a lot more throttle before it melts (at the beginning anyway) and the base material cools quite quickly when you bring in the filler wire (less forgiving with "size of filler"/"how much heat filler takes out of the pool" ratio). And less forgiving on crap in the material. So the rhythm is different.

MIG is harder IMHO, no way to control the heat as you are welding.

TurboTim is offline   Reply With Quote
Old 03-08-2013, 01:30 PM   #171
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

Tim I feel the same way as you. BUT mig is supposed to be easier. set the machine right and you just pull the trigger. It requires less skill and less dexterity. I've never mig welded with with a non crappy collet in the gun, so I cant really comment. I know that I always flash the wire up into the collet, say F this **** and grab the Tig.
Leafy is offline   Reply With Quote
Old 03-08-2013, 01:34 PM   #172
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,454
Total Cats: 240
Default

yeah, Mig is easy, especially once you have the current and feed rate set. I hear you on the ball of metal stuck to the inside of the collet thing and it short circuiting and that ****. no thanks. HF MIG fail. One of these days I may try a legit Mig maybe at a trade show and fall in love with it.

But tig is still easier. I have shakey hands typically but once you get 'in the zone' it's not hard to hold yourself in odd positions and be smooth. Bigass leather HF glove on my torch hand so I can lean on what I"m welding and usually no glove on my filler wire hand makes it easier too.
TurboTim is offline   Reply With Quote
Old 03-08-2013, 01:53 PM   #173
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Cool, thanks for the info guys. I wouldn't be learning welding JUST for the manifold, that would just be one of the first things I would want to work on. And probably not even for myself. At least 2 of my friends are getting ready to go turbo soon, so that's at least 3 manifolds/dp/exhausts, which will help support the cost.

There's a 20 hour class near me for $350, so I'll probably jump on that. In the mean time, I found an older thread that talked about welding books, so time to bury myself in information.
thenuge26 is offline   Reply With Quote
Old 03-08-2013, 02:09 PM   #174
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,707
Total Cats: 1,078
Default

I started with TIG and I can say even without an instructor it was relatively easy to pick up and weld metal together. Once I realized that I need to make sure the **** on the torch was turned on for argon, laying down beads was relatively easy. The one thing about TIG is having a modern machine does make things much easier. My Lincoln 175 has auto start for lighting the tig torch and for gas flow. The welders we used in class had to be scratch started and you had to manually turn the gas on and off with the ****. Those welders were a good bit harder to get going good on.

When I get home I will post up some the the TIG books that I have picked up that have been helpful with welding.
shuiend is offline   Reply With Quote
Old 03-08-2013, 02:10 PM   #175
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,633
Total Cats: 524
Default

Local welding supply places often have classes. No fancy certificate at the end, but they usually know what they're doing, as they have to deal with real professionals every day. Look in the phone book (does anyone still use one?) for a place that sells gasses.
rleete is offline   Reply With Quote
Old 03-08-2013, 02:16 PM   #176
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

That's what I found, a welding supply company was the first hit on google (and recommended by several of the other hits).

Searching found me this thread, and after I am done reading through all that stuff I will try Youtube, and then eventually get a library card.
thenuge26 is offline   Reply With Quote
Old 03-08-2013, 07:34 PM   #177
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,131
Total Cats: 257
Default

Speaking of nice, the new Miller 350p we got at work has the pulsed MIG setting.

Ohhhh that can do some fancy things.
Erat is offline   Reply With Quote
Old 03-18-2013, 01:27 PM   #178
Junior Member
iTrader: (1)

Join Date: Feb 2010
Location: Montreal, Canada
Posts: 52
Total Cats: 0
Default

I decided to go ahead and make my own TII adapter plate. To anyone that wants to do this, remember to measure 10 times, then measure again. Then cut.

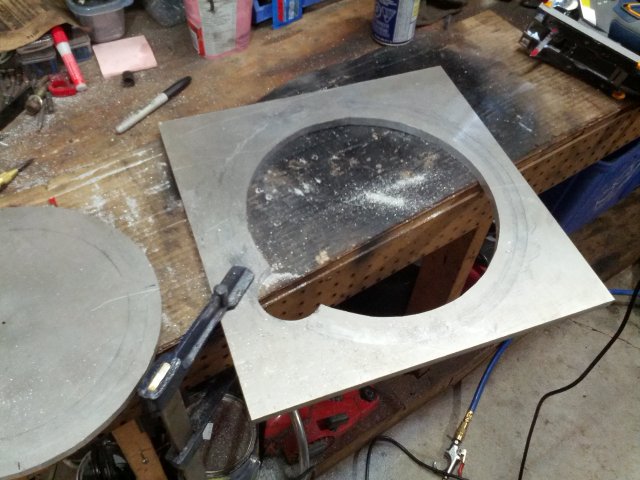

After an hour or so of cutting it looked like this:

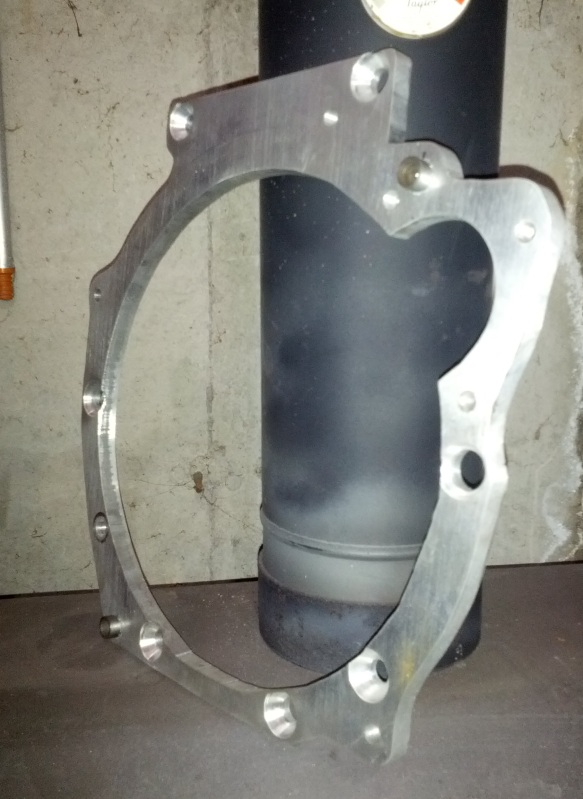

All done, 2 jig saws later:

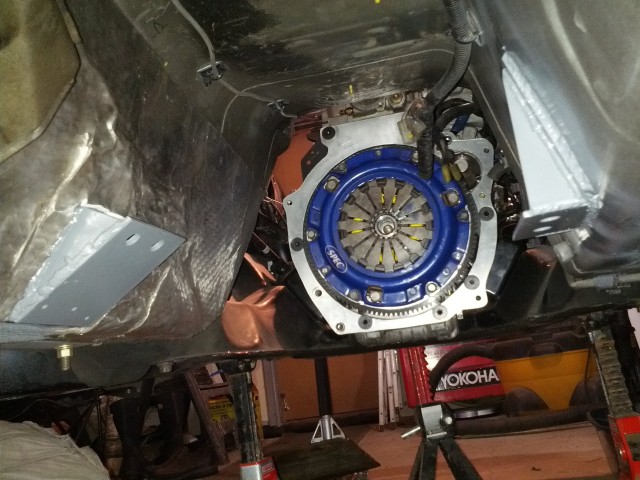

Now, after welding tranny mounts to the tunnel, everything fits as though it was meant to be that way:

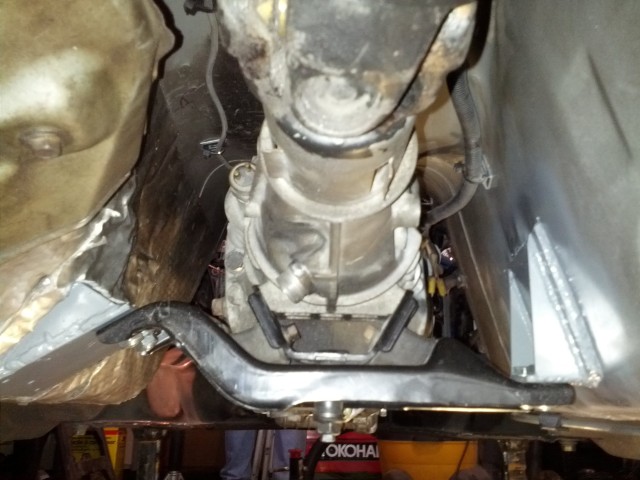

Factory RX-7 transmission mount:

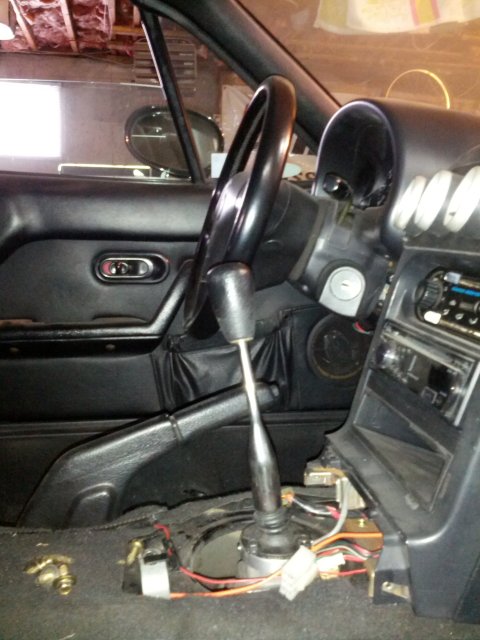

and with a mix-match of miata and rx-7 bits the shifter ends up in the stock location:


Attached Thumbnails
The custom fabrication thread! (Post pics of stuff you have made)-zji7er.jpg   The custom fabrication thread! (Post pics of stuff you have made)-2vb242d.jpg   The custom fabrication thread! (Post pics of stuff you have made)-2i6ozuf.jpg   The custom fabrication thread! (Post pics of stuff you have made)-2uyjgx0.jpg   The custom fabrication thread! (Post pics of stuff you have made)-157c8jo.jpg


Last edited by Adamsm; 03-18-2013 at 01:43 PM.
Adamsm is offline   Reply With Quote
Old 03-18-2013, 01:46 PM   #179
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,707
Total Cats: 1,078
Default

Quote:
Originally Posted by Adamsm View Post
I decided to go ahead and make my own TII adapter plate. To anyone that wants to do this, remember to measure 10 times, then measure again. Then cut.

After an hour or so of cutting it looked like this:


All done, 2 jig saws later:


Now, after welding tranny mounts to the tunnel, everything fits as though it was meant to be that way:


Factory RX-7 transmission mount:


and with a mix-match of miata and rx-7 bits the shifter ends up in the stock location:


Wait you made that in your garage? What are you doing for clutch, flyweehl, and pressure plate?
shuiend is offline   Reply With Quote
Old 03-18-2013, 01:47 PM   #180
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

One can only hope the clutch is not the one from the 3rd picture.
