Old 02-03-2010, 09:44 PM   #21
Junior Member

Join Date: Nov 2009
Location: Jax Fl
Posts: 469
Total Cats: 30
Default

^ word! ^
Tw34k is offline   Reply With Quote
Old 02-04-2010, 01:10 AM   #22
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

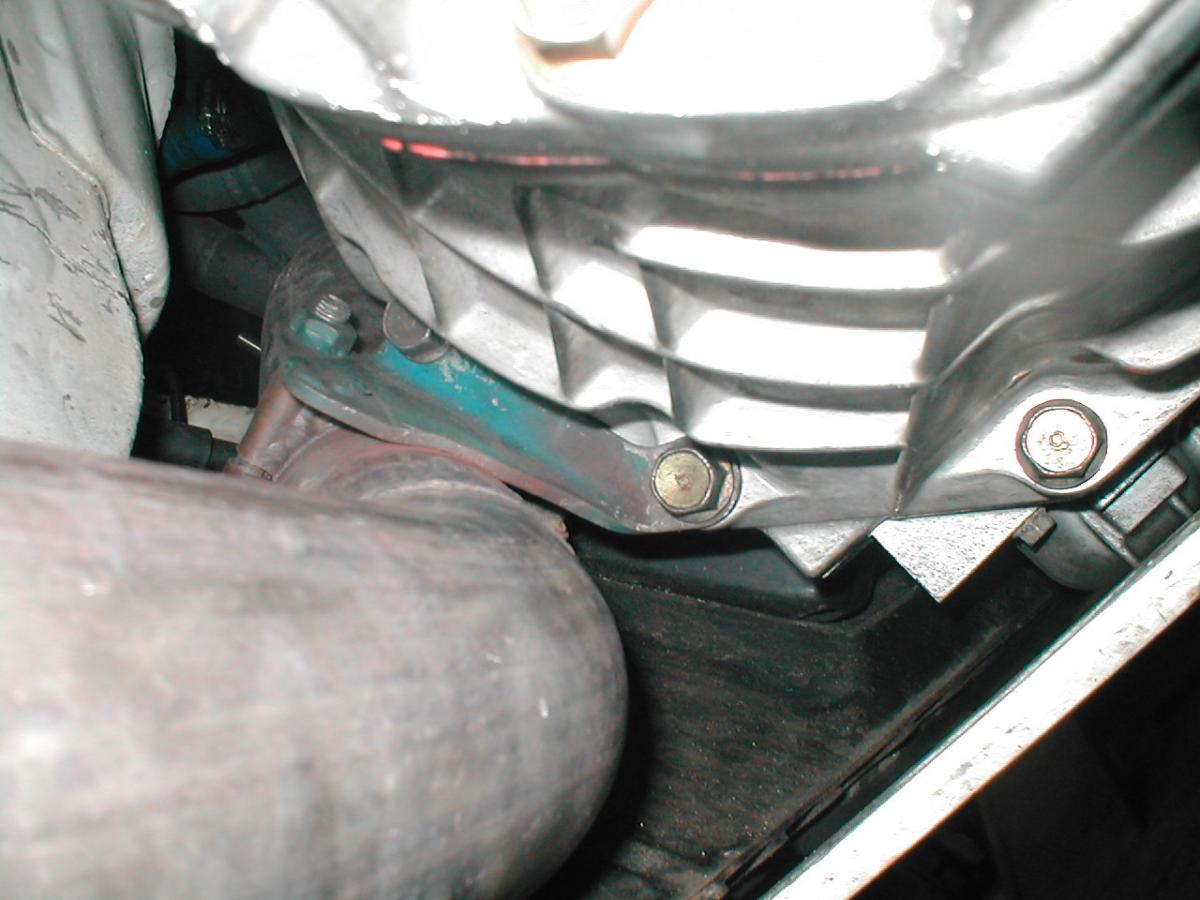

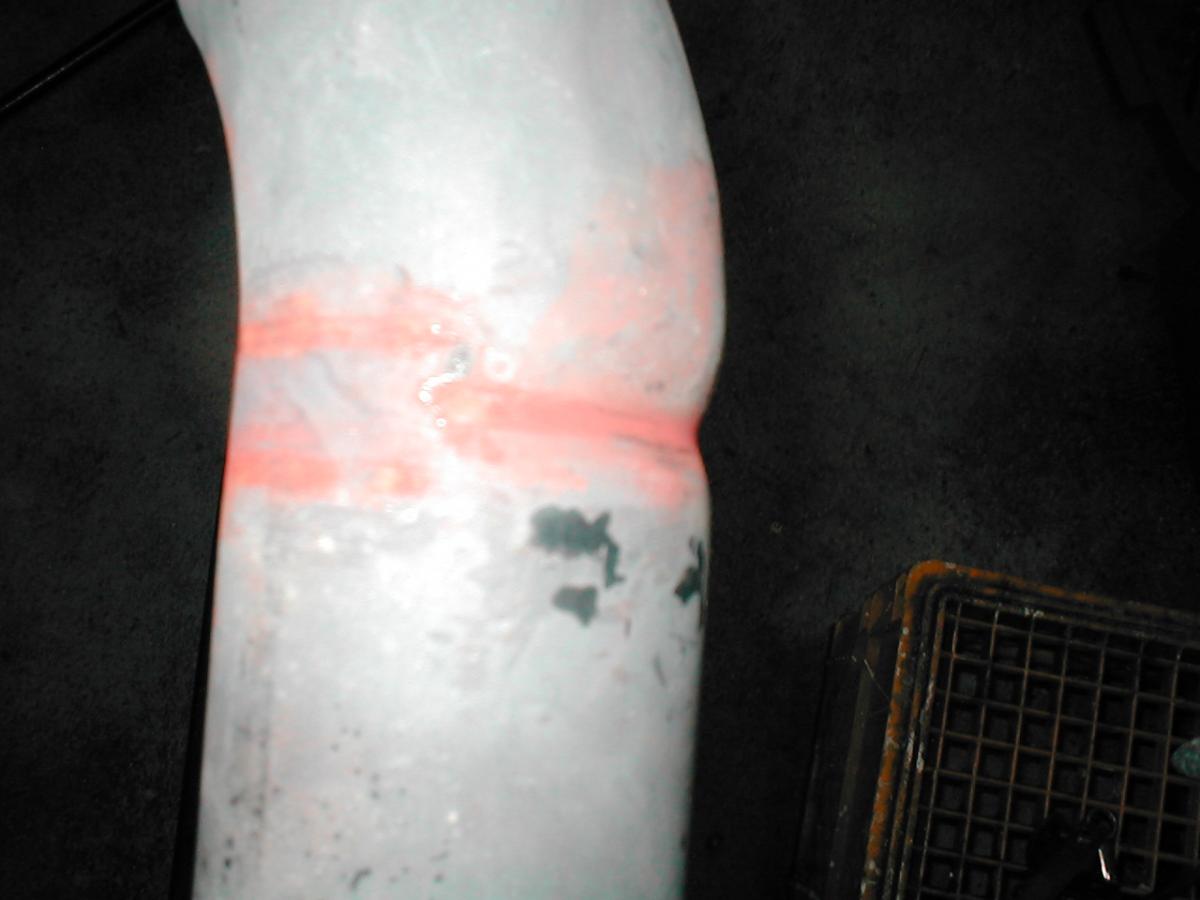

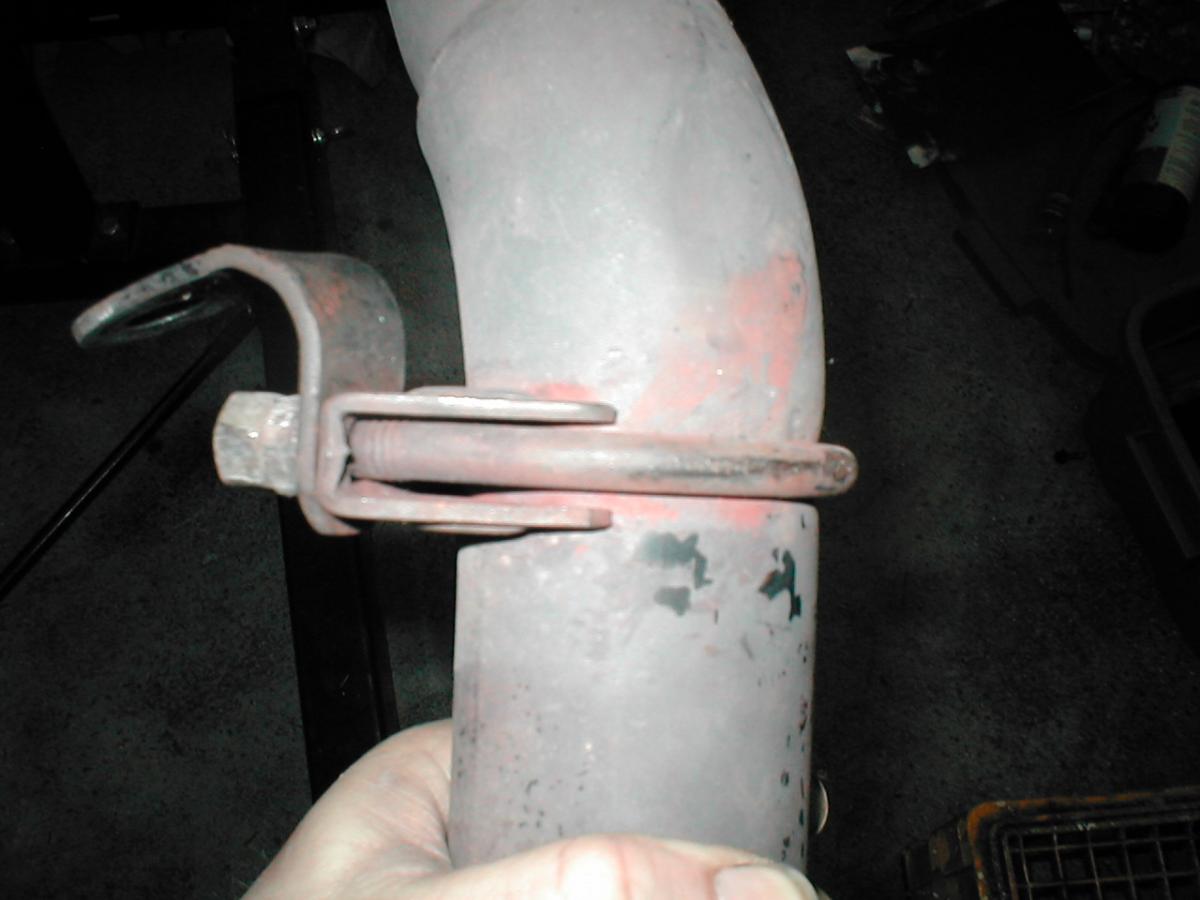

Pictures of my failed U-bolt clamp configuration. I had about 3 of those things fall off even after double nutting them. The U-bolt clamp looks the same Geometry. Even if you tried not to over tighten it would loosen up even without the nuts turning on the U-bolt. Usually it would start rattleing after some hard use. Hot pipe, thermal expansion, and external loading is just too much for the small contact area the U-bolt puts on the pipe.

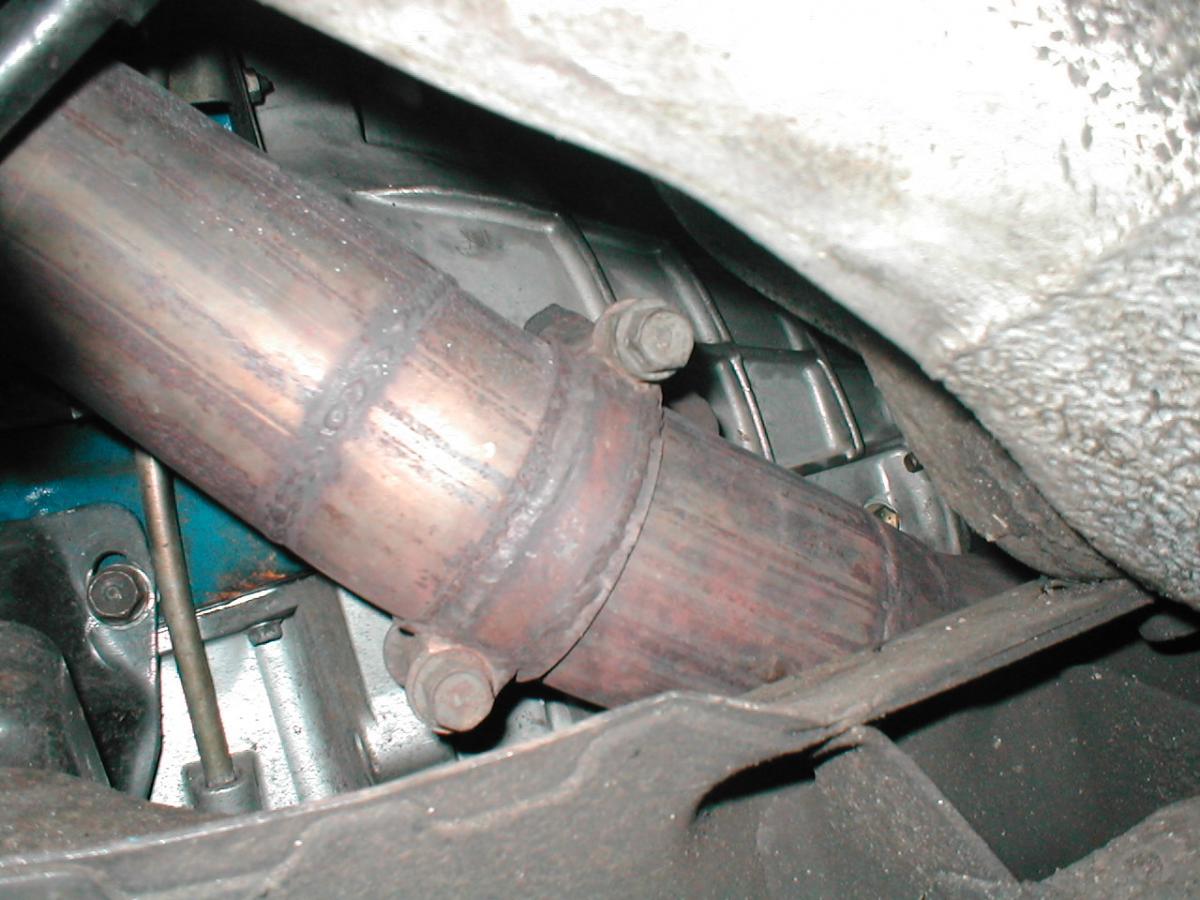

Vs. my current setup which has been on the car over 2 years driven long road trips and a large number of track days running significantly below spec Miata lap records. It has never come loose or had any problems. large contact area and the clamp ends up the pretty close to the same temperature as the pipe so they expand and contract together.

I haven’t figured out how to post big pictures that you don’t have to click on?

Bob
Attached Thumbnails
FM Exhaust Brace-p1010001.jpg   FM Exhaust Brace-p1010002.jpg   FM Exhaust Brace-p1010006.jpg   FM Exhaust Brace-p1010011.jpg
bbundy is offline   Reply With Quote
Old 02-04-2010, 01:24 AM   #23
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default what good

I'm definitely purchasing the exhaust brace for my whip.

I'm still like every time I see that v-band setup. Time machine! aha... FM is the **** though.
turotufas is offline   Reply With Quote
Old 03-03-2010, 05:30 PM   #24
Junior Member
iTrader: (1)

Join Date: Aug 2008
Posts: 373
Total Cats: 36
Default

Quote:
Originally Posted by hustler View Post
[rad pics of turbo hangers snipped]
or
AIDS!!!
Pardon the thread necromancy but hustler's pics are worth emphasizing. I really like turbo hangers to take the load off the manifold and the turbine joint. They don't however increase the resonant frequency of the system so its smart to also add a rigid brace between the turbo and the block. Otherwise vibration cracks everything to hell. Ask me how I know.
JKav is offline   Reply With Quote
Old 03-03-2010, 05:38 PM   #25
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

I always thought this would work as it ties motor/tranny/hotside together as a unit...but it was discounted for same reasons Bob posted the one other time it came up here.

Wouldn't the point that the clamp is applied make the difference in whether resonance was a factor or not? I'm thinking the distance from clamp to downpipe flange, and distance in other direction from clamp to first flex section would be critical, and need to be similar.
gospeed81 is offline   Reply With Quote
Old 04-05-2010, 12:00 PM   #26
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Wouldn't worm-gear-clamping (or something better) the exhaust to the mounting points (3 at muffler, one a little north) help? Basically tying the exhaust to the frame at those points? NVH be damned?
Faeflora is offline   Reply With Quote
Old 04-05-2010, 01:42 PM   #27
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

if you did that, the engine would still move and vibrate about on it's mounts - the exhaust wouldnt --> death to turbo/manifold joint

the entire drivetrain / all moving parts are suspended seperately from the body of the car in one way or another. The exhaust is a 'moving part' even though it might not move very much.
fooger03 is offline   Reply With Quote
Old 09-01-2010, 12:42 AM   #28
Senior Member

Join Date: May 2008
Location: Canada
Posts: 511
Total Cats: 109
Default

A datum point for everyone: I just ran a track day with the FM exhaust brace and the manifold bolts are still tight. Seems to work as advertised.
DeerHunter is offline   Reply With Quote
Old 09-01-2010, 01:02 AM   #29
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Quote:
Originally Posted by DeerHunter View Post
A datum point for everyone: I just ran a track day with the FM exhaust brace and the manifold bolts are still tight. Seems to work as advertised.
Have you participated in a similar track event without said brace with loosened manifold bolts as a result?
Full_Tilt_Boogie is offline   Reply With Quote
Old 09-01-2010, 02:58 PM   #30
Senior Member

Join Date: May 2008
Location: Canada
Posts: 511
Total Cats: 109
Default

I have, but fuel pump issues prevented me from running for any extended period. Pre-brace, the nuts did come loose during some spirited backroad bombing, so I know I wasn't immune.
DeerHunter is offline   Reply With Quote
Old 09-01-2010, 10:31 PM   #31
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by DeerHunter View Post
I have, but fuel pump issues prevented me from running for any extended period. Pre-brace, the nuts did come loose during some spirited backroad bombing, so I know I wasn't immune.
What fuel pump issues?
Faeflora is offline   Reply With Quote
Old 09-01-2010, 11:25 PM   #32
Senior Member

Join Date: May 2008
Location: Canada
Posts: 511
Total Cats: 109
Default

I installed a TRE high-pressure pump before FM figured out they suck hard. The problem was intermittent and we chased our tails for a long while before it started happening to other customer cars as well, which confirmed the actual cause. I now have a Walbro and all is fine.
DeerHunter is offline   Reply With Quote
Old 03-28-2011, 09:57 PM   #33
Elite Member
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

BFTD.

Any more experiences w/ this, regarding stud stretching/loosening?
kenzo42 is offline   Reply With Quote
Old 04-20-2011, 12:42 PM   #34
Senior Member
iTrader: (10)

Join Date: Apr 2007
Location: Ohio
Posts: 800
Total Cats: 3
Default

I'm also in for updates since I just bolted one of these up last night.
soloracer is offline   Reply With Quote
Old 04-20-2011, 12:53 PM   #35
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

I actually plan on ordering on of these today myself. Seems it cant hurt to have the extra support. I have no idea if it'll work with my ARTech 3" dp, but I can always make it work if need be.
Vashthestampede is offline   Reply With Quote
Old 04-20-2011, 12:58 PM   #36
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I used .051" safety wire to hold my exhaust at the clamp to the rear subframe to stop left/right movement. I definitely felt the shift pattern improvement at the last race, and my bumper ceased melting.
hustler is offline   Reply With Quote
