Old 11-18-2013, 11:30 PM   #321
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by Leafy View Post
these fans only have 3 pin connectors for that style. I did try driving them with this motherboard but it only wanted to drive them at what it called 100% which seemed more like 80%.
Well there's your problem.

If the fans only have 3 pins, then the motherboard cannot control their speed.

3 pin fans report their speed to the controller, but operate at 100% all the time. In other words, it's kinda BS. But your fans are operating exactly as designed- full speed all the time. The motherboard has no say in the matter.

4 pin fans report their speed and can also be controlled; a proper closed-loop system. These can be controlled from full-stop all the way to full-tilt-boogie by the motherboard, depending upon demand. The front fan in my media-center PC, for instance, is usually sitting at a dead stop. This doesn't mean it's broken, merely that it's not needed. (The load on that machine is fairly low except for when I've got an emulator fired up on it.)




Quote:
Originally Posted by Leafy View Post
And these fans do pull 0.4 amps.
200ma? 400ma? Child's play. This is utterly trivial and insignificant. Even the shittiest motherboard can easily supply 400ma to a fan. You're inventing problems that don't exist here.
Joe Perez is offline   Reply With Quote
Old 11-18-2013, 11:31 PM   #322
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Rig up a mosfet that uses mobo fan pwm but sources power from 12v from a molex?
You are *WAAAAAY* over-thinking this. The problem that Leafy is trying to solve literally does not exist.

At some point, it's necessary to stop coming up with clever solutions, and just say "No, dude, you're being a ******* retard. Read the spec sheets, and maybe you'll understand why what you're asking is total BS."
Joe Perez is offline   Reply With Quote
Old 11-18-2013, 11:33 PM   #323
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

I feel ya

I have x2 200mm fans and a 120mm fan running off my mobo.
Full_Tilt_Boogie is offline   Reply With Quote
Old 11-18-2013, 11:38 PM   #324
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by Joe Perez View Post
Well there's your problem.

If the fans only have 3 pins, then the motherboard cannot control their speed.

3 pin fans report their speed to the controller, but operate at 100% all the time. In other words, it's kinda BS. But your fans are operating exactly as designed- full speed all the time. The motherboard has no say in the matter.

4 pin fans report their speed and can also be controlled; a proper closed-loop system. These can be controlled from full-stop all the way to full-tilt-boogie by the motherboard, depending upon demand. The front fan in my media-center PC, for instance, is usually sitting at a dead stop. This doesn't mean it's broken, merely that it's not needed. (The load on that machine is fairly low except for when I've got an emulator fired up on it.)





200ma? 400ma? Child's play. This is utterly trivial and insignificant. Even the shittiest motherboard can easily supply 400ma to a fan. You're inventing problems that don't exist here.
So this is your round about way of saying I need different fans. Why cant the mobo just control the fan speeds open loop? Thats what my nifty ricer fan controller does.
Leafy is offline   Reply With Quote
Old 11-19-2013, 12:54 AM   #325
Junior Member

Join Date: Nov 2009
Location: Jax Fl
Posts: 469
Total Cats: 30
Default

Quote:
Originally Posted by Leafy View Post
So this is your round about way of saying I need different fans. Why cant the mobo just control the fan speeds open loop? Thats what my nifty ricer fan controller does.
Because they are most likely brushless and reducing controller voltage doesn't properly adjust RPM.

Think of most 3 wire fans as having a failure indicator rather than speed reporting for RPM control.
Tw34k is offline   Reply With Quote
Old 11-19-2013, 01:12 AM   #326
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

I fixed up an old keyboard that had never been cleaned. It was hella gross under the keys.



Ill post the before pics later, and my ghetto agitator I built to clean the keys.
Full_Tilt_Boogie is offline   Reply With Quote
Old 11-19-2013, 08:11 AM   #327
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

did you need your phone to remember where the keys went?
Braineack is offline   Reply With Quote
Old 11-19-2013, 09:05 AM   #328
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by Tw34k View Post
Because they are most likely brushless and reducing controller voltage doesn't properly adjust RPM.
^ This.

Pretty much every PC fan for the last 20+ years has been of a brushless DC design. Compared to a brushed motor (as used in most automotive applications), BLDC motors are highly efficient and extremely long-lived. However, you cannot control their speed by externally modulating this supply voltage.

BLDC motors contains a teeny tiny little microprocessor which controls a switching inverter to actually make the fan turn. This controller seeks a certain RPM setpoint at all times.

In a 3-wire fan, the 3rd wire is simply a tacho signal, by which the fan reports RPM to the motherboard. This is mostly used to detect the failure of a fan.

In a 4-wire fan, the 4th wire is a control signal which the motherboard sends to the controller inside the fan, to adjust the RPM setpoint.


Further reading:

http://electronics.howstuffworks.com...less-motor.htm

http://en.wikipedia.org/wiki/Brushle...electric_motor
Joe Perez is offline   Reply With Quote
Old 11-19-2013, 09:23 AM   #329
Junior Member
iTrader: (1)

Join Date: Sep 2010
Location: Scranton PA
Posts: 266
Total Cats: 4
Default

Quote:
Originally Posted by Braineack View Post


I added a case fan at the rear after I took this. but yeah, I'll replace the CPU fan.
That does not appear to be a stock AMD cooler. The cooler that came with my Phenom II was a nice 4 pin PWM fan. Either way there should be options for fan control in the bios. The hyper 212 is a nice piece though as long as it will fit into your case, it's quite tall.
duffbuster243 is offline   Reply With Quote
Old 11-19-2013, 09:33 AM   #330
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

Quote:
Originally Posted by duffbuster243 View Post
That does not appear to be a stock AMD cooler. The cooler that came with my Phenom II was a nice 4 pin PWM fan.
That's what came in the sealed AMD CPU box. Looking at other's builds with the same CPU, they look the same.

Quote:
Either way there should be options for fan control in the bios.
Even when it's running on a low-speed it's still retarded loud. It was so loud my wife in the next room was like WTF is going on? did you break it already?

Quote:
The hyper 212 is a nice piece though as long as it will fit into your case, it's quite tall.
Should fit, I'm just going to stop by microcenter on the way home and pick one up. I cant wait to ship.
Braineack is offline   Reply With Quote
Old 11-19-2013, 09:38 AM   #331
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

The hyper212 should fit in any mid tower case. Now the tuniq tower that I had on my amd, thats a bit of a squeeze in some cases, and doesnt cool any better than the hyper.

Joe, so I'm being a dick to my brushless fans by providing them with some sort of speed control externally? I do think with some creative wiring I could make these fans controlled by the mobo, since they do have their own external controller option on a separate pair of wires.
Leafy is offline   Reply With Quote
Old 11-19-2013, 09:38 AM   #332
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by duffbuster243 View Post
That does not appear to be a stock AMD cooler.

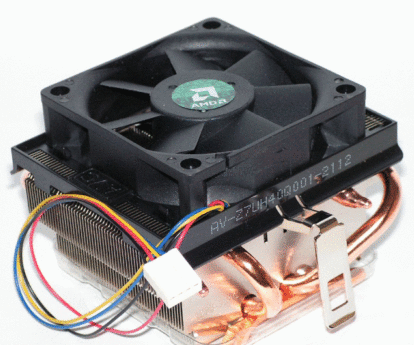

The one Brainey has is a stock AMD cooler, and it does have a 4-wire connector.




In the 3 v. 4 debate, I was addressing Leafy, who was talking about his own machine. (The one in which he was afraid the mobo couldn't source a few hundred ma to drive the fan, from the port designed specifically for the purpose of driving a fan.)


In Brainey's case, the fan is loud because AMD are a bunch of cheap-asses who stuck a cheap, undersized fan on a tiny little heatpipe cooler.
Attached Thumbnails
Another Computer Build Thread-amd-fan.gif
Joe Perez is offline   Reply With Quote
Old 11-19-2013, 09:43 AM   #333
Junior Member
iTrader: (1)

Join Date: Sep 2010
Location: Scranton PA
Posts: 266
Total Cats: 4
Talking

Quote:
Originally Posted by Braineack View Post
Even when it's running on a low-speed it's still retarded loud. It was so loud my wife in the next room was like WTF is going on? did you break it already?

HA, Sounds exactly like what my fiancée would be yelling from the next room. Such little faith in us .
duffbuster243 is offline   Reply With Quote
Old 11-19-2013, 09:58 AM   #334
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by Leafy View Post
Joe, so I'm being a dick to my brushless fans by providing them with some sort of speed control externally? I do think with some creative wiring I could make these fans controlled by the mobo, since they do have their own external controller option on a separate pair of wires.
Good luck, let us know how it goes.
Joe Perez is offline   Reply With Quote
Old 11-19-2013, 10:28 AM   #335
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,196
Total Cats: 260
Default

I'm not sure what this fan debate BS is all about.

I control my case fans with a "remote" fan speed controller.
Not sure how it works, but it does. And it has for years, at least 8 years.
Erat is offline   Reply With Quote
Old 11-19-2013, 10:29 AM   #336
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

i plug my fan in and something controls it.
Braineack is offline   Reply With Quote
Old 11-19-2013, 10:38 AM   #337
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by Erat View Post
I'm not sure what this fan debate BS is all about.

I control my case fans with a "remote" fan speed controller.
Not sure how it works, but it does. And it has for years, at least 8 years.
It is possible to throttle down 3 pin fans by limiting the current to them to the point where they start to operate in the "slip" region, sort of like how AC induction motors are throttled. This is how most of the older external fan controllers work. It gets the job done, down to the region at which the fan itself simply shuts off.

This is not how OEM designs implement fan control. They output a pwm control signal on the 4th wire, and the fan controller responds by scaling its RPM target to the control signal DC%. In this manner, RPM can be linearly scaled from 0% to 100%.


TL;DR: On method is an open-loop hack, the other is how OEMs do it.
Joe Perez is offline   Reply With Quote
Old 11-19-2013, 10:40 AM   #338
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default



That would explain why my fans need to be above 40% or they just turn off.
Attached Thumbnails
Another Computer Build Thread-more-you-know.jpg
Leafy is offline   Reply With Quote
Old 11-19-2013, 11:24 AM   #339
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

Would you install the EVO so the fan blows upward out the top of the case? or towards the rear and through the rear case fan I have installed?
Braineack is offline   Reply With Quote
Old 11-19-2013, 12:07 PM   #340
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Quote:
Originally Posted by Braineack View Post
did you need your phone to remember where the keys went?
Yeah, it was hard to remember the order of the function keys

Quote:
Originally Posted by Braineack View Post
Would you install the EVO so the fan blows upward out the top of the case? or towards the rear and through the rear case fan I have installed?

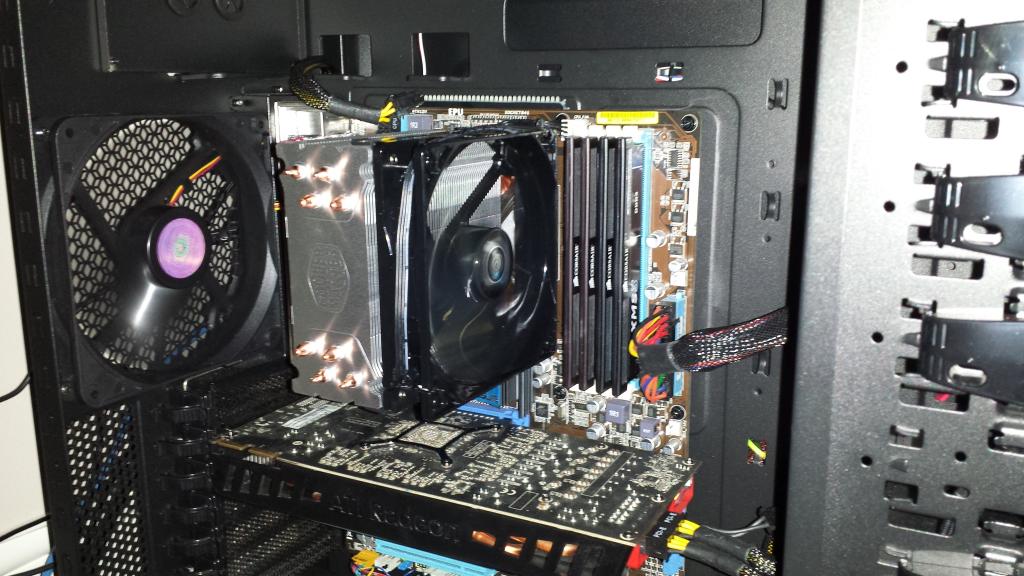

Mine is blowing out the back.
I think the only reason people put it the other way is for clearance on certain setups.

Attached Thumbnails
Another Computer Build Thread-20131110_162750_zps102c084a.jpg
Full_Tilt_Boogie is offline   Reply With Quote
