Default 90 Ecu

where is the ecu in a 1990 miata? is it under the dash and is it hard to get to? also do i have to drop my tank to put my walbro fuel pump in?
90miata is offline   Reply With Quote
Old 03-13-2007, 11:20 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

under the passenger feet, pull the carpet up and take off a few 12mm (maybe 10mm) nuts.

no, read my projects link for instructions. it's about a 15-30min job.
Braineack is offline   Reply With Quote
Old 03-13-2007, 11:40 AM   #3
Senior Member

steelrat's Avatar

Join Date: Jul 2005
Posts: 514
Total Cats: 0
Default

Brain's pointed it out....

Panel on the rear parcel shelf allows you access to the fuel pump....

ECU for the 90's is under pax floor panel under dash....

That said.... you should consider finding a workshop manual, it will help you find these things in future, and give you the right "process" for troubleshooting etc......

Dave,
steelrat is offline   Reply With Quote
Old 03-14-2007, 04:31 PM   #4
Junior Member
Thread Starter

Join Date: Nov 2006
Location: willmar, MN
Posts: 66
Total Cats: 0
Default

is there a pax floor on the rear shelf for the fuel pump to cause i took out the push clips for the carpet and pulled that back and its all isolation
90miata is offline   Reply With Quote
Old 03-14-2007, 04:49 PM   #5
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Pull up the insulation and remove the plate behind the driver seat(USA Model)
olderguy is offline   Reply With Quote
Old 03-14-2007, 05:20 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

read Sam's writeup:

Braineack is offline   Reply With Quote
Old 03-14-2007, 06:48 PM   #7
Junior Member
Thread Starter

Join Date: Nov 2006
Location: willmar, MN
Posts: 66
Total Cats: 0
Default

yea i know but the isolation is like stuck on there and then theres like a big metal plate like the one over the ecu thats what i dont get
90miata is offline   Reply With Quote
Old 03-14-2007, 06:54 PM   #8
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

yeah gotta watch out for that isolation. it's a bitch.
Ben is offline   Reply With Quote
Old 03-15-2007, 12:53 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by 90miata View Post
yea i know but the isolation is like stuck on there and then theres like a big metal plate like the one over the ecu thats what i dont get


rip that junx up, and unscrew the panel. unplug the wires and hoses, unscrew the pump, rip it off, cut the tube, fit the new one, clamp the hose, reinstall.
Braineack is offline   Reply With Quote
Old 03-15-2007, 11:26 AM   #10
Junior Member
Thread Starter

Join Date: Nov 2006
Location: willmar, MN
Posts: 66
Total Cats: 0
Default

yea i guess haha thanks guys
90miata is offline   Reply With Quote
Old 03-15-2007, 05:03 PM   #11
Junior Member
Thread Starter

Join Date: Nov 2006
Location: willmar, MN
Posts: 66
Total Cats: 0
Default

one more question what panel is the pump under..
90miata is offline   Reply With Quote
Old 03-15-2007, 05:08 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

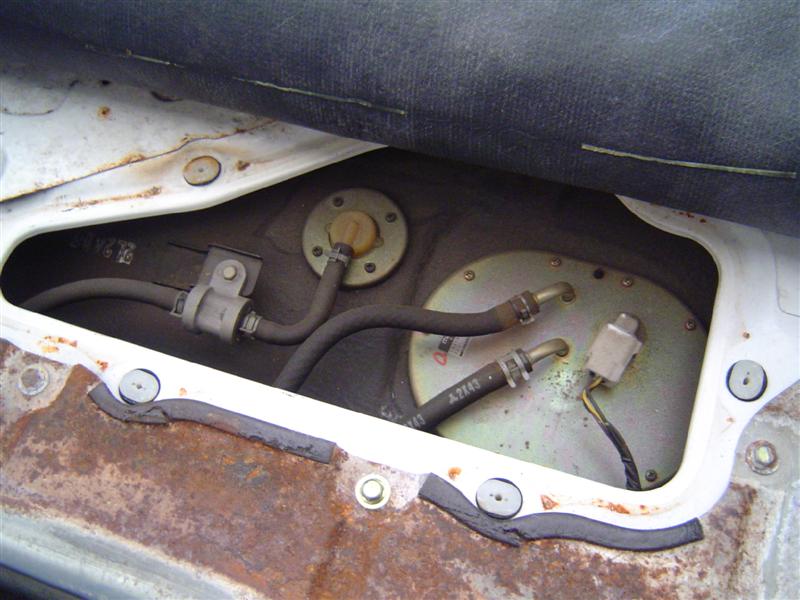

its the panel with the return and feed line and electrical connection.

Braineack is offline   Reply With Quote
Old 03-15-2007, 05:10 PM   #13
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by 90miata View Post
one more question what panel is the pump under..
uhm, isn't there only ONE
Ben is offline   Reply With Quote
Old 03-16-2007, 09:06 PM   #14
Junior Member
Thread Starter

Join Date: Nov 2006
Location: willmar, MN
Posts: 66
Total Cats: 0
Default

another problem im having guys haha i hooked up the safc up and works for little bit then the screen goes dead the buttons all lite up but not the screen is it because its not reading andy sensors because the motor isnt in!?that the screen goes out?
90miata is offline   Reply With Quote
Old 03-16-2007, 09:14 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

talk to magnamx5
Braineack is offline   Reply With Quote
Old 03-17-2007, 02:35 PM   #16
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

here i am. Ok i pmed you lemme know if it is any help if it isnt ill get my head under the dash of mine and into the instruction book to help you with this.

Wow you guys have realy rusty fuel tank covers :gay:
magnamx-5 is offline   Reply With Quote
Old 03-17-2007, 03:05 PM   #17
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Q: I just purchased and installed my unit. Unfortunately the VFD screen does not light up. The arrow keys do light up. What is the problem?
A: Although there can be many factors to this, there are three probable reasons for this situation. 1- During installation, the unit was either wired incorrectly or shorted. Electrical shorts can happen in an instant without any noticeable signs. Please be careful. Once the unit has been shorted, there is nothing that A'PEX can do to repair the unit. It must be replaced or purchased again. 2- Make sure that both grounds have been properly connected. 3- Although rare, the units are mass produced in large quantities and defects can happen. If the steps above do not correct the situation, kindly repack the unit with all original components and return the unit to the dealer of purchase accompanied with original receipt (Required to process requests). Warranty claims for electronics must be made within 30 days of purchase.
from safc website but i still think you have a ground issue.
magnamx-5 is offline   Reply With Quote
Old 03-17-2007, 08:16 PM   #18
Junior Member
Thread Starter

Join Date: Nov 2006
Location: willmar, MN
Posts: 66
Total Cats: 0
Default

guys it was the brown ground it must of got lose in the splice
