Default Aftermarket door card opinions

I'm not a fan of the OEM door cards/panels. I've seen a variety of replacements out there, some made from aluminum. Has anyone purchased them and--if so--can you recommend a certain product?
VRRMPSH is offline   Reply With Quote
Old 12-23-2015, 11:44 PM   #2
Junior Member

Join Date: Jul 2013
Location: TX
Posts: 319
Total Cats: -12
Default

LRB Speed and JDSM make 'em.

I've seen the JDSM in person. Looks pretty simple
ihiryu is offline   Reply With Quote
Old 12-24-2015, 11:49 AM   #3
Senior Member

Join Date: May 2011
Posts: 549
Total Cats: 56
Default

make them yourself. I made a set using NA upper door bumpers and abs door cards for my 10ae. I'm sure you've seen photo's as they always surface in a door card thread before too long.

Very very easy and overall cheap.
EErockMiata is offline   Reply With Quote
Old 12-24-2015, 02:20 PM   #4
Junior Member

Join Date: Jul 2013
Location: TX
Posts: 319
Total Cats: -12
Default

Pacman99 used the stock NB tops
ihiryu is offline   Reply With Quote
Old 12-24-2015, 02:35 PM   #5
Senior Member

Join Date: May 2011
Posts: 549
Total Cats: 56
Default

Quote:
Originally Posted by ihiryu View Post
Pacman99 used the stock NB tops

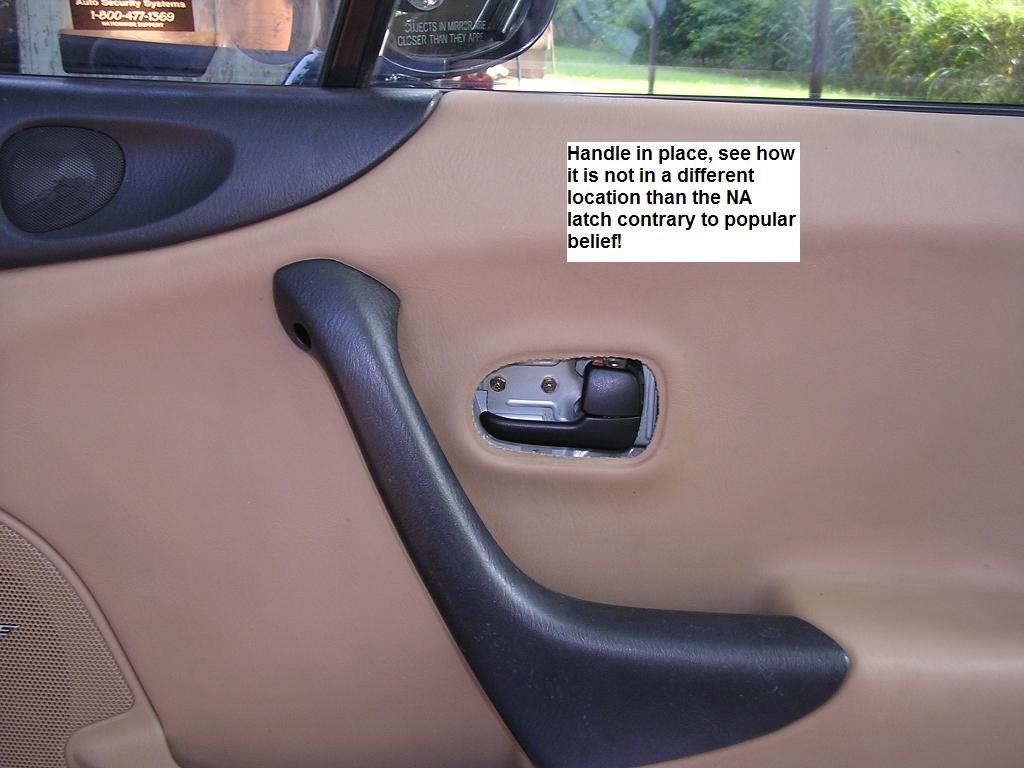

True... I explored that route when I did mine but I did not like how the NB door cards do not return properly to the flat door card material when cut. You end up with a 1/4" gap where the two meet and it bothered me.



It's all because of this molding in the NB door card. If it went in just 1/4" more it would be perfect.
Attached Thumbnails
Aftermarket door card opinions-11442230144_e93df136ac_b.jpg   Aftermarket door card opinions-nbpanel6.jpg
EErockMiata is offline   Reply With Quote
Old 12-25-2015, 12:07 PM   #6
Junior Member

Join Date: Jul 2013
Location: TX
Posts: 319
Total Cats: -12
Default

So did you go with the NA tops then?
ihiryu is offline   Reply With Quote
Old 12-25-2015, 12:37 PM   #7
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default

Quote:
Originally Posted by EErockMiata View Post
make them yourself. I made a set using NA upper door bumpers and abs door cards for my 10ae. I'm sure you've seen photo's as they always surface in a door card thread before too long.

Very very easy and overall cheap.
Quote:
Originally Posted by ihiryu View Post
So did you go with the NA tops then?
...
aidandj is offline   Reply With Quote
Old 01-03-2016, 05:52 PM   #8
Newb

Join Date: Sep 2015
Posts: 5
Total Cats: 0
Default

Im not sure how hard it is for the nb but for my na i figured it was cheaper to make replacements instead of spending the money on "store bought" cards.
dougfunny is offline   Reply With Quote
Old 01-03-2016, 06:10 PM   #9
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,560
Default Aftermarket door card opinions

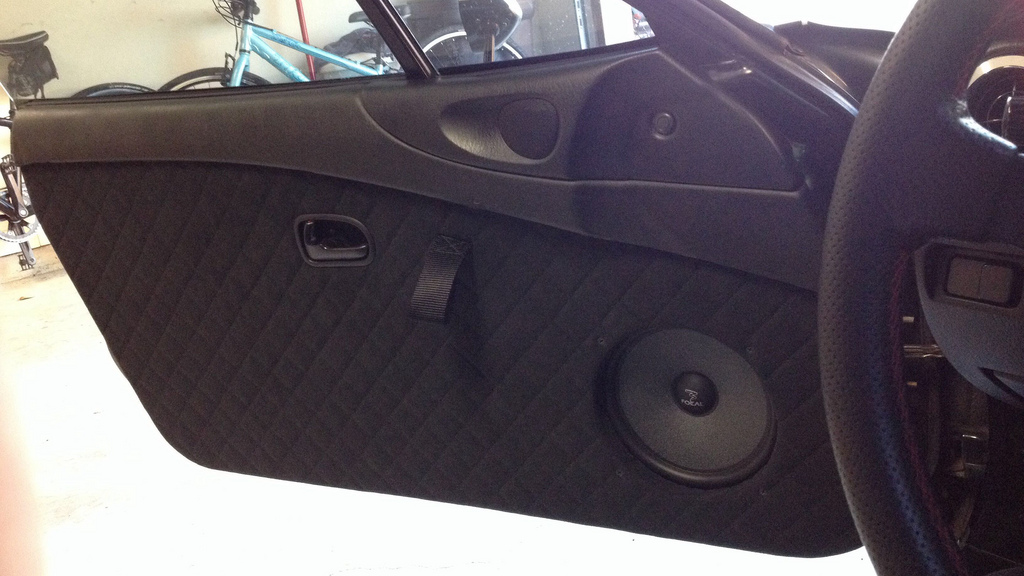

Flat diamond pattern panels like the black one are very easy and very cheap to make. You just sew some material over batting or foam with some backing material and stretch it over cardboard or abs that has been cut in the proper shape. A little spray glue to hold it down and you are good.

Some material comes already fused to foam in a pattern.
sixshooter is offline   Reply With Quote
Old 01-08-2016, 03:47 PM   #10
Newb

Join Date: Sep 2015
Posts: 5
Total Cats: 0
Default

I used the foam padding you use under the floating hardwood floors.. Right from lowes.. Works awesome but it only comes in big rolls
dougfunny is offline   Reply With Quote
