Old 12-22-2015, 05:38 PM   #21
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,926
Default

Space permitting, there's no reason you can't run two air filters.

In for complexity.
Joe Perez is offline   Reply With Quote
Old 12-22-2015, 05:51 PM   #22
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by Joe Perez View Post
Space permitting, there's no reason you can't run two air filters.

In for complexity.
Where do I get some more space?

Air filter is in the drivers side bumper cover right now. I'd try installing another if there was space... Maybe I'll pull the bumper cover and look, but I don't think that's possible, without a large order of complexity.
patsmx5 is offline   Reply With Quote
Old 12-22-2015, 06:49 PM   #23
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,926
Default

Quote:
Originally Posted by patsmx5 View Post
Where do I get some more space?

Attached Thumbnails
Amsoil Air filter pressure drop tested-Need better air filter-80-image_20584_ac05aa0ebbfb7e9b6a82a2298fdeffc7cfbe0f10.jpg
Joe Perez is offline   Reply With Quote
Old 12-23-2015, 11:53 PM   #24
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by patsmx5 View Post
...

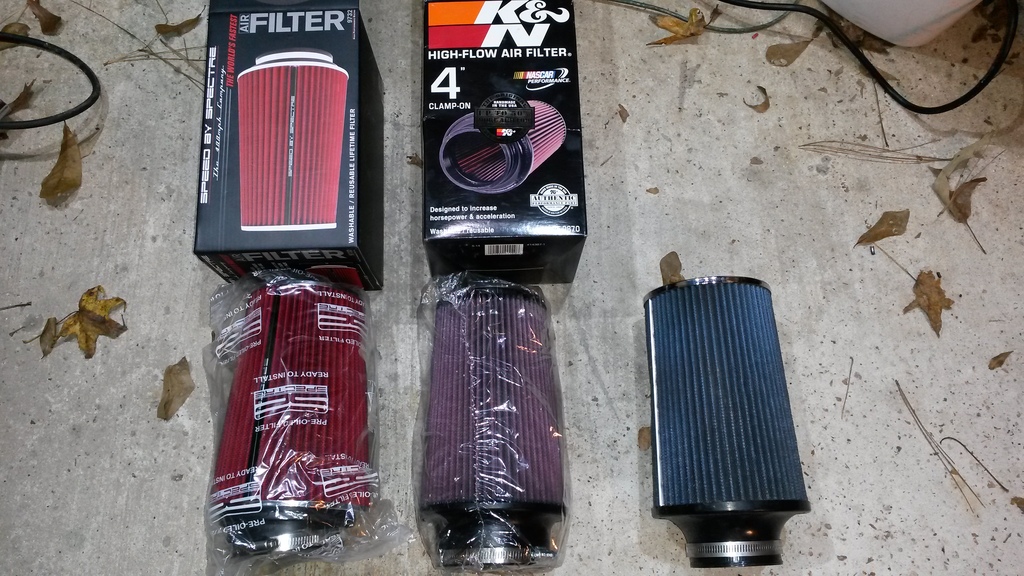

Absolutely will be testing at least a K&N of similar size, and probably the one Eric linked if I can find it locally.
Attached Thumbnails
Amsoil Air filter pressure drop tested-Need better air filter-20151223_214209_zps5j7jetsz.jpg
patsmx5 is offline   Reply With Quote
Old 12-23-2015, 11:55 PM   #25
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Awesome! You really should do one no filter to get a baseline. I'm curious how much vacuum an open pipe has. Because velocity stacks exist for a reason. Whatever it may be.
aidandj is offline   Reply With Quote
Old 12-24-2015, 12:09 AM   #26
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

All of these filters have a bellmouth/velocity stack shape on the inlet of the air filter. Due to the location of my air intake (in the bumper, immediately in front of the drivers side tire) I'm not driving this thing without an airfilter. One tiny piece of debris can trash this SC, and it cost more than an EFR.
patsmx5 is offline   Reply With Quote
Old 12-24-2015, 09:30 AM   #27
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

In for results. I'd love to see a no filter run too. I see tons of crazy builds running with no filter and it seems like half the daily driven honda's around here have their no filter intake plumbed right through the bumper or headlight. It can't be that risky to make one quick pull, but I guess I can't blame you for not wanting to try it.
pdexta is offline   Reply With Quote
Old 12-24-2015, 10:36 AM   #28
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,199
Total Cats: 260
Default

Well, that K&N is an oiled filter so i suspect that will be the worst of all. But it will also catch the most gunk.

Speaking of, i should pull mine off my car and clean it.
Erat is offline   Reply With Quote
Old 12-24-2015, 11:00 AM   #29
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 951
Total Cats: -252
Default

Ditch the filter and use some (new) women's pantyhose instead.
wannafbody is offline   Reply With Quote
Old 12-24-2015, 11:37 AM   #30
Junior Member

Join Date: Jan 2015
Posts: 272
Total Cats: -22
Default

Quote:
Originally Posted by wannafbody View Post
Ditch the filter and use some (new) women's pantyhose instead.
$10 says pantyhose (maybe even a screen) is more of a restriction than the original filter. The surface area on the filters pictured is huge.
Alternative is offline   Reply With Quote
Old 12-24-2015, 01:22 PM   #31
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

^ He kids . . . he kids.

Seriously Pat, hit the dyno and give us some real A/B data?
hornetball is offline   Reply With Quote
Old 12-24-2015, 02:58 PM   #32
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by hornetball View Post
^ He kids . . . he kids.

Seriously Pat, hit the dyno and give us some real A/B data?
I will be datalogging the pressure drop across the filter, and the boost level at the intake manifold. That will tell me if the air filter flow changes, which is what I'm measuring. Don't need a dyno to see the airflow change. A less restrictive filter will result in less pressure drop at the filter, and more boost at the intake manifold. I'll have that data soon. I don't need a dyno to tell me that more airflow will make more power.
patsmx5 is offline   Reply With Quote
Old 12-25-2015, 03:34 PM   #33
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Test done, data is in.

Observation: K&N filter material visually has larger holes in it than the Spectre. However, the Spectre has more fins, and has a filter that is recessed into the end of the filter for added filter area. Amsoil filter has the recessed filter too, though it is a lot larger on the Amsoil.

Air/Fuel ratios changes as expected, the filter that flowed the most air resulted in the leanest AFR, filter that flowed the least was the richest.

Conclusion: Spectre air filter shows the least restriction of the three air filters tested.

While the Spectre filter does flow well, it still falls to 85kPa at 7,000 RPMs. So... I might do a dual air filter setup one day, but not now. Have to buy the sawzall Joe linked before I can think of doing that.

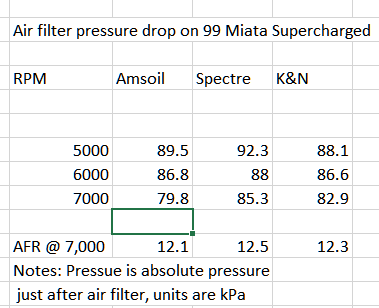

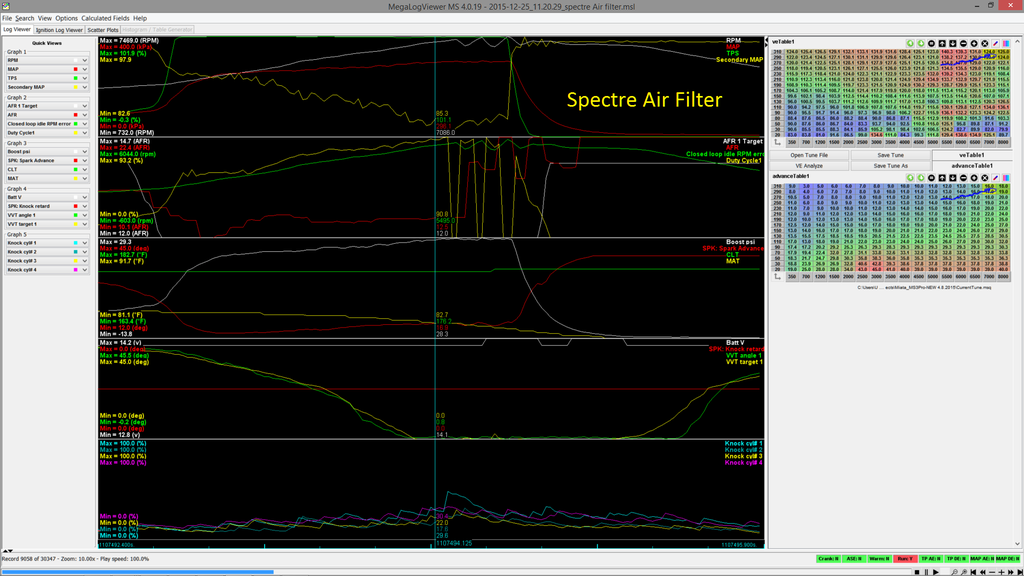

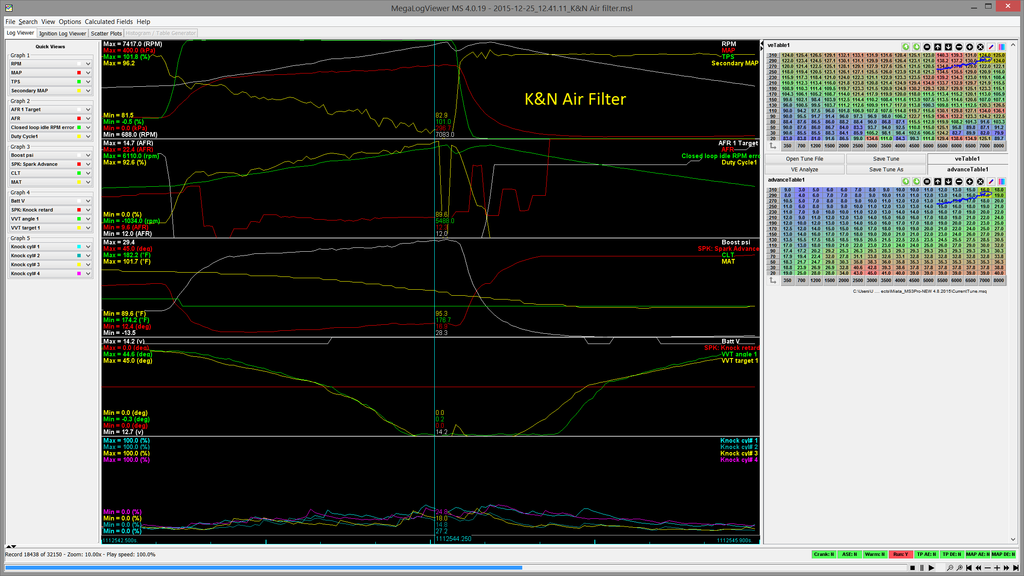

Data (Amsoil data in first post, Spectre and K&N below)





Attached Thumbnails
Amsoil Air filter pressure drop tested-Need better air filter-pressure%2520drop_zpsj8knurve.png   Amsoil Air filter pressure drop tested-Need better air filter-spectre_zpsur1kcgwp.png   Amsoil Air filter pressure drop tested-Need better air filter-kampn_zpsxlcgroms.png
patsmx5 is offline   Reply With Quote
Old 12-25-2015, 03:43 PM   #34
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Also I now have a fitting installed in the supercharger inlet manifold (between the SC inlet and the throttle body) so next I'm going to measure the pressure drop at the actual SC inlet itself. That will show me to total pressure loss upstream of the SC, including the throttle, bends, pipe, filter.
patsmx5 is offline   Reply With Quote
Old 12-25-2015, 05:16 PM   #35
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,038
Total Cats: 157
Default

You're welcome again
TNTUBA is offline   Reply With Quote
Old 12-25-2015, 05:59 PM   #36
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

I just finished a car with a K&N filter, cone shaped dimensions:

2.25" outlet
3.5" Base diameter
2" cone tip diameter
4" total length

Its frikking tiny, but it made 250whp just fine.

Just saying.
nitrodann is online now   Reply With Quote
Old 12-25-2015, 07:18 PM   #37
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by patsmx5 View Post
Also I now have a fitting installed in the supercharger inlet manifold (between the SC inlet and the throttle body) so next I'm going to measure the pressure drop at the actual SC inlet itself. That will show me to total pressure loss upstream of the SC, including the throttle, bends, pipe, filter.
I did this with the Spectre filter. At the same 7,000 RPM the pre-sc inlet pressure is 83.3kPa while the pressure at the air filter is 85.3kPa. So 2 kPa loss for all bends, pipe, and throttle body. Not too bad. At 5,000 RPM is shows the same 2kPa difference too. Air filter is clearly the major loss in the system. So one day, I'll try a dual air filter intake but I'm not up to fabbing that anytime soon.

Thanks Eric for your help.

Dan, what are you just saying? I bet I could put that same filter on my setup and make 250whp too, so what? I've proven my car both benefits from more air, and needs a better air filter to increase the top end power.
patsmx5 is offline   Reply With Quote
Old 12-25-2015, 08:27 PM   #38
Junior Member

Join Date: Jan 2015
Posts: 272
Total Cats: -22
Default

If the Spectre has the metal cap on the End of the filter Keep an eye on it, they have had problems comming apart.

The shiny cap in the middle.
http://www.pepboys.com/product/details/9291232/
Alternative is offline   Reply With Quote
Old 12-25-2015, 08:32 PM   #39
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Quote:
Originally Posted by Alternative View Post
If the Spectre has the metal cap on the End of the filter Keep an eye on it, they have had problems comming apart.

The shiny cap in the middle.
http://www.pepboys.com/product/details/9291232/
Yanks shop had a car lose an engine to a cheap filter cap getting sucked in. Company ended up paying for the rebuild.
aidandj is offline   Reply With Quote
Old 12-25-2015, 08:35 PM   #40
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,854
Total Cats: 271
Default

I never thought I'd see the day Spectre filters being taken seriously

Interesting results.
Girz0r is offline   Reply With Quote
