There's also this option:

Fab9Tuning Brake Booster Delete/Tuck Kit
jpreston is offline   Reply With Quote
Old 04-01-2016, 12:37 PM   #702
Supporting Vendor
Thread Starter
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,746
Total Cats: 50
Default

Quote:
Originally Posted by jpreston View Post
as much as i respect fab9's work, and they have some very nice stuff. you really want to increase the pedal ratio to somewhere in the 5.75:1. stock pedal ratio is 4:1

with a single master cylinder unit you need to pinch off or kill the rear line pressure with a prop valve to balance the system. when we are talking about manual brakes it's hard enough to generate line pressure. that and dual MC's provide a safety catch of two separate cells. so if you have a failure in one, the other is still able to function to slow the vehicle.
OGRacing is offline   Reply With Quote
Old 04-01-2016, 12:40 PM   #703
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 827
Total Cats: 79
Default

Yeah, they claim that increasing the pedal ratio on their setup isn't that much side load on the master. But that's sketchy, something like that should have virtually no side load.
acedeuce802 is offline   Reply With Quote
Old 04-01-2016, 12:42 PM   #704
Supporting Vendor
Thread Starter
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,746
Total Cats: 50
Default

Quote:
Originally Posted by acedeuce802 View Post
Yeah, they claim that increasing the pedal ratio on their setup isn't that much side load on the master. But that's sketchy, something like that should have virtually no side load.
i agree, side load on masters is a bad idea. it just means that eventually it will fail (like all things mechanical). hopefully you can catch it when it does.
OGRacing is offline   Reply With Quote
Old 04-01-2016, 06:20 PM   #705
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,792
Total Cats: 337
Default

Quote:
Originally Posted by jpreston View Post
Anything that has the word "tuck" in the product description is not a track part.

--Ian
codrus is offline   Reply With Quote
Old 04-01-2016, 06:31 PM   #706
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

You can find electric vac assist pumps, like around $60. I think they even have pressure switches, so they won't run all the time. Wonder if that would make things more linear?
deezums is offline   Reply With Quote
Old 04-01-2016, 11:51 PM   #707
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,803
Total Cats: 424
Default

Quote:
Originally Posted by codrus View Post
Anything that has the word "tuck" in the product description is not a track part.

--Ian
bingo.
ThePass is offline   Reply With Quote
Old 04-04-2016, 09:35 AM   #708
Supporting Vendor
Thread Starter
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,746
Total Cats: 50
Default

Quote:
Originally Posted by sixshooter View Post
Than an empty coffee can?
it has mass. i'll need to weigh all the brackets, steel pedals, linkages and stuff. it adds up and replacing it all with a cast aluminum housing that under 5 lbs.
OGRacing is offline   Reply With Quote
Old 04-04-2016, 02:24 PM   #709
Senior Member
iTrader: (3)

Join Date: Oct 2008
Location: Indianapolis
Posts: 613
Total Cats: 12
Default

I haven't read all 707 posts on this thread, but I'm having issues with Russell front brake lines touching the wheels when they are at full lock. Any suggestions? I tried adjusting the banjo to different positions with no luck
btabor is offline   Reply With Quote
Old 04-04-2016, 04:39 PM   #710
Junior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 201
Total Cats: 11
Default

Thanks for the quick and awesome replies!

I have considered a vacuum canister, and have even looked into tee-ing off of my crank case vacuum pump (no, it is not Swedish! Racing Vacuum Pumps from GZ Motorsports ). At the end of the day, I want things simple and reliable. Less weight, fewer points of failure. I'd happily get rid of the vacuum pump, but it is very effective and necessary in my setup. Anyway...

Quote:
Originally Posted by OGRacing View Post
i can size your mc just shot me everything. i need to know your caliper piston sizes, rotor size, pad swept area, and what pedal box your want to go with.

Pedals
I am open to suggestions on pedals.

I'm looking at Tilton 600 series, aluminum, firewall mount.

Wilwood's Tru-Bar pedals seem interesting, but my gut tells me to stick with Tilton.
Tilton 900 look awesome, but the price. Wow!

As things stand, I'd go with the Tilton 600's, which have an adjustable pedal ratio from 5.0 - 6.2:1

Caliper Piston Sizes & Quantity:
I'm using Wilwood DynaPro Radial Mount calipers, front, four 1.38" pistons each, fixed mount.
Rear calipers are stock 1.8 single 1.25" piston, floating.

Rotor Sizes:
Front 11.75" Curved vane.
Rear 10.9", solid (OEM "Sport Brake")

Swept Area:
According to my rough math:
11.75" Diameter Rotor, 1.625" pad height, swept area of each side of each front rotor is 52.75 square inches.
10.9" Diameter Rotor, 1.125" pad height, swept area of each side of each rear rotor is 34.55 square inches.

So what would be your recommendation for f/r master sizes?

Thanks,

Will
Attached Thumbnails

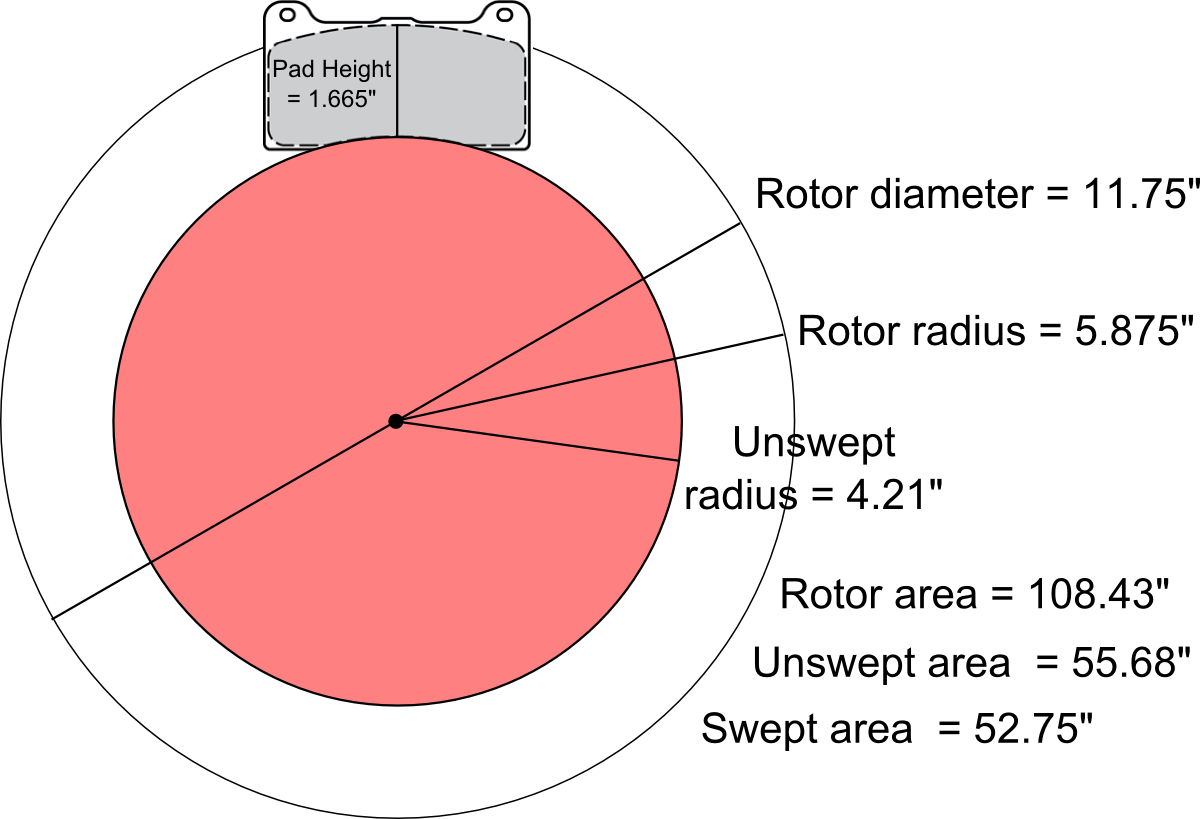

Anyone have any brake questions?-swept_area_calc.png
wildo is offline   Reply With Quote
Old 04-04-2016, 05:23 PM   #711
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,237
Total Cats: 1,481
Default

sixshooter is online now   Reply With Quote
Old 04-04-2016, 08:47 PM   #712
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

Quote:
Originally Posted by OGRacing View Post
that and dual MC's provide a safety catch of two separate cells. so if you have a failure in one, the other is still able to function to slow the vehicle.
I really wish it worked like that. I can say from experience when you forgot to bleed the rear circuit on a dual master car it doesnt really stop. The balance bar just flops over to the side with no resistance and then the pedal assembly binds up and you get nearly no front brake pressure and then you nearly run someone over puttering out of the paddock.
Leafy is offline   Reply With Quote
Old 04-04-2016, 10:51 PM   #713
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,803
Total Cats: 424
Default

Quote:
Originally Posted by Leafy View Post
I really wish it worked like that. I can say from experience when you forgot to bleed the rear circuit on a dual master car it doesnt really stop. The balance bar just flops over to the side with no resistance and then the pedal assembly binds up and you get nearly no front brake pressure and then you nearly run someone over puttering out of the paddock.
Which pedal assembly were you using?
ThePass is offline   Reply With Quote
Old 04-04-2016, 10:53 PM   #714
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

Quote:
Originally Posted by ThePass View Post
Which pedal assembly were you using?
Wilwood High-Performance Disc Brakes - Pedals - Floor Mount Brake Pedal
Leafy is offline   Reply With Quote
Old 04-05-2016, 06:42 AM   #715
ʎpunq qoq

Join Date: Jan 2014
Location: Western Australia
Posts: 485
Total Cats: 96
Default

Have a look at my thread on deleting the brake booster. I'm running dual masters modified into the stock pedal with an adjustable balance bar.

My setup is similar to yours with 200whp N/A and basically my brake booster would fluctuate under brakes due to the massive cams. The logs showed the brake pressure changing as I blipped down through the gears and you could feel it in the pedal.

Changing to the dual masters, even with the stock pedal ratio, fixed the fluctuations under brakes, plus the adjustable balance bar adjustable on the track is awesome.

I was driving home from my last event and I realised I hadn't thought about brakes the entire weekend. The feel is consistent and controllable and it's a very easy mod.

Do you get any oil pressure dips under brakes?
Madjak is offline   Reply With Quote
Old 04-05-2016, 07:07 AM   #716
ʎpunq qoq

Join Date: Jan 2014
Location: Western Australia
Posts: 485
Total Cats: 96
Default

Quote:
Originally Posted by Leafy View Post
I really wish it worked like that. I can say from experience when you forgot to bleed the rear circuit on a dual master car it doesnt really stop. The balance bar just flops over to the side with no resistance and then the pedal assembly binds up and you get nearly no front brake pressure and then you nearly run someone over puttering out of the paddock.
The balance bar I'm using has stops. I tested it on the road with air in the rear line and the fronts could be locked. I'm not sure on the brand but it has little wings either side of the pivot ball that limits the angle on the bar to 20 degrees or so... enough that it bottoms out before the pedal hits the floor.

It does make bleeding the brakes a little harder though as you are limited by the other side. You have to bleed both front and rear together.
Madjak is offline   Reply With Quote
Old 04-05-2016, 11:21 AM   #717
Supporting Vendor
Thread Starter
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,746
Total Cats: 50
Default

Quote:
Originally Posted by wildo View Post
Thanks for the quick and awesome replies!

I have considered a vacuum canister, and have even looked into tee-ing off of my crank case vacuum pump (no, it is not Swedish! Racing Vacuum Pumps from GZ Motorsports ). At the end of the day, I want things simple and reliable. Less weight, fewer points of failure. I'd happily get rid of the vacuum pump, but it is very effective and necessary in my setup. Anyway...




Pedals
I am open to suggestions on pedals.

I'm looking at Tilton 600 series, aluminum, firewall mount.

Wilwood's Tru-Bar pedals seem interesting, but my gut tells me to stick with Tilton.
Tilton 900 look awesome, but the price. Wow!

As things stand, I'd go with the Tilton 600's, which have an adjustable pedal ratio from 5.0 - 6.2:1

Caliper Piston Sizes & Quantity:
I'm using Wilwood DynaPro Radial Mount calipers, front, four 1.38" pistons each, fixed mount.
Rear calipers are stock 1.8 single 1.25" piston, floating.

Rotor Sizes:
Front 11.75" Curved vane.
Rear 10.9", solid (OEM "Sport Brake")

Swept Area:
According to my rough math:
11.75" Diameter Rotor, 1.625" pad height, swept area of each side of each front rotor is 52.75 square inches.
10.9" Diameter Rotor, 1.125" pad height, swept area of each side of each rear rotor is 34.55 square inches.

So what would be your recommendation for f/r master sizes?

Thanks,

Will

with the caliper pistons being as tiny as it is i see a requirement for a .625 =5/8 master cylinders. on front and rear. this will net a requirement for the MC's travel to be 11mm your pedal will need to travel 40.25mm. make sure you have enough room.
OGRacing is offline   Reply With Quote
Old 04-05-2016, 11:32 AM   #718
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 805
Total Cats: 44
Default

Maybe one day when I get better at driving I will do some of these things, but you guys definitely know your stuff. Reading lots of goodies here.

I was mentally sold on PFC pads until I realized they didn't come in my Sport size, needed something better for the season but couldn't spend on BBK, and figured a lot of people run Carbotech stuff so it should be fine for me, a novice driver, albeit in a powerful car on sticky tires, but also not on a very brake intensive track. I got Centric blank rotors, G-Loc R12/10 pads, and Singular 2.5" ducts to keep things cool. Something I could afford to do, because a BBK with new PFC pads, and ducts would have cost me 2x more than the above, and that's before rear brakes.

I figure I'll probably wear the brakes out until I learn to drive fast enough to really need another set, at which point I can do something different.

Or should I really pinch my pennies, return the front end of the brakes I just ordered, get a Wilwood BBK, and spring for the PFC pads up front?
Mazdaspeeder is offline   Reply With Quote
Old 04-05-2016, 02:06 PM   #719
Junior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 201
Total Cats: 11
Default

Quote:
Originally Posted by OGRacing View Post
with the caliper pistons being as tiny as it is i see a requirement for a .625 =5/8 master cylinders. on front and rear. this will net a requirement for the MC's travel to be 11mm your pedal will need to travel 40.25mm. make sure you have enough room.
Awesome, thank you!

What would be the benefit of larger pistons/piston area? I am not opposed to changing what I have now, and they do need a rebuild. I stuck with the similar-to-OEM size to go along with the factory master cylinder and booster. Now that those are coming out, I am not tied to those piston sizes.

Also, what are your thoughts on those Afco calipers? Have you test fit any 15x8/15x9" aluminum wheels over them? I posted a video a while back of the Wilwoods with a micrometer attached, while stepping on the pedal. There was a measurable amount of flex, I was impressed, but not in a good way.


Madjak, Yes, I had oiling issues. Revving to 8500RPM, dropped oil pressure to 7-8psi coming out of heavy braking zones. The pressure drop while braking did not concern me, but that it was there of 1-2 after being back on the throttle did. I use a Maruha baffle and 2 quart accusump. Still see a small drop, but only to 30 psi or so, and recovery is faster. You can search some threads here and see some of my old posts. This is a bit OT - feel free to post in a different thread or hit me up with a PM, if interested.

Likewise, there is a post somewhere where I showed logged data of brake booster vacuum pressure under braking. Looked like a zig-zag chart, lots of fluctuation.
wildo is offline   Reply With Quote
Old 04-05-2016, 02:11 PM   #720
Supporting Vendor
Thread Starter
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,746
Total Cats: 50
Default

Quote:
Originally Posted by wildo View Post
Awesome, thank you!

What would be the benefit of larger pistons/piston area? I am not opposed to changing what I have now, and they do need a rebuild. I stuck with the similar-to-OEM size to go along with the factory master cylinder and booster. Now that those are coming out, I am not tied to those piston sizes.

Also, what are your thoughts on those Afco calipers? Have you test fit any 15x8/15x9" aluminum wheels over them? I posted a video a while back of the Wilwoods with a micrometer attached, while stepping on the pedal. There was a measurable amount of flex, I was impressed, but not in a good way.


Madjak, Yes, I had oiling issues. Revving to 8500RPM, dropped oil pressure to 7-8psi coming out of heavy braking zones. The pressure drop while braking did not concern me, but that it was there of 1-2 after being back on the throttle did. I use a Maruha baffle and 2 quart accusump. Still see a small drop, but only to 30 psi or so, and recovery is faster. You can search some threads here and see some of my old posts. This is a bit OT - feel free to post in a different thread or hit me up with a PM, if interested.

Likewise, there is a post somewhere where I showed logged data of brake booster vacuum pressure under braking. Looked like a zig-zag chart, lots of fluctuation.
all of the little calipers are mehhh in performance. i have the afcos and they really went cheap on the bolts. surprisingly a lot of good engineering is in the caliper but they get a big fat F in materials used. they really need a bridge bolt if your going to use them in Motorsports. I got them i drilled out the pin, installed a bridge bolt, i'm about to call up apr and get some studs for them.
OGRacing is offline   Reply With Quote
