mekilljoydammit

Fair enough on the Mu number manipulation... and hoo boy have I seen all sorts of cute ways to manipulate numbers in my day job without actually lying. I guess you pretty well illustrated that my instincts were right the last time I asked for opinions on brake pads, was told to look at Hawk and Wilwood's friction charts, and promptly responded by saying they were missing the point.

I'm not really trying to debate caliper stiffness and I know what the megabuck options are. The only thing I'm wondering is, given the constraints they're working under, I'm wondering how much stiffer the Stoptechs could actually be than their direct competitors, you know?. The materials are going to be about the same, the size is about the same, the weight is about the same, I'm looking at pictures of the STR-42 and the Afco F33 on my desk and ignoring the bridgebolt I haven't added yet, I'm not seeing much difference in design... enh, moot point anyway, I guess.

Also, isn't the Stoptech DR22 pad exactly a Wilwood Dynapro pad?

Jumbosrule

Would it surprise you to find out that StopTech produces the Afco F33 caliper as a private label product? The ST42 is a different design but started with the same basic shape. Both are produced here on the same machines.

mekilljoydammit

A bit actually; I didn't know StopTech did private label stuff. That's good to know.

Also, I don't want to sound like I'm being negative towards sharing Wilwood pad shapes - it makes great sense and I wish more good calipers did. Just that it seems weird to tout bigger pad area than similar Wilwood calipers, you know?

Leafy

iTrader: (1)

Whats the thought here? You're worried that the prop valve will cause the pressure to increase at the rear master and force more pedal force into the front circuit?

Todd TCE

A prop valve can never increase pressure. The redundancy of running both is counter productive to the value of simply having the manual feature.

OGRacing

iTrader: (1)

on a manual Dual MC unit we already have bias adjustment with the balance bar. that and we are fighting for every little bit of line pressure we can muster. a prop valve chokes off the precious PSI to adjust bias. no need to kill the line pressure for two ways to adjust bias.

OGRacing

iTrader: (1)

It might come from he same factory but the quality is not the same. it's not one of "those the only difference is the sticker" things. the stoptech looks like it uses larger (sometimes larger =stronger) bolts. i look over the stoptech caliper and it looks like it was better engineered product. Test results would be needed to say if it's actually better.

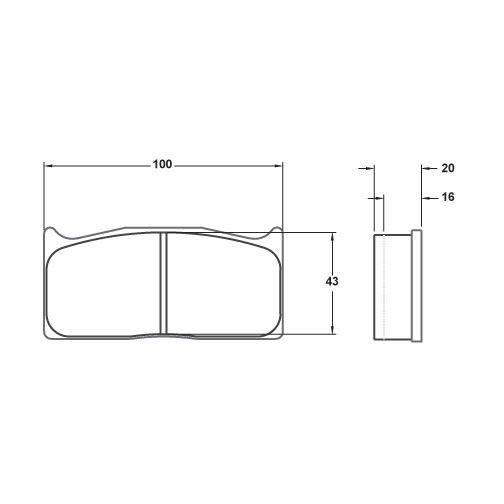

the closes thing PFC makes to a DR22 is the 7735 in the 16mm thickness. i'm using PFC's pads becasue the JPG's show the swept area. the 7735 pad shape is roughly similar to the 7752 pad shape but it's swept area is slightly smaller. the older style 7752 would have more pad area. but remember pad area =/= affect Mu output. it's only effects pad life.

Performance Friction 7735.01.20.44 Racing Pad - 01 Compound
7735

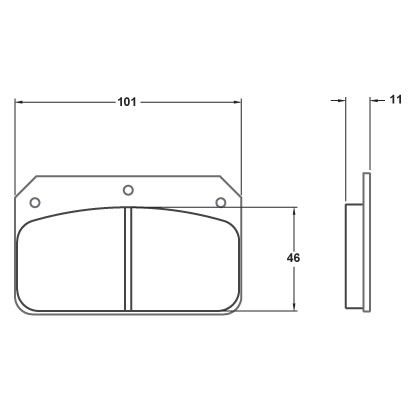

http://www.ogracing.com/performance-friction-7752-01-12-44-racing-pad-01-compound
7752

Leafy

iTrader: (1)

But they adjust bias different ways. Its like saying why try and change your cars balance with aero when you can change it with springs. **** changes different types of balance. I thought you had like a safety issue I couldnt think of.

OGRacing

iTrader: (1)

what your saying is more like. "my springs are too soft, so i'll get stiffer ones and add those on top of the ones already in the car."

borrowed from stop tech

Proportioning Valves

Brake Proportioning Valves
The True Story of a Misunderstood, Misused and Misnamed Brake System Componentby James Walker, Jr. of scR motorsports






Elsewhere on this website we have discussed (in painful detail some would add) the importance of front-to-rear bias, or brake balance, and how its optimization can lead to better braking performance. However, one critical factor in establishing bias – the mechanical brake pressure proportioning valve – was left out of the discussion. After all, one can only take so much of this brake bias talk in one sitting.

That said, we are back to share the intricacies of just how brake pressure is distributed to the front and rear of the vehicle. More importantly, we hope that you take away the understanding that replacing, modifying, or just plain fiddling with your proportioning valve can do more harm than good. While it is not quite black magic, there are plenty of opportunities to throw the system into disarray without even knowing it.

Consequently, we offer this quick look into these devices and their mechanical siblings. A small amount of knowledge can yield surprising benefits, not the least of which is avoiding nasty surprises.Rear Brake Pressure ControlIn general, there are three ways to deal with rear brake pressure: leave it alone, make it proportional to the front brake pressure, or control it in a way that combines these two strategies.Strategy 1: Leave it AloneIf no device were used to modify the rear brake pressure, then as shown in Figure A, the front brake pressure and rear brake pressure would always be equal. Naturally, this is the easiest way to deal with the issue, but in order to prevent rear bias under all conditions, the rear brake itself would need to be absolutely tiny.









As you can imagine, this is not a realistic solution and is not found in the real world.

Strategy 2: True Proportioning

True proportioning, as shown in Figure B, would result in rear brake pressures being linearly proportional to front brake pressures under all conditions. Ironic as it may seem, “proportioning valves” do not provide this kind of control, as they are not the purely proportional devices their name would imply.



This type of pressure regulation is certainly possible to achieve, but it typically requires tandem master cylinders and an adjustable reaction linkage, the same setup found on nearly every purpose-built racing car today.





On vehicles so equipped, the proportioning ratio is achieved through a combination of master cylinder piston diameter selection and the adjustment of a mechanical reaction linkage that connects the two master cylinders. Also known as a bias bar, the linkage geometry determines the front-to-rear force distribution coming from the brake pedal assembly. The significant benefit to this set-up is that a bias bar can be designed in such a way that the driver can adjust the front-to-rear proportioning ratio while at speed.

In the example shown below, an adjustment of the bias bar of 0.010 inches results in an increase in front master input cylinder force from 125lb to 133lb. At the same time, the rear master cylinder input force drops from 125lb to 117lb.



Real-time driver control over bias makes adjustments for changing track conditions or fuel load practically effortless. The complexity of this design makes it highly impractical for street use, but on track it simply can not be beat for ease of adjustment.

Combining Strategies – The Misnamed Proportioning Valve

Conventional proportioning valves should really be referred to as “braking force regulators” or “brake pressure regulating valves.” While their name might imply true proportional control, in reality they provide a combination of the control found in Figures A and B.

Up to certain pressures, these valves allow equal pressure to both the front and rear brakes (à la Figure A). However, once a preset pressure point is reached (600 psi in the example), the rear brake pressure continues to build, but at a slower rate (or slope) than the front brake pressure. Figure C displays this for us quite clearly.






Looking at the diagrams, one can see that it is possible to design both a Type B system and a Type C system that ultimately give the same brake balance at the point of maximum deceleration. (Note that Figures B and C both generate 950 psi of rear brake-line pressure when the front brake-line pressure is at 2000 psi.)

However, one can also see that Type C systems—those that use proportioning valves—can bring us closer to optimum balance at lower deceleration levels. This benefit is relatively meaningless in a racing application, as the vehicle is always operating at maximum decelerations, but it is of great advantage on the street.

In so many words, the proportioning valve allows us to drive around town under optimized brake-balance conditions (good for front brake-pad life) but also keeps everything in check when we need maximum braking (good for stability).

Due to their compact size and relatively low cost, these devices can be found on nearly every vehicle which requires rear brake pressure reduction to achieve optimum brake bias. Typical passenger cars and production-based race cars fall neatly into this category.

Height-Sensing Proportioning Valves

Some vehicle’s proportioning valves go one step farther, as the kneepoint on the graph can vary with the amount of weight on the rear axle. Effectively, as the rear axle weight increases, a linkage between the axle and the body is compressed. This linkage acts on a cam inside the proportioning valve which increases the preload on the proportioning valve spring. The end result is that more rear braking (bias) is allowed as weight is added to the rear axle, helping to take advantage of the increased traction now available at the rear tires. Figure D illustrates this relationship quite clearly.



So, Can One Adjust The Proportioning Valve?

Believe it or not, in nearly all cases the OEM valves are well matched to the original brake system and should not be tampered with, as there are no parts inside that are able to be modified by ambitious owners. Unfortunately, some are externally adjustable, so the temptation to tinker is right there in front of us!

One point to ponder is that because they are a mechanical device, proportioning valves must be designed as a best compromise for use under all conditions. High speed, low speed, fully loaded, and empty vehicle scenarios must all be evaluated and figured into the proportioning valve design.

Of course if you have modified your vehicle in a way that impacts front-to-rear bias you might be standing out in left field! As a refresher from our bias article, we will bring forward again the lists of modifications which can influence front-to-rear bias.

Factors that will increase front bias

• Increased front rotor diameter
• Increased front brake pad coefficient of friction
• Increased front caliper piston diameter(s)
• Decreased rear rotor diameter
• Decreased rear brake pad coefficient of friction
• Decreased rear caliper piston diameter(s)
• Lower center of gravity (i.e. lowered vehicle)
• More weight on rear axle (i.e. loaded)
• Less weight on front axle
• Less sticky tires (lower deceleration limit)

Factors that will increase rear bias

• Increased rear rotor diameter
• Increased rear brake pad coefficient of friction
• Increased rear caliper piston diameter(s)
• Decreased front rotor diameter
• Decreased front brake pad coefficient of friction
• Decreased front caliper piston diameter(s)
• Higher center of gravity (i.e. raised vehicle)
• Less weight on rear axle (i.e. unloaded)
• More weight on front axle
• More sticky tires (higher deceleration limit)

Proportioning Modifications

We could start this section by clearly stating that you should not modify your proportioning valve. But, what fun would that be? In all seriousness, making changes to the proportioning valve to effect brake bias should be left to those with the proper tools and measurement devices, but if you have tweaked your vehicle beyond recognition, this may be your only solution to restore a sense of proper bias to your braking system.

We’ll start here with three of the most basic rules regarding proportioning valve installation and selection.

1. If you have the deeply-rooted need to install your own adjustable proportioning valve, be advised that they should NEVER be installed if the factory unit is still in place. Proportioning valves in series with one another can do nasty, unpredictable things!

2. If you have the deeply-rooted need to install your own adjustable proportioning valve, be advised that they should NEVER be installed in-line to the front brakes. The effect would be to make your vehicle rear-biased before you could say “terminal oversteer.” Front brake line pressure should always be left alone – only the rear pressures should be considered for proportioning.

3. In all cases, the basic brake system balance needs to be close to optimized to start with. This is the only way that a proportioning valve can be effectively utilized. You should never assume that simply adding a proportioning valve will address all rear-bias conditions, as even the best proportioning valves must be well-matched to the target vehicle.

Proportioning Valve Selection

Selecting the correct adjustable proportioning valve for your vehicle entails not only selecting the proper point at which slope limiting begins (the kneepoint), but also selecting the proper rate at which rear brake line pressure builds after that point (the slope). Nearly every adjustable proportioning valve on the market today has an adjustable knee point (the point at which the rear brake line pressure begins to be controlled), but a fixed slope (the rate at which it builds beyond the knee point). While one parameter is adjustable, both are critical to system performance. Note that in Figure E the two curves have the same knee point, but the slopes vary greatly.






So how does one select the right kneepoint and slope? Without the test and measurement resources of a major automotive manufacturer, it’s next to impossible to say. Of course, you could trial-and-error your way into a solution that you believe to be appropriate, but without testing under all conditions of loading, speed, and road conditions there might be one operating condition just waiting to bite you.

In short, if you find yourself thinking, “I wonder how I would pick the right proportioning valve for my car?” you probably shouldn’t be changing it yourself.

Electronic Proportioning: No Tampering Allowed

As a small sidebar to the mechanical proportioning valve discussed here, there is a movement afoot to replace the proportioning valve function with the hardware performing the ABS function. While this is not yet the norm, most high-end performance cars already have this feature as standard equipment and one can predict with reasonable certainty that the trend will continue.

Based on information gathered from the four ABS wheel speed sensors, the Dynamic Rear Proportioning (DRP) or Electronic Brake force Distribution (EBD) algorithms calculate the front-to-rear slip ratio of the four tires. Then, given preset thresholds and parameters, the ABS hardware can intervene and modify the brake pressure going to the rear wheels automatically.

Because DRP and EBD are based on actual wheel slip and not on brake line pressure, this type of rear proportioning is more flexible and adaptable to modifications one might make to their vehicle. It is also less expensive, as the OEM can now remove the mechanical proportioning valve from the vehicle and replace its function with other hardware already on board.

Naturally, the OEM does not want owners fiddling with their front-to-rear proportioning, and as a result there is no way for the enthusiast to reprogram DRP or EBD to suit their desires. Of course, if the vehicle’s original front-to-rear bias is in tact in the first place, there is no need to reprogram anyway.

Plan Wisely

In summary, there is more to the proportioning valve than meets the eye. You should make every attempt to carefully plan and select your brake modifications so that you are able to retain and reap the benefits of the stock proportioning valve. In other words, pay attention to (and don’t stray too far from) the factory bias in the first place and you will be ahead of the game.

If for other reasons you are forced to scrap the stock unit and replace it with an aftermarket unit, be advised that selection and adjustment are not for the uninitiated. While there is more than one way to achieve optimum balance at the point of maximum deceleration, without the right amount of know-how you might be making compromises under partial braking conditions that were not present with the factory hardware.

Again, remember that simply adding or replacing a proportioning valve may not be enough to remedy basket-case bias scenarios. Proper planning and up-front design should ensure that the base vehicle bias is appropriate from the start, enabling the proportioning valve to be used properly as a fine-tuning device.

Leafy

iTrader: (1)

And that's the wrong assumption they're starting with. I'm not sure if they're just wrong or intentionally spreading bad info to keep normal people from getting faster.

OGRacing

iTrader: (1)

this information came from stoptech, say what you want about options expressed. Please take it up with stop tech. I said what was listed below and provided a source for the article.

I find this article to clearly express the differences between balance bars and Prop valves.

if you want to run a balance bar and a prop valve... go to town. i don't care. just stop spreading false information, and passing it along as hard evidence. that just make s my job harder.

mekilljoydammit

OK, have two brake setups, one where you tune a dual master cylinder setup to use all 4 tires optimally at full braking, one with a prop valve such that there's a knee point and you're using all 4 tires optimally at full braking and, say, also using all 4 tires equally at 50% (or whatever) of full braking (where the knee point is set). Ignore hysteresis for now. This gets you... what, precisely? Seriously. In a straight line at less than full braking you're not using any tire to its friction limit so what does it really matter? Trail braking, if everything worked without hysteresis you get a more tail-happy car. Lovely.

Now, let's put hysteresis into the picture, and this is looking at AP's diagrams, of their prop valve that they're trying to sell. So you go from threshold braking to starting to trail brake and start easing off the pedal... say to about 80% of line pressure and the rear is... still at full pressure for threshold braking because the valve hasn't released it yet. And even when the rear pressure starts coming down you're seeing more rear line pressure on pedal release than you were on the actuation.

I dunno, do you really want to put something in the brake circuit that is just going to add inconsistency if you have a choice?

Leafy

iTrader: (1)

Well until we have an ABS version of the megasquirt with EBD its the best we can get. The optimal front vs rear pressure line is a curve. With out a prop valve you can only get it right at 2 points, 0psi and threshold braking. with a prop valve you can get it right at 3 points and it should be a better linear fit to the curve. With EBD you can make it follow the curve and also have less hysteresis. While hysteresis is bad, its normally worth it with a prop valve. And remember hysteresis is time dependent so its hard to say how long the rear line will stay at full pressure as you come off the brakes. The AP racing diagram doesnt show the rate at which they performed their sweeps so its hard to tell how meaningful their hysteresis illustration is. If they ran their test much faster than the typical driver comes off the brakes then, its likely not even noticable.

If you notice in this thread, up until recently when I mentioned running both a prop valve and balance bar at the same time Emilio and Andrew both stressed the importance of getting the brake balance right both at threshold braking and while trail braking by properly sizing brake components and running a prop valve.

mekilljoydammit

I am not going to guess what Emilio and Andrew meant or what their thinking was. I do know what is done by people with budgets for race engineers though. Look at stuff outside this community. Go somewhere where you can look at club-level formula cars or GT/Trans Am cars.

aidandj

iTrader: (5)

StopTech Big Brake Kit for Mazda Miata | Garage Star

Pricing is up.

Its not cheap

gtred

Thxs for the great info OG.

Unfortunatly, I still do think that I'm screwed. You see, I've "upgraded my brakes"... and now my shiny BBK's won't stop the car.

There are various opinions on whether or not a 2004 MSM has ABS with EBD. It sounds like if it does have EBD, then I can turn that prop valve all I want and the car still may not stop.

Here's what I did to a nice set of your PFC's at the end of an enduro. The sad thing is that I really couldn't tell much difference in threshold braking... just that same vague "step on the pedal like a gorilla kind of feeling" ... without stopping much. ...that is until my wheel caught fire d//t a hydraulic failure.


I've tried mult suggestions of using different pad manufacturers and combo's. Hawk, PFC, Carbotech's, ect. Still, the car will only stop a -.78 g. (while I gleaned the happy side of -1.0 g with OEM's on an old set Hawk Blues).



I think that much of the problem has arisen form the dynalite having a much smaller caliper piston size (3.00 sq in) that the OEM caliper (3.54 sq in). Willwood doesn't make a 3.5 dynalite or dynapro in a lug mount (only a radial mount dynapro)My Wilwood prop valve is installed just off the MC ( and before the ABS pump). Willwood specs that this will cut off all line pressure to the rear until the pressure reaches 100#. I then has an adjustable knee. They don't specify the slope of the pressure ratio's. I've never been able to adjust this adequately.

I did even test out using a smaller piston (non-sport) rear caliper... which was a fail.




After reading your article on prop valves, If my car does have EBD, then I might just turning that **** in futility.

ryansmoneypit

iTrader: (6)

Total brake noob questions here. I installed bigger rotors front and rear, a larger than stock front caliper and a stock rear caliper. So it's sport rotors, sport front calipers, NA rear calipers. Carbotech 10 in front and 12 rear. I did not feel like I was getting enough rear brake. Maybe I was wrong, maybe not. So I Remo ed the factory prop valve, and installed a willwood unit. I am now at full stiff, and it feels about the same as it did stock. What gives? ! I thought I would be able to make the rear tires lock. Not that I wanted that, but I was expecting different results than what I got. Any insight?

aidandj

iTrader: (5)

A prop valve just cuts off pressure from the rear. Wont give more pressure.

ryansmoneypit

iTrader: (6)

I understand that, but I thought it would have the ability to flow 100% or less. Not some random amount and less.

codrus

If it's the EBD calibration that's screwing you up, then you should be able to verify it by pulling the ABS fuse.

--Ian
