Old 01-22-2008, 12:55 AM   #41
Newb

Join Date: Apr 2007
Posts: 43
Total Cats: 0
Default

We're (www.driftingjellyfish.com) super close to completing our RX7 t2 4 piston caliper retrofit kit. Just the brackets, you have to source the calipers. It's built around the NAPA/OEM sport rotors because they're super cheap and easy to find. Just an fyi for people looking for/at options.
JustJake is offline   Reply With Quote
Old 01-22-2008, 01:25 AM   #42
Senior Member
iTrader: (4)

Join Date: May 2007
Location: Ontario
Posts: 790
Total Cats: 0
Default

Quote:
Originally Posted by JustJake View Post
We're (www.driftingjellyfish.com) super close to completing our RX7 t2 4 piston caliper retrofit kit. Just the brackets, you have to source the calipers. It's built around the NAPA/OEM sport rotors because they're super cheap and easy to find. Just an fyi for people looking for/at options.
What is the planned price point for the pair of brackets?

Thanks.
reddroptop is offline   Reply With Quote
Old 01-22-2008, 02:36 AM   #43
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

I'll be down for a set of em.
elesjuan is offline   Reply With Quote
Old 01-22-2008, 01:07 PM   #44
Senior Member

Join Date: Nov 2005
Location: Baltimore Maryland
Posts: 1,010
Total Cats: 8
Default

any pics of your progress Jake? I'm not going to mess with this if I can just buy brackets
airbrush1 is offline   Reply With Quote
Old 01-22-2008, 01:23 PM   #45
Junior Member
iTrader: (3)

Join Date: Jul 2005
Location: AL
Posts: 200
Total Cats: 0
Default

I'd be down for a set as well.

http://www.napaonline.com/MasterPage...d=3&SubCatId=4

Napa doesn't list a price for the sport rotors, anyone know how much they run?
mx5roadster is offline   Reply With Quote
Old 01-22-2008, 01:32 PM   #46
Elite Member
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default

Your link doesn't work, it's probably cookied.

C
chriscar is offline   Reply With Quote
Old 01-22-2008, 01:57 PM   #47
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

What year sport rotors do you need? I just called and asked about 99 sport rotors and he quoted me $73 a piece, for a premium vented rotor. Said they didn't carry anything else.
Standard rotors for regular miata 1.8 brakes are less than $20 a piece.

Edit: Just called and talked to another guy asking for an 03 instead.
These are lifetime warranty.
Front: $34.99
Rear: No price, they don't offer them for any of the NB years

Maybe you guys can get them local, appears I can't. At least not from Napa.
cjernigan is offline   Reply With Quote
Old 01-22-2008, 08:27 PM   #48
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

have you guys considered larger brake master cylinders. with a stock m/c pushing many more brake pistons it could make the brake pedal feel spongy.
Mach929 is offline   Reply With Quote
Old 01-22-2008, 08:47 PM   #49
Senior Member
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

Quote:
Originally Posted by miataspeed1point6 View Post
Will Escort GT caliper brackets fit for the 1.8 brake swap on a 1.6? Or just Miatas?
Anyone know or tried?
miataspeed1point6 is offline   Reply With Quote
Old 01-22-2008, 09:32 PM   #50
Junior Member
iTrader: (3)

Join Date: Jul 2005
Location: AL
Posts: 200
Total Cats: 0
Default

Quote:
Originally Posted by Mach929 View Post
have you guys considered larger brake master cylinders. with a stock m/c pushing many more brake pistons it could make the brake pedal feel spongy.
A lot of people use the 929 master cylinder and brake booster. That is what I plan to use.
mx5roadster is offline   Reply With Quote
Old 01-22-2008, 09:42 PM   #51
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by mx5roadster View Post
A lot of people use the 929 master cylinder and brake booster. That is what I plan to use.
It's quite likely that I have a **** ton of 929 brake parts at work. I'll look tomorrow. What specific years retrofit? How hard is the job--PnP or fab involved?
Ben is offline   Reply With Quote
Old 01-22-2008, 09:47 PM   #52
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by JustJake View Post
We're (www.driftingjellyfish.com) super close to completing our RX7 t2 4 piston caliper retrofit kit. Just the brackets, you have to source the calipers. It's built around the NAPA/OEM sport rotors because they're super cheap and easy to find. Just an fyi for people looking for/at options.
Jake, please PM me about this. I would like to be in the beta program, if possible. I can have the calipers as soon as tomorrow.

Ben
Ben is offline   Reply With Quote
Old 01-22-2008, 10:23 PM   #53
Junior Member
iTrader: (3)

Join Date: Jul 2005
Location: AL
Posts: 200
Total Cats: 0
Default

Quote:
Originally Posted by Ben View Post
Jake, please PM me about this. I would like to be in the beta program, if possible. I can have the calipers as soon as tomorrow.

Ben
Don't know how many people you are looking for but I would be interested as well. I have the calipers sitting in my garage.
mx5roadster is offline   Reply With Quote
Old 01-22-2008, 10:28 PM   #54
Junior Member
iTrader: (3)

Join Date: Jul 2005
Location: AL
Posts: 200
Total Cats: 0
Default

Quote:
Originally Posted by Ben View Post
It's quite likely that I have a **** ton of 929 brake parts at work. I'll look tomorrow. What specific years retrofit? How hard is the job--PnP or fab involved?
Check this page out:
http://www.geocities.com/miata_10am/...kes/brakes.htm

I have the booster and master cylinder in my garage, just haven't gotten around to putting them on. I don't rememeber the exact years, but I want to say it's something around '92 or newer. I remember pulling something off of an older 929 and the master cylinder looked about the same size as the miata. The one you are looking for will be obvious, it'll be a 1 inch bore.
mx5roadster is offline   Reply With Quote
Old 01-22-2008, 11:10 PM   #55
Junior Member
iTrader: (3)

Join Date: Jul 2005
Location: AL
Posts: 200
Total Cats: 0
Default

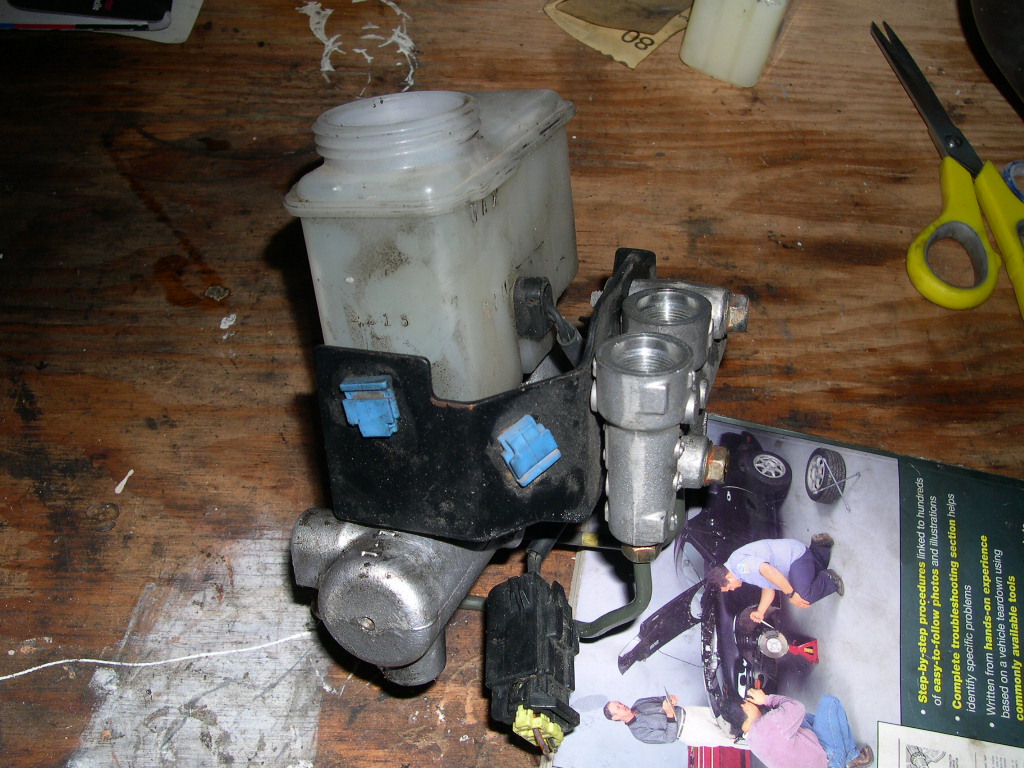

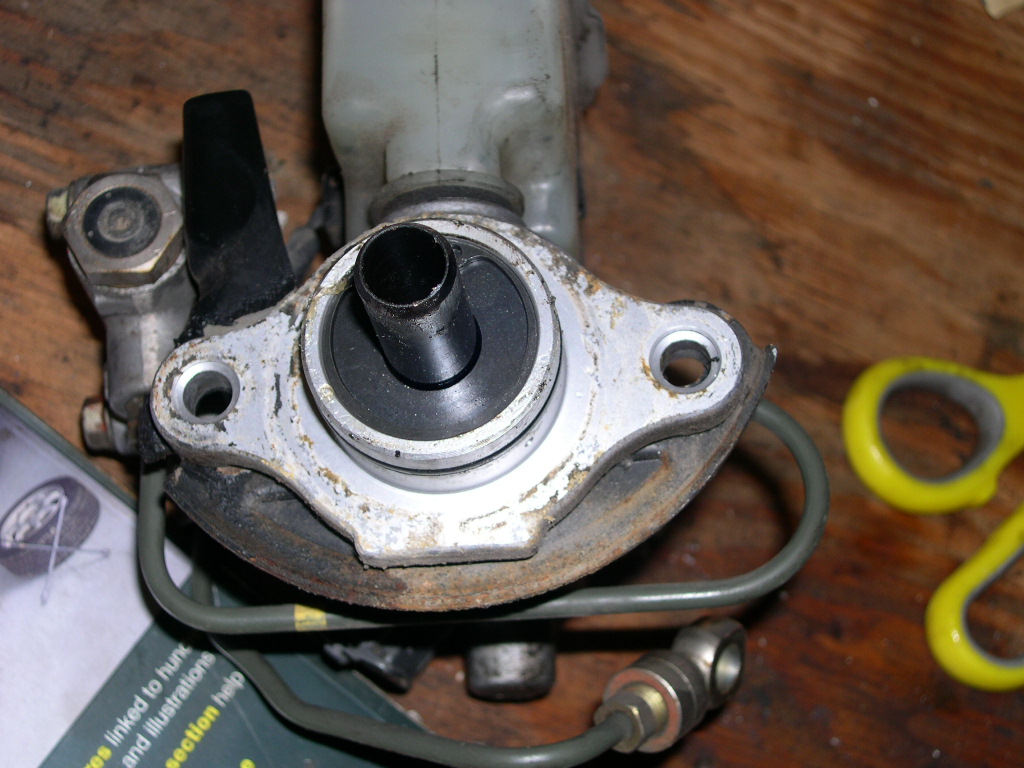

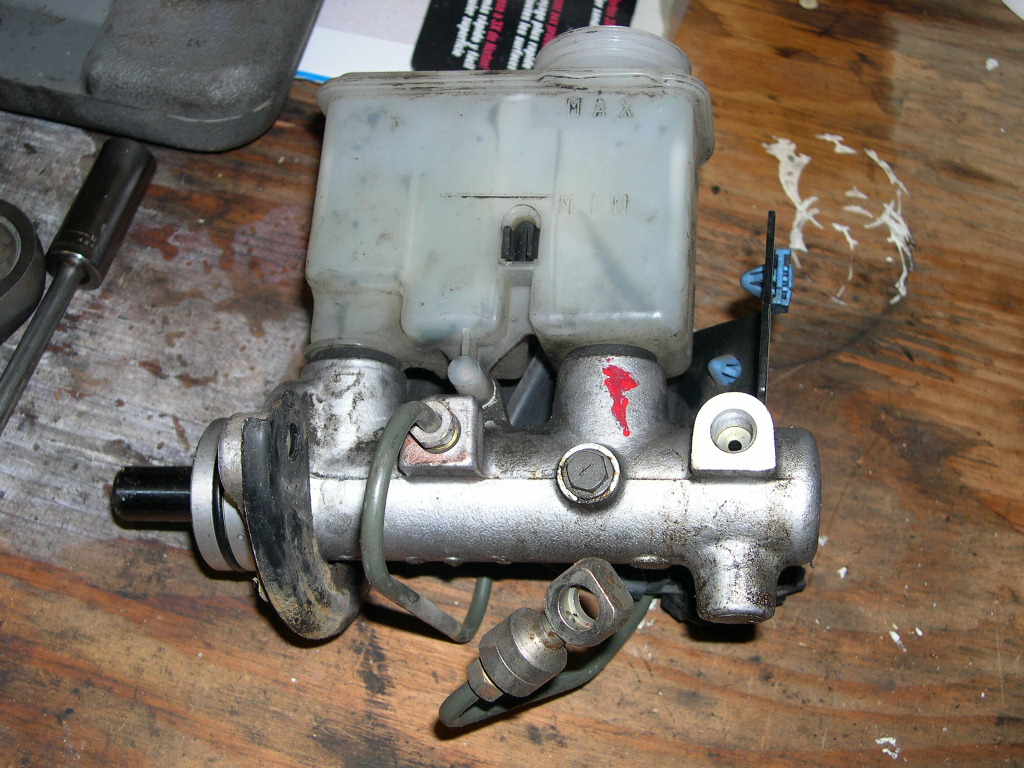

Here's some pics of the 929 mc sitting in my garage
Attached Thumbnails
Big Brake Discussions-dscn0103.jpg   Big Brake Discussions-dscn0104.jpg   Big Brake Discussions-dscn0105.jpg
mx5roadster is offline   Reply With Quote
Old 01-22-2008, 11:57 PM   #56
Senior Member
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

Bigger brakes..Is everyone having that much trouble stopping? I have more issues with the tires not handling the braking lol
dc2696 is offline   Reply With Quote
Old 01-23-2008, 01:35 AM   #57
Newb

Join Date: Apr 2007
Posts: 43
Total Cats: 0
Default

If I miss someone's question you guys can email me direct at jake at driftingjellyfish.com

Price is largely dependent on quantity and what needs to be machined. Our engineer says the bracket needs to be offset but to cut down on machining we're going to make it out of a single piece of metal and try to use a small spacer to give the correct depth, mills are more expensive than having something plasma cut. The bbk from monster miata employs the same technique. Haven't nailed any of this down yet since he hasn't run the physics through pro eng but we don't anticipate a problem. So all said and done I'd like to see the kit get shipped for no more than $100 and I'd really like to see the manufacturing be cheap enough for a $75 price point. You guys can definitely quote me on that.
Call NAPA and ask for 2001 or 2002 sport rotors. They're a really nice quality single piece. There's a huge aftermarket for those rotors but I'm using OE equivalent to spec the kit. They were around $40 a pair the last set I got but I was flirting with the girl at the counter so I suspect a discount was involved . I'll probably get a few sets to carry on the site for people who don't have access to them, but they're heavy as a mother ****** so shipping will be a bitch.
As soon as I get the short run in hand for testing I'll let you guys know. Ben, MX5Roadster feel free to email me, or anyone else for that matter and I'll update you with progress.
Unrelated but exciting to me, I should have solid motor mounts available very soon along with the diff mounts. yay.
JustJake is offline   Reply With Quote
Old 01-23-2008, 09:08 AM   #58
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

One more question Jake. Do you expect these to clear a 15" +40 wheel? The wheel will clear the BBK kit.
Ben is offline   Reply With Quote
Old 01-24-2008, 01:43 AM   #59
Newb

Join Date: Apr 2007
Posts: 43
Total Cats: 0
Default

They will clear the 15x8 +36 6UL wheels. I'll try to test fit as much as possible beyond that. I've got a buddy local with the old design chaps, I'm hoping it'll clear those so that those people will have an option since those wheels aren't bbk friendly.
JustJake is offline   Reply With Quote
Old 01-24-2008, 06:58 AM   #60
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Cool. I also have 6ULs, but they're 40 offset. If they fit Chaps, they'll probably fit anything.
Ben is offline   Reply With Quote
