Old 04-28-2008, 04:39 PM   #201
Senior Member
iTrader: (7)

Join Date: Jul 2007
Location: Milpitas, CA
Posts: 1,057
Total Cats: 1
Default

Quote:
Originally Posted by patsmx5 View Post
Well I don't have any RX7 rotors, and my RX7 calipers are not here, but I don't see how you got the caliper all the way down onto the rotor with the factory ears on it. They would hit the stock mounting ears on our hub. How did you get the caliper all the way onto the rotor is my question. Did you index it clockwise or cc wise so that they didn't interfere with one another? I fully understand what your saying about the RX7 rotors having a different offset, so don't get me wrong. I'm just curious if you had the calipers as far down onto the rotor as possible, as that moves the caliper further away from the perimeter of the wheel.
It you look more closely at the japanese brackets, the bracket is mounted on the stock mounting brackets. It wont matter because the width of teh caliper is so wide that it will clear the stock mounting points.

read what i typed above about why they cut the ears.

Quote:
Originally Posted by mkulak View Post
You my friend understand 1000000% We need a different rotor, or a fender bashing spacer
i wish i understood this much about electronical stuff

I would want to avoid running a spacer though. if this would require the use of a spacer, my fenders will need a pull, or the use of a widebody

my wheels are 15x8 with a +15 offset. They rub in heavy sliding, maybe i need stiffer springs
Marc D is offline   Reply With Quote
Old 04-28-2008, 05:08 PM   #202
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

Quote:
Originally Posted by patsmx5 View Post
Did you index it clockwise or cc wise so that they didn't interfere with one another? I fully understand what your saying about the RX7 rotors having a different offset, so don't get me wrong. I'm just curious if you had the calipers as far down onto the rotor as possible, as that moves the caliper further away from the perimeter of the wheel.
Yuppers.. We index it as we did not want to destory some calipers if this did not work. We had the caliper all the way on the Corrando rotor and the front face of the caliper was the issue with contacting the wheel spokes.
M-Tuned is offline   Reply With Quote
Old 04-28-2008, 05:13 PM   #203
Senior Member
iTrader: (7)

Join Date: Jul 2007
Location: Milpitas, CA
Posts: 1,057
Total Cats: 1
Default

maybe we should shave the caliper on the front
Marc D is offline   Reply With Quote
Old 04-28-2008, 05:18 PM   #204
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Even on the Mazdaspeed wheels theres not nearly the clearance I had hoped for where it was needed most..

elesjuan is offline   Reply With Quote
Old 04-28-2008, 05:28 PM   #205
Junior Member
iTrader: (3)

Join Date: Jul 2005
Location: AL
Posts: 200
Total Cats: 0
Default

Quote:
Originally Posted by elesjuan View Post
Even on the Mazdaspeed wheels theres not nearly the clearance I had hoped for where it was needed most..

Probably means mine won't fit without another rotor/spacer either. I'll take a look when I get home. Anyone have any luck finding some other rotors?
mx5roadster is offline   Reply With Quote
Old 04-28-2008, 05:35 PM   #206
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Unhappy

Quote:
Originally Posted by badboy88000 View Post
maybe we should shave the caliper on the front
I wish... Not enough to shave
M-Tuned is offline   Reply With Quote
Old 04-28-2008, 05:41 PM   #207
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 248
Default

Quote:
Originally Posted by badboy88000 View Post
maybe we should shave the caliper on the front
Or the wheel. Or both.

I dunno, if you used the factory 10" rotors, that would put the caliper about a 1/2" closer to the hub (maybe). I'm not too farmiliar with your wheels Marc, but usually the spokes go out from the hub and curve inward. This is the problem obviously. I just wonder if maybe using a 10" rotor would help gain some clearance. It may. Hell, if we were desperate perhaps shaving a bit from the calipers and a bit from the spokes of the wheel would make it work. But that's not a simple approach obviously.
patsmx5 is offline   Reply With Quote
Old 04-28-2008, 05:42 PM   #208
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Quote:
Originally Posted by mx5roadster View Post
Probably means mine won't fit without another rotor/spacer either. I'll take a look when I get home. Anyone have any luck finding some other rotors?
Spacers are out of the question for me already. With stock springs neither my stock MS wheels or +15 205 SPEC auto-x wheels won't rub, but both rub badly after a 1.5" drop spring. MS wheels just made noise, SPEC wheels damaged the fenders. Once we rolled the fenders they fit perfectly fine on hard cornering w/AGX's..

I'll keep looking.
elesjuan is offline   Reply With Quote
Old 04-28-2008, 08:50 PM   #209
Junior Member
iTrader: (3)

Join Date: Jul 2005
Location: AL
Posts: 200
Total Cats: 0
Default

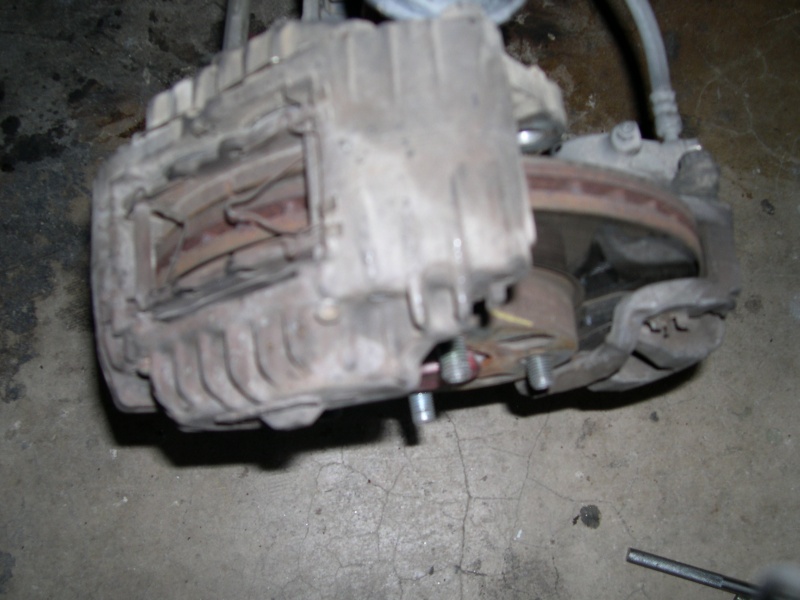

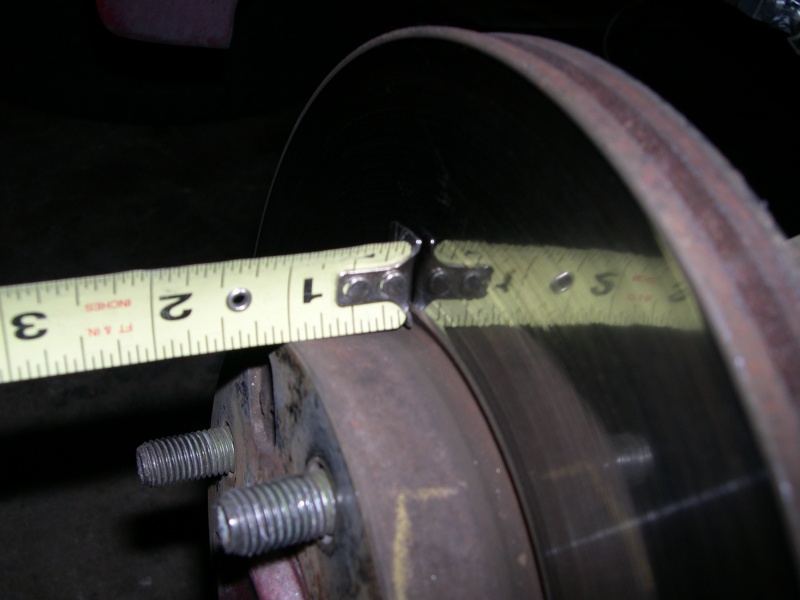

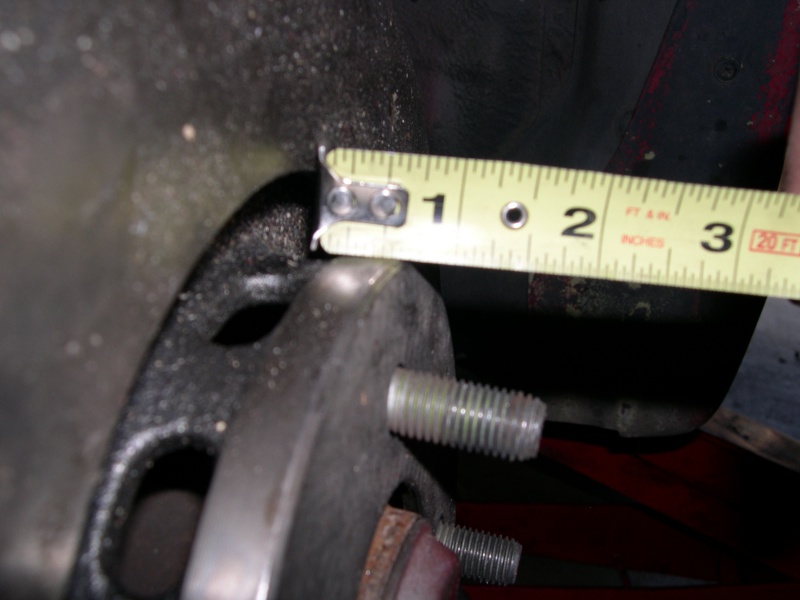

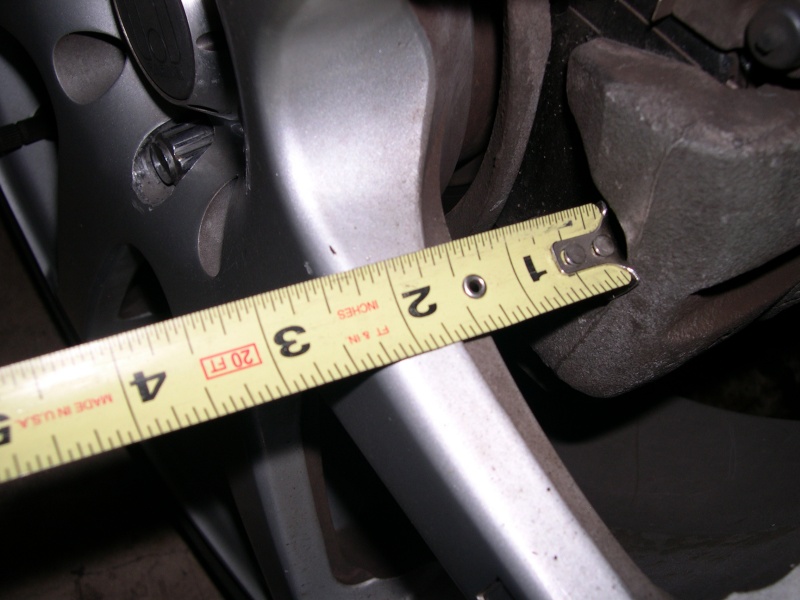

Went out and took some measurements. I've got a good bit of clearance around my stock caliper, but the rx7 calipers don't even come close. These things are huge. The corrado rotors have even less offset than the miata ones. I would definately need more that 1cm of offset to use the corrado rotors.
Attached Thumbnails
Big Brake Discussions-dscn0063.jpg   Big Brake Discussions-dscn0068.jpg   Big Brake Discussions-dscn0071.jpg   Big Brake Discussions-dscn0070.jpg
mx5roadster is offline   Reply With Quote
Old 04-28-2008, 09:12 PM   #210
Senior Member

Join Date: Nov 2005
Location: Austin, TX yall
Posts: 849
Total Cats: 0
Default

I wonder how the RX7 caliper compares to the expensive miata wilwood calipers?




There has to be an OEM 4X100 rotor with a deeper offset.

Would you be able to mount the caliper further back?

Here's Wilwood's rotor spec page:
http://www.wilwood.com/Products/002-Rotors/index.asp

Chris
Miatamaniac92 is offline   Reply With Quote
Old 04-28-2008, 10:00 PM   #211
Senior Member
iTrader: (1)

Join Date: Sep 2006
Location: Hong Kong
Posts: 523
Total Cats: 0
Default

few folks here in Hong Kong has been converted to the RX7 calipers for a while now, compared to my Wilwood. Just by expereince, the RX7 calipers are much more sensitive to your brake pressure, and could easily lock up the front wheels (NO ABS). Where as the Wilwood has an more even linear pressure. Not sure if it makes any sense, just an personally impression.
Mimime is offline   Reply With Quote
Old 04-28-2008, 11:31 PM   #212
Junior Member
iTrader: (3)

Join Date: Jul 2005
Location: AL
Posts: 200
Total Cats: 0
Default

Here's a list of cars with 4x100 lug pattern I came up with after a short search:


BMW 2002
BWW 3-series E30
Ford Escort
Honda Civic
Mitsubishi Mirage
Nissan Sentra
Saturn S series
Toyota Prius
Toyota MR2
All 4 lug VW's
mx5roadster is offline   Reply With Quote
Old 04-29-2008, 01:25 AM   #213
Senior Member
iTrader: (4)

Join Date: May 2007
Location: Ontario
Posts: 790
Total Cats: 0
Default

Quote:
Originally Posted by Miatamaniac92 View Post
I wonder how the RX7 caliper compares to the expensive miata wilwood calipers?


Chris
Wilwood calipers are not expensive, it is the brackets and the rotors/pads that are.
reddroptop is offline   Reply With Quote
Old 04-29-2008, 04:26 AM   #214
Senior Member
iTrader: (7)

Join Date: Jul 2007
Location: Milpitas, CA
Posts: 1,057
Total Cats: 1
Default

maybe we should fork over money for rusman to make us a kit with the wilwoods.
Marc D is offline   Reply With Quote
Old 04-29-2008, 04:44 AM   #215
Junior Member

Join Date: Jan 2008
Posts: 138
Total Cats: 0
Default

You can get Wilwood calipers for $125 a piece, not that expensive. They were $99 a caliper at one time. Of course they have various tiers of caliper and they can get very expensive, but I believe most use the $125 caliper with the corrado rotor.
silentbob343 is offline   Reply With Quote
Old 04-29-2008, 04:50 AM   #216
Elite Member

Join Date: Jan 2005
Location: vancouver canada
Posts: 1,618
Total Cats: 0
Default

The BBK set-up I have is Wilwood calipers with the 01+sport brake rotors.

Here's a picture of my BBK.
http://eunos.ca/catalog/product_info...roducts_id=408
spike is offline   Reply With Quote
Old 04-29-2008, 05:14 AM   #217
Junior Member

Join Date: Apr 2008
Location: Sacramento
Posts: 172
Total Cats: 0
Default

Quote:
Originally Posted by mx5roadster View Post
Here's a list of cars with 4x100 lug pattern I came up with after a short search:


BMW 2002
BWW 3-series E30
Ford Escort
Honda Civic
Mitsubishi Mirage
Nissan Sentra
Saturn S series
Toyota Prius
Toyota MR2
All 4 lug VW's
Add to that all the 4lug dodge neons
J.T. is offline   Reply With Quote
Old 04-29-2008, 09:23 AM   #218
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

Anyone got part numbers on the Wilwood Calipers and Pads?
M-Tuned is offline   Reply With Quote
Old 04-29-2008, 01:41 PM   #219
Elite Member

Join Date: Jan 2005
Location: vancouver canada
Posts: 1,618
Total Cats: 0
Default

Quote:
Originally Posted by mkulak View Post
Anyone got part numbers on the Wilwood Calipers and Pads?
Wilwood caliper part # 120-5005

Wilwood pad part # 150-8850K(BP-10 pads)
spike is offline   Reply With Quote
Old 04-29-2008, 02:57 PM   #220
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,481
Total Cats: 3
Default

anyone has drawings for wilwood caliper bracket to fit corrado or 01+ sport rotors? i can have a local machine shop make me some brackets from T6 aluminum.
UrbanSoot is online now   Reply With Quote
