Old 04-17-2008, 09:04 PM   #141
Senior Member
iTrader: (7)

Join Date: Jul 2007
Location: Milpitas, CA
Posts: 1,057
Total Cats: 1
Default

confirmed.

any RX7 with a five lug hub has these calipers.

i just scored some at my local JY
Marc D is offline   Reply With Quote
Old 04-17-2008, 10:49 PM   #142
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Quote:
Originally Posted by mkulak View Post
I have a set of rebuilt 5 lug calipers on the way, and a set of Hawk Pads. The shop is going to order a NAPA rotor to do the test fit, and then I will get a set of brmbo rotors once we get the production piece back.
Whats our time like looking like for this one?
elesjuan is offline   Reply With Quote
Old 04-18-2008, 09:05 AM   #143
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

They are planning to do the fab work next Saturday. Then it is off to get them mass produced.
M-Tuned is offline   Reply With Quote
Old 04-18-2008, 10:03 AM   #144
Elite Member
iTrader: (2)

Newbsauce's Avatar

Join Date: Jul 2006
Location: NoVA
Posts: 2,304
Total Cats: 2
Default

I'm in for a set of these damn things asap.
Newbsauce is offline   Reply With Quote
Old 04-18-2008, 08:17 PM   #145
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

WOOT!!

Curious about materials, Do we know yet if they're going to be Aluminum or Steel?
elesjuan is offline   Reply With Quote
Old 04-18-2008, 10:29 PM   #146
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

Personally I want Steel (Coated) and this is what I have asked for. Stronger, and less chance of someone stripping any threaded holes. Weight won't be much of an issue since they are small brackets.
M-Tuned is offline   Reply With Quote
Old 04-18-2008, 10:37 PM   #147
Senior Member

Join Date: Nov 2005
Location: Baltimore Maryland
Posts: 1,010
Total Cats: 8
Default

SO IN! have to make a trip to the junkyard on monday.

Anyone else wonder if there will be any issues with brake lines?
airbrush1 is offline   Reply With Quote
Old 04-19-2008, 01:48 PM   #148
Elite Member

Join Date: Jan 2005
Location: vancouver canada
Posts: 1,618
Total Cats: 0
Default

Mark,is there any chance you could have rear caliper brackets made to retrofit the 01+sport brake rotors?
spike is offline   Reply With Quote
Old 04-19-2008, 08:13 PM   #149
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Good deal, I don't want aluminum either. Weight isn't a concern for me, at all.


As for lines, I haven't had a good chance to look at things yet, but a miata uses a Banjo fitting on the caliper, where the RX7 uses a hardline and double flare at the caliper, but goes to flex hose on the hub bracket.. Odd, but don't think it'll be a problem. Just need to source some different lines from SSBC or something. Will get on that here in a couple days and report back what I've found.
elesjuan is offline   Reply With Quote
Old 04-20-2008, 01:26 AM   #150
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 248
Default

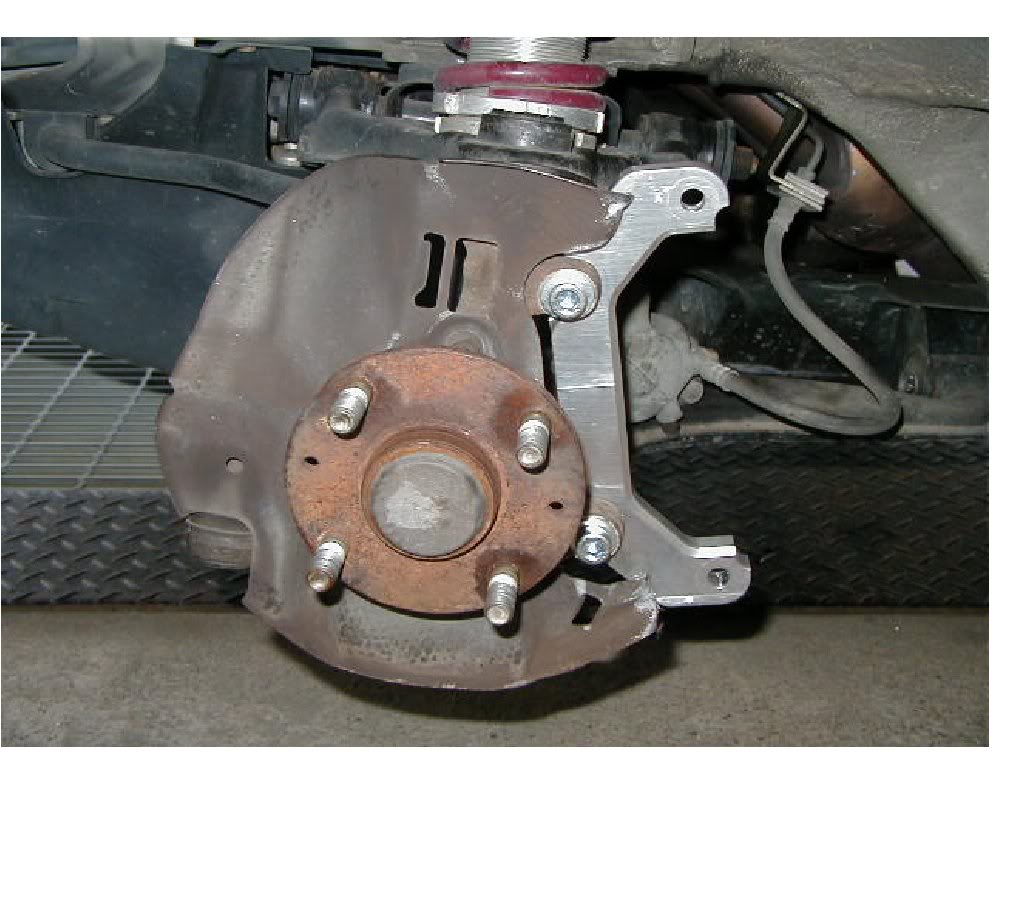

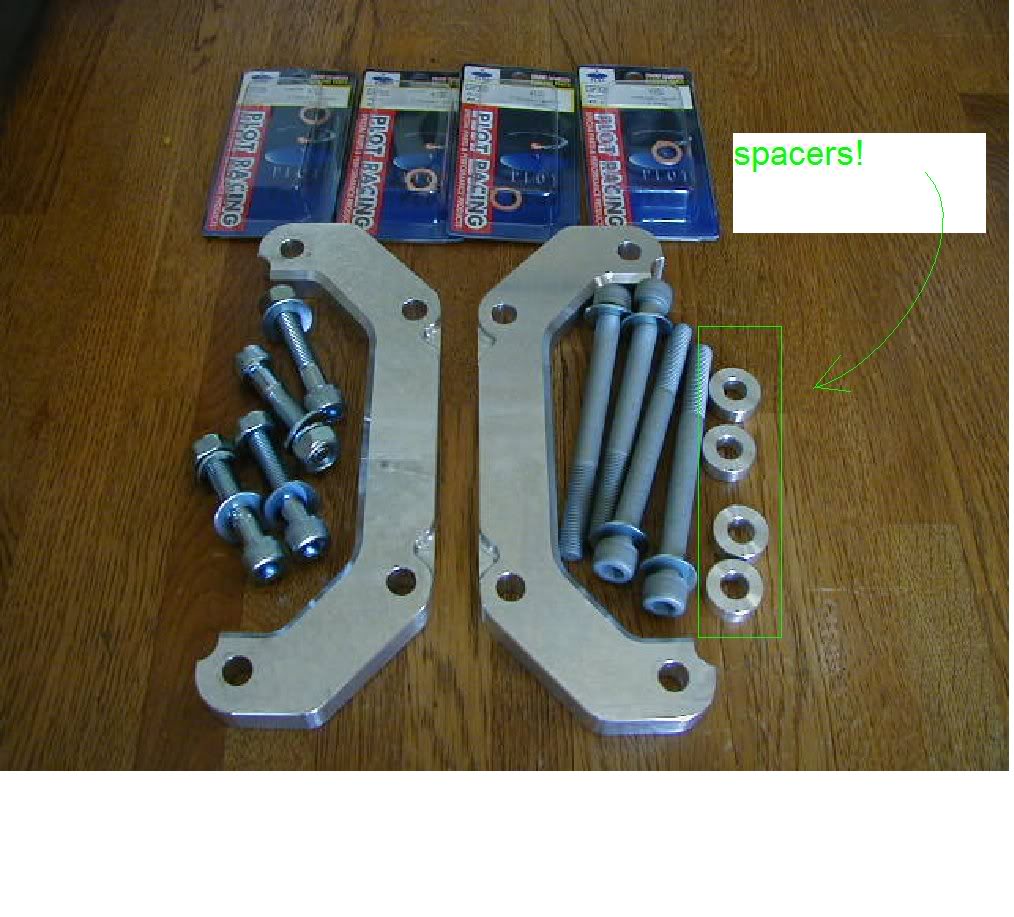

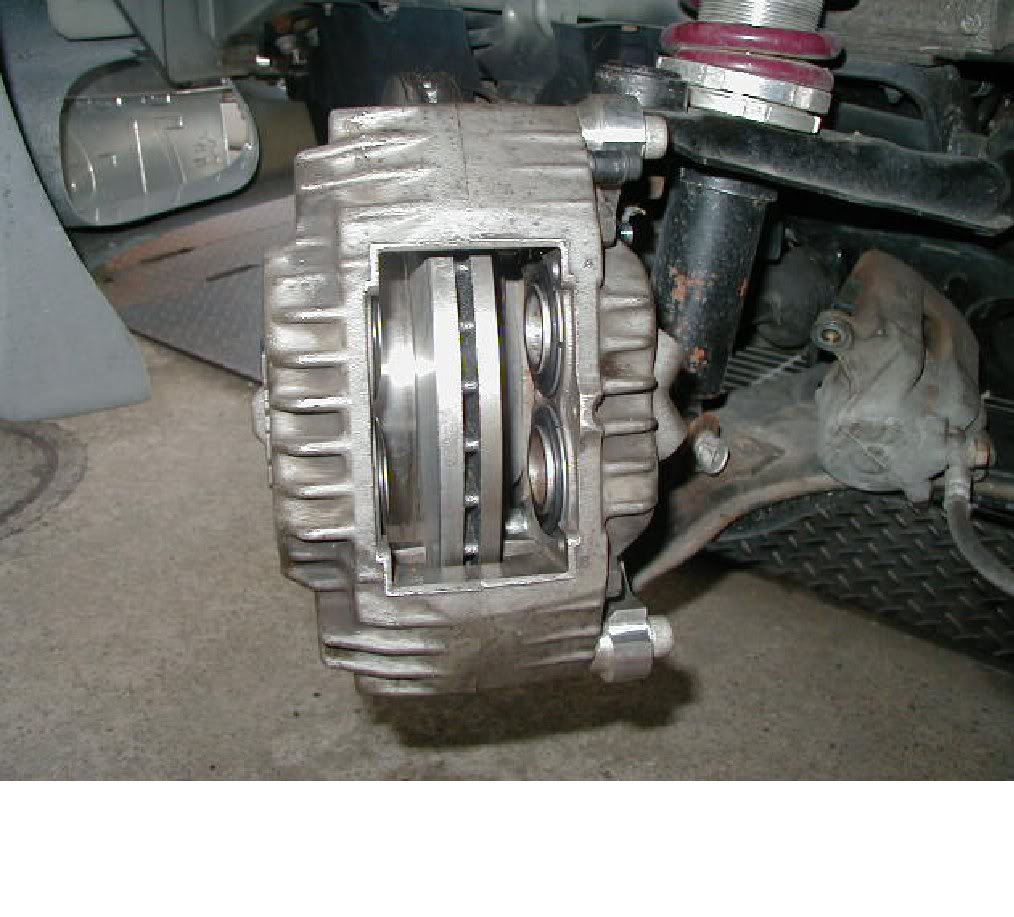

Ok, these aren't my pics, I found them on the net. Anyways, these pics show there is NO OFFSET IN THE BRACKETS!!! It's a piece of flatstock with 4 holes. That's it. This kit used a couple small spacers to get the offset. Basically a thick washer that's the correct thickness for proper offset. The spacer goes between the bracket and the caliper. I have a lathe, I can easily turn these out.

Now I know I can make these cheap. Also I see no reason why these couldn't be aluminum instead. Who wants brackets for 30 instead?


Name:  aabbcccc.jpg
Views: 1
Size:  108.9 KB

Name:  caliperpic.jpg
Views: 1
Size:  118.0 KB

Name:  caliperpic2.jpg
Views: 1
Size:  133.1 KB
patsmx5 is offline   Reply With Quote
Old 04-20-2008, 02:01 AM   #151
Senior Member
iTrader: (7)

Join Date: Jul 2007
Location: Milpitas, CA
Posts: 1,057
Total Cats: 1
Default

those are from that japanese website posted earlier.

if you can make them for 30 bucks, im so down. But i think steel might be a better choice due to the expanding properties of aluminum. These will be under extreme temperatures.
Marc D is offline   Reply With Quote
Old 04-20-2008, 02:05 AM   #152
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 248
Default

Quote:
Originally Posted by badboy88000 View Post
those are from that japanese website posted earlier.

if you can make them for 30 bucks, im so down. But i think steel might be a better choice due to the expanding properties of aluminum. These will be under extreme temperatures.
The calipers are made of aluminum. They'll probably be hotter. I don't see aluminum being a problem myself, though they could be made of steel as well. Steel is cheaper, aluminum is easier to machine.
patsmx5 is offline   Reply With Quote
Old 04-20-2008, 02:12 AM   #153
Senior Member
iTrader: (7)

Join Date: Jul 2007
Location: Milpitas, CA
Posts: 1,057
Total Cats: 1
Default

Quote:
Originally Posted by patsmx5 View Post
The calipers are made of aluminum. They'll probably be hotter. I don't see aluminum being a problem myself, though they could be made of steel as well. Steel is cheaper, aluminum is easier to machine.
i see. are you going to follow what is done on that website?

you need to shave off the mounting points on the brakes themselves and they are suposed to be mounted on the outer bolt holes which hold the calipers together i think. i should tear apart the brakes and rebuild them while im at it.
Marc D is offline   Reply With Quote
Old 04-20-2008, 02:30 AM   #154
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I don't see a reason why these couldn't be laser cut as long as they have it setup right and they don't have warp issues like some laser cutting companies. The flanges could be lasercut and re-flattened or squared. The spacers would be a simple operation as well, there is probably spacers that you can buy to spec off the shelf already even.
cjernigan is offline   Reply With Quote
Old 04-20-2008, 02:32 AM   #155
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Quote:
Originally Posted by badboy88000 View Post
you need to shave off the mounting points on the brakes themselves and they are suposed to be mounted on the outer bolt holes which hold the calipers together i think. i should tear apart the brakes and rebuild them while im at it.
Be careful tearing apart calipers, some companies never made the parts to rebuild their calipers available to the public. If that is the case you're better running them till they have problems then buying remans elsewhere.
Mazdatrix might carry the correct parts or maybe Ben(mazmart) would know more about it.
cjernigan is offline   Reply With Quote
Old 04-20-2008, 02:43 AM   #156
Senior Member
iTrader: (7)

Join Date: Jul 2007
Location: Milpitas, CA
Posts: 1,057
Total Cats: 1
Default

Quote:
Originally Posted by cjernigan View Post
Be careful tearing apart calipers, some companies never made the parts to rebuild their calipers available to the public. If that is the case you're better running them till they have problems then buying remans elsewhere.
Mazdatrix might carry the correct parts or maybe Ben(mazmart) would know more about it.
got it.

one thing i did notice more closely as i read through the website and i finally got through it (google translations have a limit on the understanding of translations sometimes). The guy had problems with his wheels. Reading more, if your wheel mounts FLAT on the hub without any real space (like some sportmax or rotas) you WILL hit. K1's seem to have a large amount of space so you wont have problems if you are using these. you need a spacer to clear it if it mounts flat along with the spokes or wheel

I went further through that website, and it seems they also have a rear kit. I didnt read into the details, but it seems you can also use the rear brakes of an FC, and will bolt on directly without any real fitment problems.

Last edited by Marc D; 04-20-2008 at 06:15 AM.
Marc D is offline   Reply With Quote
Old 04-20-2008, 03:30 AM   #157
Newb

Join Date: Feb 2008
Location: California home of the LOW EMISSIONS!!
Posts: 16
Total Cats: 0
Default

I'm in for both front and rear brackets, (or fronts only if that is all that is made).
MX5Fr34K is offline   Reply With Quote
Old 04-20-2008, 09:22 AM   #158
Junior Member

Join Date: Aug 2007
Location: The Netherlands
Posts: 49
Total Cats: 0
Default

I'm in for a set of brackets.
MX5Kuro is offline   Reply With Quote
Old 04-20-2008, 11:35 AM   #159
Junior Member
iTrader: (3)

Join Date: Jul 2005
Location: AL
Posts: 200
Total Cats: 0
Default

FC rears bolt on with no adapters? I might pick up some at the junkyard and try it. Don't the miata front calipers bolt onto the rear without an adapter as well?


Quote:
Originally Posted by badboy88000 View Post
got it.

one thing i did notice more closely as i read through the website and i finally got through it (google translations have a limit on the understanding of translations sometimes). The guy had problems with his wheels. Reading more, if your wheel mounts FLAT on the hub without any real space (like some sportmax or rotas) you WILL hit. K1's seem to have a large amount of space so you wont have problems if you are using these. you need a spacer to clear it if it mounts flat along with the spokes or wheel

I went further through that website, and it seems they also have a rear kit. I didnt read into the details, but it seems you can also use the rear brakes of an FC, and will bolt on directly without any real fitment problems.
mx5roadster is offline   Reply With Quote
Old 04-20-2008, 05:16 PM   #160
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

The pics are using Miata rotors, we have full intentions to make brackets for the Corrado Rotor, and *maybe* the stock 1.8 non sport rotor. We don't plan on cutting the ears off unless we have to.

I will know more when they start working on it next week.
M-Tuned is offline   Reply With Quote
