Default Boost oscillation- on external gate!

I have a TIAL external wastegate with a 15psi spring inside it.

The gate signal is plugged directly into my compressor housing port.

My boost is oscillating between 6psi and 18psi.

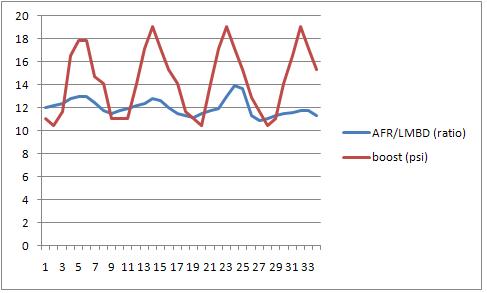

See attached plot:



What do you think would cause this?
Faeflora is offline   Reply With Quote
Old 11-17-2010, 12:00 AM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,163
Total Cats: 2,573
Default

Every car Ive tuned or ridden in with a TiAL had rock solid boost and no issues.
I would start checking your vacuum source/routing.

It sounds (from the many times you keep finding new issues) like you really should take more time with and put more effort into routing everything properly and without leaks.
18psi is offline   Reply With Quote
Old 11-17-2010, 12:03 AM   #3
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Tell us about how you're using a large hose, so large that it will barely grip the barbs.

Are you using a boost controller? (I had this problem)

Are you sure the turbo inlet and outlet are sealed-up tight?

Are all couplers right?

Did you install the spring or open it up?

Are the plugs tight in the gate, and do you have one port open on the top of the gate?
hustler is offline   Reply With Quote
Old 11-17-2010, 12:05 AM   #4
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by 18psi View Post
I would start checking your vacuum source/routing.
Quote:
Originally Posted by faeflora View Post
The gate signal is plugged directly into my compressor housing port.
see ^
Faeflora is offline   Reply With Quote
Old 11-17-2010, 12:08 AM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,163
Total Cats: 2,573
Default

are you positive the spring in there is for 15psi?
does the gate go to atmo or routed back in?
18psi is offline   Reply With Quote
Old 11-17-2010, 12:08 AM   #6
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by hustler View Post
Tell us about how you're using a large hose, so large that it will barely grip the barbs.
This was actually a problem at first- the nice tight fuel injector hose got brittle and started to leak. Put a fresh silicone hose on and still had the same issue though.

Quote:
Originally Posted by hustler View Post
Are you using a boost controller? (I had this problem)
No, directly routed with 1 hose compressor to gate.

Quote:
Originally Posted by hustler View Post
Are you sure the turbo inlet and outlet are sealed-up tight?
Everything should be but I will check it again.

Quote:
Originally Posted by hustler View Post
Are all couplers right?
Everything should be but I will check it again.


Quote:
Originally Posted by hustler View Post
Did you install the spring or open it up?
Yes I installed the spring and yes I opened it up.
Faeflora is offline   Reply With Quote
Old 11-17-2010, 12:08 AM   #7
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by 18psi View Post
are you positive the spring in there is 15psi?
Can't be more than 15psi unless you stack springs. See here. (pdf)

http://www.tialmedia.com/documents/w3_tial_38_sp.pdf
Faeflora is offline   Reply With Quote
Old 11-17-2010, 12:09 AM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,163
Total Cats: 2,573
Default

post a screenshot of the log showing the oscilation
18psi is offline   Reply With Quote
Old 11-17-2010, 12:12 AM   #9
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by faeflora View Post
Yes I installed the spring and yes I opened it up.
Are you absolutely certain you did not pinch the diaphragm, by starting the bolts then checking visually for clearance?

Are you certain the spring is seated in the grooves?

've heard of people twisting the spring (it grips at the housing) and causing problems like this. You should take it apart and inspect the diaphragm.
hustler is offline   Reply With Quote
Old 11-17-2010, 12:18 AM   #10
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

That is what I am thinking too. There's not much else to go wrong.

Unfortunately I think I will have to take off my turbo to do so. sigh
Faeflora is offline   Reply With Quote
Old 11-17-2010, 11:55 AM   #11
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,037
Total Cats: 406
Default

Quote:
Originally Posted by 18psi View Post
post a screenshot of the log showing the oscilation
^^ what he said. you're showing us power oscillation which could be caused by things other than boost oscillation.
y8s is offline   Reply With Quote
Old 11-17-2010, 11:57 AM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

needs more BOOST log.






Braineack is offline   Reply With Quote
Old 11-17-2010, 12:41 PM   #13
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

OK Here's a log when it was doing it's thing.
Attached Files
File Type: csv oscillation log.csv (2.7 KB, 67 views)
Faeflora is offline   Reply With Quote
Old 11-17-2010, 12:47 PM   #14
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Faeflora is offline   Reply With Quote
Old 11-17-2010, 01:14 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

hydra have an over boost? are you setup for spark cut only? I'd look into that...
the first dyno i posted was a car trying to run 14psi with a 12psi overboost.
Braineack is offline   Reply With Quote
Old 11-17-2010, 01:16 PM   #16
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,163
Total Cats: 2,573
Default

won't boost cut stop him from making a complete pull all the way past redline?

or are we talking about some sort of "soft cut" that will dumb down the boost without completely **** blocking him?
18psi is offline   Reply With Quote
Old 11-17-2010, 01:20 PM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

not if you keep on throttle. try it on your MS...stay on it, youll just bounce on/off limiter.
Braineack is offline   Reply With Quote
Old 11-17-2010, 01:56 PM   #18
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by Braineack View Post
hydra have an over boost? are you setup for spark cut only? I'd look into that...

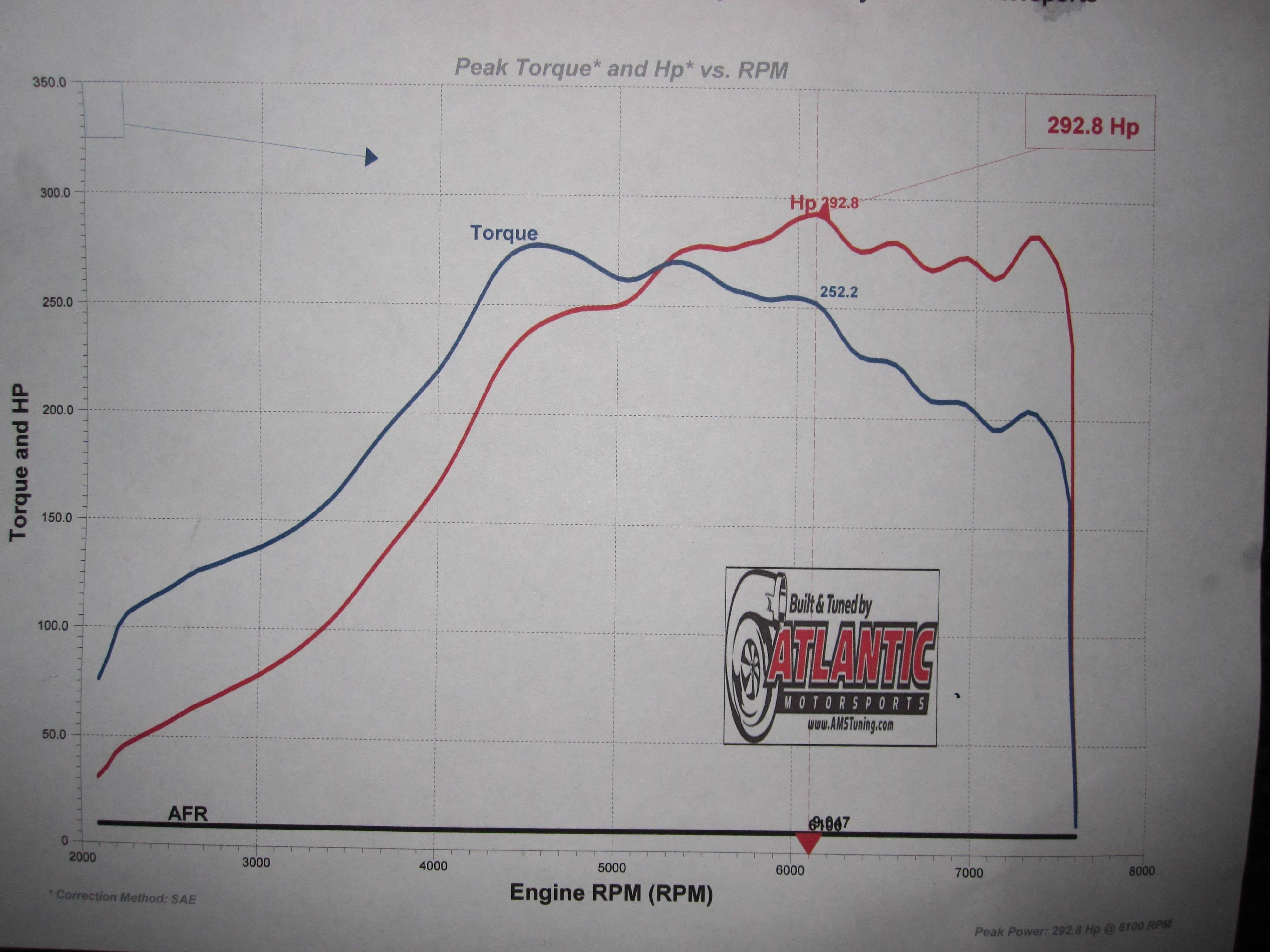

the first dyno i posted was a car trying to run 14psi with a 12psi overboost.
Yes overboost was set to 20psi and it hard cuts fuel for 1/4 of a second. It's very noticeable.

That first dyno chart of yours really does look similar though.
Faeflora is offline   Reply With Quote
Old 11-17-2010, 06:10 PM   #19
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

My new license plate will be:

VOMTCMT

I just went for a drive and my girlfriend datalogged. She was not impressed by my car's unconventional power delivery. Boosted part of log is attached. I am not hitting boost cut.

So it is probably a stupid mechanical issue.
Attached Files
File Type: csv wobble.csv (26.6 KB, 60 views)
Faeflora is offline   Reply With Quote
Old 11-17-2010, 07:15 PM   #20
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Update.

I figured out the problem.



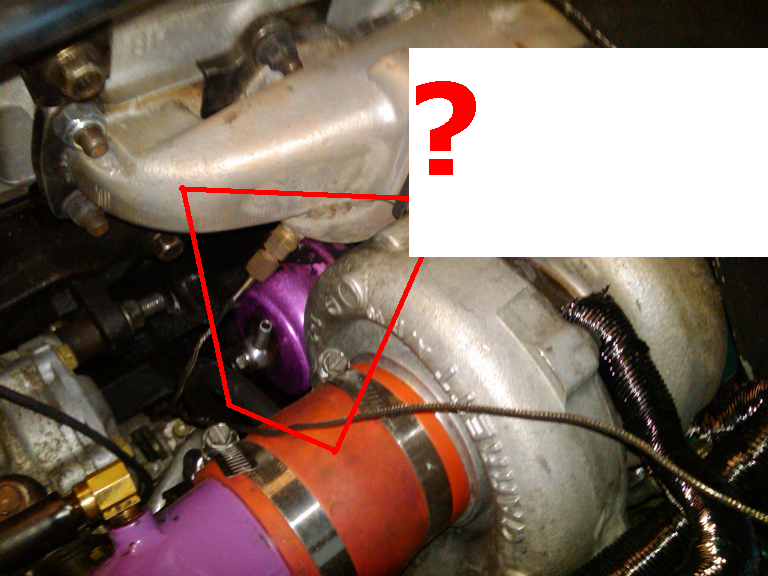

What's wrong with the circled item in this picture? Those of you who have worked with an external gate before should be able to figure it out.

This really is worthy of much facepalm. If I had a sense of shame I would not post this. At least I was not the only one who missed this though. Yesterday all of http://www.amstuning.com/ and element tuning were staring at the thing and did not notice despite them installing hundreds of external gates.
Faeflora is offline   Reply With Quote
