Default Calling all fabricators: Can you make these? (vented triangle windows)

I've really wanted one of these sets for a while now, but cant seem to find any. Doesn't look like they would be that hard to make, but I got no skills with cutting glass or anything like that. Basically looking for the triangle window to be able to open. I know they make a cool breeze scoop for the sides, but that requires taking it off and storing it when its no in use. This way, you could open it up whenever you wanted. Here's pics of stuff from japan:









That's from this site: http://barchetta-x.hp.infoseek.co.jp/retoro.htm

KG Works was also developing a set too, but looks like it never got anywhere: http://www.kgworks.co.jp/4-c-999.html




With my AC taken out of the car, this would be a good solution.

Anyone?
ArtieParty is offline   Reply With Quote
Old 05-18-2010, 10:59 AM   #2
Newb

Join Date: Feb 2009
Posts: 39
Total Cats: 0
Default

im sure i could knock up a design in poly carb.. it'd have to use a slider or acrylic hinges.. but theres a way.
Skuzzle is offline   Reply With Quote
Old 05-18-2010, 11:13 AM   #3
Junior Member

Join Date: Jan 2008
Location: Ashburn, VA
Posts: 444
Total Cats: 0
Default

Similar (almost identical) to the windows we had in our 1968 Chevelle. Nice!
saint_foo is offline   Reply With Quote
Old 05-18-2010, 11:23 AM   #4
Elite Member
iTrader: (8)

Join Date: Jun 2009
Location: Albany, NY
Posts: 1,523
Total Cats: 4
Default

http://advanced-autosports.com/image...Window_2_L.jpg

No, it's not opaque, they just didn't remove the paper protective covering yet. I have one, and love it. The little eyeball vent pops out and in, closes pretty much weather tight, and you can spin it to optimize air flow. It's my air conditioning.
webby459 is offline   Reply With Quote
Old 05-18-2010, 11:25 AM   #5
Senior Member
iTrader: (10)

Join Date: Apr 2007
Location: Ohio
Posts: 800
Total Cats: 3
Default

I'd be all over this. I have them in my '87 4Runner and love them.
soloracer is offline   Reply With Quote
Old 05-18-2010, 12:28 PM   #6
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Longs, SC
Posts: 2,583
Total Cats: 13
Default

There is a thread on m.net where someone mentions these and everyone who responds says they always leak like crazy.
icantthink4155 is offline   Reply With Quote
Old 05-18-2010, 01:05 PM   #7
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Do naca ducts in lexan windows count? They look more baller anyways. Especially when I use blue masking tape and a spray can cap to seal it off in cool weather.
curly is offline   Reply With Quote
Old 05-18-2010, 01:07 PM   #8
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,133
Total Cats: 187
Default

unless they are 'very' well designed, they will leak like a sieve. wing windows make for GREAT airflow though, top up or down.
fooger03 is offline   Reply With Quote
Old 05-18-2010, 01:32 PM   #9
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

someone ship me a pair of the advance autosports vented windows
Oscar is offline   Reply With Quote
Old 05-18-2010, 03:35 PM   #10
Junior Member

Join Date: Jan 2008
Location: Ashburn, VA
Posts: 444
Total Cats: 0
Default

Quote:
Originally Posted by Oscar View Post
someone ship me a pair of the advance autosports vented windows
What's the magic word?
saint_foo is offline   Reply With Quote
Old 05-18-2010, 03:43 PM   #11
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

bitch please?
Oscar is offline   Reply With Quote
Old 05-18-2010, 03:50 PM   #12
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

those are 2 magic words.
18psi is offline   Reply With Quote
Old 05-18-2010, 11:17 PM   #13
Junior Member
iTrader: (3)

Join Date: Mar 2008
Location: Murphy, Tx
Posts: 182
Total Cats: 6
Default

I just bought a set of the advanced autosports vented windows monday. I'll post up some pics when I get 'em installed.
Fidgitk is offline   Reply With Quote
Old 05-18-2010, 11:21 PM   #14
Senior Member
iTrader: (6)

tyson87's Avatar

Join Date: Aug 2008
Location: West Palm Beach, FL
Posts: 1,023
Total Cats: 1
Default

Quote:
Originally Posted by webby459 View Post
http://advanced-autosports.com/image...Window_2_L.jpg

No, it's not opaque, they just didn't remove the paper protective covering yet. I have one, and love it. The little eyeball vent pops out and in, closes pretty much weather tight, and you can spin it to optimize air flow. It's my air conditioning.
i have this x2


i need to sleep, i cant think straight
tyson87 is offline   Reply With Quote
Old 05-18-2010, 11:22 PM   #15
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

levnubhin is offline   Reply With Quote
Old 05-19-2010, 12:12 AM   #16
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

Why not just use a slider type system? As in a perimeter frame of lexan fitting into the stock window spot and then another peice of lexan on sliders that goes back and slightly inward to clear the frame? Use some small clamps for it when in the closed position to press it outward into a seal on the perimieter peice.

Simplicity is beatiful.
Sparetire is offline   Reply With Quote
Old 05-30-2010, 11:58 AM   #17
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Quote:
Originally Posted by Oscar View Post
someone ship me a pair of the advance autosports vented windows

Nvm, just ordered some stuff there.
Oscar is offline   Reply With Quote
Old 05-30-2010, 12:24 PM   #18
Junior Member
iTrader: (3)

Join Date: Mar 2008
Location: Murphy, Tx
Posts: 182
Total Cats: 6
Default

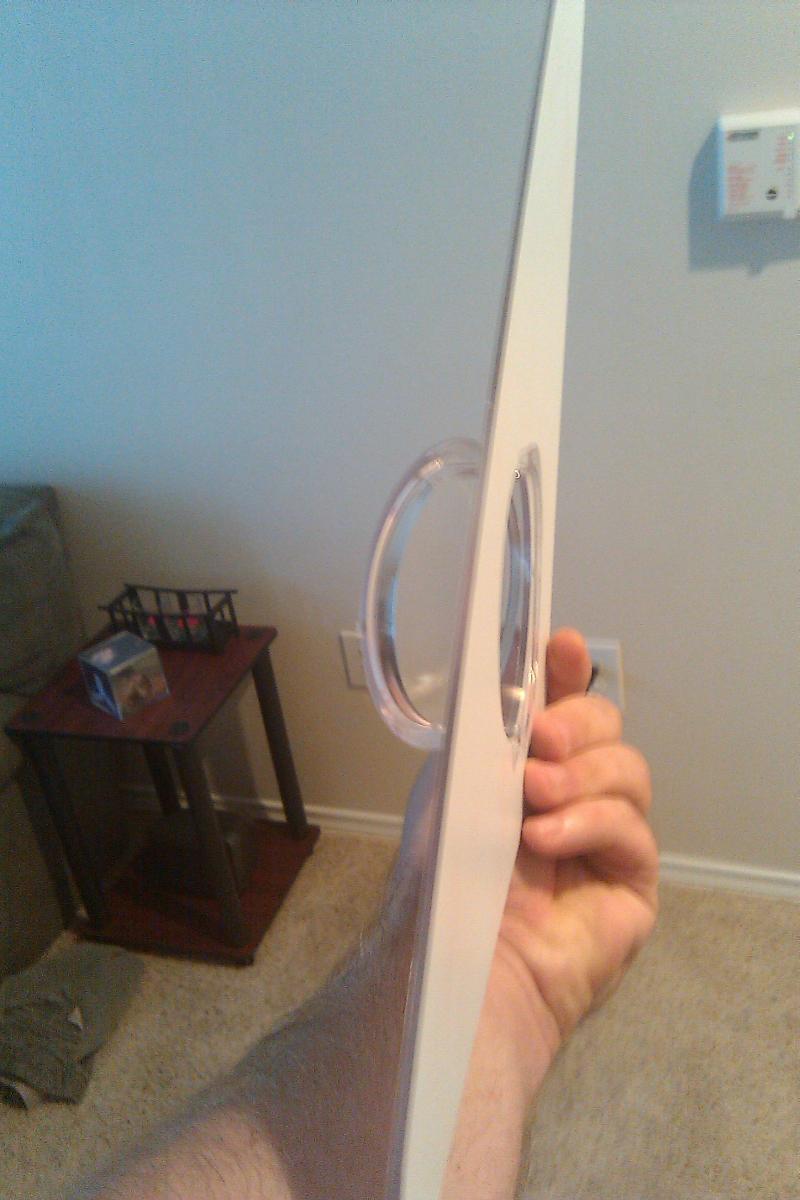

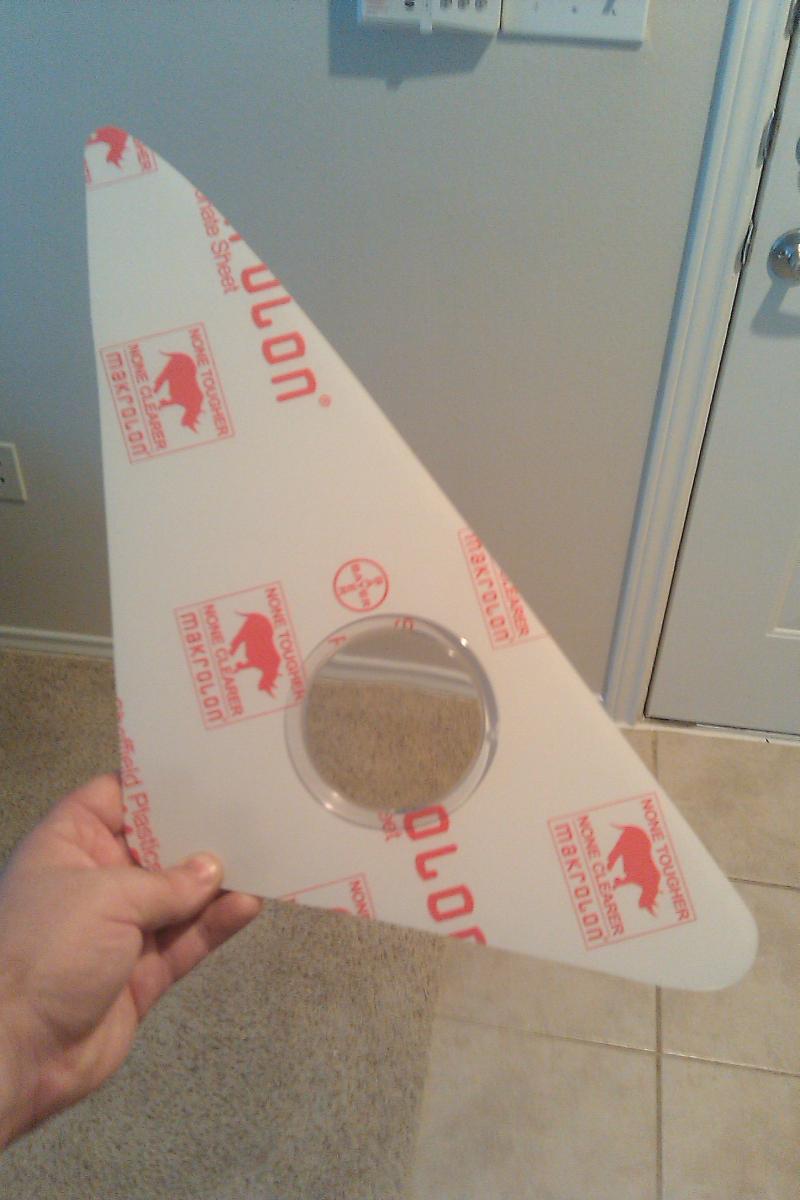

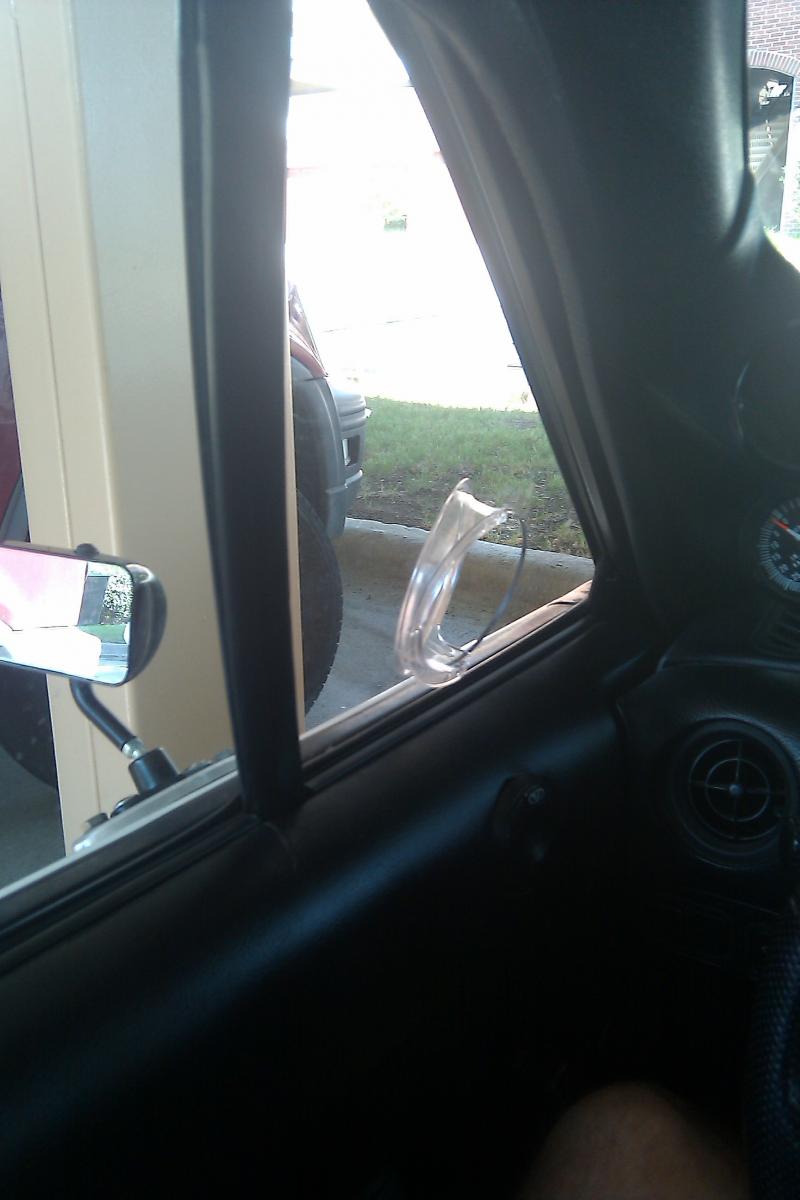

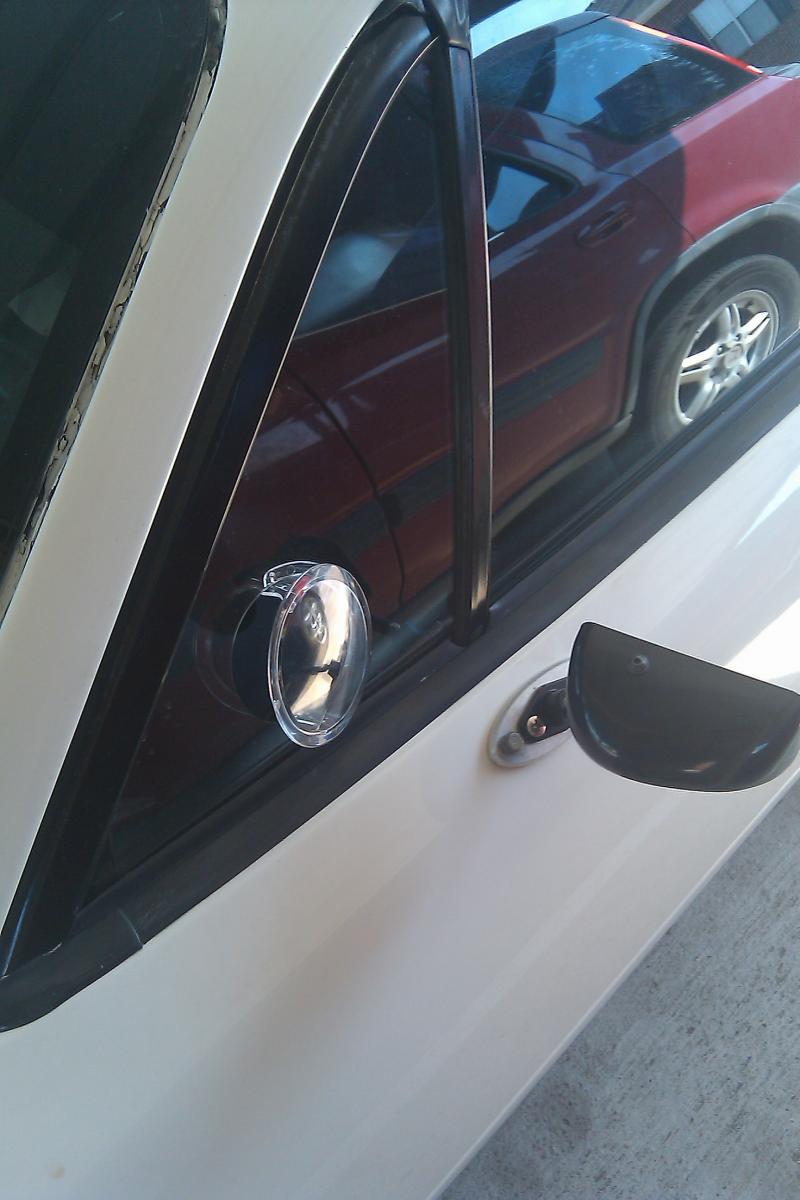

I got one of mine installed already.
It's pretty easy just pull the door panel, pull the window, then pull the window guide rail. Pop the glass window out of the factory seal and replace it with the lexan piece and put it all back together.

A few notes, the plastic is extremely easy to scratch so be very careful to make sure you don't get any grit on it during installation.
I moves a decent amount of air. I've found that if you roll the driver window up and crack the passenger window open about an inch it moves plenty of air to keep you cool unless it's over 90 degrees out.

With both windows down it does add a nice jet of air to the center of your body.

The vent seals really well to, it doesn't whistle or hum when closed and it's been rain proof so far.
Attached Thumbnails
Calling all fabricators: Can you make these? (vented triangle windows)-imag0015.jpg   Calling all fabricators: Can you make these? (vented triangle windows)-imag0016.jpg   Calling all fabricators: Can you make these? (vented triangle windows)-imag0017.jpg   Calling all fabricators: Can you make these? (vented triangle windows)-imag0018.jpg
Fidgitk is offline   Reply With Quote
Old 05-30-2010, 12:34 PM   #19
Newb

Join Date: Feb 2009
Posts: 39
Total Cats: 0
Default

i just started making these and selling them in the uk.
Skuzzle is offline   Reply With Quote
Old 05-30-2010, 12:38 PM   #20
Senior Member
iTrader: (2)

Join Date: Mar 2006
Location: MA
Posts: 885
Total Cats: 2
Default

I'd be very interested in the advance ones if fitment is good. With the hard top on there is just so little airflow in the car...
