Old 03-27-2008, 11:11 AM   #41
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,857
Total Cats: 1,788
Default




3072px wide image.....
Braineack is offline   Reply With Quote
Old 03-27-2008, 11:15 AM   #42
Junior Member
iTrader: (1)

Join Date: Jul 2006
Location: Colorado
Posts: 403
Total Cats: 2
Default

Quote:
Originally Posted by Braineack View Post



3072px wide image.....
I forgetted two things
1) yall got them dang small low rezolution monitors
2) the img tag on this forum won't take a width

so
i resized it for you.
Chris Swearingen is offline   Reply With Quote
Old 03-27-2008, 12:16 PM   #43
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Quote:
Originally Posted by steelrat View Post
I think I'm going to have to find another cover though, to do the drill/tap for the cops.... <G>
Dave,
Before you buy a spare... standby to see how I mount my COPS... planning on not needing to modify it at all.
samnavy is offline   Reply With Quote
Old 03-27-2008, 02:27 PM   #44
Senior Member

steelrat's Avatar

Join Date: Jul 2005
Posts: 514
Total Cats: 0
Default

Sam... what have you got in mind?

Dave,
steelrat is offline   Reply With Quote
Old 03-27-2008, 09:31 PM   #45
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

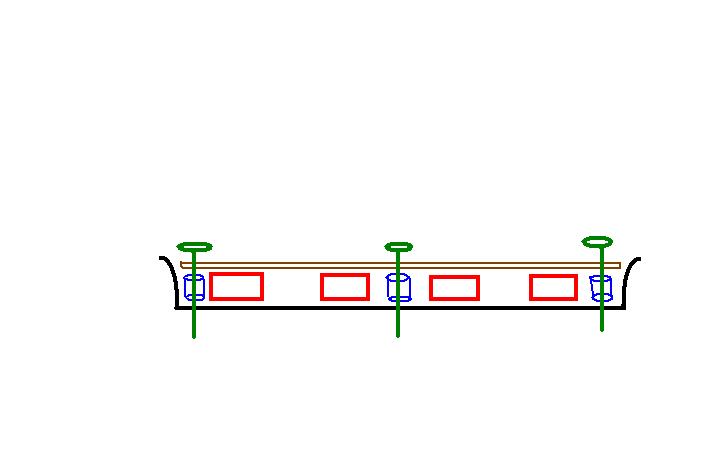

I'm just going to use the 3 stock holes already in the Valve cover... the ones one the end of the #1 and #4 plug, and the one between #2-#3.

There will be a holddown plate that goes on top of the COPS and three spacers. The key is the depth of the bolt/spacer. You want the plate to sit tight on the spacer so that it functions to keep the valve cover tight against the head, but you don't want the plate crushing the COPs.

I'm getting better at paint, but I hope this gets the idea across:
Attached Thumbnails
Cam Cover Spruce Up-cops-plate.jpg
samnavy is offline   Reply With Quote
Old 03-27-2008, 10:44 PM   #46
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

same how I did it kinda. only i used the 01 coil mounting holes.
http://flickr.com/photos/[email protected]/

do yourself a favor and go to the home deep and get some aluminum tubing that fits over the (8mm??) bolts so you can make spacers. it's cheap. you can see it in mine.
y8s is online now   Reply With Quote
