Old 06-19-2009, 08:49 PM   #61
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

My Elise diffuser and mid cover are still sitting waiting to go on. Way more pics of your install are needed badly. I was hoping to get my diffuser on this weekend.

How did you handle the exhaust exit? Pics, Pics, Pics!
cueball1 is offline   Reply With Quote
Old 06-19-2009, 09:15 PM   #62
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,482
Total Cats: 3
Default

how much was that elise diffuser? hows clearance with exhaust?
UrbanSoot is offline   Reply With Quote
Old 06-19-2009, 09:25 PM   #63
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

It would have to be cut for our exhaust or else reroute your exhaust to be center exit like the Elise. I was hoping to see what Pass did with it. I figured on covering the Elise center exit and cutting my own exit out the right side section of the diffuser.

I've seen Elise diffusers go anywhere from $60 to $200 depending on condition, knowledge and desire to sell. I bought my Elise diffuser and a mid body section for $200 combined. The mid body part goes from the rear axle forward another 3' and has several NACA ducts to route air up toward the engine compartment in an Elise. Figured it might help cool the rear diff and smooth things out more in our cars. I'm hoping by combining those two parts with a mushroom shaped splitter I'd see significant underbody smoothing.

Still have to figure what to do about the front tires.
cueball1 is offline   Reply With Quote
Old 06-19-2009, 09:35 PM   #64
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,482
Total Cats: 3
Default

get wider front bumper
UrbanSoot is offline   Reply With Quote
Old 06-20-2009, 02:37 PM   #65
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,866
Total Cats: 493
Default

My current exhaust is one of a race car - it ends just before the diff. No normal exhaust with a full muffler under the trunk would fit. Now that the diffuser is mounted when I get around to it I am going to extend my 3" exhaust piping from where it ends at the diff now to the rear, but pipe only - still no muffler as it's a tight fit, but it will either exit with a slight turn down out of the hole that is in the elise diffuser for the center exit exhaust (I currently have an aluminum sheet riveted over that - you can hardly tell unless you look really close) or I will have it exit straight out the back just above the diffuser... haven't decided.

For those of you that don't frequent clubroadster:

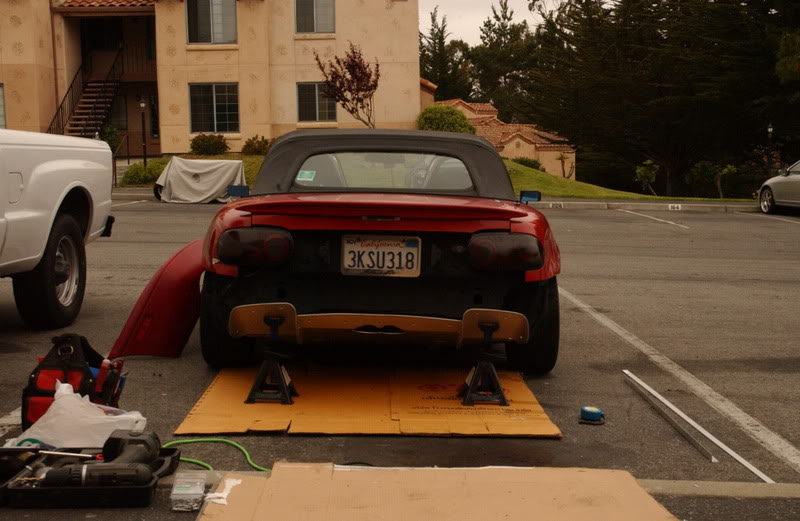

Name:  Mockup.jpg
Views: 46
Size:  111.3 KB

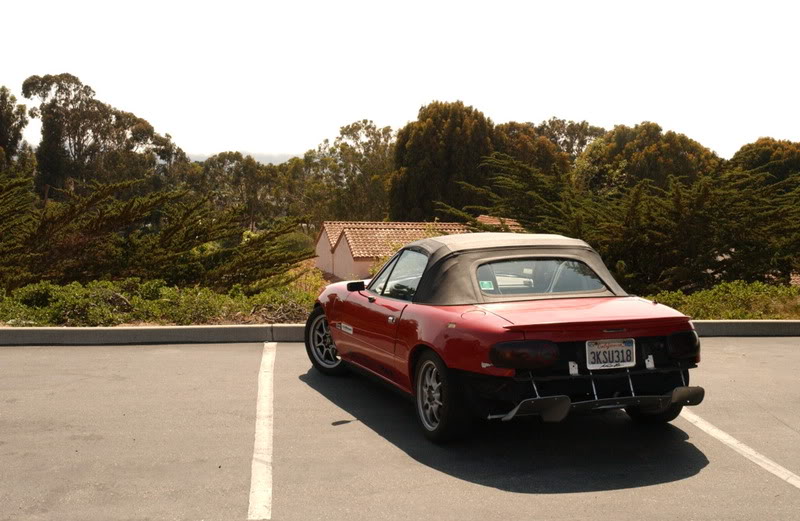

Name:  Mounted.jpg
Views: 44
Size:  123.4 KB

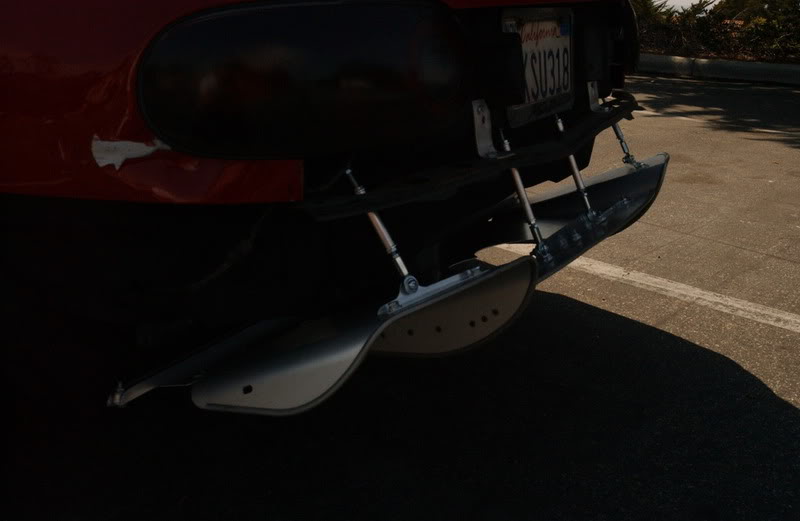

Name:  Bracketscloseup.jpg
Views: 30
Size:  54.1 KB

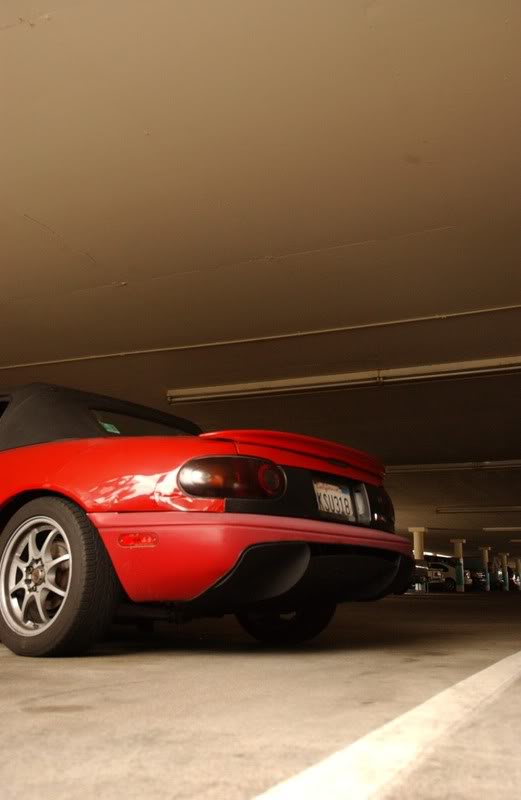

Name:  Finished1.jpg
Views: 27
Size:  56.3 KB

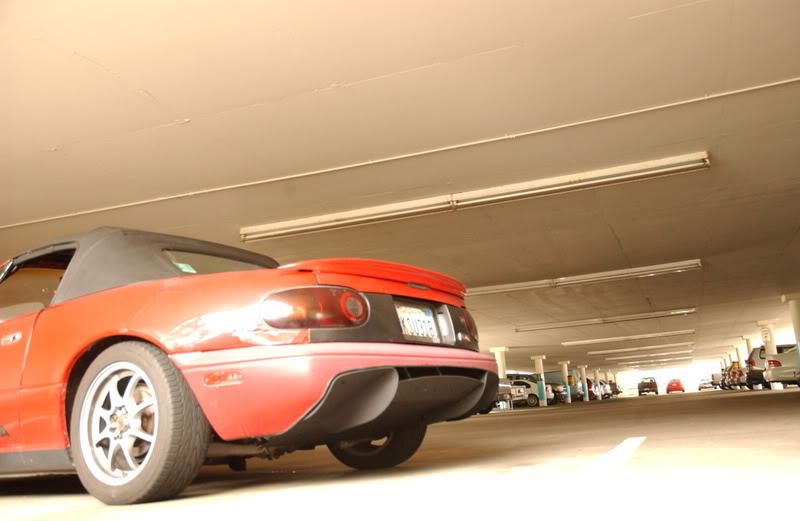

Name:  Finished2.jpg
Views: 29
Size:  77.1 KB
ThePass is offline   Reply With Quote
Old 06-20-2009, 02:54 PM   #66
Senior Member
iTrader: (18)

Join Date: May 2008
Location: Big Bear Ca
Posts: 990
Total Cats: 8
Default

I like that^
dstn2bdoa is offline   Reply With Quote
Old 06-20-2009, 04:55 PM   #67
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

To The Pass: that is the ***** with cheese,very nice work!
Reverend Greg is offline   Reply With Quote
Old 06-22-2009, 02:43 PM   #68
Senior Member
iTrader: (1)

Join Date: May 2008
Location: south texas
Posts: 1,419
Total Cats: 9
Default

looks awesome!
spoolin2bars is offline   Reply With Quote
Old 06-22-2009, 03:02 PM   #69
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

How quick can it come off for servicing the rear diff? I'm glad you installed yours first. Now I know that Elise diffuser looks great on our cars. I was hesitant as I wasn't sure if it'd look queer or tough. Definetely looks tough.

Well done and THANK YOU for the pics!
cueball1 is offline   Reply With Quote
Old 06-22-2009, 03:28 PM   #70
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,039
Total Cats: 407
Default

Quote:
Originally Posted by ThePass View Post
y8s is online now   Reply With Quote
Old 06-22-2009, 05:07 PM   #71
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,866
Total Cats: 493
Default

^hahaha well, all I can say is it looks more appropriate with the race wheels..
ThePass is offline   Reply With Quote
Old 06-23-2009, 03:10 PM   #72
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Pass,

If you haven't and care to you might contribute your diffuser work over at M.net to this thread...

wings and splitters? - MX-5 Miata Forum

Huge ongoing thread about wings, splitters and other aero stuff.

I worked on mine last night. I'm starting with the 2 hour install method instead of the hard core all weekend job you did!

Mine will be more like the one on the V8 car. Attached the front of it to the sub frame bracing with some spacers to keep it from deforming. Pulled the rear lights, finish panel and bumper skin. Notched the corners of the plastic bumper support high enough that the diffuser just contacts the steel crash supports. Test fit the bumper skin. Used a razor knife to cut the bumper skin just where the two outside sections intrude into it. Cut a slot in the end of the diffuser for the exhaust exit. It's not angled as much as Pass's, won't be nearly as cool or hardcore. Certainly a whole lot less work though. Doesn't require as much cutting and since I have few tools, fewer skills and my car is a daily driver I think this will work for me. Compared to the lotus, Pass' is a little more upright, mine's a little less.

Car's dirty as hell. Sunday's track day in central Oregon at ORP requires a 1 mile drive on a gravel road!

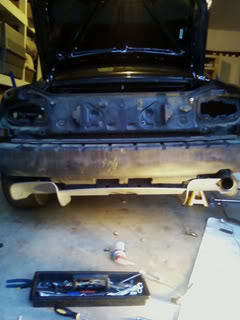

Name:  0622092057a.jpg
Views: 27

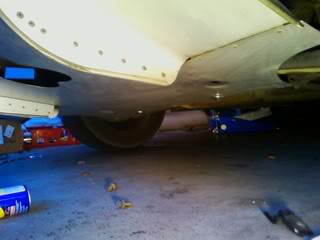

Size:  16.0 KBName:  0622092056.jpg
Views: 28

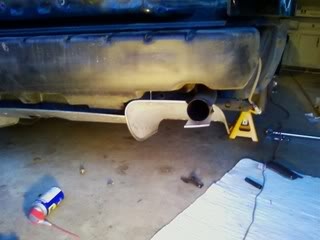

Size:  11.1 KBName:  0622092057.jpg
Views: 27
Size:  13.3 KB

Everything is test fitted and the skin is back on but I have to do proper connections in the rear to support it. The center section of the bumper skin was left uncut so it uses the stock connections. The center of the diffuser fits pretty much flush against the skin. I thought it might look OK left natural but with my black car it stands out WAY to much. Have to paint it black. Took a couple progress pics. Will take a couple more tonight when I finish it up along with the mid body tray.

The way I'm doing this I should be able to remove it in just a couple minutes. If it's not angled up enough I can always go back and cut more out.
cueball1 is offline   Reply With Quote
Old 06-23-2009, 07:44 PM   #73
Senior Member
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

ThePass, is there any noticeable difference at speed?
94mx5red is offline   Reply With Quote
Old 06-28-2009, 04:21 PM   #74
Senior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2008
Location: Macon, Ga
Posts: 826
Total Cats: 0
Default

no offense and it does look great, but it seems as if it would be even more functional if you lower the diffusers to where its more even with the ground and gets cleaner air. and btw cueball, diffusers arent supposed to have much angle but rather leveled with the ground so it could be argued that for a miata yours may work better. Diffusers are adjustable anyways so the pass will probably lower them at the track if he pleases. the elise and exiges are just lower to where the fins will catch air before anything else so thats why they have a slight angle

Last edited by Sam Amporful; 06-28-2009 at 04:40 PM.
Sam Amporful is offline   Reply With Quote
Old 06-28-2009, 11:57 PM   #75
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

wings and splitters? - MX-5 Miata Forum

This thread has a huge amount of information and discussion regarding diffusers. The effectiveness isn't really determined completely by angle. The idea is having a smooth transition from flat moving upward so the air stays stuck to it as long as possible. This helps prevent the swirling and sucking of the air flow behind the vehicle. Smoother air is also faster air, less drag that way also. There really isn't a set angle that is effective.

Of course I'm just regurgitating info from that thread. Much of it contributed by Emilio and the other SoCal track rats.

Yes, I believe the angle of mine is likely to be effective. It transitions smoothly up to the bumper skin. I don't know that Pass' would be any less effective though. As we don't have wind tunnels available it's all a guess. I can say that with just the diffuser in place at cruising speeds it seems I'm seeing slightly more vacuum. That means the motor is working less which tells me the diffuser is doing it's job of reducing drag. Car is also more stable changing lanes with worn pavement on the freeway.

I'll look at some new logs vs. old logs and figure out exactly the difference in MAP pressure/vacuum.
cueball1 is offline   Reply With Quote
Old 06-29-2009, 09:39 PM   #76
Senior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2008
Location: Macon, Ga
Posts: 826
Total Cats: 0
Default

im interested to see/hear your finidings from your logs. keep us updated
Sam Amporful is offline   Reply With Quote
Old 06-29-2009, 09:59 PM   #77
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Holy **** you finished a project. I'm textless.
curly is offline   Reply With Quote
Old 07-10-2009, 09:10 PM   #78
Senior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2008
Location: Macon, Ga
Posts: 826
Total Cats: 0
Default

Installed my HIDs today. No more flipups

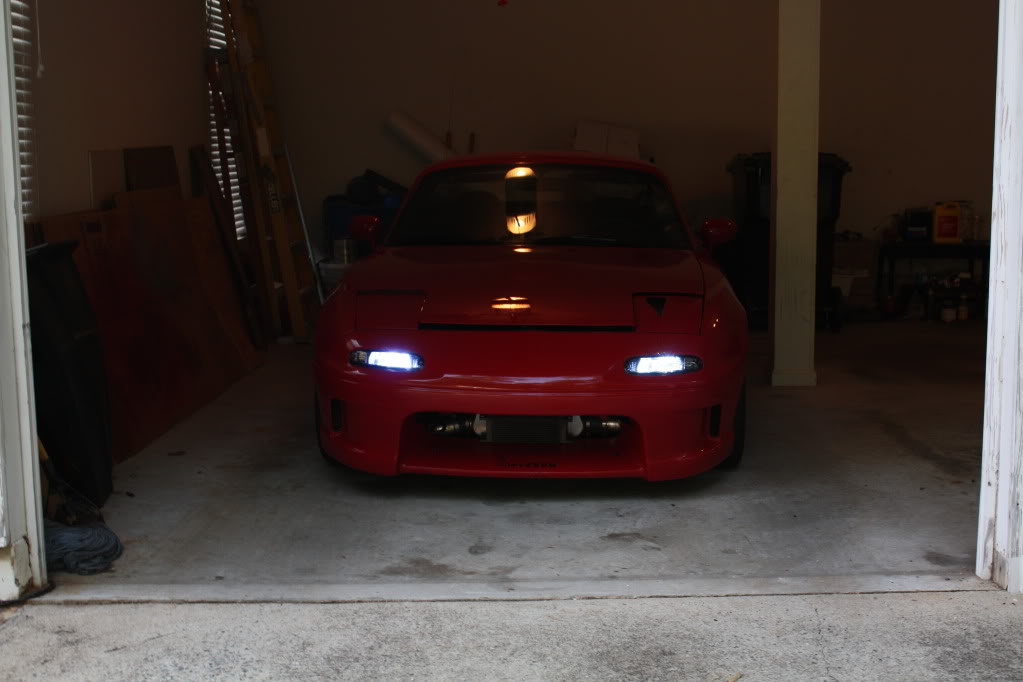

Name:  IMG_4728-Copy.jpg
Views: 27
Size:  81.7 KB

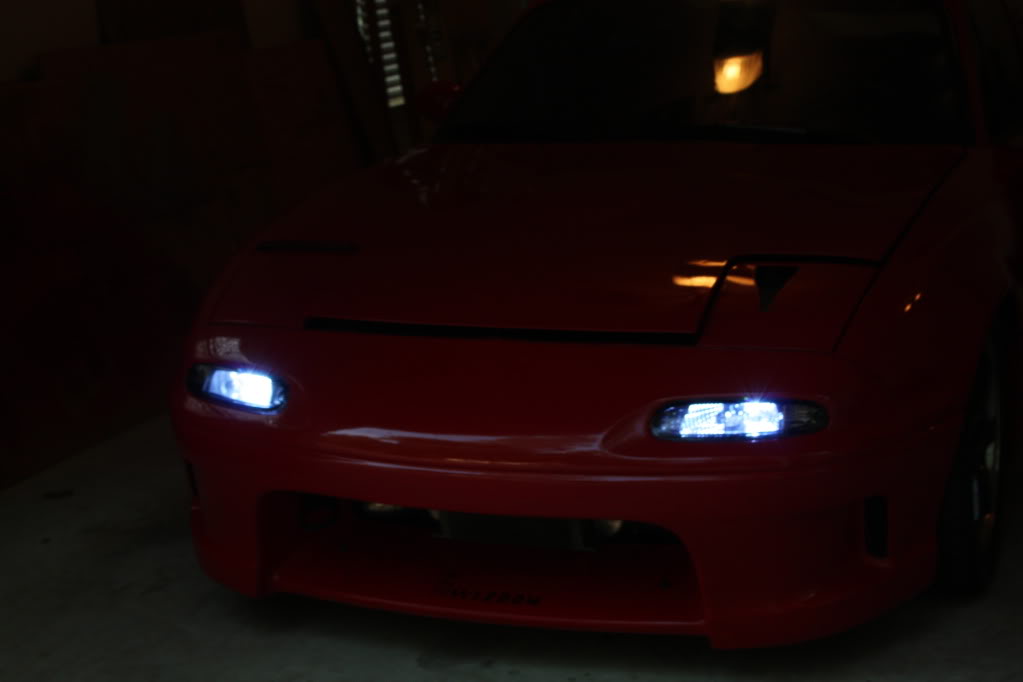

Name:  IMG_4729.jpg
Views: 27
Size:  37.1 KB

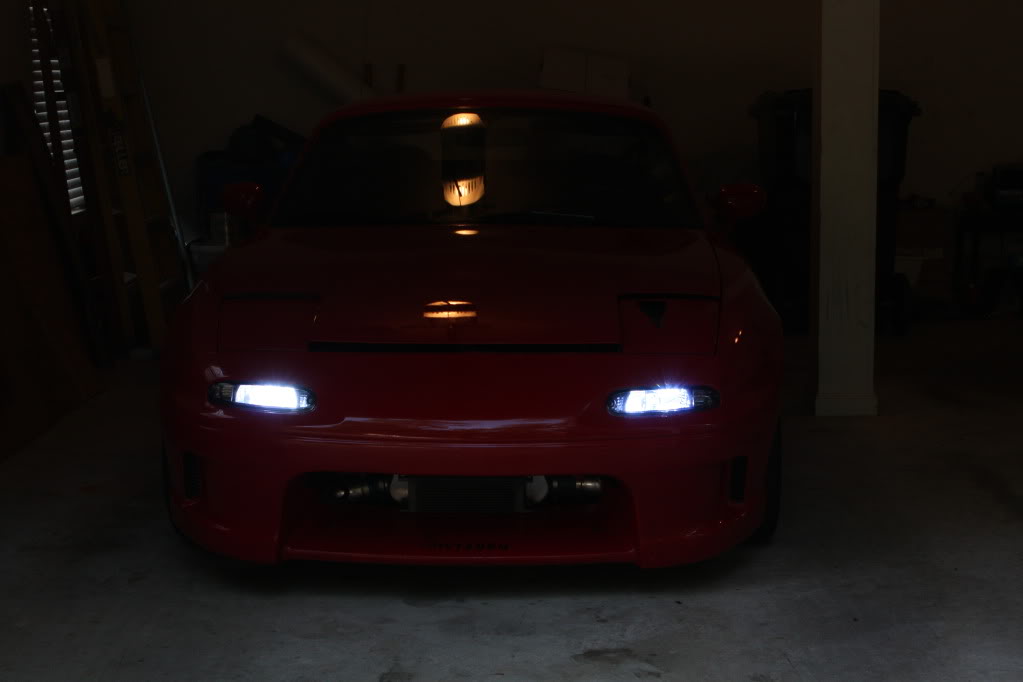

Name:  IMG_4730.jpg
Views: 27
Size:  43.7 KB
Sam Amporful is offline   Reply With Quote
Old 07-10-2009, 09:13 PM   #79
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Looks ******* nice dude, but are they really enough to keep the pop ups down? Either way looks clean and dope
Vashthestampede is offline   Reply With Quote
Old 07-10-2009, 09:20 PM   #80
Senior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2008
Location: Macon, Ga
Posts: 826
Total Cats: 0
Default

Quote:
Originally Posted by Vashthestampede View Post
Looks ******* nice dude, but are they really enough to keep the pop ups down? Either way looks clean and dope
Easily enough. It just got to nighttime here so its time for the real test. I'll be right back
