Old 12-10-2009, 12:37 AM   #161
Junior Member
iTrader: (1)

Join Date: Dec 2008
Location: Silicon Valley
Posts: 160
Total Cats: 0
Default

Quote:
Originally Posted by Sam Amporful View Post
Thanks for this. Apparently this superslow guy thinks APR makes useless parts


This is determined by how it is mounted not its construction....



Oh sure, because you know me well correct? I just really dont see what your deal is. And what exactly is a sensitive thread. If you feed ****, you're gonna get ****. Whats so hard to understand about that
Apparently I never said any of APR products were useless. Expensive, yes. Likely to get damaged, yes.

You absolutely want them to not be too hard to tear off, or you will be spending a whole lot more time putting the new ones back on.

I am getting to know you now. You are sensitive. It is sweet. You do have a pretty car though.
superslow is offline   Reply With Quote
Old 12-10-2009, 12:38 AM   #162
Senior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2008
Location: Macon, Ga
Posts: 826
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
I want a slitter thats weak enough that it can break and not go through heat exchangers.
Not sure if it'll work as well as I intended, but that beatrush undertray that im using will hopefully prove to be strong enough to keep that from happening. It'll be on top of the splitter for the most part, well atleast the parts of it unseen from being covered by the bumper.
Sam Amporful is offline   Reply With Quote
Old 12-10-2009, 01:05 AM   #163
Senior Member
iTrader: (3)

Join Date: Jan 2008
Location: Plano,TX
Posts: 674
Total Cats: 3
Default

Quote:
Originally Posted by superslow View Post
Honestly, I like the development in this thread, as it is really inspiring. Too bad it is such a sensitive thread.

90% is 9 out of 10 splitters not being CF. Not so random. Redline is not really a typical event.

That being said, I am merely pointing out that a CF splitter, while awesome and having positive attributes, is an expensive risk. I have seen guys switch from alumite even to abs and to plywood after getting it all screwed up even partially off track. CF is not as forgiving upon impact either. And honestly, it does not take much to tear it off.

Banning me for stating what I did originally? Wow. Welcome to the interweb, dude. How insecure you are!
Yeah, I usually get more emails with updates to this thread than any other. Sam has done alot with his car and kudos to him for taking pictures and keeping it current.

For a "typical" track day, aero is rarely seen, unless you go to track events in California. That's seems to be where the most examples are seen due to available resources. Aero is typically seen at competitive events, though, whether it's SCCA, NASA or Redline.

I do agree that carbon is an expensive choice when you have cheaper alternatives and an off track excursion is always a possibility.

Sam's car, as you've noticed, has been built very meticulously. I'm not arguing for or against him, i'm just stating the obvious.
johnwag is offline   Reply With Quote
Old 12-11-2009, 02:41 PM   #164
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Quote:
Originally Posted by johnwag View Post
I do agree that carbon is an expensive choice when you have cheaper alternatives and an off track excursion is always a possibility.
I agree with this statement... Most of the time, carbon doesn't hold up well to strong direct impacts with apexes and objects. When it is used in body panels, the chances of this occurance is less likely if the driver knows what he/she is doing. However, using it in underbody applications can be iffy. Hit a pure carbon front splitter on an apex directly and it's gone. Kevlar reinforcement helps with this some, but is not a care-all fix. I plan to use a product from my work as a complete underbody cover. It is an reinforcement fiber that is placed into polypropylene and is pressed into shape. Nascar currently uses this material for the construction of their front splitters. Also, the military uses it as an anti-ballistic material for grenades and small caliber firearms. It does all this will keeping weight low as well... Info can be found here:

About half-way down the page under the Tegris section:
Tegris MindTribe Blog

Company homepage:
Tegris Home Page
thagr81 us is offline   Reply With Quote
Old 12-11-2009, 03:51 PM   #165
Senior Member
iTrader: (1)

Join Date: May 2008
Location: south texas
Posts: 1,419
Total Cats: 9
Default

Quote:
Originally Posted by hustler View Post
I want a slitter thats weak enough that it can break and not go through heat exchangers.
it's called aluminum. it won't break, just bend, and won't go through heat exchanger's.
spoolin2bars is offline   Reply With Quote
Old 12-11-2009, 08:57 PM   #166
Senior Member
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

Quote:
Originally Posted by spoolin2bars View Post
it's called aluminum. it won't break, just bend, and won't go through heat exchanger's.
(How will an aluminum sheet not destroy my aluminum rad or i/c when its slammed into it with considerable force??? you want a material weaker than the one your trying to protect if the splitter breaks, or you want the splitter to break away in peices and not stay together and whipe out all of your nice pricey exchangers.)

I've seen a few aluminum splitters destroy some nice pricey rads. Like already hustler mentioned, plywood is a great material for splitters.
dc2696 is offline   Reply With Quote
Old 12-11-2009, 10:52 PM   #167
Senior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2008
Location: Macon, Ga
Posts: 826
Total Cats: 0
Default

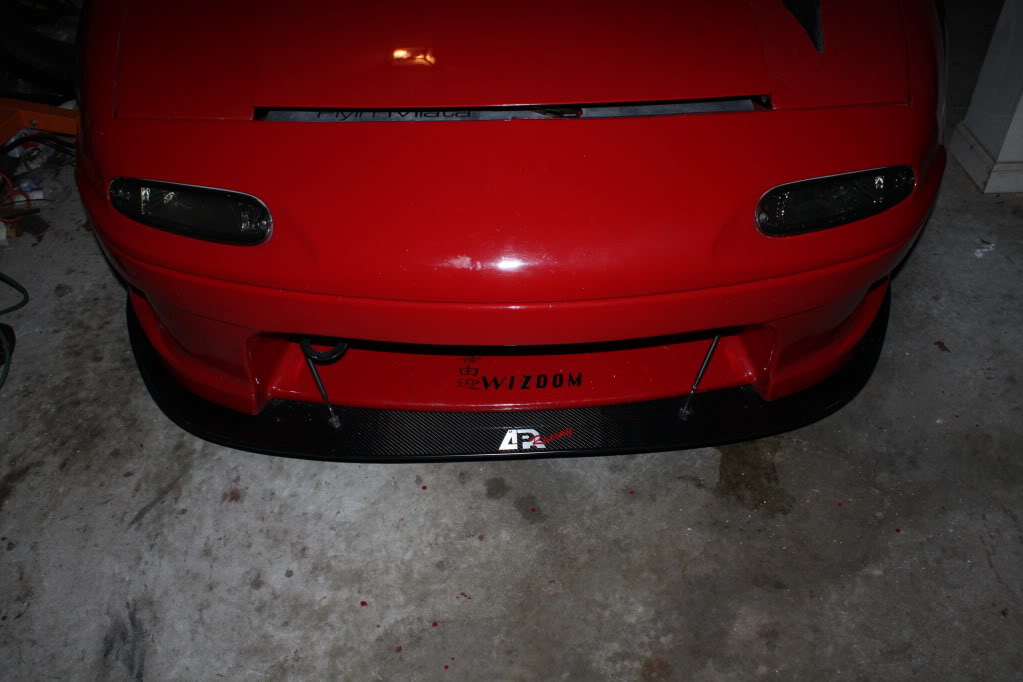

Plywood is great material. That cannot be denied and im aware that one day this CF splitter will shred off the car, but I am prepared to replace it everytime. Its really more of a matter if you're ready to rip it off and put another one on there. But just because there are pricey parts on the car doesnt mean that i'll baby the thing. I guess im just more willing than others. Heres some pics. I just finished mounting it. I'll get better ones tomorrow.



Name:  IMG_4819.jpg
Views: 10
Size:  90.1 KB



Im considering an Rharris hood. If someone is selling any ducted hood from their miata please let me know

Last edited by Sam Amporful; 12-24-2009 at 11:29 AM.
Sam Amporful is offline   Reply With Quote
Old 12-13-2009, 06:06 AM   #168
Newb

Join Date: Dec 2009
Posts: 6
Total Cats: 0
Default

Nice! Looks beautiful and I'm sure it'll makes its presence well known at the track. Having had plenty of offs though, I can't help but wince when I think of the material!

Anyone remember the old Rabbit racers of old? We all riveted on some plastic, vertically, just south of the grill, making a cheap and easily replaceable air dam. Worked beautifully, for aero and wallet alike. Used to see them all over the SCCA courses for years...
Uberwagon is offline   Reply With Quote
Old 06-01-2010, 04:33 PM   #169
Junior Member

Join Date: Aug 2009
Posts: 186
Total Cats: 1
Default

Quote:
Originally Posted by Sam Amporful View Post
Plywood is great material. That cannot be denied and im aware that one day this CF splitter will shred off the car, but I am prepared to replace it everytime. Its really more of a matter if you're ready to rip it off and put another one on there. But just because there are pricey parts on the car doesnt mean that i'll baby the thing. I guess im just more willing than others. Heres some pics. I just finished mounting it. I'll get better ones tomorrow.
Sorry for bringing up an old thread, but I can only send PMs to a certain few due to my post count.

The Wizdom bumper is not completely flat underneath, e.g.,. the area under the opening of the bumper.
Did you do anything about this or did you leave it be?

I am not sure if I want to make a splitter for my Wizdom bumper or my OEM bumper + lip. I like the Wizdom bumper as I won't have to make tire spats.
greeenteeee is offline   Reply With Quote
Old 06-01-2010, 07:26 PM   #170
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

No idea what a Wizdom bumper is exactly but....

Quote:
Originally Posted by hustler View Post
I want a slitter thats weak enough that it can break and not go through heat exchangers.
This.

I love people who get headgaskets capable of handling anything and then blow pistons instead.
Sparetire is offline   Reply With Quote
Old 08-31-2010, 01:55 PM   #171
Senior Member
iTrader: (1)

Join Date: May 2008
Location: south texas
Posts: 1,419
Total Cats: 9
Default

Quote:
Originally Posted by dc2696 View Post
(How will an aluminum sheet not destroy my aluminum rad or i/c when its slammed into it with considerable force??? you want a material weaker than the one your trying to protect if the splitter breaks, or you want the splitter to break away in peices and not stay together and whipe out all of your nice pricey exchangers.)

I've seen a few aluminum splitters destroy some nice pricey rads. Like already hustler mentioned, plywood is a great material for splitters.
i don't know how you guys are making splitters, but mine goes all the way back UNDER the radiator. i went off at VIR during a redline time attack, went over the curbing at a 45* angle. i only have 4 attachment points on my alum. splitter, and i don't know if you guys know this, but aluminum tends to bend, not shatter or splinter into pieces. anyway's the splitter got folded down on the left side. as i drove back to the hot pit, i heard it scraping the ground. not wanting it to break loose and cause an accident, i drove slowly. when i got to the pits i realized the splitter was not loose at all, just bent down, i couldn't bend it back up, so i tried to just stomp it down off the attachment points so i could get back out for another lap. well i'm a big guy 6'1'' 275lbs, and i couldn't get it to budge. point is, i don't know how i could make my alum. splitter go through my intercooler or radiator. maybe if it was just for looks and only was connected to the bumper like a lip then maybe, but mine is installed for performance and goes all the way UNDER, not in FRONT of the heat exchangers. if my splitter hits my radiator, it wouldn't have mattered because i would have destroyed my radiator anyway.

sorry not trying to go offtopic, that apr splitter looks awesome! i just don't have the money to go fast AND be pretty. aluminum only cost me $60 and about $12 on hardware. btw sam, even though my diffuser looks just like yours, i only have 2 allthread supports bolted at the rear tow hooks, and the other 2 at the rearmost chassis brace bolts. you went overboard with your upper mounting bolts. a diffuser doesn't see the same type of forces as a splitter. unless you used too thin a gauge of alum., in which case you probably gained in hardware what you lost in weight of the diffuser.
spoolin2bars is offline   Reply With Quote
Old 09-21-2010, 03:02 AM   #172
Senior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2008
Location: Macon, Ga
Posts: 826
Total Cats: 0
Default

Mine also goes way under the radiator, plus I have a beatrush aluminum undertray that covers everything again up to the transmission. Its not going off topic really. When I snapped on that one guy a while back I was really pissed that day and just not in the mood for criticism lol. Also my diffusers needed extra support since they cover the entire span of my rear bumper and would flop the sideplates in the wind while moving. Its supposed to not even budge. The constant "bottoming out" sparks were cool until i mounted it that way though lol. Reminded me of F1 in the 80s
Sam Amporful is offline   Reply With Quote
Old 12-20-2012, 10:02 PM   #173
Newb

Join Date: Jun 2012
Location: Greenville, SC
Posts: 32
Total Cats: -1
Default

Quote:
Originally Posted by Sam Amporful View Post
i'll finish mounting tomorrow with more pics. If anyone is interested in more of these, i can possibly get more made
Any chance you drew this diffuser up in cad? My dad owns a fab shop so I'd like to get one made for my wizdom rear.
slpstream4 is offline   Reply With Quote
Old 12-20-2012, 10:13 PM   #174
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

GeneSplicer is offline   Reply With Quote
