Old 09-24-2009, 08:26 AM   #121
MT Pony Underground
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

All the sets I've found are just bulbs and ballast, no miata housings.

He did say the housings needed to be modified, so I'd assume he just used the stock ones (since neither of us can find anything else).
Nagase is offline   Reply With Quote
Old 09-24-2009, 09:54 AM   #122
Junior Member
iTrader: (4)

Join Date: Mar 2009
Location: Rockville, MD
Posts: 292
Total Cats: 0
Default

Quote:
Originally Posted by Sam Amporful View Post
They arent stock signal housings. They're clear lens with a black tint backing plate. they also have reflectors to help the lights really shine. Sorry im taking so long to upload pics. I've been drowned in school work. I'll try to get em up as quickly as im able to
sounds like he found ones that were already modified.
DazedandConfused is offline   Reply With Quote
Old 09-24-2009, 09:59 AM   #123
MT Pony Underground
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

Totally, I missed that. Thank you! Um, so along with those pics, could you tell us where you got your housings?
Nagase is offline   Reply With Quote
Old 09-24-2009, 11:28 AM   #124
Senior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2008
Location: Macon, Ga
Posts: 826
Total Cats: 0
Default

post #89
Sam Amporful is offline   Reply With Quote
Old 09-24-2009, 12:09 PM   #125
Junior Member
iTrader: (4)

Join Date: Mar 2009
Location: Rockville, MD
Posts: 292
Total Cats: 0
Default

Quote:
Originally Posted by Sam Amporful View Post
post #89
already tried that but nothing popped up for "miata HID"

just wondered if you knew his ebay store name or anything. maybe the company name that manufactures them
DazedandConfused is offline   Reply With Quote
Old 09-24-2009, 12:13 PM   #126
Newb
iTrader: (2)

Join Date: Apr 2009
Location: Bel Air MD
Posts: 21
Total Cats: 0
Default

Beautiful work guys, I like the clean metalwork in particular, I also wish I had a bender.

Quote:
Originally Posted by Sam Amporful View Post
no offense and it does look great, but it seems as if it would be even more functional if you lower the diffusers to where its more even with the ground and gets cleaner air. and btw cueball, diffusers arent supposed to have much angle but rather leveled with the ground so it could be argued that for a miata yours may work better. Diffusers are adjustable anyways so the pass will probably lower them at the track if he pleases. the elise and exiges are just lower to where the fins will catch air before anything else so thats why they have a slight angle
Not entirely accurate. Diffusers are intended to smooth airflow out the back. They are supposed to be tilted up (start lower in front, exit higher in back) to promote less turbulence behind the car. The fins are to route the air underneath the car straight out the back, instead of letting it leak out the sides, in part promoting a venturi effect to pull the car down against the ground. This obviously has the greatest effect when combined with other aero pieces to make sure that what little air that does get underneath does so in a controlled manner (you want less air under the car, hence lip spoilers, etc, and what does get under the car you don't want leaking in our out across the sides) Wheels typically are the biggest problem.

At any rate, yes, all of this stuff is more effective closer to the ground (not really for cleaner air aspects, but rather less air and less space for it to leak in/out), but the angle of the rear diffuser is quite important, and should be angled up (I forget, I think the ideal is between 20 and 30 degrees from horizontal. Incidentally the reason there is 'ideal' angle (although it is somewhat dependent on the shape of the car) is to join the upper and lower airflows as efficiently as possible, without having the air seperate from the face of the diffuser (if it is too steep). If the angle is too shallow, it does straighten air out the back, but it doesn't help the air up to join in with the stream of air coming down from the top (which results in a dirtier wake behind the car). Practically you typically have to make the diffuser fit as best you can and get as close to the ideals as possible because you already have design constraints from the car that you have to work in (not everyone gets to design F1 cars).

Last edited by elsdragon314; 09-24-2009 at 12:21 PM. Reason: clarify ideal angle
elsdragon314 is offline   Reply With Quote
Old 09-24-2009, 12:17 PM   #127
Senior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2008
Location: Macon, Ga
Posts: 826
Total Cats: 0
Default

The HIDs arent miata specific. I just found a kit with the bulbs, ballasts, and metal clips and used them to connect to the stock miata headlight connectors. Then I integrated them into the turn signal lens. If you constantly drive your car on the street you really shouldnt do this since you will no longer have turn signals. Do this at your own expense. I just thought it would be cool for when racing to have the HIDs on and flash someone in front of me to let em know im there and ready to pass. Im sure they'll find something in the handbook to stop me from doing it, but the lights stay on. Im planning on making a pictoral mounting/install thread for them soon so that shouldnt be too far off.

Last edited by Sam Amporful; 09-24-2009 at 12:55 PM.
Sam Amporful is offline   Reply With Quote
Old 09-24-2009, 12:25 PM   #128
Senior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2008
Location: Macon, Ga
Posts: 826
Total Cats: 0
Default

Quote:
Originally Posted by elsdragon314 View Post
Beautiful work guys, I like the clean metalwork in particular, I also wish I had a bender.



Not entirely accurate. Diffusers are intended to smooth airflow out the back. They are supposed to be tilted up (start lower in front, exit higher in back) to promote less turbulence behind the car. The fins are to route the air underneath the car straight out the back, instead of letting it leak out the sides, in part promoting a venturi effect to pull the car down against the ground. This obviously has the greatest effect when combined with other aero pieces to make sure that what little air that does get underneath does so in a controlled manner (you want less air under the car, hence lip spoilers, etc, and what does get under the car you don't want leaking in our out across the sides) Wheels typically are the biggest problem.


At any rate, yes, all of this stuff is more effective closer to the ground (not really for cleaner air aspects, but rather less air and less space for it to leak in/out), but the angle of the rear diffuser is quite important, and should be angled up (I forget, I think the ideal is between 20 and 30 degrees from horizontal.)
I understand that I wasnt too clear in that post now. I was referring to the fins. They usually should be as close to linear with the ground as you could get em. The actual panel should be angled thus the reason why its usually already made angled with the fins extending toward the floor in a linear fashion. It all depends on the cars stance and angle of attack really

Last edited by Sam Amporful; 09-24-2009 at 12:42 PM.
Sam Amporful is offline   Reply With Quote
Old 09-24-2009, 12:30 PM   #129
Newb
iTrader: (2)

Join Date: Apr 2009
Location: Bel Air MD
Posts: 21
Total Cats: 0
Default

Quote:
Originally Posted by Sam Amporful View Post
The HIDs arent miata specific. I just found a kit with the bulbs, ballasts, and metal clips and used them to connect to the stock miata headlight connectors. Then I integrated them into the turn signal lens. If you constantly drive your car on the street you really shouldnt do this since you will no longer have turn signals, will have poor dispersion of light to see where you are going, and will blind the crap out of everyone else because of complete lack of cutoff. Do this at your own expense. I just thought it would be cool for when racing to have the HIDs on and flash someone in front of me to let em know im there and ready to pass. Im planning on making a pictoral mounting/install thread for them soon so that shouldnt be too far off.

Fixed

some info to read up on if you are interested:
HiDPlanet.com :: Log in

they have a lot of useful resources and knowledge about retrofitting nice projectors in, and the benefits of particular setups.
elsdragon314 is offline   Reply With Quote
Old 09-24-2009, 12:32 PM   #130
Newb
iTrader: (2)

Join Date: Apr 2009
Location: Bel Air MD
Posts: 21
Total Cats: 0
Default

Quote:
Originally Posted by Sam Amporful View Post
I understand that I wasnt too clear in that post now. I was referring to the fins. They usually should be as close to linear with the ground as you could get em. The actual panel should be angled thus the reason why its usually already made to be angled with the fins extending toward the floor in a linear fashion. It all depends on the cars stance and angle of attack really
Ah, yes, ideally the fins should be perpendicular to the ground, but some deviation is acceptable (although often it is for aesthetic purposes).
elsdragon314 is offline   Reply With Quote
Old 09-24-2009, 12:54 PM   #131
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Curious if the big hp silver car experimented with the positioning of those VG's on the roof. Placed at the tail edge of the HT seems the natural position but others have suggested there is more benefit further forward. Just wondering if the positioning was instinct or if some work went into it.
cueball1 is offline   Reply With Quote
Old 09-24-2009, 01:12 PM   #132
Junior Member
iTrader: (4)

Join Date: Mar 2009
Location: Rockville, MD
Posts: 292
Total Cats: 0
Default

Quote:
Originally Posted by Sam Amporful View Post
The HIDs arent miata specific. I just found a kit with the bulbs, ballasts, and metal clips and used them to connect to the stock miata headlight connectors. Then I integrated them into the turn signal lens. If you constantly drive your car on the street you really shouldnt do this since you will no longer have turn signals. Do this at your own expense. I just thought it would be cool for when racing to have the HIDs on and flash someone in front of me to let em know im there and ready to pass. Im sure they'll find something in the handbook to stop me from doing it, but the lights stay on. Im planning on making a pictoral mounting/install thread for them soon so that shouldnt be too far off.
oh, looks like you still have your turn signal corners in there.
reason i am so interested is, because i was thinking about doing this with the jdm rx7 lenses custom fit into my bumper, because i have seen many fd's in japan with this conversion, turn signal and everything.
DazedandConfused is offline   Reply With Quote
Old 09-24-2009, 01:48 PM   #133
Senior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2008
Location: Macon, Ga
Posts: 826
Total Cats: 0
Default

Quote:
Originally Posted by cueball1 View Post
Curious if the big hp silver car experimented with the positioning of those VG's on the roof. Placed at the tail edge of the HT seems the natural position but others have suggested there is more benefit further forward. Just wondering if the positioning was instinct or if some work went into it.
It was most likely instinct on his part. They tested at Roebling the next weekend and the car was no longer unsteady under hard highspeed braking and they could corner with much more confidence so im guessing that its functional where it sits. I would love for them to do actual specific tests with it. I may try to convince him as he too likes running tests to see results.
Sam Amporful is offline   Reply With Quote
Old 09-24-2009, 02:29 PM   #134
Newb
iTrader: (2)

Join Date: Apr 2009
Location: Bel Air MD
Posts: 21
Total Cats: 0
Default

Quote:
Originally Posted by Sam Amporful View Post
It was most likely instinct on his part. They tested at Roebling the next weekend and the car was no longer unsteady under hard highspeed braking and they could corner with much more confidence so im guessing that its functional where it sits. I would love for them to do actual specific tests with it. I may try to convince him as he too likes running tests to see results.
I agree, probably instinct, but based on the theory, it is sensiblelocation.

The overall point is to achieve flow that 'sticks' to the car as much as possible for as long as possible to reduce large scale turbulence at the tail. Laminar flow can't stick to a very steep incline, but small turbulence allows flow to 'stick' to a more agressive slope, and continue a little further until it falls into large scale tumbling of the air. Prior to the actual drop off at the back of the HT, you don't need to worry about it, and you don't want the little bit of tumbling until it is necessary (as it also grows, and causes more drag). That being said, shifting it inches forward might make a difference. Difficult to quantify, probably the best way to see the difference would be taping strings on it to see how far down large scale turbulence occured.

(If you are interested, that is a partial explanation of dimples on a golf ball too, although reynolds number comes into play, so it really depends on how fast the golf ball is moving, of course people can only smack the thing but so hard... I digress)
elsdragon314 is offline   Reply With Quote
Old 09-24-2009, 05:44 PM   #135
MT Pony Underground
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

Where did you get your non-stock housings?
Nagase is offline   Reply With Quote
Old 10-21-2009, 04:51 AM   #136
Senior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2008
Location: Macon, Ga
Posts: 826
Total Cats: 0
Default

I thought these were decent diffuser pics so I decided to post them. Kinda a waste of time but I think they're nice. After a long wait, the splitter had been delivered and the apr wing comes in from 949 on fri.

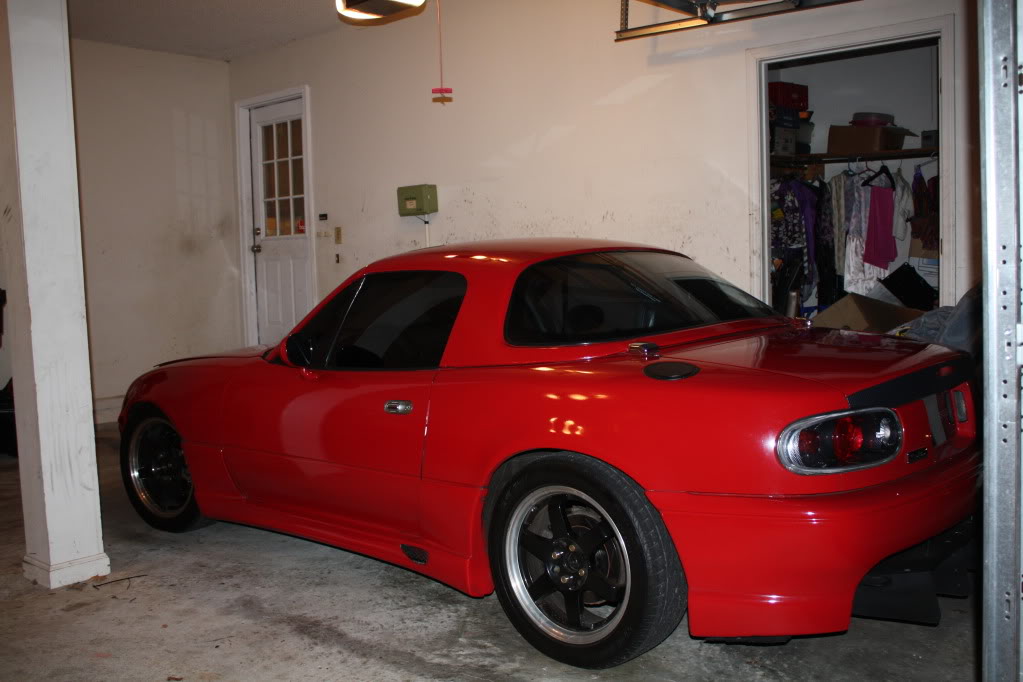

Name:  IMG_4792.jpg
Views: 9
Size:  103.3 KB

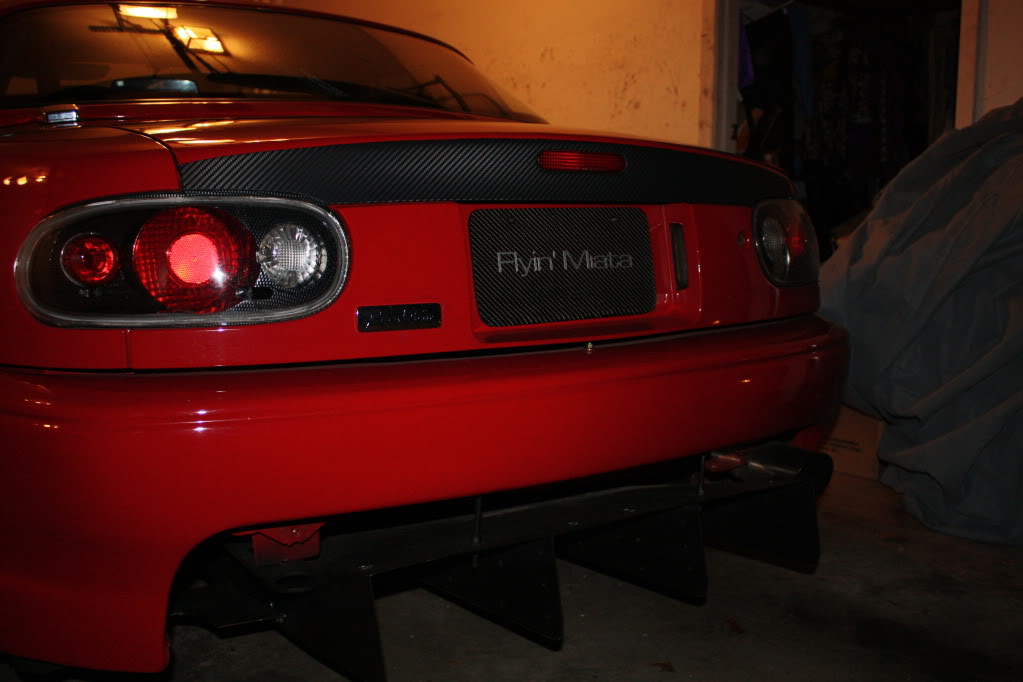

Name:  IMG_4791.jpg
Views: 9
Size:  81.2 KB

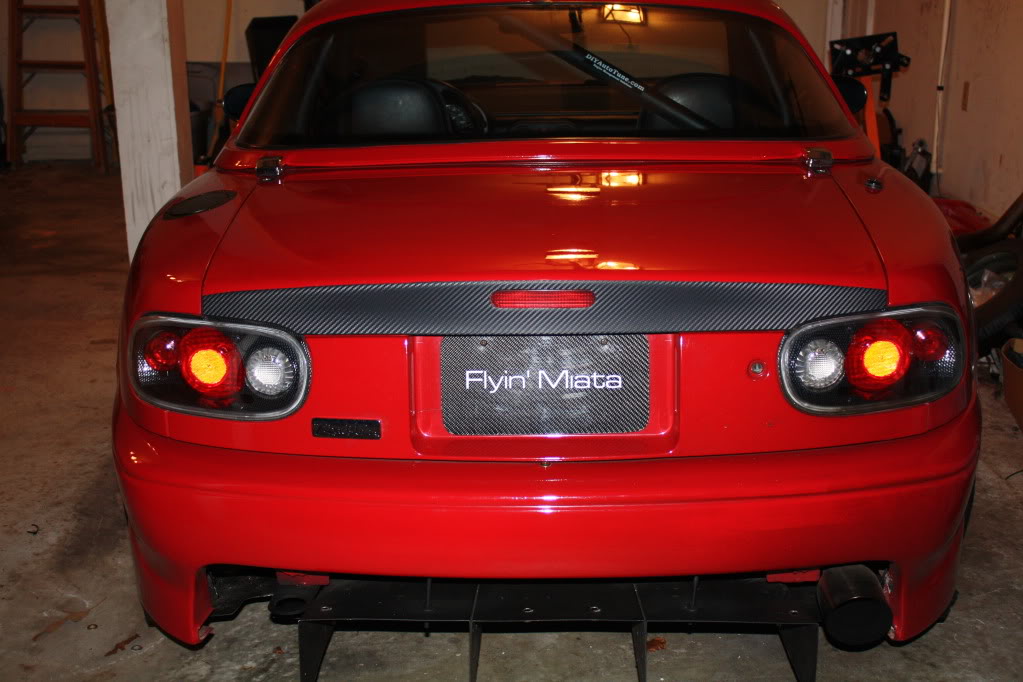

Name:  IMG_4788.jpg
Views: 9
Size:  117.8 KB
Sam Amporful is offline   Reply With Quote
Old 10-31-2009, 06:50 PM   #137
Senior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2008
Location: Macon, Ga
Posts: 826
Total Cats: 0
Default

Pics speak for themselves really. Got the big ricer wing on. Installing splitter as of now

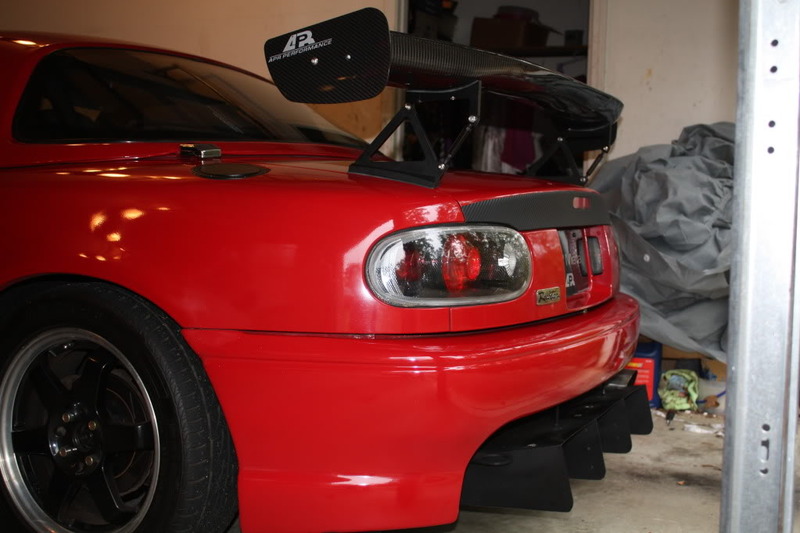

Name:  IMG_4808.jpg
Views: 9
Size:  111.5 KB

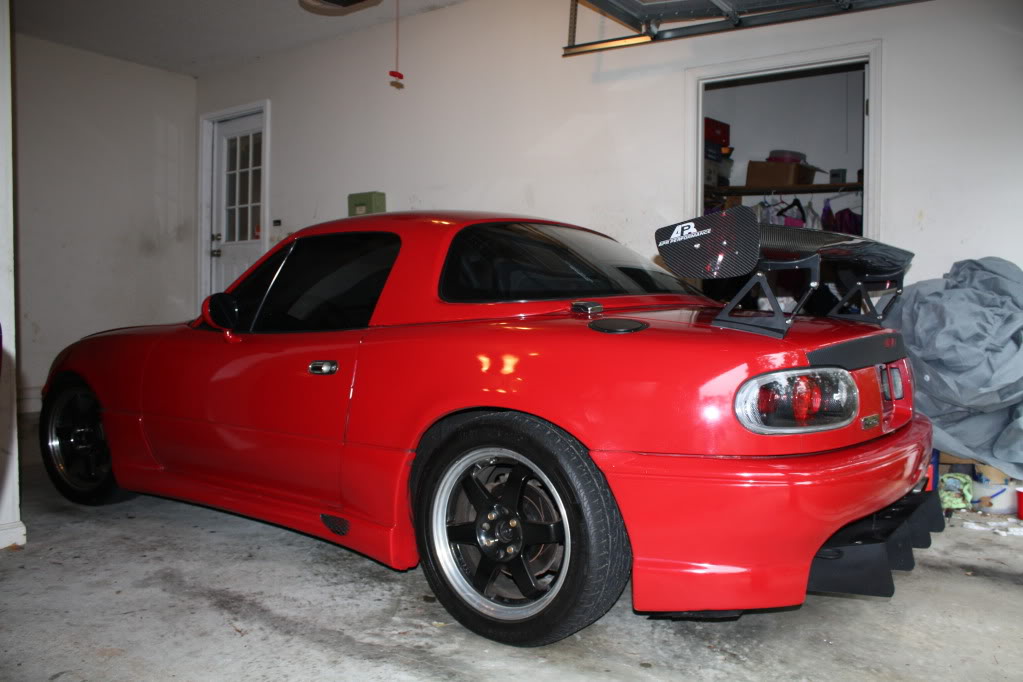

Name:  IMG_4802.jpg
Views: 9
Size:  107.8 KB

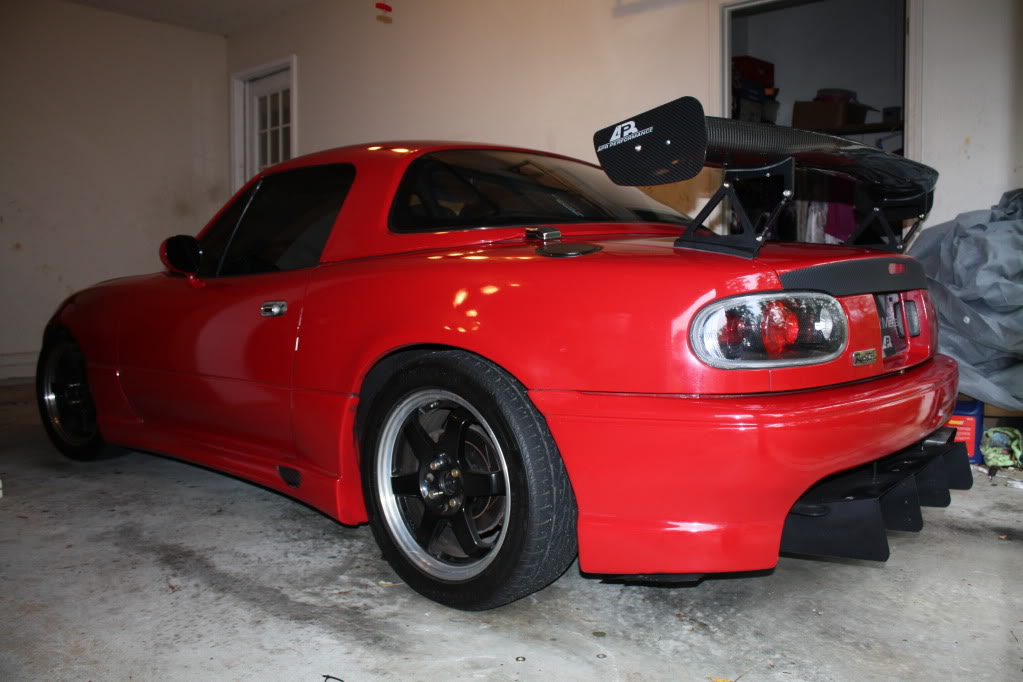

Name:  IMG_4806.jpg
Views: 9
Size:  106.9 KB

Last edited by Sam Amporful; 10-31-2009 at 10:13 PM.
Sam Amporful is offline   Reply With Quote
Old 11-01-2009, 09:20 AM   #138
Junior Member
iTrader: (4)

Join Date: Dec 2007
Location: Springfield, Mass
Posts: 364
Total Cats: 0
Default

Wow that looks great!

Any plans to seal up the rear bumper to the diffuser? It might just be the angle but it looked like there was space on the sides.
seraph is offline   Reply With Quote
Old 11-01-2009, 11:04 AM   #139
Senior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2008
Location: Macon, Ga
Posts: 826
Total Cats: 0
Default

I blame some of it on the angle. Its sealed. The sideplates are alittle longer than they should be and when I cut them to size it wasnt exactly right, and I have them pulled up to far. If I lower it just a little it might fix that. I didnt catch it till now, i'll do that later.
Sam Amporful is offline   Reply With Quote
Old 11-09-2009, 11:17 PM   #140
Senior Member
iTrader: (1)

Join Date: Dec 2008
Location: Manassas, Virginia
Posts: 1,247
Total Cats: 57
Default

bump on HID pics
mx5autoxer is offline   Reply With Quote
